1TB, M.2 PCIe 4.0 x 4, NVMe 1.4, Read: up to 3500 MB/s, Write: up to 2700 MB/s, SmartECC

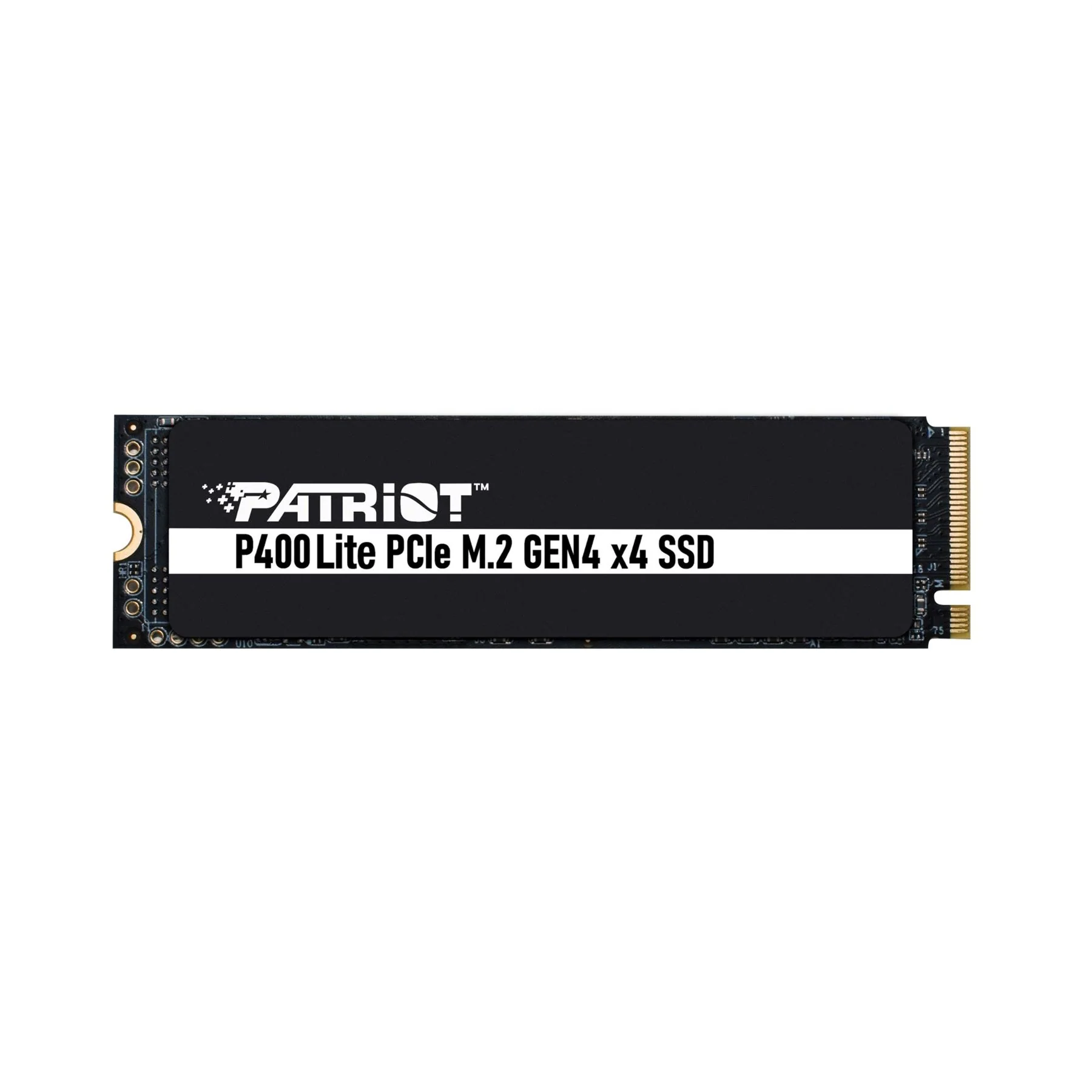

The P400 Lite is the latest in Patriot’s high-speed Gen 4 x4 PCIe M.2 storage solutions. Featuring low power consumption, multi-application uses and highly compatible M.2 2280 specification for easy installation, the P400 Lite offers excellent reliability for all users. With large storage capacities, faster data access, quick transfer speeds and an improved graphene heatshield for temperature dissipation, the P400 Lite offers sharp performance with zero compromise for quality.
| Features |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
| End-to-End Data Protection |
Yes |
| ECC |
Yes |
| S.M.A.R.T. support |
Yes |
| PCI Express interface data lanes |
x4 |
| M.2 SSD size |
2280 (22 x 80 mm) |
| Sequential write speed (CDM) |
2700 MB/s |
| Sequential read speed (CDM) |
3500 MB/s |
| Sequential write speed (ATTO) |
2700 MB/s |
| Sequential read speed (ATTO) |
3500 MB/s |
| Random write (4KB) |
540000 IOPS |
| Random read (4KB) |
340000 IOPS |
| Component for |
PC/Laptop |
| NVMe version |
1.4 |
| NVMe |
Yes |
| Interface |
PCI Express 4.0 |
| SSD capacity |
1 TB |
| SSD form factor |
M.2 |
| Power |
|---|
| Power consumption (idle) |
0.38 W |
| Power consumption (average) |
2.38 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Technical details |
|---|
| Warranty period |
5 year(s) |
| Sustainability compliance |
Yes |
| Sustainability certificates |
BSMI, CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Weight & dimensions |
|---|
| Weight |
9 g |
| Height |
3.8 mm |
| Depth |
80 mm |
| Width |
220 mm |
| Packaging data |
|---|
| Package weight |
20 g |
| Package height |
99.6 mm |
| Package depth |
6.6 mm |
| Package width |
130.8 mm |
