Intel Core i5-1240P, 12C (4P + 8E)/16T, P-core 1.7/4.4GHz, E-core 1.2/3.3GHz, 12MB, 16GB LPDDR5-5200, 256GB SSD M.2 2280 PCIe x4 NVMe Opal2, 14" WUXGA (1920x1200) Low Power IPS 400nits Anti-glare Touch, Intel Iris Xe Graphics, Intel AX211 Wi-Fi 6E 2x2 + BT5.1, IR & FHD 1080p with Privacy Shutter, Windows 11 Pro 64

Engineered to work from anywhere
A 14" 2-in-1 touchscreen laptop, the ThinkPad X1 Yoga Gen 7 delivers features that matter. Enjoy the spectacular Communications Bar that raises the bar on collaboration. Robust security includes Tile® tracking technology—just in case. Plus, high-performance 12th Gen Intel® Core™ vPro processing, on the Intel® Evo™ platform provides super-responsive, on-the-go power.

Performance designed for you
Powered by 12th Gen Intel® Core™ vPro® processors—with up to 14 cores—the ThinkPad X1 Yoga Gen 7 2-in-1 laptop takes multitasking to the next level. These CPUs have a revolutionary design that intelligently allocates workloads to the right thread, on the right core, at the right time—which allows for better video collaboration and productivity based on how you’re actually using your device.

More accommodating than a concierge

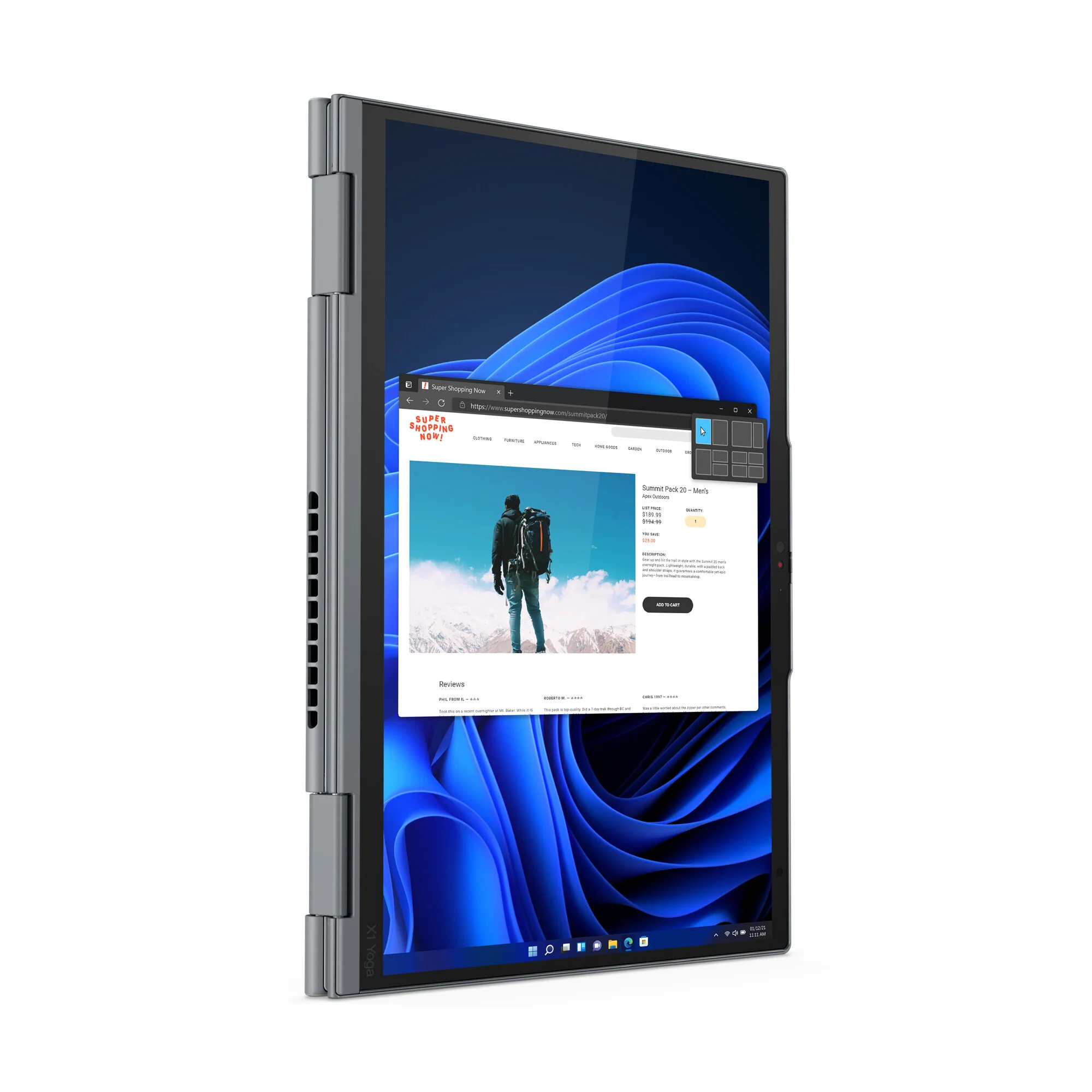

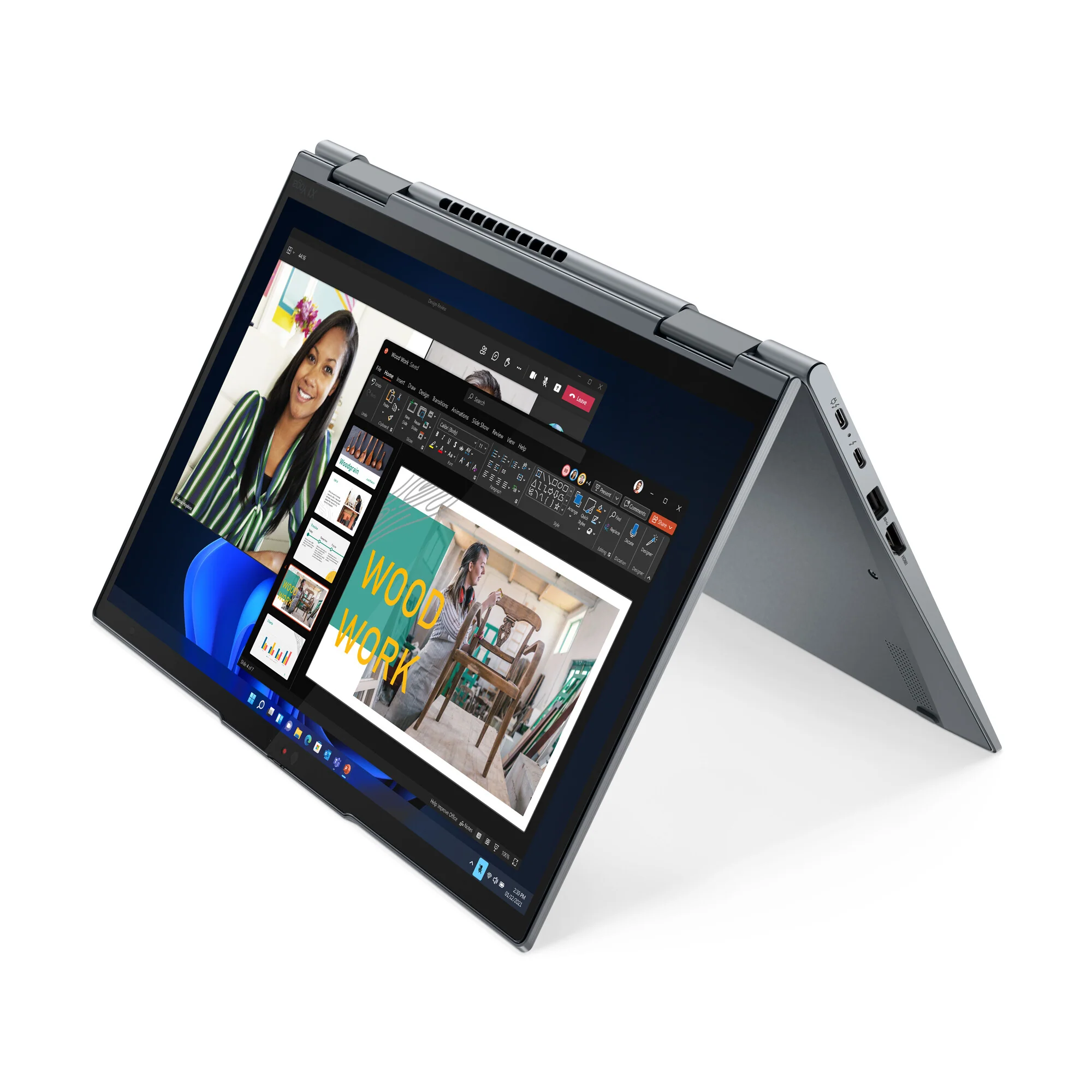

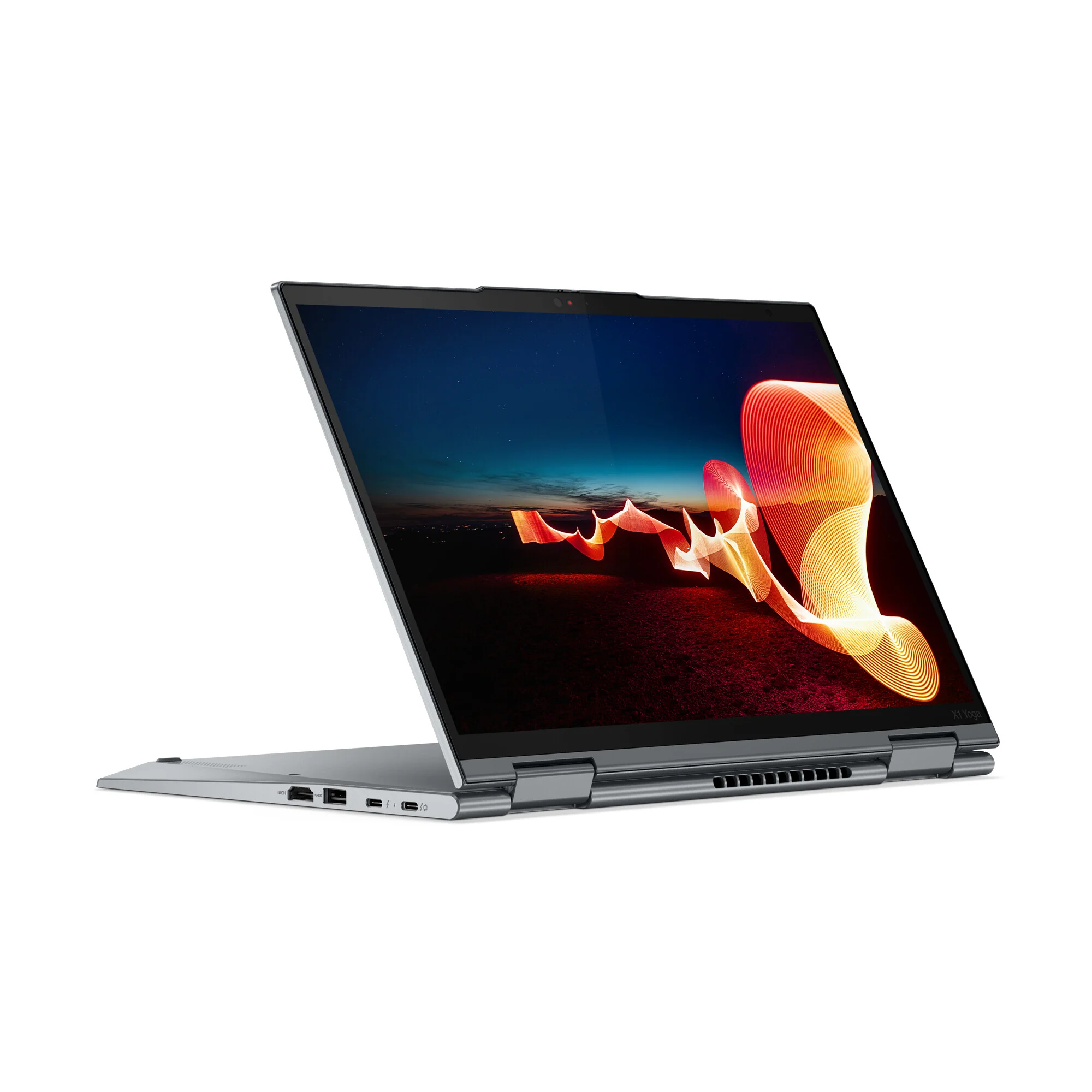

Thanks to its 360-degree hinge, the ThinkPad X1 Yoga Gen 7 convertible laptop quickly switches between laptop, tablet, tent, and stand modes. No matter where your work takes you, we’ve got a mode to accommodate your style. Plus, go from keyboard to ThinkPad Pen Pro in seconds, when you want to sketch, sign documents, or take notes with the fully rechargeable, garaged pen.

Say hello to the Communications Bar
The ThinkPad X1 Yoga Gen 7 2-in-1 laptop boasts a premium experience with its new Communications Bar. The old webcam has been replaced with three FHD resolution options, including those with IR and Computer Vision technology. Four integrated AI-based noise-cancelling mics with Dolby Voice® and four speakers with Dolby Atmos® up the ante on collaboration.

When every pixel matters
Whether vibrant colors are your jam or extra security to keep spying eyes away, the ThinkPad X1 Yoga Gen 7 2-in-1 does not disappoint. Ranging from a 4K WQUXGA OLED displays to WUXGA panels, all 14" screens feature a 16:10 aspect ratio, narrow bezels, multitouch, and low-power usage. Additionally, Eyesafe® certified display options reduce blue-light emissions and eye fatigue.

Dual fans double the cool factor
The underside of the keys on our legendary ThinkPad keyboard have been redesigned for air intake to create better airflow. Combined with dual fans and rear venting, the thermal capabilities on the ThinkPad X1 Yoga Gen 7 keep this convertible laptop cool even when it’s working overtime.

Security tailored to you
Biometrics provide extra security on the ThinkPad X1 Yoga Gen 7 laptop—from the power button integrated with the fingerprint reader that lets you log in and boot up instantaneously, to the facial recognition software that works with the new IR camera. Plus, Computer Vision based presence detection automatically locks your device when you move away. And the optional PrivacyGuard keeps your screen your business.

Never lose track of your device
If you misplace your 2-in-1 laptop, or worse, if someone takes it, locating your PC has never been so easy. Now Tile® ready, the ThinkPad X1 Yoga Gen 7 works with your smartphone to locate your device—even when your X1 is powered off. Simply subscribe to the Tile® service, and then download, set up, and activate.

Tested to withstand the extremes
We use the US Department of Defense's MIL-STD 810H standards to create a balance of reliability and durability for our ThinkPad laptops. We test against 12 standards and more than 200 quality checks to ensure they run in extreme conditions. These tests cover harsh variables like Arctic wilderness and desert dust storms, including temperature, pressure, humidity, vibration, and more.

Design
Housing material	Aluminium
Form factor	Convertible (Folder)
Colour name	Storm Grey
Product colour	Grey
Product type	Hybrid (2-in-1)

Display
Display brightness	400 cd/m²
Anti-glare screen	Yes
LED backlight	Yes
Native aspect ratio	16:10
Panel type	IPS
HD type	WUXGA
Touchscreen type	Capacitive
Touchscreen	Yes
Display resolution	1920 x 1200 pixels
Display diagonal	35.6 cm (14")

Processor
Configurable TDP-down	20 W
Motherboard chipset	Intel SoC
Processor cache	12 MB
Processor cores	12
Processor boost frequency	4.4 GHz
Processor frequency	1.7 GHz
Processor model	i5-1240P
Processor generation	12th gen Intel® Core™ i5
Processor family	Intel® Core™ i5
Processor manufacturer	Intel

Memory
Memory channels	Octa-channel
Maximum internal memory	16 GB
Memory clock speed	5200 MHz
Memory form factor	On-board
Internal memory type	LPDDR5-SDRAM
Internal memory	16 GB

Storage
Card reader integrated	No
Optical drive type	No
SSD form factor	M.2
SSD interface	PCI Express
SSD capacity	256 GB
Number of SSDs installed	1
Total SSDs capacity	256 GB
Storage media	SSD
Total storage capacity	256 GB

Graphics
On-board graphics card model	Intel Iris Xe Graphics
On-board GPU manufacturer	Intel
Discrete graphics card model	Not available
Discrete graphics card	No
On-board graphics card	Yes

Audio
Number of microphones	4
Built-in microphone	Yes
Number of built-in speakers	4
Audio system	Dolby Atmos
Audio chip	Realtek ALC3306

Camera
Privacy type	Privacy shutter
Privacy camera	Yes
Infrared (IR) camera	Yes
Front camera	Yes

Network
WWAN	Installed
Near Field Communication (NFC)	Yes
Bluetooth version	5.2
Bluetooth	Yes
Ethernet LAN	No
WLAN controller model	Intel Wi-Fi 6E AX211
WLAN controller manufacturer	Intel
Antenna type	2x2
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Mobile network connection	No

Ports & interfaces
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Power Delivery	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Combo headphone/mic port	Yes
Headphone outputs	1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
HDMI ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2

Keyboard
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Numeric keypad	No
Keyboard language	English
Keyboard layout	QWERTY
Pointing device	ThinkPad UltraNav

Software
Bundled software	Intel Connectivity Performance Suite
Operating system language	English
Windows 11 free upgrade	No
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro

Processor special features
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Execute Disable Bit	Yes
CPU configuration (max)	1
Embedded options available	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes

Battery
Battery capacity	57 Wh
Battery technology	Lithium Polymer (LiPo)

Power
AC adapter power	65 W

Security
Password protection type	Power on, Supervisor, SSD
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Windows Hello	Yes
Fingerprint reader	Yes
Smart card reader	No
Cable lock slot type	Kensington
Cable lock slot	Yes

Operational conditions
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	8 - 95%
Storage temperature (T-T)	5 - 43 °C
Operating temperature (T-T)	5 - 35 °C

Certificates
Compliance certificates	RoHS

Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, ErP, TCO

Weight & dimensions
Height	15.5 mm
Depth	222.3 mm
Width	314.4 mm
Weight	1.38 kg

General
Product Family	ThinkPad
Product Series	X

Packaging content
Stylus pen	Yes

Logistics data
Harmonized System (HS) code	84713000
