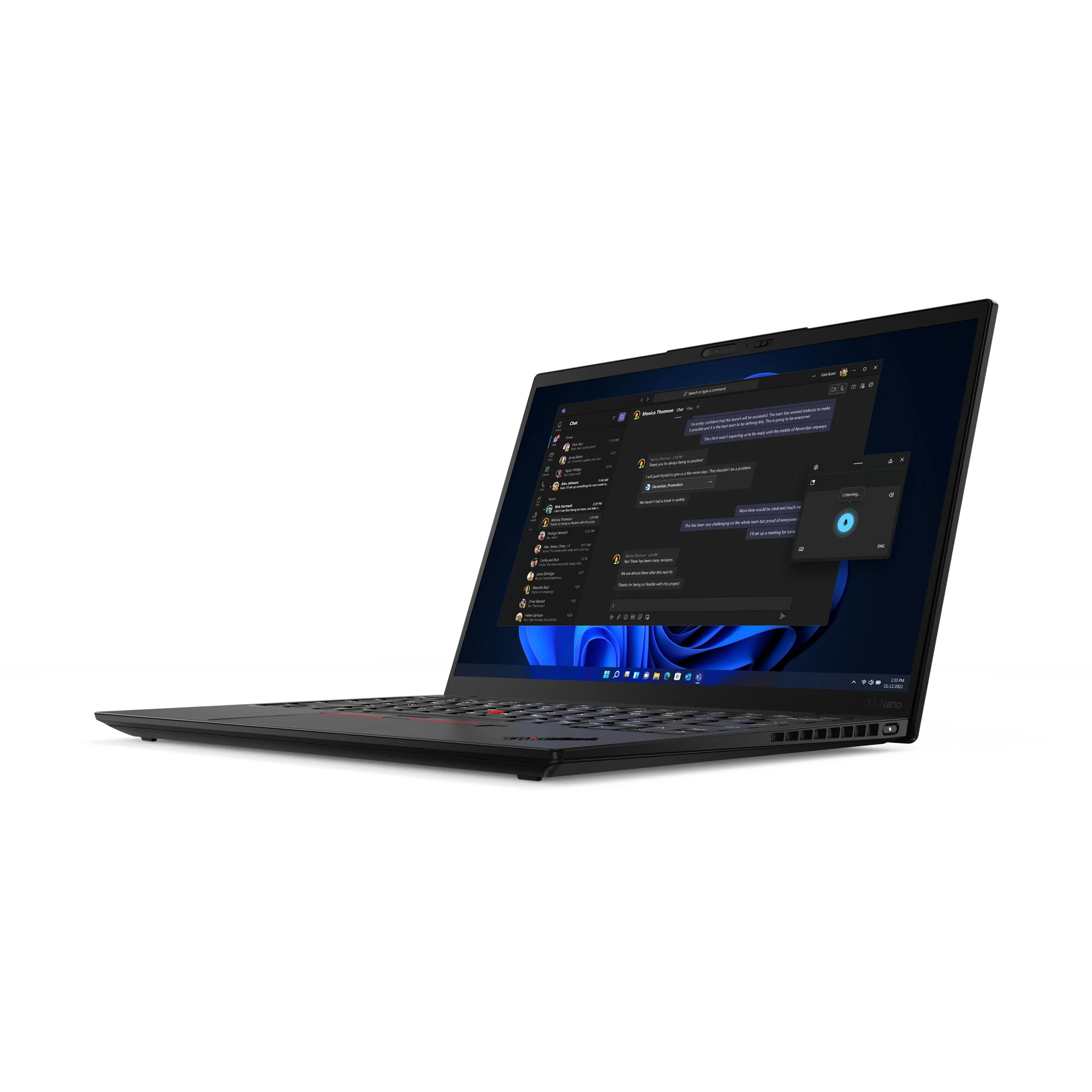

Intel Core i5-1240P, 12C (4P + 8E)/16T, P-core 1.7/4.4GHz, E-core 1.2/3.3GHz, 12MB, 16GB LPDDR5-5200, 256GB SSD M.2 2242 PCIe 4.0x4 NVMe Opal2, 13" 2K (2160x1350) IPS 450nits Anti-glare, Intel Iris Xe Graphics, Intel AX211 Wi-Fi 6E 2x2 + BT5.1, Discrete IR & FHD 1080p MIPI with Privacy Shutter, Computer Vision, Windows 11 Pro 64
Raising the bar for laptops everywhere
Our lightest ever ThinkPad, the ThinkPad X1 Nano Gen 2 weighs from just 970g but packs a punch. With up to 12th Gen Intel® Core™ vPro® processors, it has optional 5G connectivity and comes with advanced biometric and AI-based security, plus smart battery-saving features. Just as impressive is the truly stunning viewing and immersive audio experience it gives you.
Performs like a dream, everywhere
Powered by up to 12th Gen Intel® Core™ i7 vPro® processors and up to 32GB of memory, the ThinkPad X1 Nano zips through everything, effortlessly. Designed with on-the-go performance and responsiveness in mind, this 13" laptop comes with two USB-C Thunderbolt™ 4 ports, so you can enjoy lightning-fast data transfers and the flexibility of multiple hi-res displays.
A sight like no other
With the ThinkPad X1 Nano laptop, the first thing that catches the eye is the sumptuous 13" Dolby Vision™ 2K display. Available with or without a touchscreen option, it delivers larger-than-life views thanks to a 16:10 aspect ratio. And with 100% sRGB, the 2160 x 1350 resolution panel gives you superb clarity and stunning colour accuracy.
A sound like no other
Whether for work or play, the ThinkPad X1 Nano’s Dolby Atmos® Speaker System will take your listening to new heights with its amazing, immersive sound. Dolby Voice®- enabled, it actively suppresses background noise to give you the best audio/video conferencing experience. And with 360-degree, quad-array far-field mics, you’ll be heard loud and clear on every call.
So light, yet full of bright features
The smart, ultraportable the ThinkPad X1 Nano weighs from just 0.97kg/2.14lbs. Yet, thanks to Computer Vision and an FHD MIPI hybrid infrared camera (both optional), it can auto dim the screen when it’s not in use and alert you if someone’s watching over your shoulder. It even has your digital wellness in mind, by reminding you to take regular breaks and avoid poor posture.
Enhanced security, from the inside out
The ThinkPad X1 Nano ThinkShield security features include advanced AI and biometric technology. User-presence sensors will lock your PC when you step away and there’s a privacy shutter to physically close the webcam. Data is encrypted by the discrete Trusted Platform Module (dTPM) and you can log in securely with just your fingerprint.
Tap into the future, from anywhere
Your ThinkPad X1 Nano laptop keeps you in the loop, on the go. The 5G (Sub-6GHz) option offers a smartphone-like experience in an always-connected PC. Super-fast WiFi 6E cuts out any buffering and lagging, even on the busiest public platforms. And with the optional 4G / 5G service, you can stream videos seamlessly and enjoy faster, more secure network access.
Durability is our middle name
Striking the perfect balance of reliability and durability, ThinkPad laptops are tested against 12 military-grade standards and more than 200 quality checks to ensure they run in extreme conditions. From the Arctic wilderness to desert dust storms, these tests cover severe environmental variables including temperature, pressure, dust, humidity, and vibration testing.
| Design |
|---|
| Housing material |
Carbon fibre, Magnesium |
| Form factor |
Clamshell |
| Colour name |
Black, Paint |
| Product colour |
Black |
| Product type |
Laptop |
| Display |
|---|
| Contrast ratio (typical) |
1000:1 |
| RGB colour space |
sRGB |
| Colour gamut |
100% |
| Display brightness |
450 cd/m² |
| Anti-glare screen |
Yes |
| LED backlight |
Yes |
| Native aspect ratio |
16:10 |
| Panel type |
IPS |
| HD type |
2K |
| Touchscreen |
No |
| Display resolution |
2160 x 1350 pixels |
| Display diagonal |
33 cm (13") |
| Processor |
|---|
| Configurable TDP-down |
20 W |
| Motherboard chipset |
Intel SoC |
| Processor cache |
12 MB |
| Processor cores |
12 |
| Processor boost frequency |
4.4 GHz |
| Processor frequency |
1.7 GHz |
| Processor model |
i5-1240P |
| Processor generation |
12th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Maximum internal memory |
16 GB |
| Memory clock speed |
5200 MHz |
| Memory form factor |
On-board |
| Internal memory type |
LPDDR5-SDRAM |
| Internal memory |
16 GB |
| Storage |
|---|
| Card reader integrated |
No |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
NVMe, PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Storage media |
SSD |
| Total storage capacity |
256 GB |
| Graphics |
|---|
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board graphics card family |
Intel Iris Xe Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
|---|
| Number of microphones |
4 |
| Built-in microphone |
Yes |
| Number of built-in speakers |
4 |
| Audio system |
Dolby Atmos |
| Audio chip |
Realtek ALC3306 |
| Camera |
|---|
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Infrared (IR) camera |
Yes |
| Front camera resolution |
1920 x 1080 pixels |
| Front camera HD type |
Full HD |
| Front camera |
Yes |
| Network |
|---|
| WWAN |
Installed |
| Near Field Communication (NFC) |
No |
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| Ethernet LAN |
No |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2x2 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
|---|
| USB Power Delivery |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| Intel® Thunderbolt 4 |
Yes |
| Keyboard |
|---|
| Spill-resistant keyboard |
Yes |
| Keyboard backlit |
Yes |
| Numeric keypad |
No |
| Keyboard language |
UK English |
| Keyboard layout |
QWERTY |
| Pointing device |
ThinkPad UltraNav |
| Software |
|---|
| Bundled software |
Intel Connectivity Performance Suite |
| Operating system language |
English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Processor special features |
|---|
| Intel Flex Memory Access |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Execute Disable Bit |
Yes |
| CPU configuration (max) |
1 |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Battery |
|---|
| Battery capacity |
49.5 Wh |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
|---|
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50 - 60 Hz |
| AC adapter power |
65 W |
| Security |
|---|
| Password protection type |
BIOS, Power on, Supervisor |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Fingerprint reader |
Yes |
| Smart card reader |
No |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
8 - 95% |
| Storage temperature (T-T) |
5 - 43 °C |
| Operating temperature (T-T) |
5 - 35 °C |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, EPEAT Gold, ErP, TCO |
| Weight & dimensions |
|---|
| Height |
14.8 mm |
| Depth |
208.1 mm |
| Width |
293.3 mm |
| Weight |
966.5 g |
| General |
|---|
| Product Family |
ThinkPad |
| Product Series |
X |
| Logistics data |
|---|
| Harmonized System (HS) code |
84713000 |
