Kingston Technology KSM48R40BS8KMM-16HMR memory module 16 GB 1 x 16 GB DDR5 4800 MHz ECC

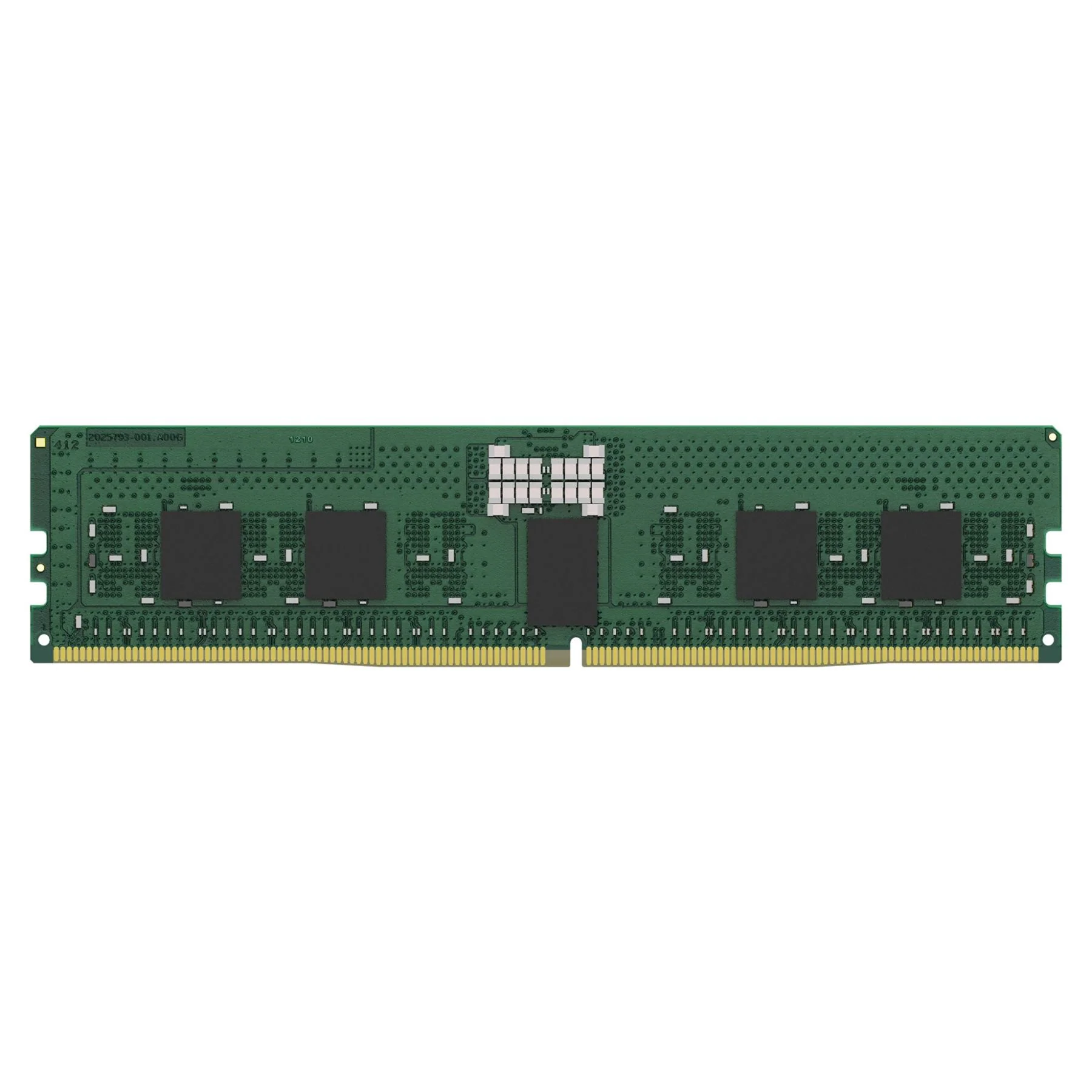

Product image 1

Kingston Technology KSM48R40BS8KMM-16HMR memory module 16 GB 1 x 16 GB DDR5 4800 MHz ECC

16GB DDR5 4800MT/s ECC Registered DIMM CL40 x80 1Rx8 1.1V 288-pin 16Gbit Hynix M Rambus

Kingston's KSM48R40BS8KMM-16HMR is a 2G x 80-bit (16GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on ten 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Features
Lead plating Gold
SPD profile Yes
Module configuration 2048M x 80
Memory voltage 1.1 V
Memory ranking 1
CAS latency 40
On-Die ECC Yes
ECC Yes
Memory form factor 288-pin DIMM
Component for PC/Server
Memory clock speed 4800 MHz
Internal memory type DDR5
Memory layout (modules x size) 1 x 16 GB
Internal memory 16 GB
Buffered memory type Registered (buffered)
Operational conditions
Storage temperature (T-T) -55 - 100 °C
Operating temperature (T-T) 0 - 95 °C
Sustainability
Doesn't contain Halogen
Sustainability certificates RoHS
Weight & dimensions
Height 31.2 mm
Width 133.3 mm
$54.64

Original: $156.12

-65%
Kingston Technology KSM48R40BS8KMM-16HMR memory module 16 GB 1 x 16 GB DDR5 4800 MHz ECC—

$156.12

$54.64

Product Information

Shipping & Returns

Description

16GB DDR5 4800MT/s ECC Registered DIMM CL40 x80 1Rx8 1.1V 288-pin 16Gbit Hynix M Rambus

Kingston's KSM48R40BS8KMM-16HMR is a 2G x 80-bit (16GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on ten 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Features
Lead plating Gold
SPD profile Yes
Module configuration 2048M x 80
Memory voltage 1.1 V
Memory ranking 1
CAS latency 40
On-Die ECC Yes
ECC Yes
Memory form factor 288-pin DIMM
Component for PC/Server
Memory clock speed 4800 MHz
Internal memory type DDR5
Memory layout (modules x size) 1 x 16 GB
Internal memory 16 GB
Buffered memory type Registered (buffered)
Operational conditions
Storage temperature (T-T) -55 - 100 °C
Operating temperature (T-T) 0 - 95 °C
Sustainability
Doesn't contain Halogen
Sustainability certificates RoHS
Weight & dimensions
Height 31.2 mm
Width 133.3 mm
