Seasonic G12 GM - 750W 80+ Gold Semi-Modular Power Supply Unit

Product image 1
1 / 5

Seasonic G12 GM - 750W 80+ Gold Semi-Modular Power Supply Unit

750 W, Intel ATX 12 V, 100 - 240 V, 10 A, 140 x 150 x 86 mm

The G12 GM Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GM-Series achieves 80 PLUS® Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GM series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GM units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).

80 PLUS GOLD
The G12 GC achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.

S2FC - SMART AND SILENT FAN CONTROL
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.

Power
Power protection features Over current, Over voltage, Short circuit
Max output current (+5Vsb) 2.5 A
Max output current (-12V) 0.3 A
Max output current (+5V) 20 A
Max output current (+12V) 62 A
Max output current (+3.3V) 20 A
Combined power (+5Vsb) 12.5 W
Combined power (-12V) 3.6 W
Combined power (+5V) 100 W
Combined power (+12V) 744 W
Combined power (+3.3V) 100 W
Input current 10 A
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Total power 750 W
Ports & interfaces
Cabling type Semi-Modular
CPU power cable length 60 cm
CPU power connector (4+4 pin) Yes
PCI Express power cable length 70 cm
PCI Express power connectors (6+2 pin) 2
Peripheral (Molex) power cable length 690 mm
Peripheral (Molex) power connectors (4-pin) 3
Number of SATA power connectors 6
Motherboard power cable length 55 cm
Motherboard power connector 20+4 pin ATX
Performance
Certification cTUVus, TUV, CB, CCC, BSMI, CE, FCC, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Mean time between failures (MTBF) 100000 h
Bearing technology Sleeve
80 PLUS certification 80 PLUS Gold
Power supply unit (PSU) form factor ATX
Purpose PC
Design
On/off switch Yes
Number of fans 1 fan(s)
Fan diameter 12 cm
Cooling type Active
Product colour Black
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Packaging content
Cable tie(s) included Yes

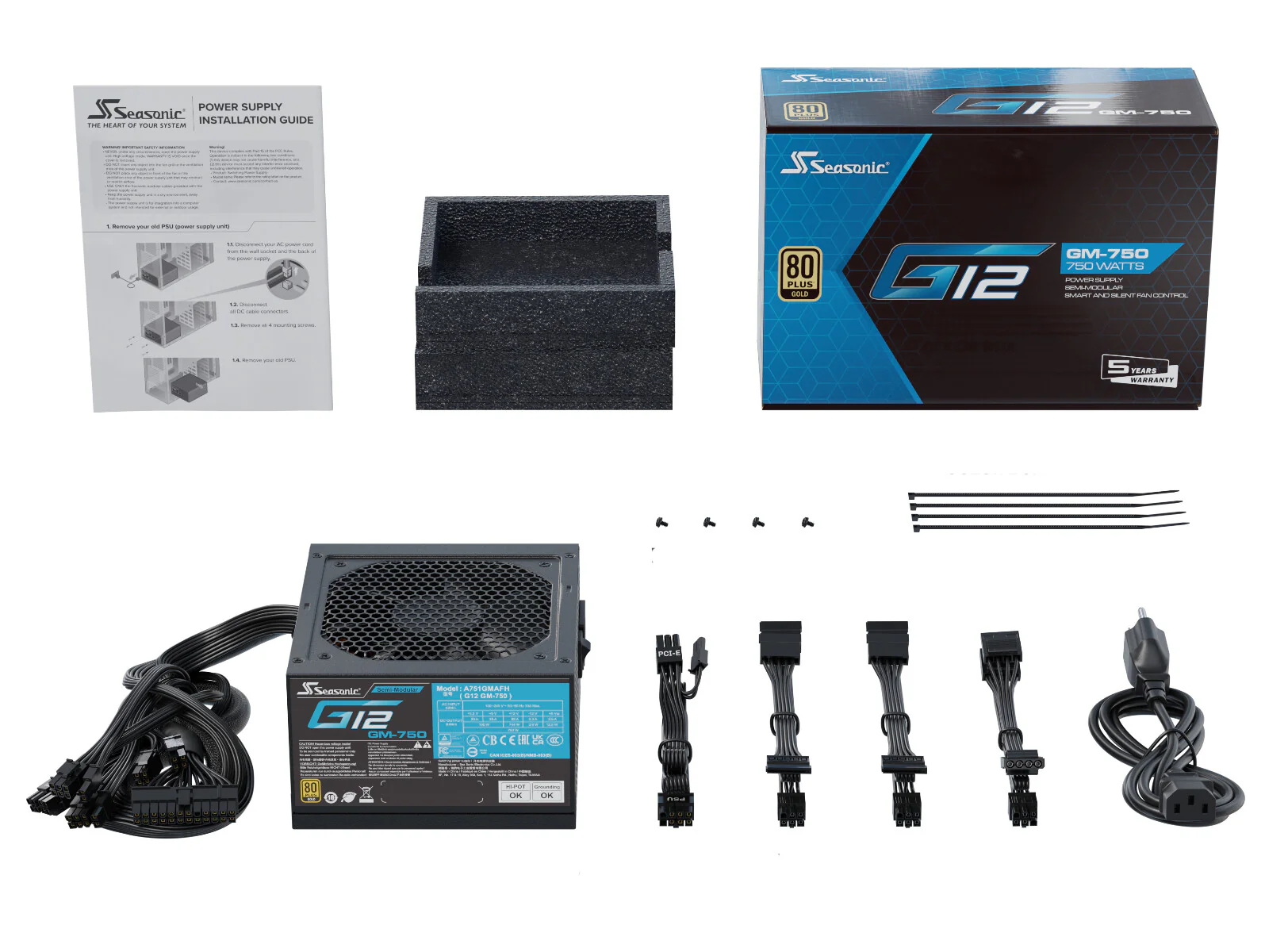

Cables included AC, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Height 86 mm
Depth 140 mm
Width 150 mm
Packaging data
Package type Box
$58.52

Original: $167.21

-65%
Seasonic G12 GM - 750W 80+ Gold Semi-Modular Power Supply Unit—

$167.21

$58.52
