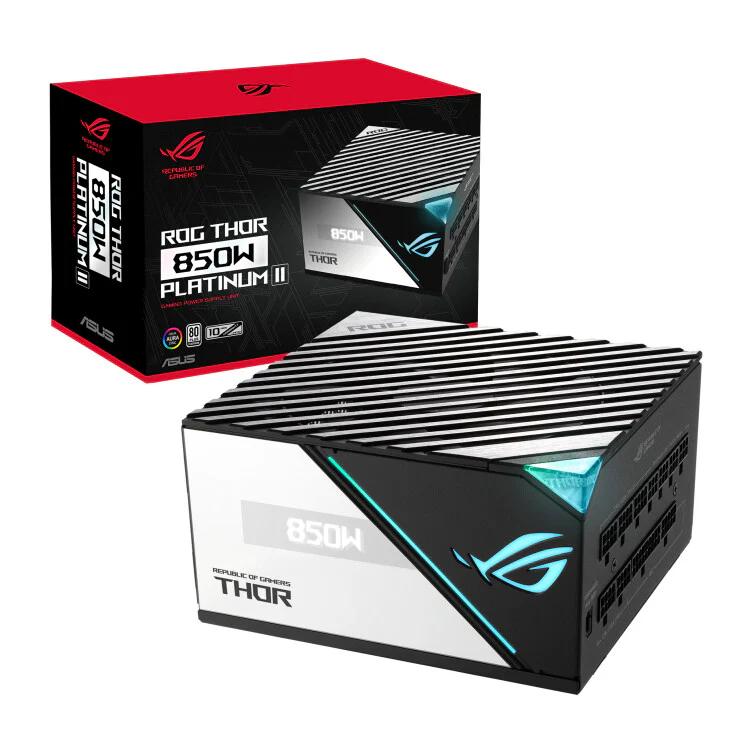

ASUS ROG THOR - 850W 80+ Platinum II Fully Modular Power Supply Unit
The Quietest 850W Platinum Power Supply
Back with a vengeance, the second iteration of the ROG Thor 850W Platinum wields cooling and component upgrades that make it the quietest PSU in its class*. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we've added a mirrored side panel that neatly frames the OLED display.
Based on Cybenetics PSU test result database entries before October 2021.
ROG Heatsinks
ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.
80 Plus Platinum Certification
The ROG Thor 850W Platinum II utilizes low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load. The increased efficiency results in less heat, reduces fan noise, and increases reliability.
OLED Power Display
The built-in OLED panel makes it easy to tune your system for best performance and efficiency.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 71 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 100 W |
| Combined power (+12V) | 852 W |
| Combined power (+3.3V) | 100 W |
| AC input voltage | 100 - 240 V |
| Total power | 850 W |
| Ports & interfaces | |
|---|---|

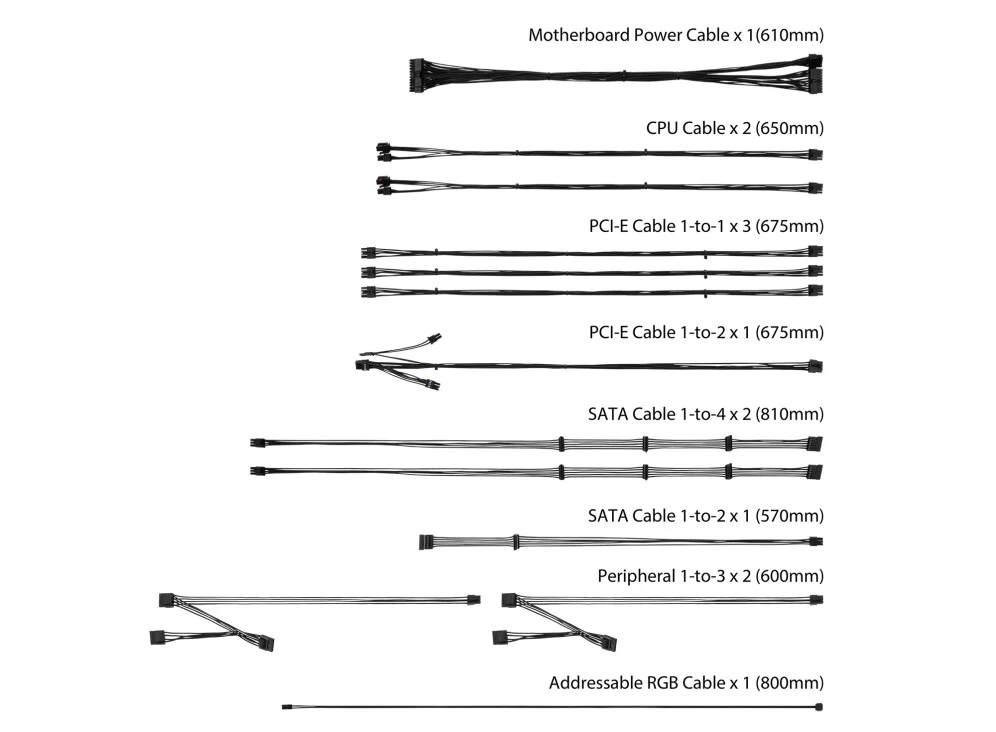

| Cabling type | Fully-Modular |
| CPU power cable length | 65 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power cable length | 67.5 cm |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 3 |
| Peripheral (Molex) power cable length | 120,450 mm |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| SATA power cable length | 120,400 mm |
| Number of SATA power connectors | 10 |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Silent mode | Yes |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| Design | |
|---|---|
| Built-in display | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Cooling type | Active |
| Product colour | Black, Blue, Grey |
| General | |
|---|---|
| Product Family | ROG |
| Packaging content | |
|---|---|
| Cable tie(s) included | Yes |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions | |
|---|---|
| Weight | 1.86 kg |
| Height | 86 mm |
| Depth | 150 mm |
| Width | 160 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 4.07 kg |
| Package height | 130 mm |
| Package depth | 240 mm |
| Package width | 378 mm |
| Technical details | |
|---|---|
| Sustainability certificates | RoHS |
