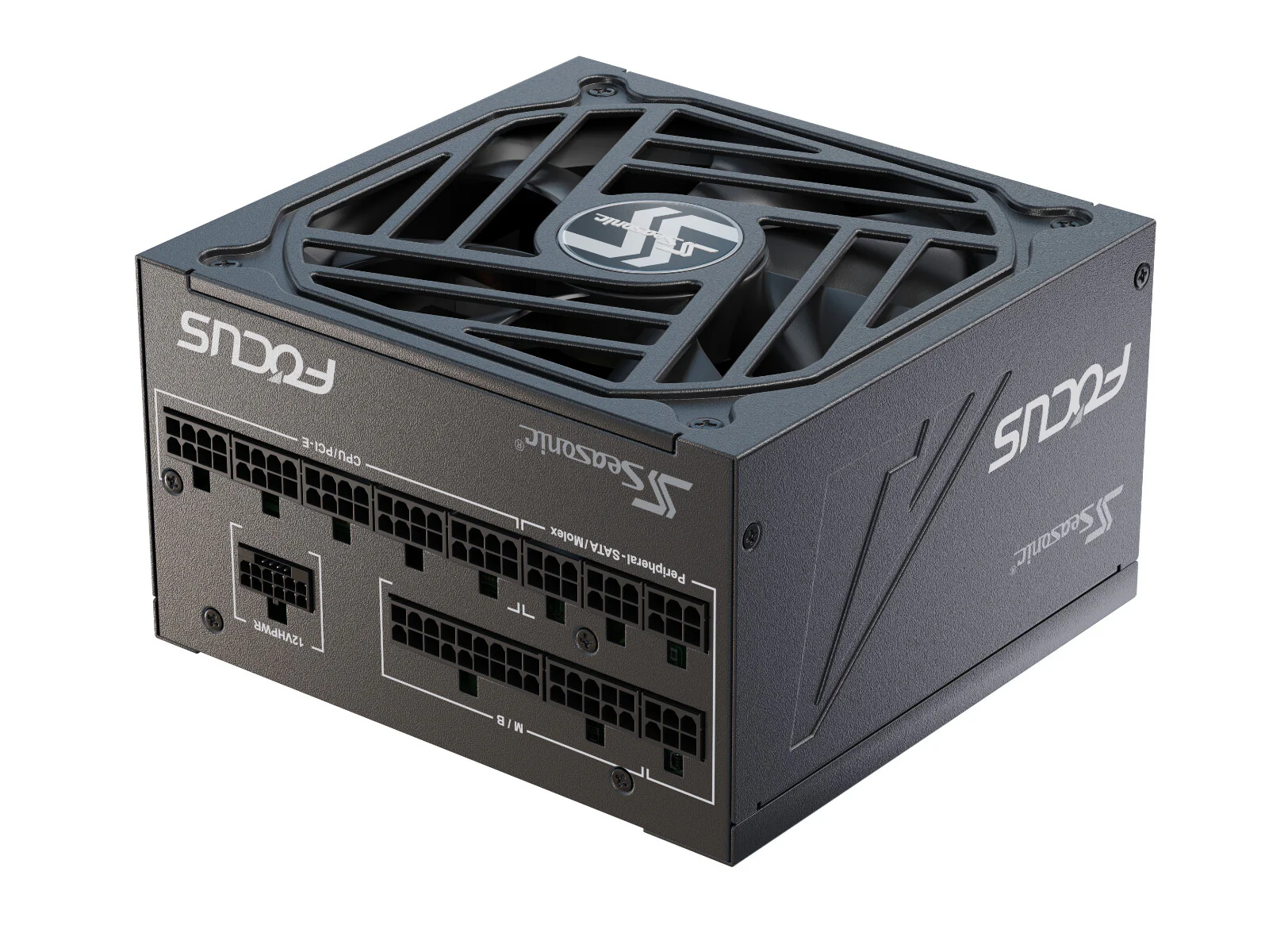

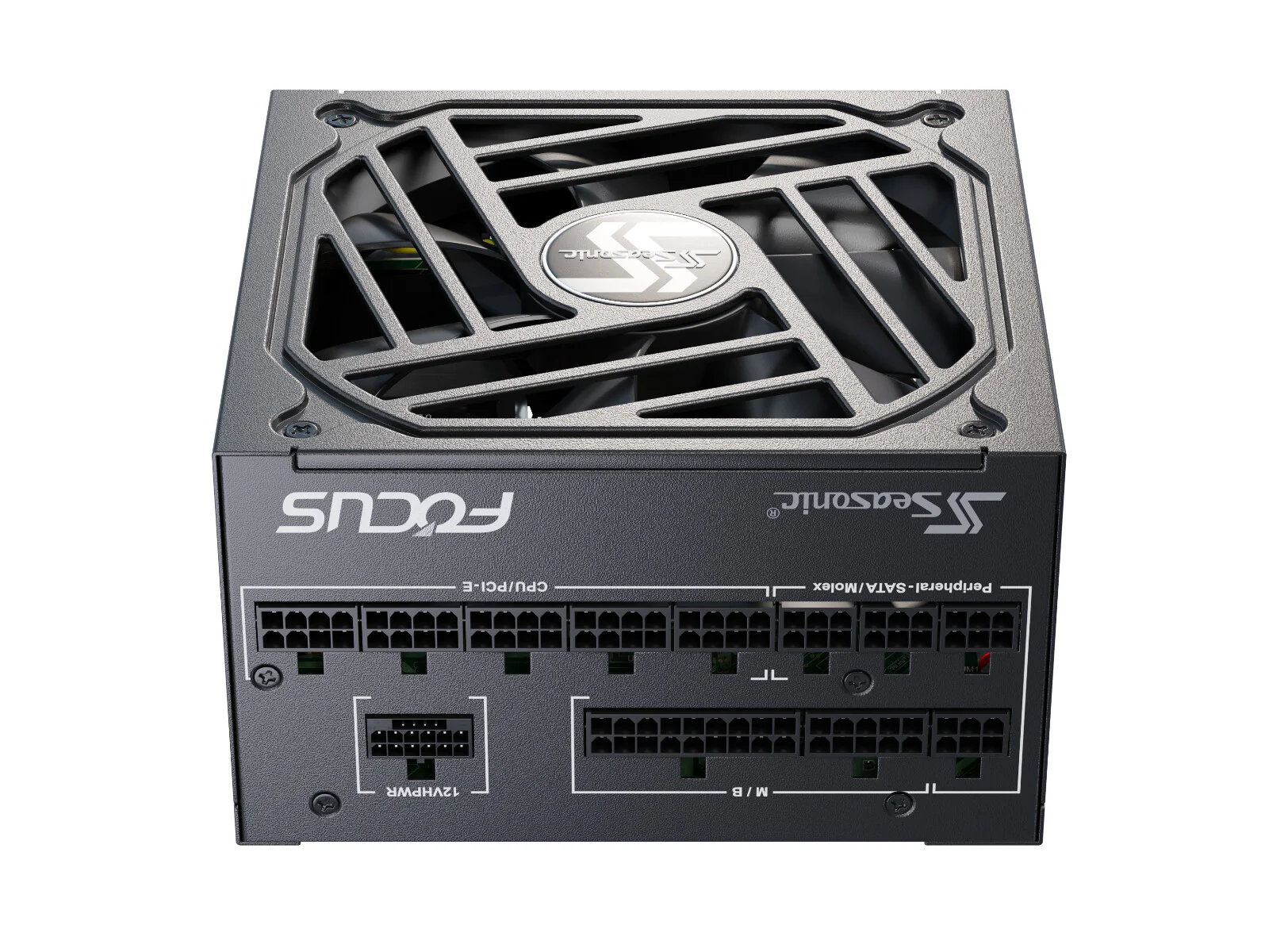

Seasonic FOCUS GX - 1000W 80+ Gold Fully Modular Power Supply Unit
Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging from 750 W to 1000 W with in a 140 mm depth, these units will be the perfect allies to power the newest high power graphics cards and processors on the market.
80 PLUS® GOLD
The FOCUS GX achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.
ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonic’s latest FOCUS GX ATX 3.0 Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.
DIGITAL HYBRID FAN CONTROL
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Digital Hybrid Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
BENEFITS
- Reduced noise without increase in temperature;
- Extended fan life due to the reduced number of fan rotations;
- Optimized heat dissipation at all times;
- Unsurpassed silent performance in Fanless Mode.
FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Efficiency | 90% |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 25 A |
| Max output current (+12V) | 83 A |
| Max output current (+3.3V) | 25 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 125 W |
| Combined power (+12V) | 996 W |
| Combined power (+3.3V) | 125 W |
| Input current | 13 - 6.5 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 1000 W |
| Ports & interfaces | |
|---|---|

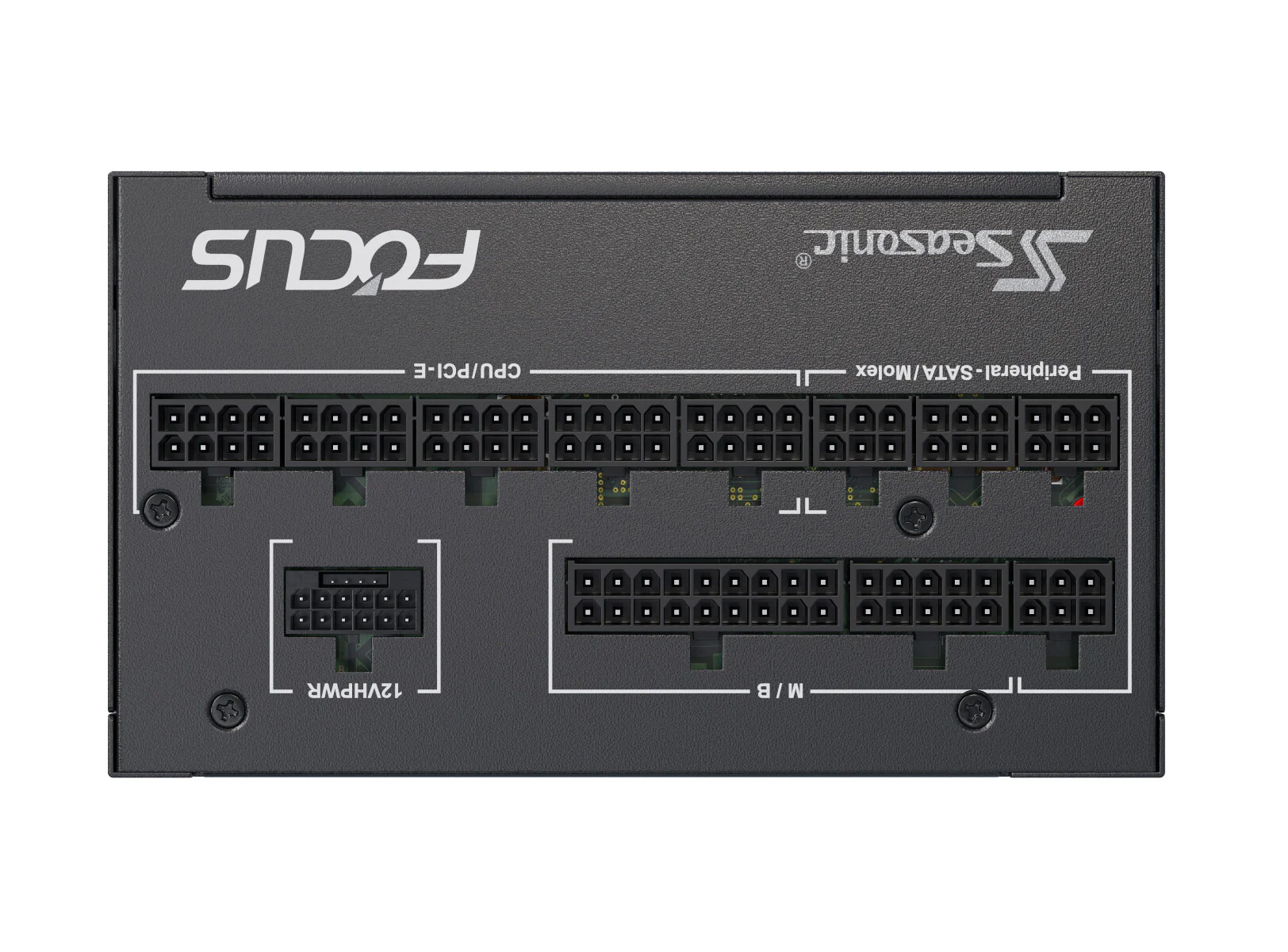

| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| Number of EPS connectors | 2 |
| ATX power connector (12+4 pin) | Yes |
| CPU power cable length | 70 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power cable length | 75 cm |
| PCI Express power connectors (6+2 pin) | 3 |
| EPS power connector (4+4 pin) | Yes |
| Peripheral (Molex) power cable length | 690 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 550,950 mm |
| Number of SATA power connectors | 8 |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 50000 h |
| Bearing technology | FDB |
| Silent mode | Yes |
| ATX version | 3.0 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Illumination | No |
| Built-in display | No |
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Cooling type | Active |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Packaging content | |
|---|---|
| Cable tie(s) included | Yes |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA |
| Weight & dimensions | |
|---|---|
| Height | 86 mm |
| Depth | 140 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | BSMI, CB, CCC, CE, EAC, ENERGY STAR, ErP, REACH, RoHS, TUV, WEEE, cTUVus |
| Warranty period | 10 year(s) |
- FOCUS GX ATX 3.0 The Center of Attention
