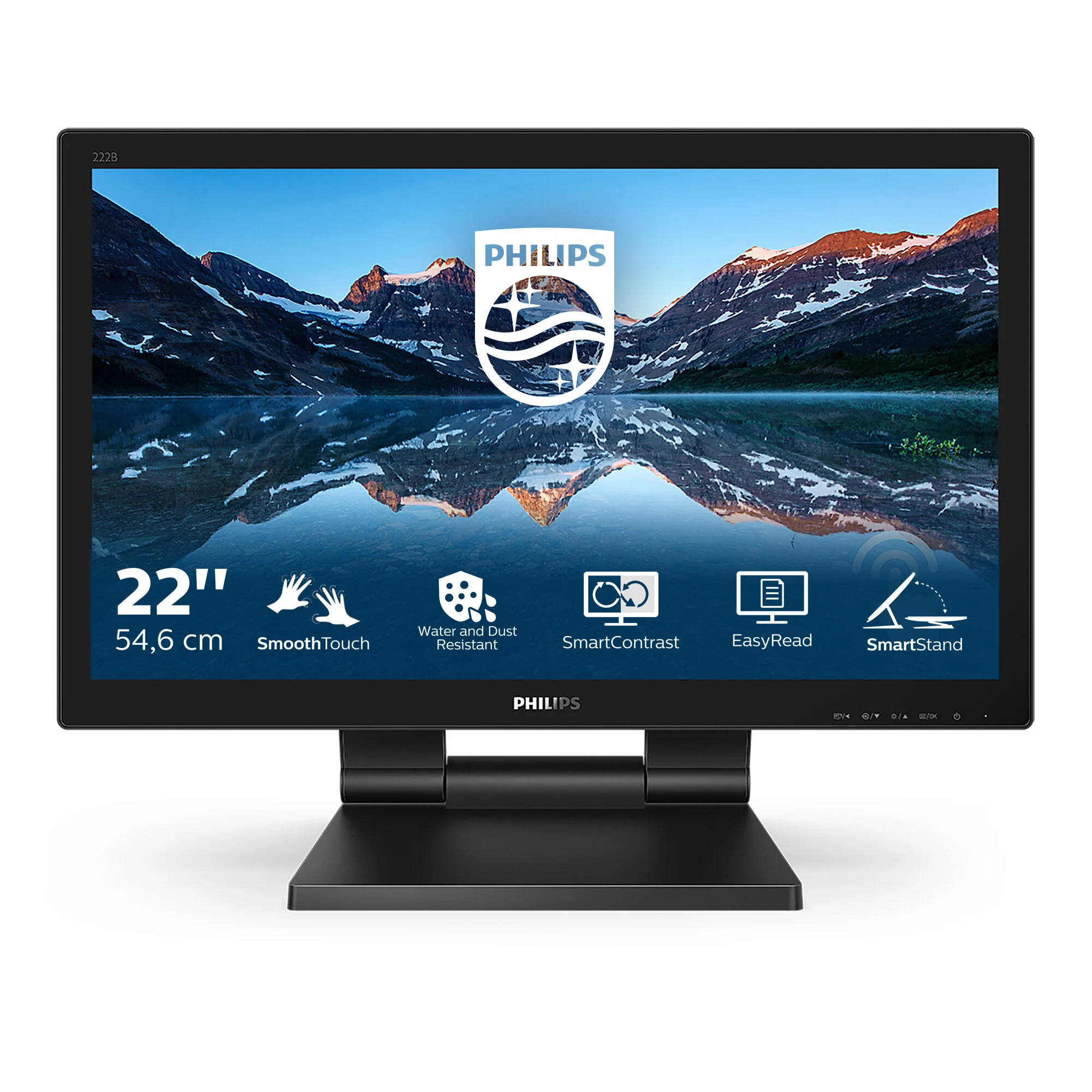

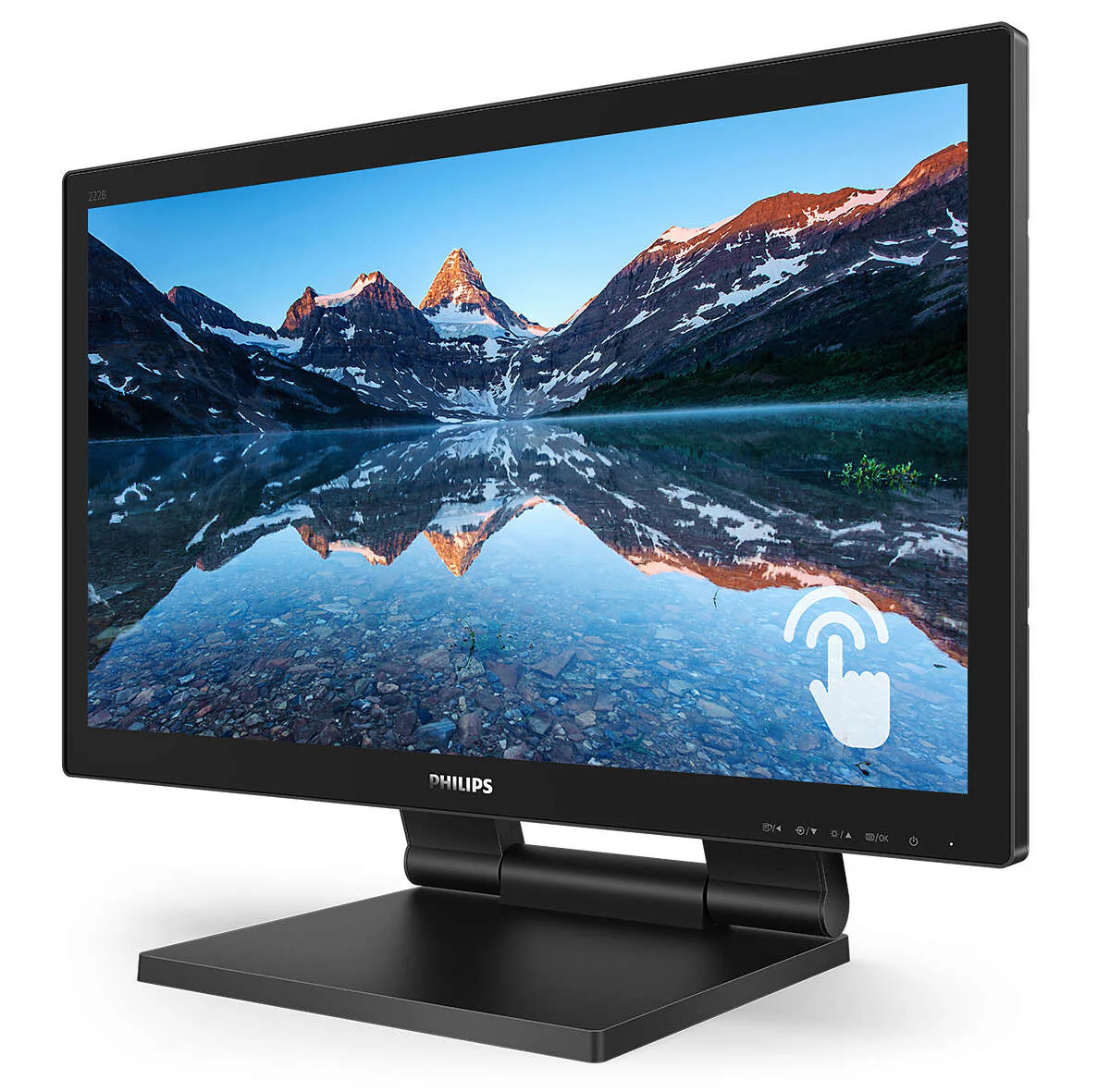

Monitor 222B9T LCD monitor with SmoothTouch

A sturdy water- and dust-resistant touch-screen monitor for flexible use anywhere, with articulating stand to fit angles you need. Offering simple and intuitive use across applications, greatly boosts productivity.

SmoothTouch display for natural, fluid touch response
This Philips display uses Projected capacitive 10-point touch technology for fluid response. You can fully utilise the new capabilities of touch-based applications and bring your older applications to life. Touch-type with 10 fingers or play exciting interactive games with your friends. Collaborate with colleagues interactively at work or school environment and increase your productivity and efficiency.

Monitor front surface meets IP65 for water and dust resistance
For less-than-perfect environments, you need a monitor that's designed to hold up to the splashes of water and dust that happen in the everyday world. Ingress Protection (IP) ratings defined in international standard IEC/EN 60529, are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies and moisture. This Philips display meets the international IP rating for water and dust resistance. It will hold up to the water splashes and dust that happen in the everyday world.

Display
Display sRGB	Yes
Display glass type	Tempered glass
3D	No
Display brightness	250 cd/m²
LED backlight	Yes
Colour gamut	72%
RGB colour space	sRGB
Surface hardness	7H
DDC/CI	Yes
Display diagonal (metric)	54.6 cm
Digital vertical frequency	48 - 75 Hz
Digital horizontal frequency	30 - 85 kHz
Viewable size, vertical	26.8 cm
Viewable size, horizontal	47.7 cm
Vertical scan range	48 - 75 Hz
Horizontal scan range	30 - 85 kHz
Pixel density	102 ppi
Pixel pitch	0.248 x 0.248 mm
Display number of colours	16.78 million colours
Viewing angle, vertical	160°
Viewing angle, horizontal	170°
Maximum refresh rate	60 Hz
Dynamic contrast ratio marketing name	SmartContrast
Contrast ratio (dynamic)	50000000:1
Contrast ratio (typical)	1000:1
Aspect ratio	16:9
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
Screen shape	Flat
Display surface	Gloss
Response time	1 ms
Display brightness (typical)	250 cd/m²
Number of simultaneous touchpoints	10
Touch technology	Multi-touch
Touchscreen technology	Projected capacitive system
Touchscreen type	Table
Backlight type	W-LED
Panel type	TFT
HD type	Full HD
Touchscreen	Yes
Display technology	LCD
Native aspect ratio	16:9
Display resolution	1920 x 1080 pixels
Display diagonal	54.6 cm (21.5")

Performance
Other operating systems supported	Android
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Low Blue Light technology	Yes
Flicker-free technology	Yes
Component video sync	Separate sync, Sync-on-green (SOG)
AMD FreeSync	No
NVIDIA G-SYNC	No

Multimedia
Built-in microphone	No
RMS rated power	2 W
Number of speakers	2
Built-in camera	No
Built-in speaker(s)	Yes

Design
Certification	CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS, cETLus
Heavy metals free	Hg (mercury)
International Protection (IP) code	IP65
Feet colour	Black
Front bezel colour	Black
Product colour	Black
Market positioning	Home

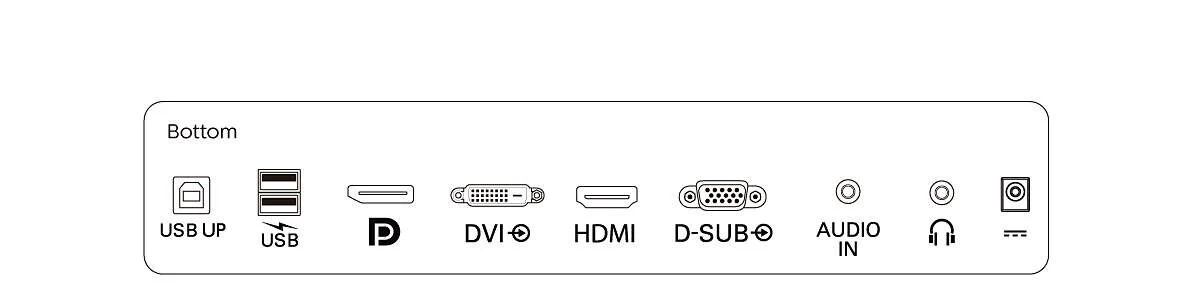

Ports & interfaces
HDCP version	1.4
HDCP	Yes
PC Audio in	Yes
Headphone outputs	1
Headphone out	Yes
DisplayPort version	1.2
DisplayPorts quantity	1.2
HDMI version	1.4
HDMI ports quantity	1.4
HDMI	Yes
DVI-D ports quantity	1
DVI port	Yes
VGA (D-Sub) ports quantity	1
USB Touch port	Yes
USB Type-A downstream ports quantity	2

Ergonomics
Tilt adjustment	Yes
LED indicators	Operation, Stand-by
Plug and Play	Yes
Palm rejection area	30 x 30 mm
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Tilt angle range	-5 - 90°
Height adjustment	7.6 cm
Height adjustment	Yes
Cable lock slot type	Kensington
Cable lock slot	Yes
Wall mountable	Yes
Panel mounting interface	100 x 100 mm
VESA mounting	Yes

Power
External power adapter	Yes
Energy efficiency scale	A to G
Power supply type	External
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Power consumption (PowerSave)	10.3 W
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
Power consumption (typical)	11.92 W
Energy consumption (SDR) per 1000 hours	13 kWh
Energy efficiency class (SDR)	D

Operational conditions
Non-operating altitude	0 - 12192 m
Operating altitude	0 - 3658 m
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C

Packaging content
Bundled software	SmartControl
Manual	Yes
Cables included	VGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC
Stand included	Yes

Weight & dimensions
Weight (without stand)	4.17 kg
Height (without stand)	317 mm
Depth (without stand)	45 mm
Width (without stand)	515 mm
Weight (with stand)	7.46 kg
Height (with stand)	394 mm
Depth (with stand)	227 mm
Width (with stand)	515 mm

Packaging data
Package weight	9.91 kg
Package height	420 mm
Package depth	161 mm
Package width	575 mm

Sustainability
European Product Registry for Energy Labelling (EPREL) code	388101
Doesn't contain	PVC/BFR, Mercury
Sustainability certificates	ENERGY STAR, TCO, RoHS, WEEE

Logistics data
Harmonized System (HS) code	85285210

Other features
Recommended resolution	1920 x 1080 @ 60 Hz
Touch method	Stylus, Finger, Glove
Picture enhancement	SmartImage
Regulatory Approvals	CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS; cETLus
Energy efficiency class (old)	A
Mean time between failures (MTBF)	70000 h
Folding angle	70°
Recyclable packaging material	100%
SoftBlue	Yes
Connection to PC	Yes
EasyRead mode	Yes
Display viewable area (HxV)	476.64 x 268.11 mm
Full HD	Yes
Mobile operating systems supported	Android 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4
Anti-reflective	Yes
Dimensions (W x D x H) with stand	515 x 227 x 394 mm
Display	TN+Film
AC adapter included	Yes
