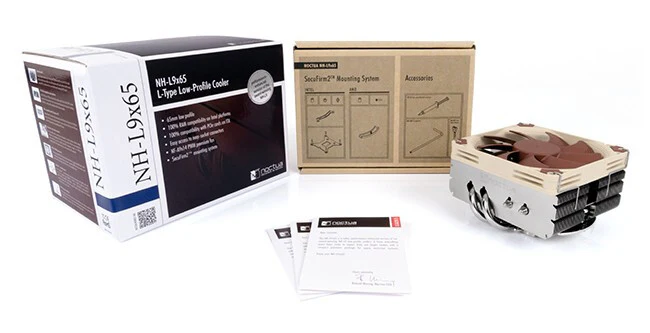

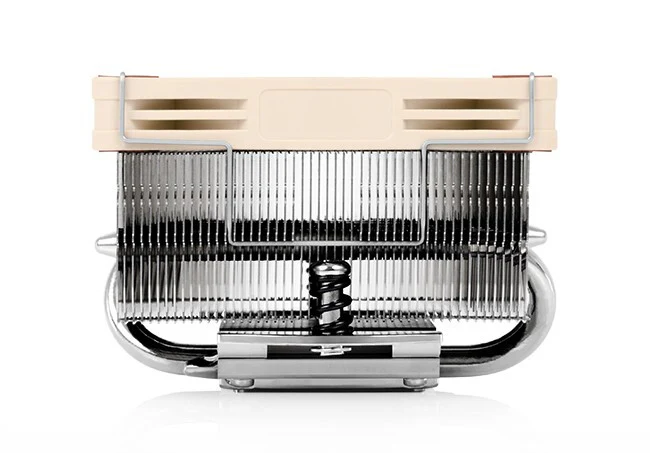

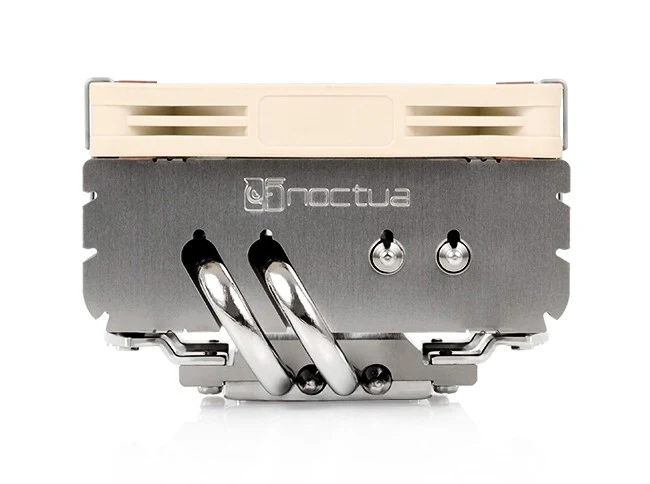

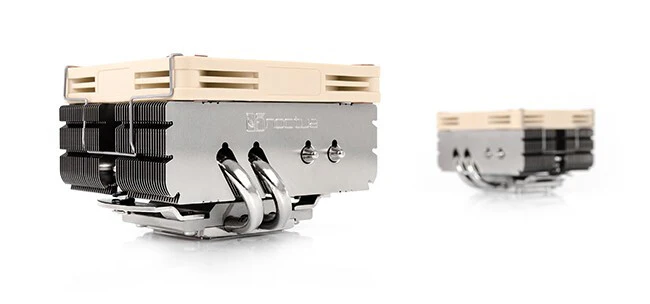

Noctua NH-L9x65 - Air Processor Cooler - 92mm

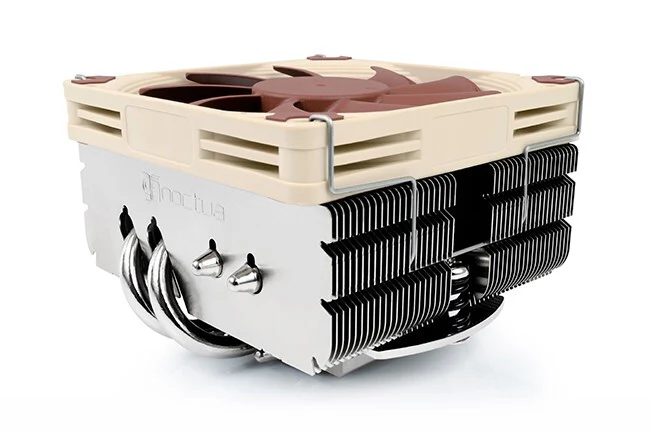

Product image 1
1 / 5

Noctua NH-L9x65 - Air Processor Cooler - 92mm

600/2500 RPM, 14.8/23.6 dB

The NH-L9x65 is a taller, performance-enhanced version of Noctua’s award-winning NH-L9 low-profile coolers. With 65 instead of 37mm height and four instead of two heatpipes, the NH-L9x65 is more powerful than its smaller siblings yet retains their 95x95mm footprint, which guarantees 100% RAM and PCIe compatibility on Intel based ITX mainboards and makes the cooler more convenient to work with as it doesn’t overhang near-socket connectors. Thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9x65 runs remarkably quiet. Topped off with the professional SecuFirm2™ multi-socket mounting system for Intel and AMD, Noctua’s renowned NT-H1 thermal compound and 6 years manufacturer’s warranty, the NH-L9x65 fuses everything users have come to expect from Noctua’s larger coolers into a compact premium package for space restricted systems.

Caution: The NH-L9x65 is a highly-compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not suitable for overclocking and should be used with care on CPUs with more than 84W TDP (Thermal Design Power). Please consult our TDP guidelines to find out whether the NH-L9x65 is recommended for your CPU.

Performance
Mean time between failures (MTBF) 150000 h
Maximum air pressure 2.11 mmH2O
Minimum air pressure 1.06 mmH2O
Airflow 57.5 m³/h
Noise level (high speed) 23.6 dB
Noise level (low speed) 14.8 dB
Rotational speed (max) 2500 RPM
Rotational speed (min) 600 RPM
Supported processor sockets Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket FM1, Socket FM2, Socket FM2+
Fan diameter 9.2 cm
Type Cooler
Suitable location Processor
Power
Voltage 12 V
Weight & dimensions
Heatsink weight 340 g
Fan dimensions (W x D x H) 92 x 14 x 92 mm
Weight 413 g
Height 95 mm
Depth 65 mm
Width 95 mm
Other features
Heatsink dimensions (W x D x H) 95 x 51 x 95 mm
Logistics data
Harmonized System (HS) code 84733080
$50.43

Original: $144.10

-65%
Noctua NH-L9x65 - Air Processor Cooler - 92mm

$144.10

$50.43

Product Information

Shipping & Returns

Description

600/2500 RPM, 14.8/23.6 dB

The NH-L9x65 is a taller, performance-enhanced version of Noctua’s award-winning NH-L9 low-profile coolers. With 65 instead of 37mm height and four instead of two heatpipes, the NH-L9x65 is more powerful than its smaller siblings yet retains their 95x95mm footprint, which guarantees 100% RAM and PCIe compatibility on Intel based ITX mainboards and makes the cooler more convenient to work with as it doesn’t overhang near-socket connectors. Thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9x65 runs remarkably quiet. Topped off with the professional SecuFirm2™ multi-socket mounting system for Intel and AMD, Noctua’s renowned NT-H1 thermal compound and 6 years manufacturer’s warranty, the NH-L9x65 fuses everything users have come to expect from Noctua’s larger coolers into a compact premium package for space restricted systems.

Caution: The NH-L9x65 is a highly-compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not suitable for overclocking and should be used with care on CPUs with more than 84W TDP (Thermal Design Power). Please consult our TDP guidelines to find out whether the NH-L9x65 is recommended for your CPU.

Performance
Mean time between failures (MTBF) 150000 h
Maximum air pressure 2.11 mmH2O
Minimum air pressure 1.06 mmH2O
Airflow 57.5 m³/h
Noise level (high speed) 23.6 dB
Noise level (low speed) 14.8 dB
Rotational speed (max) 2500 RPM
Rotational speed (min) 600 RPM
Supported processor sockets Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket FM1, Socket FM2, Socket FM2+
Fan diameter 9.2 cm
Type Cooler
Suitable location Processor
Power
Voltage 12 V
Weight & dimensions
Heatsink weight 340 g
Fan dimensions (W x D x H) 92 x 14 x 92 mm
Weight 413 g
Height 95 mm
Depth 65 mm
Width 95 mm
Other features
Heatsink dimensions (W x D x H) 95 x 51 x 95 mm
Logistics data
Harmonized System (HS) code 84733080
