Cooler Master MasterLiquid ML240 Illusion - All-in-one Liquid CPU Cooler in Black
See It To Believe It
The MasterLiquid ML-Illusion series redefines lighting visuals with all new design features to the MasterLiquid Series. With 12 Addressable Gen 2 RGB LEDs integrated into the all new translucent pump, the color options are spectacularly customizable. Complemented with MasterFan MF120 Halo fans lighting features are more than even visual enthusiasts can handle. The Illusion is not only elegant, but extremely capable as well, featuring the 3rd generation Dual Chamber Pump for excellent cooling performance.

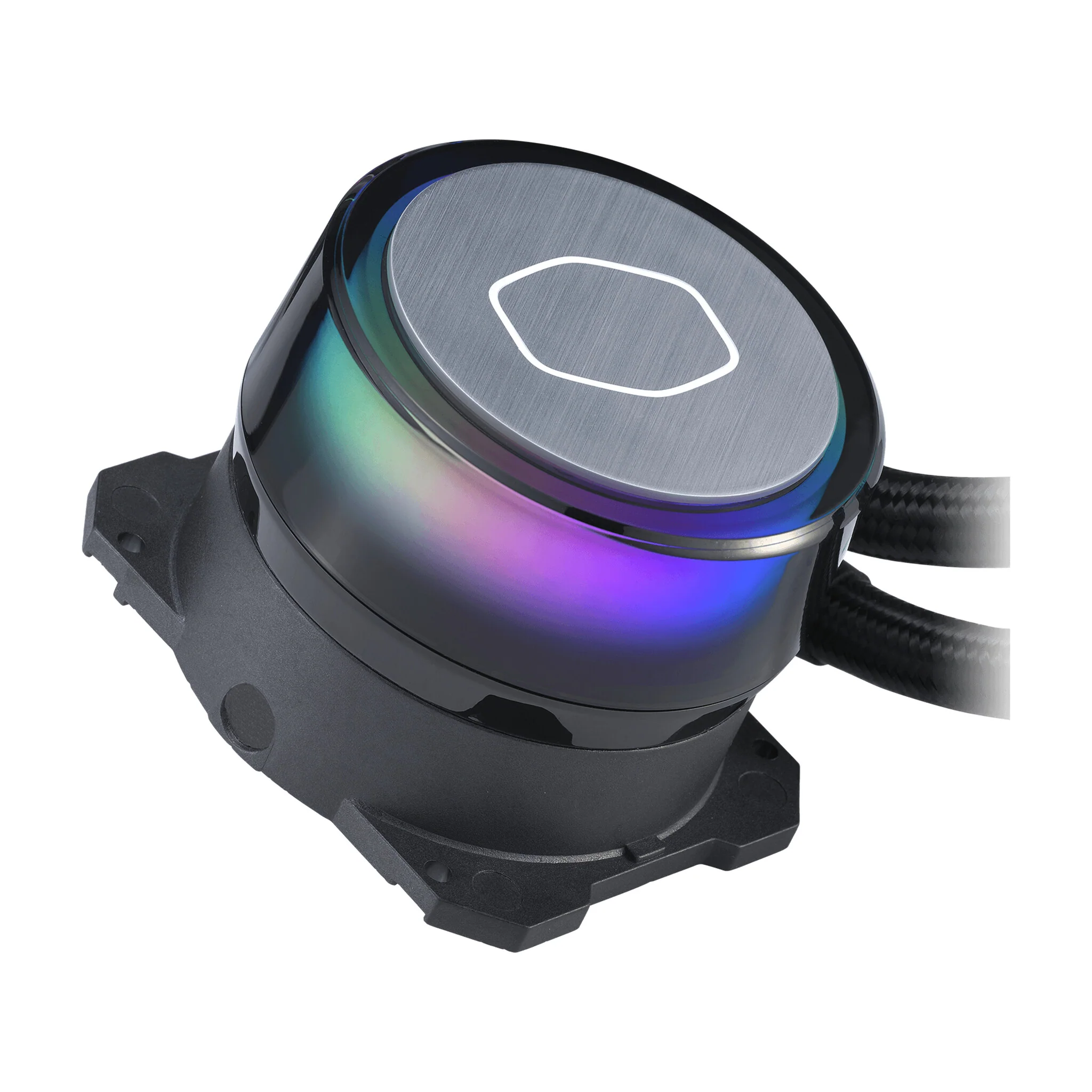

Translucent Dome
Stunning lighting visuals with translucent water chamber dome and rotatable logo. Compatible with software customization
New 3rd Gen Dual Chamber Pump
Experience a quieter cooling performance with an improved design on the internal impeller and housing to enhance the cooling performance and efficiency while lowering the noise level.

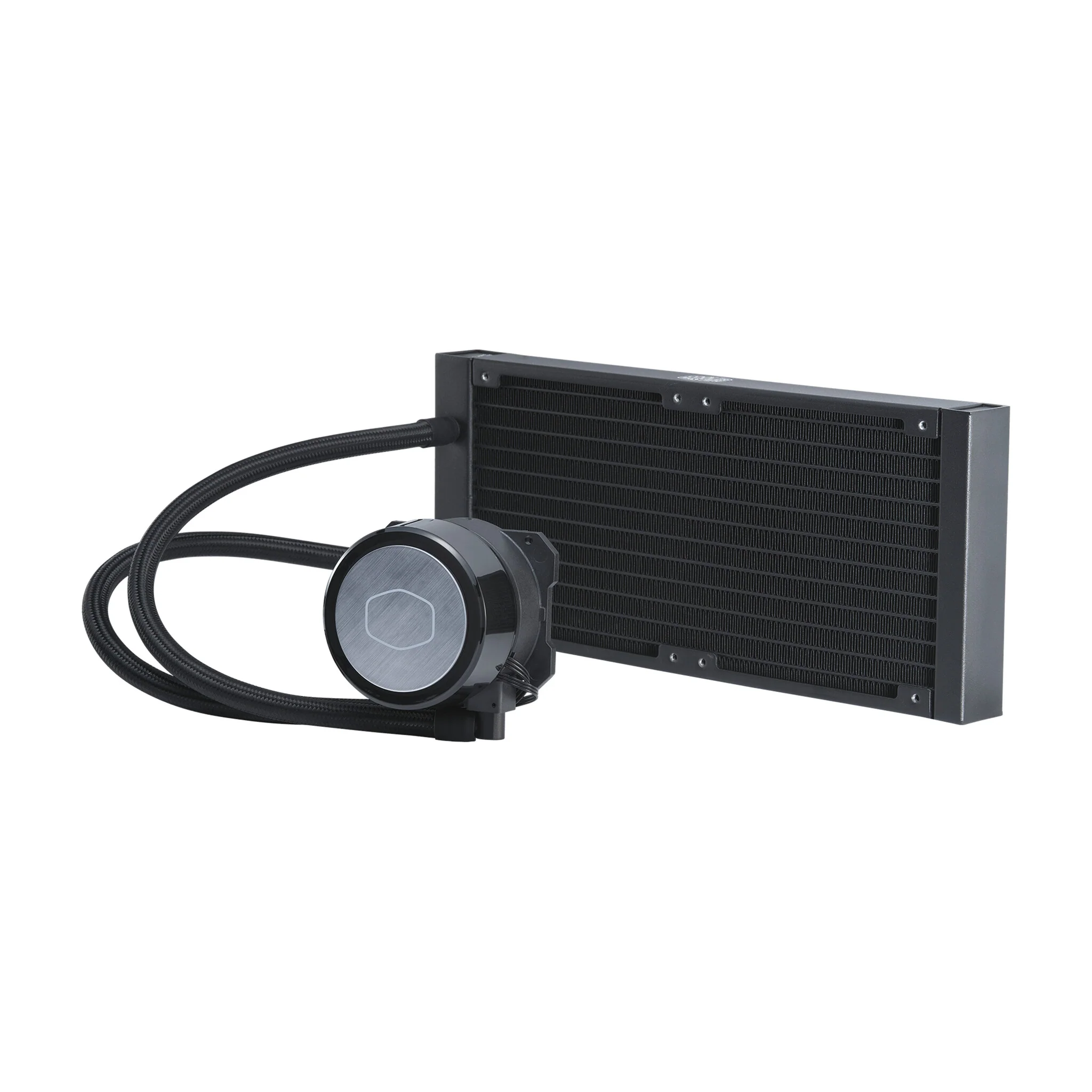

Expanded Dissipation Surface Area
Widened radiator water channels for increased cooling surface area.
Masterfan MF120 Halo
Dual loop Addressable Gen 2 RGB fans with 24 individual ARGB LEDs Fully Customizable with MasterPlus+ software to ensure the most vibrant display of color
New Addressable Gen 2 RGB
Included Addressable Gen 2 RGB controller works with Cooler Master's MasterPlus+ software Customizing each individual LED in color, effect, brightness, and more - all from an intuitive, convenient interface
| Performance | |
|---|---|
| Pump's mean time to failure (MTTF) | 70000 h |
| Fan speed (min) | 650 RPM |
| Fan speed (max) | 1800 RPM |
| Pump connector | 3-pin |
| Pump noise level | 10 dB |
| Fan noise level (max) | 30 dB |
| Fan noise level (min) | 6 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 1.6 mmH2O |
| Maximum airflow | 47.2 cfm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2 |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Illumination colour | Blue, Green, Red |
| Illumination LED | Yes |
| Number of fans | 2 fan(s) |
| Radiator material | Aluminium |
| Product colour | Black |
| Power | |
|---|---|
| Pump voltage | 12 V |
| Fan voltage | 12 V |
| Fan current | 0.25 A |
| Pump power consumption | 2.36 W |
| Weight & dimensions | |
|---|---|
| Package weight | 2.1 kg |
| Package height | 270 mm |
| Package depth | 585 mm |
| Package width | 345 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 1.48 kg |
| Pump height | 5.78 cm |
| Pump depth | 7.6 cm |
| Pump width | 8.14 cm |
| Radiator height | 2.72 cm |
| Radiator depth | 12 cm |
| Radiator width | 27.7 cm |
| General | |
|---|---|
| Product Family | MasterLiquid |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
- MasterLiquid ML-Illusion. See It To Believe It.
Original: $188.95
-65%$188.95
$66.13Product Information
