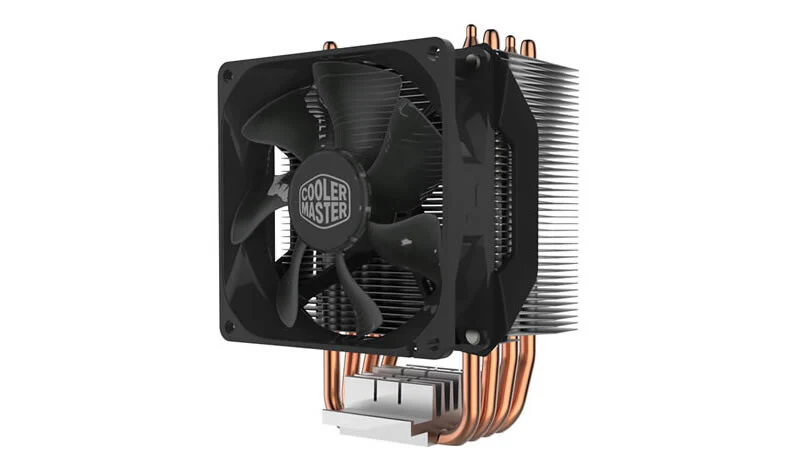

Cooler Master Hyper H412R - Air Processor Cooler - 92mm
COMPACT and COMPELLING
HYPER H412R
The Hyper H412R is an affordable, compact and high performance air cooler that is a great fit for small form factor system. With 4 heatpipes and Direct Contact technology, this outperforms its predecessor Hyper TX3 series. The special fin design optimizes air flow toward heatpipes. Its 92mm PWM fan features a wide fan speed range and can be fine tuned for maximum airflow and cooling performance or silent operation.
Performance in Compact Size

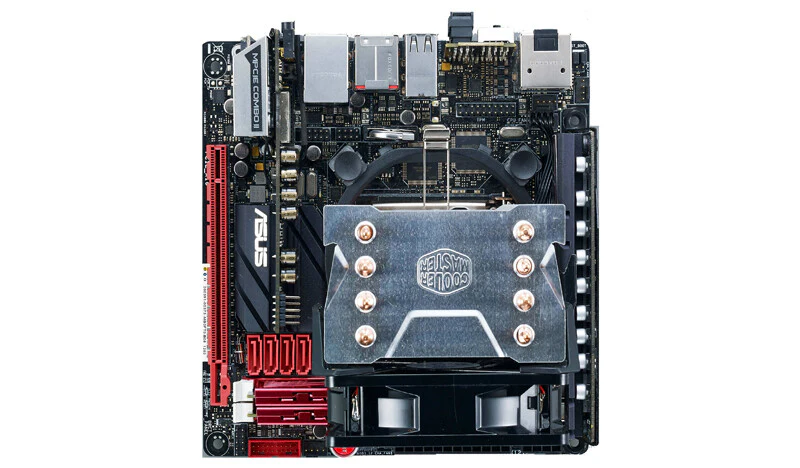

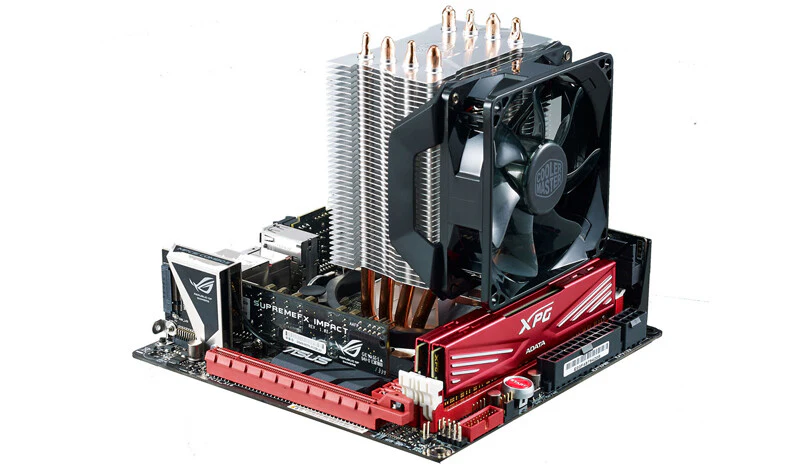

With height of 136.5mm, the Hyper H412R is a compact tower cooler, designed to fit in tight builds. With its outstanding performance in its class, it is a great solution for Micro ATX and Mini ITX boards.

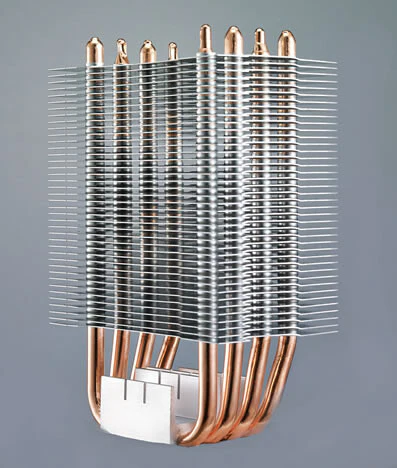

4 Direct Contact Heatpipes
Just like the Hyper 212, it includes 4 Direct Contact heatpipes constructed out of copper to accerates the heat conduction through the entire heatpipe. This allows heat to be dissipated quickly and efficiently throught the funnel shaped aluminum fins.
Perfecting the Heatsink Design
Cooler Master's years of aluminum fin craftmanship is second to none. Optimized fin stacked distance between each layer is based on stringent airflow tests from our labs. As a result, even with a compact-size each heatsink with the 92mm fan is able to maintain performance in a compact build.
Easy Installation

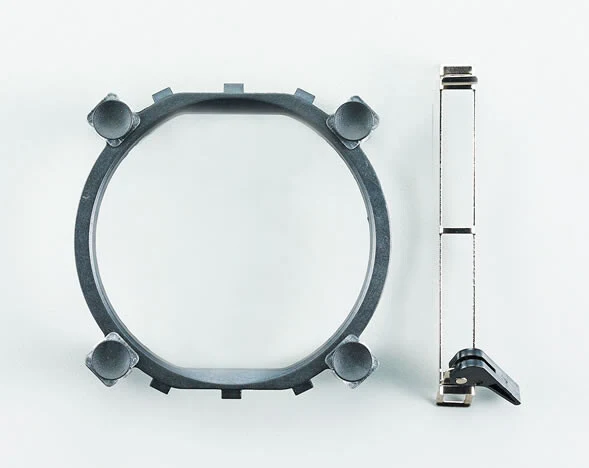

Tool-free mounting system ensures hassle-free installation. Universal retention brackets are compatible with latest Intel and AMD socket CPU.
| Performance | |
|---|---|
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 1.79 mmH2O |
| Maximum airflow | 34.1 cfm |
| Noise level (high speed) | 29.4 dB |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 600 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Fan diameter | 9.2 cm |
| Type | Cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Number of heat pipes | 4 |
| Fins material | Aluminium |
| Number of fan blades | 7 |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Rated current | 0.2 A |
| Safety current | 0.4 Ah |
| Power consumption (typical) | 2.4 W |
| Weight & dimensions | |
|---|---|
| Package weight | 620 g |
| Package height | 50 mm |
| Package depth | 413 mm |
| Package width | 380 mm |
| Heat pipes diameter | 6 mm |
| Heatsink weight | 358 g |
| Fan dimensions (W x D x H) | 92 x 92 x 25 mm |
| Weight | 500 g |
| Height | 136 mm |
| Depth | 102 mm |
| Width | 83.4 mm |
| Other features | |
|---|---|
| Mean time to failure (MTTF) | 40000 h |
| Country of origin | China |
| Heatsink dimensions (W x D x H) | 63.5 x 90 x 136 mm |
| Output voltage | 12 V |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
