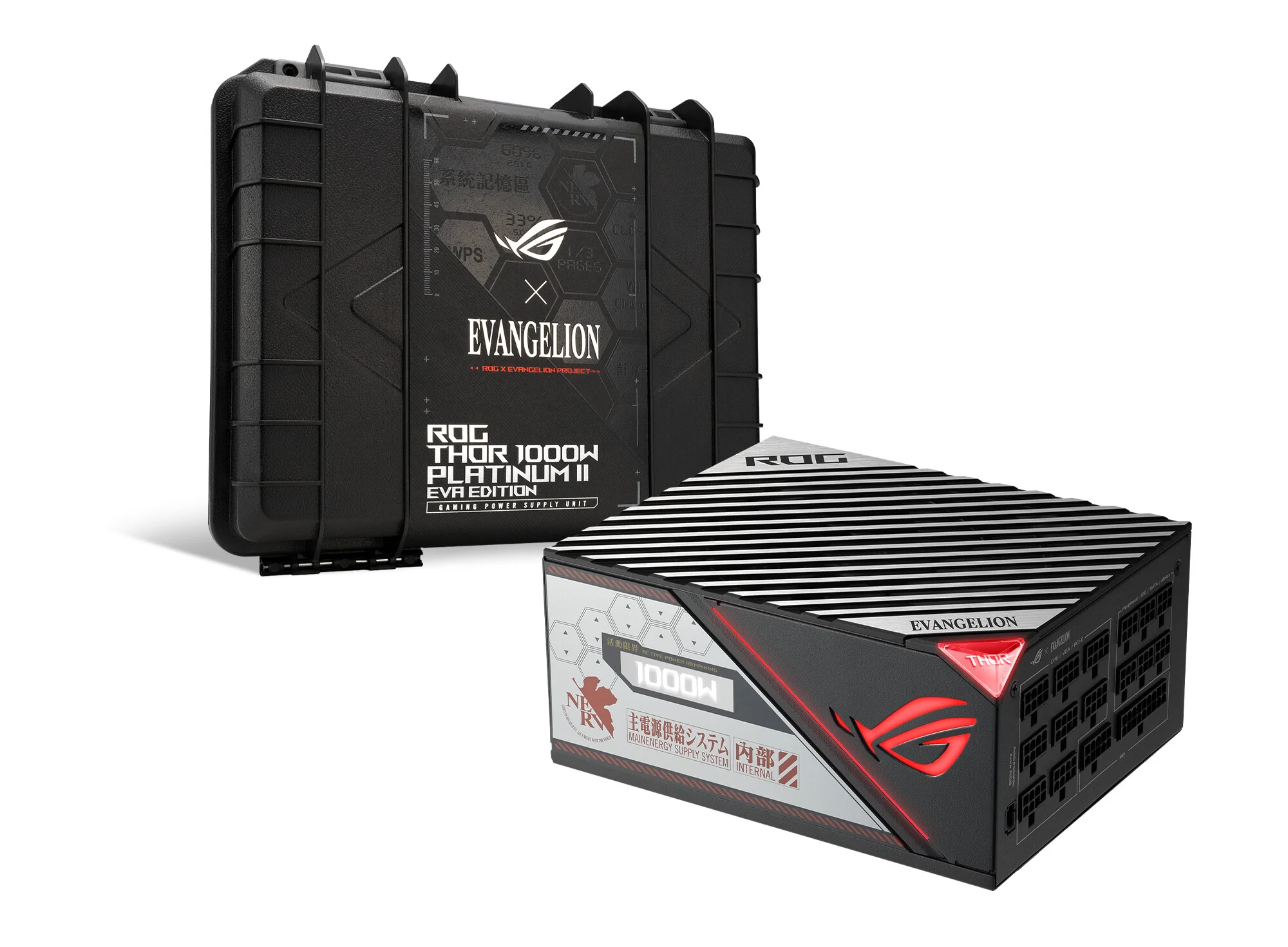

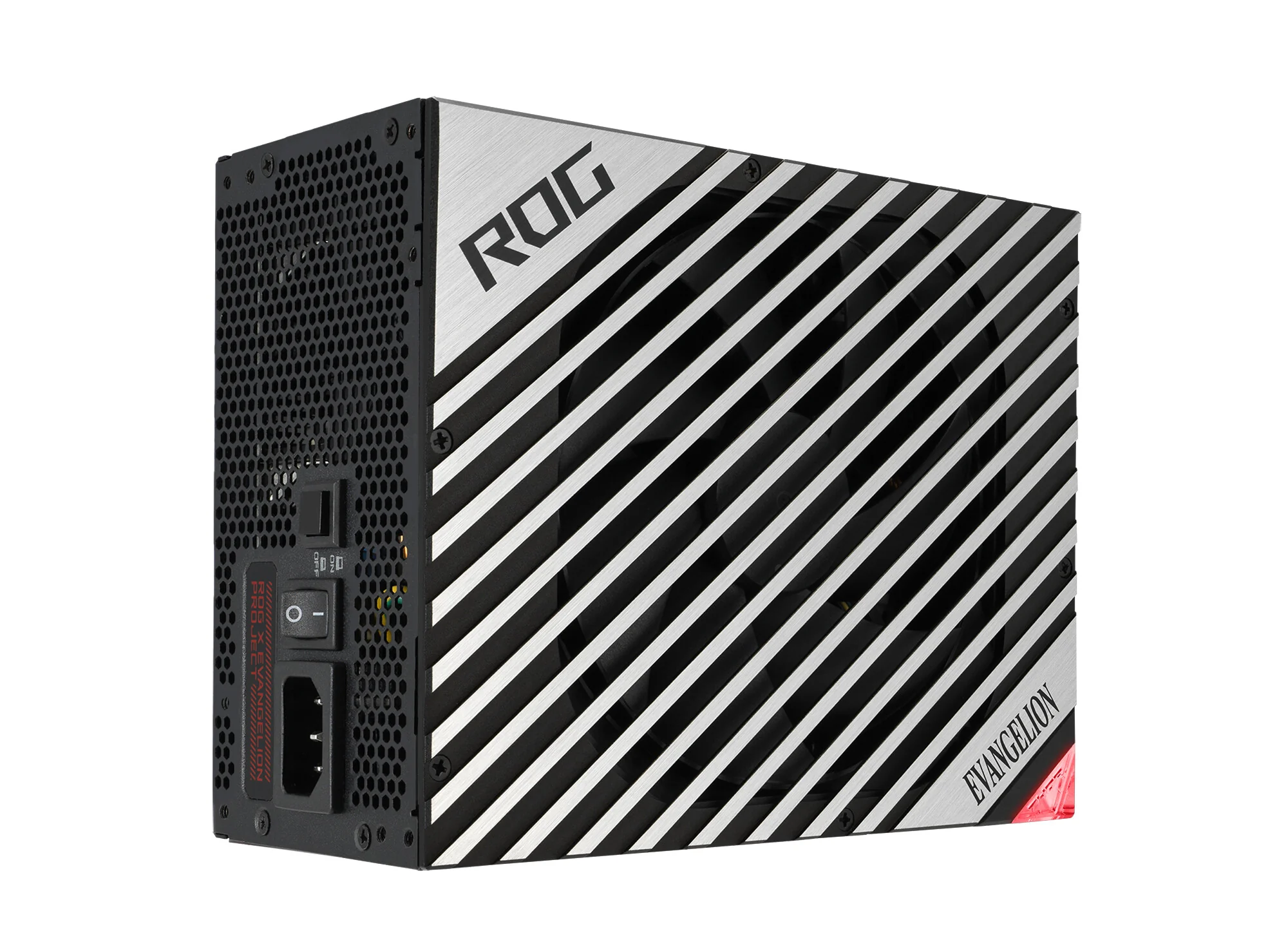

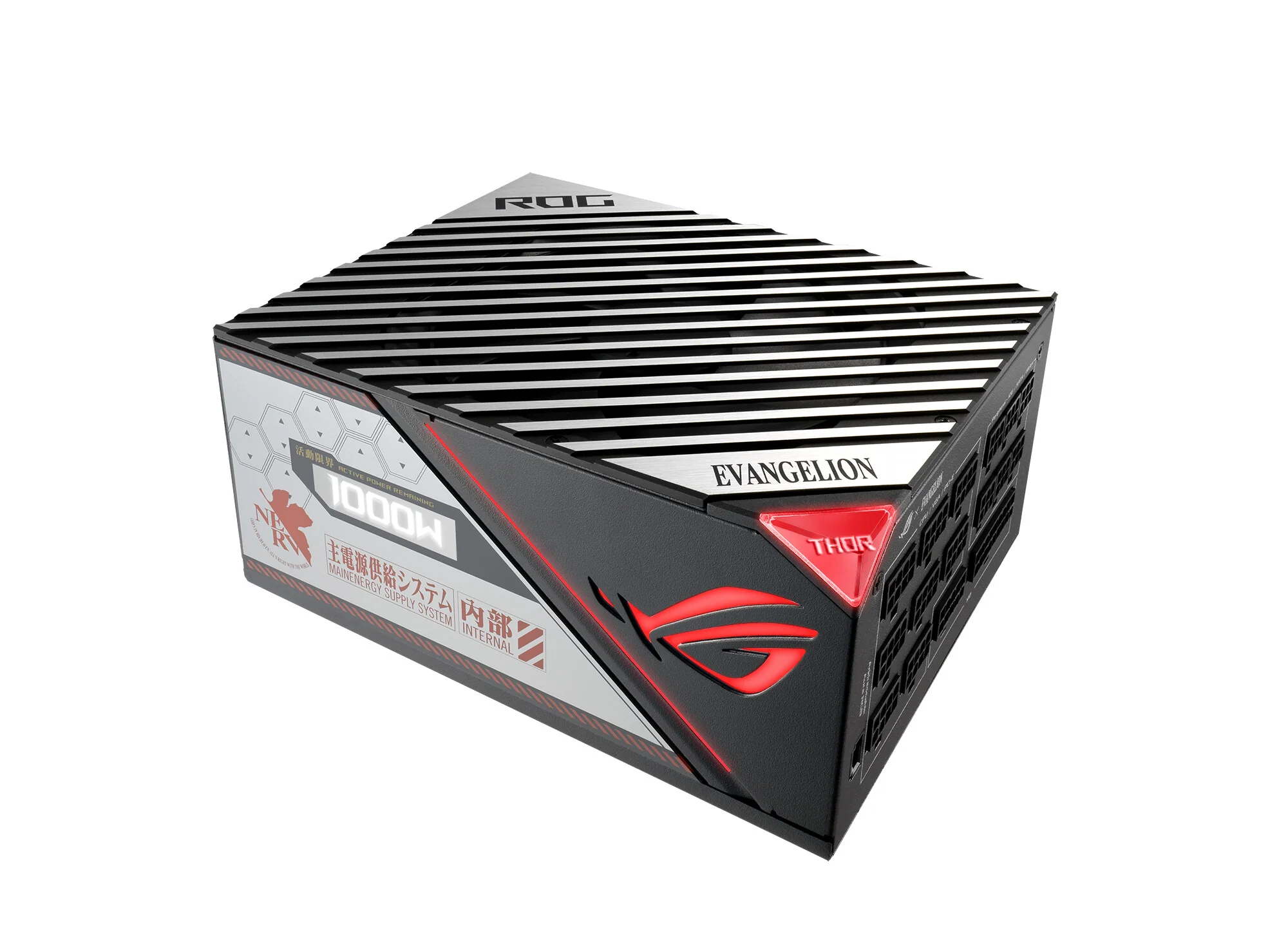

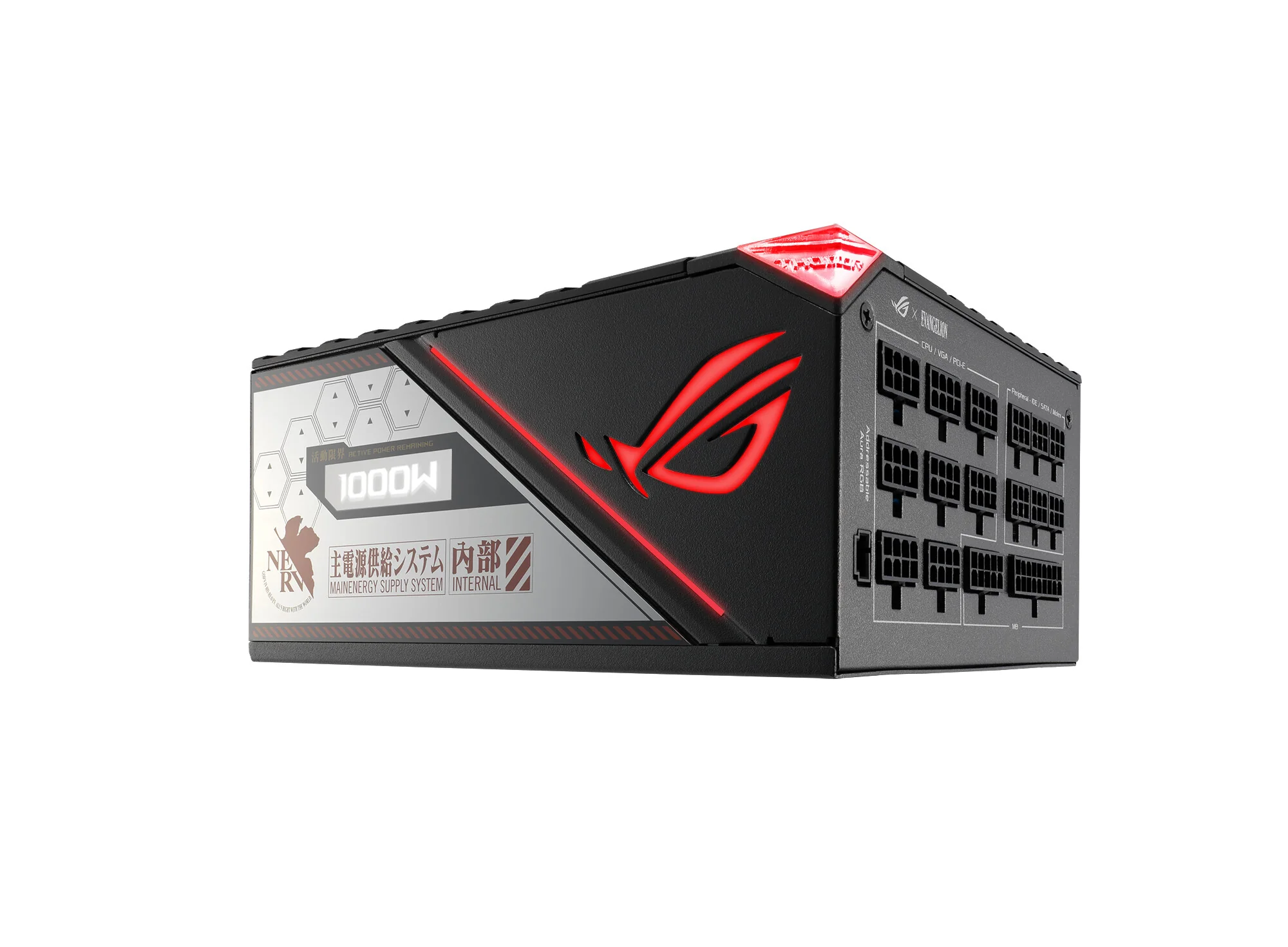

ROG Thor 1000W Platinum II EVA Edition power supply (Evangelion Edition, 1000 Watt, Aura Sync ARGB, OLED display, 0dB cooling)
It’s 2022. The Republic of Gamers is launching new equipment for the EVANGELION project. The ROG Thor II platinum EVA edition wears an EVA-inspired skin and wields component and cooling upgrades that enable the lowest noise levels – even during the most demanding skirmishes with the opposition.
THE QUIETEST 1000W POWER SUPPLY
ROG THOR 1000W Platinum II EVA EDITION

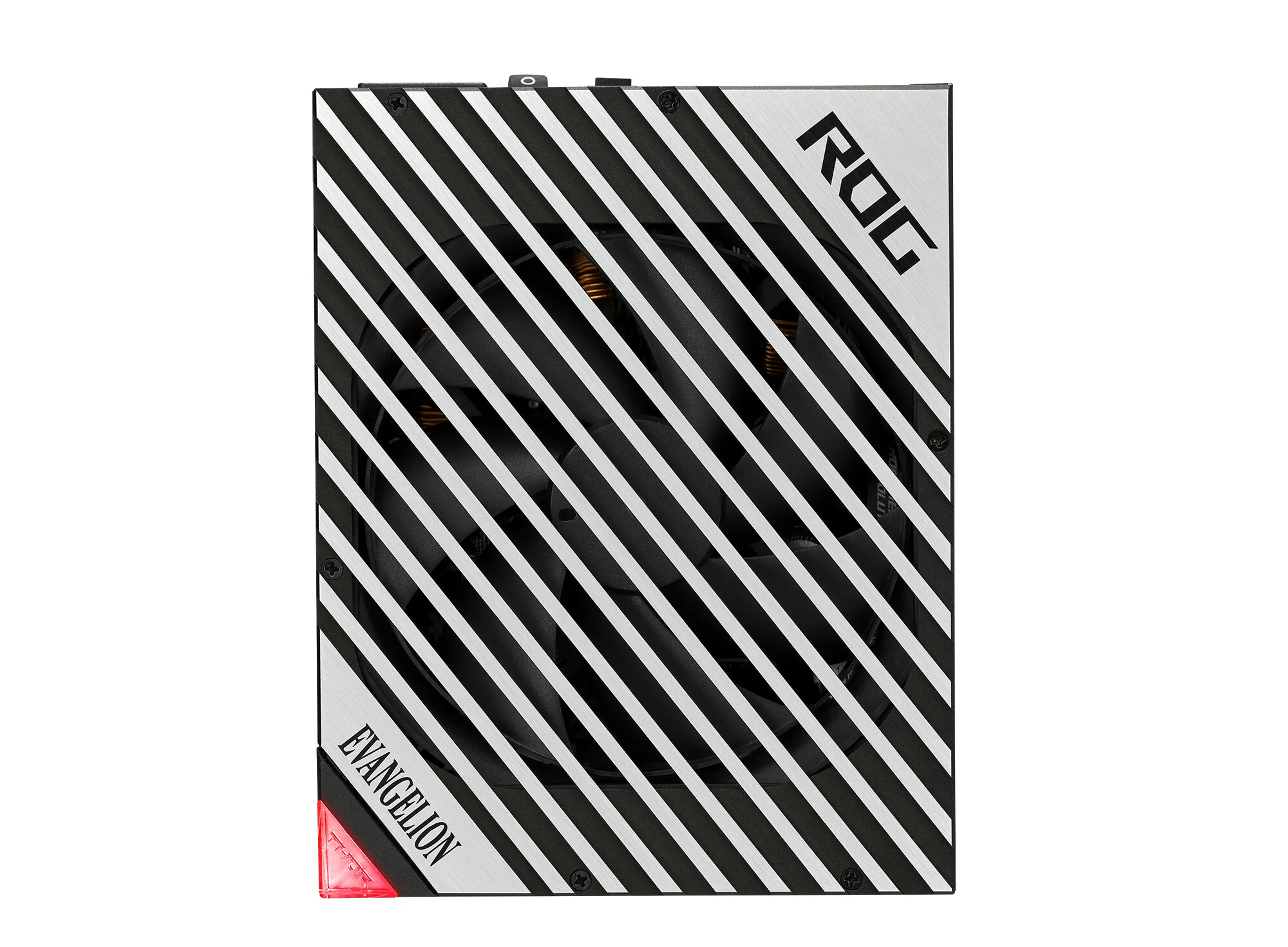

Axial-tech Fan Design
A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check.
ROG Heatsinks
ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.
Lambda A++ Certification
Thor II cooling upgrades result in a coveted Lambda A++ noise rating, confirming the latest iteration wields menacing power in absolute stealth.
| Power |
|---|
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
25 A |
| Max output current (+12V) |
83 A |
| Max output current (+3.3V) |
25 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
125 W |
| Combined power (+12V) |
996 W |
| Combined power (+3.3V) |
125 W |
| AC input voltage |
100 - 240 V |
| Total power |
1000 W |

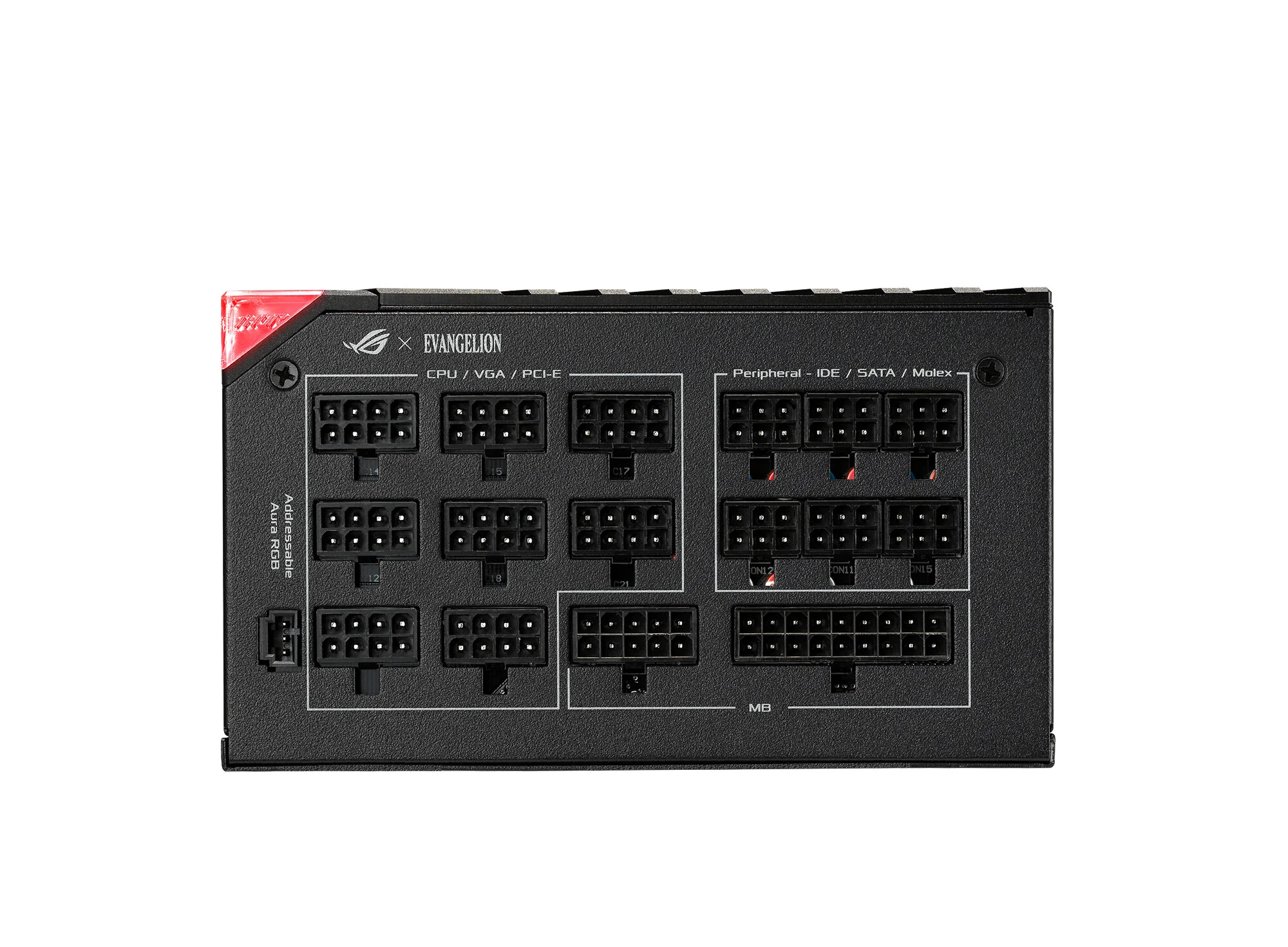

| Ports & interfaces |
|---|
| Cabling type |
Fully-Modular |
| ATX power connector (20+4 pin) |
Yes |
| CPU power cable length |
65 cm |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power cable length |
67.5 cm |
| PCI Express power connectors (6+2 pin) |
8 |
| EPS power connector (4+4 pin) |
Yes |
| Peripheral (Molex) power cable length |
120,450 mm |
| Peripheral (Molex) power connectors (4-pin) |
6 |
| SATA power cable length |
120,400 mm |
| Number of SATA power connectors |
12 |
| Motherboard power cable length |
61 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
|---|
| Certification |
Cybenetics Noise Level CertificationA++ |
| Silent mode |
Yes |
| 80 PLUS certification |
80 PLUS Platinum |
| Purpose |
PC |
| Design |
|---|
| On/off switch |
Yes |
| Illumination |
Yes |
| Number of fans |
1 fan(s) |
| Fan diameter |
13.5 cm |
| Cooling type |
Active |
| Product colour |
Black |
| General |
|---|
| Product Family |
ROG |
| Weight & dimensions |
|---|
| Weight |
2.35 kg |
| Height |
86 mm |
| Depth |
150 mm |
| Width |
190 mm |
| Packaging data |
|---|
| Package weight |
4.9 kg |
| Package height |
135 mm |
| Package depth |
287 mm |
| Package width |
339 mm |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Sustainability certificates |
RoHS |
