ARCTIC Freezer 7 X CO - Compact Multi-Compatible Air Processor Cooler - 92mm
A worthy Freezer 7 Pro Successor: Better Price - Better Performance
The ARCTIC Freezer 7 X CO is a compact CPU cooler with one 92mm fan. It is multi-compatible with common Intel® and AMD® sockets. Due its dual ball bearing it is optimised for Continuous Operation. The Freezer 7 X CO benefits from an improved heatsink design and a reworked heat pipe layout. In conjunction with the fan, which is optimized for high static pressure, ARCTIC was been able to significantly improve the Freezer 7 X CO's cooling performance.
Compatible with Intel & AMD Sockets
The Freezer 7 X CO is compatible with all current desktop sockets from Intel and AMD. By using the mounting frame, simple installation is possible without a need to remove the mainboard.
Pre-applied MX-2 Thermal Paste
Pre-applied, high-performing MX-2 thermal paste ensures quick and clean assembly.
More Efficient and Whisper Quiet
In addition to operating more quietly, even at maximum speed, the Freezer 7 X CO built-in fan motor is also much more efficient. The power consumption was reduced from 0.25 A to 0.07 A, which corresponds to an effective savings of 72 % in power consumption. ARCTIC engineers were also able to reduce the volume by 40 %, allowing the Freezer 7 X CO to run at a whisper-quiet 0.3 sone when at maximum speed.
10 % More Cooling Capacity with Freezer 7 X
The ARCTIC Freezer 7 X CO sets new standards in cooling. Compared to its predecessor, a performance increase of almost 10 % could be tested. The thermal resistance stands for the absolute performance of a CPU cooler by indicating the temperature increase per unit of performance. It also represents the cooling performance independent of the processor and is the more accurate alternative to a TDP specification.
Longer Lifespan Thanks to its Low Coil Temperature
The Freezer 7 X CO uses a fan motor newly developed by ARCTIC. This runs less audibly and more efficiently, so that the temperature of the coils is 20 ° C lower than with conventional motors. This increases the lifespan of the fans considerably, allowing ARCTIC to grant a 6-year warranty period for the Freezer 7 X CO.
Offset Heat Pipes Enable Optimal Heat Dissipation
The direct touch heat pipes attached to the Freezer 7 X CO and an optimised design of the 44 cooling fins together ensure that the heat from the CPU can be ideally removed and released into the air.
P-fan for Increased Performance
Inspired by the P-series, the Freezer 7 X CO's fan benefits from all of the advantages of P-fans:
• High static pressure for increased cooling performance
• Broad RPM range
• Lower power consumption
• Less vibration
• PWM for synchronous fan control
Double Ball Bearing
The premium quality dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential.

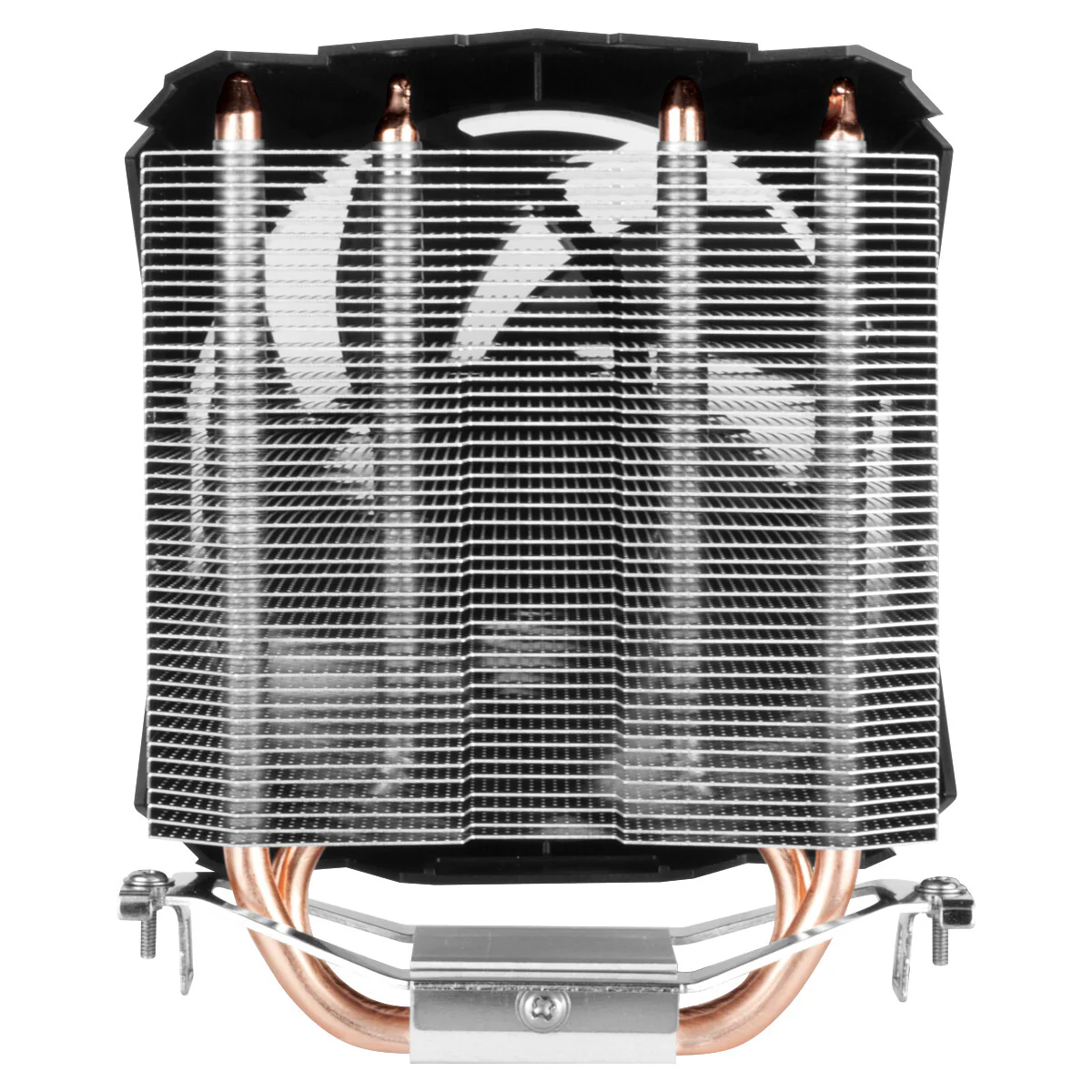

Direct Touch Heat Pipes
The Freezer 7 X CO uses direct touch heatpipes. This ensures that the heat to be dissipated is transferred directly to the heatpipes without an additional material layer, and transported into the heatsink via the pipes.
Multilingual Manuals
We offer a regulary updated user manual in many languages conveniently at your fingertips anywhere and anytime. Put the QR code sticker in an easy-to-reach place and never again waste time searching for product instructions.
| Performance | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Pulse-width modulation (PWM) support | Yes |
| Noise level | 0.3 sone |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 300 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 775 (Socket T), Socket AM3+, Socket AM4, Socket FM1, Socket FM2+ |
| Fan diameter | 9.2 cm |
| Type | Air cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Number of heat pipes | 2 |
| Fins material | Aluminium |
| Number of fins | 44 |
| Number of fan blades | 5 |
| Number of fans | 1 fan(s) |
| Product colour | Aluminium, Black |
| Power | |
|---|---|
| Rated current | 0.07 A |
| Voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Package weight | 514 g |
| Package height | 145 mm |
| Package depth | 107 mm |
| Package width | 113 mm |
| Fins thickness | 0.4 mm |
| Heat pipes diameter | 6 mm |
| Weight | 425 g |
| Height | 132.5 mm |
| Depth | 74.3 mm |
| Width | 110.5 mm |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Package type | Box |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
- ARCTIC Freezer 7 X/7 X CO - Installation on AMD AM4
- ARCTIC Freezer 7 X/7 X CO - Installation on Intel 115X
