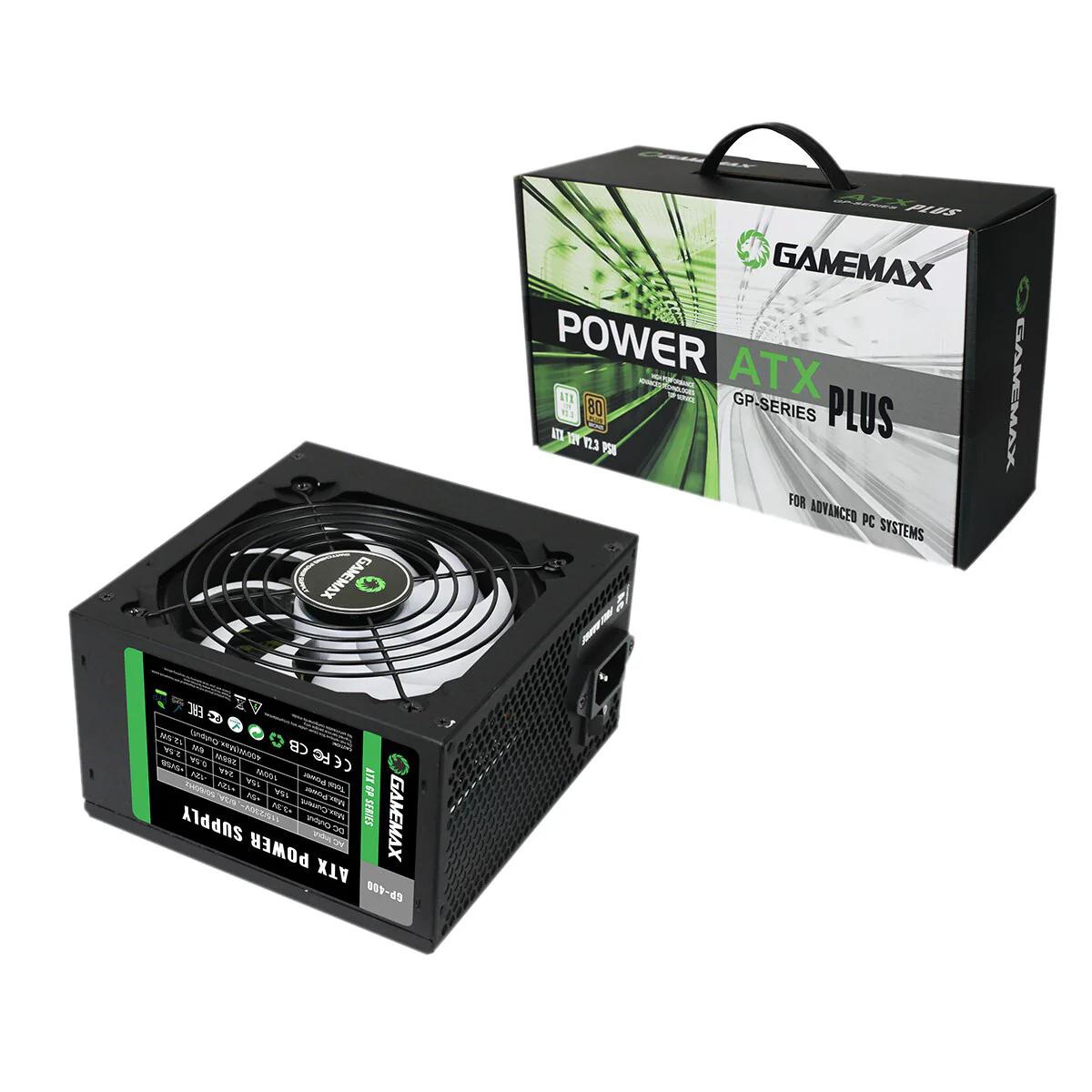

GameMax GP-400A - 400W 80+ Bronze Non-Modular Power Supply Unit
GameMax performance range power supplies are a great choice if you are building a home or office system as a mainstream model, there is a total of 3 Sata connectors for Raid storage and up to 85% efficiency for power saving and a single +12V rail for extreme CPU/GPU power consumption. Good DC quality with lower ripple and noise and fully protected functions are used to guard your components in the system. When installing there is no struggle with the longer 20 + 4 pin and 4 + 4 pin connectors measuring 550mm.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overload, Under current, Under voltage |
| Hold time | 17 ms |
| Efficiency | 85% |
| Power Good signal delay range | 100 - 500 ms |
| Power Factor Correction (PFC) type | Active |
| Input current | 3 - 6 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 400 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Non-Modular |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Number of SATA power connectors | 3 |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Safety | CE / FCC / CB |
| Mean time between failures (MTBF) | 100 h |
| Noise level | 25 dB |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| Fan diameter | 12 cm |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.2 kg |
| Height | 85 mm |
| Depth | 140 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package weight | 1.7 kg |
| Package height | 180 mm |
| Package depth | 115 mm |
| Package width | 300 mm |
