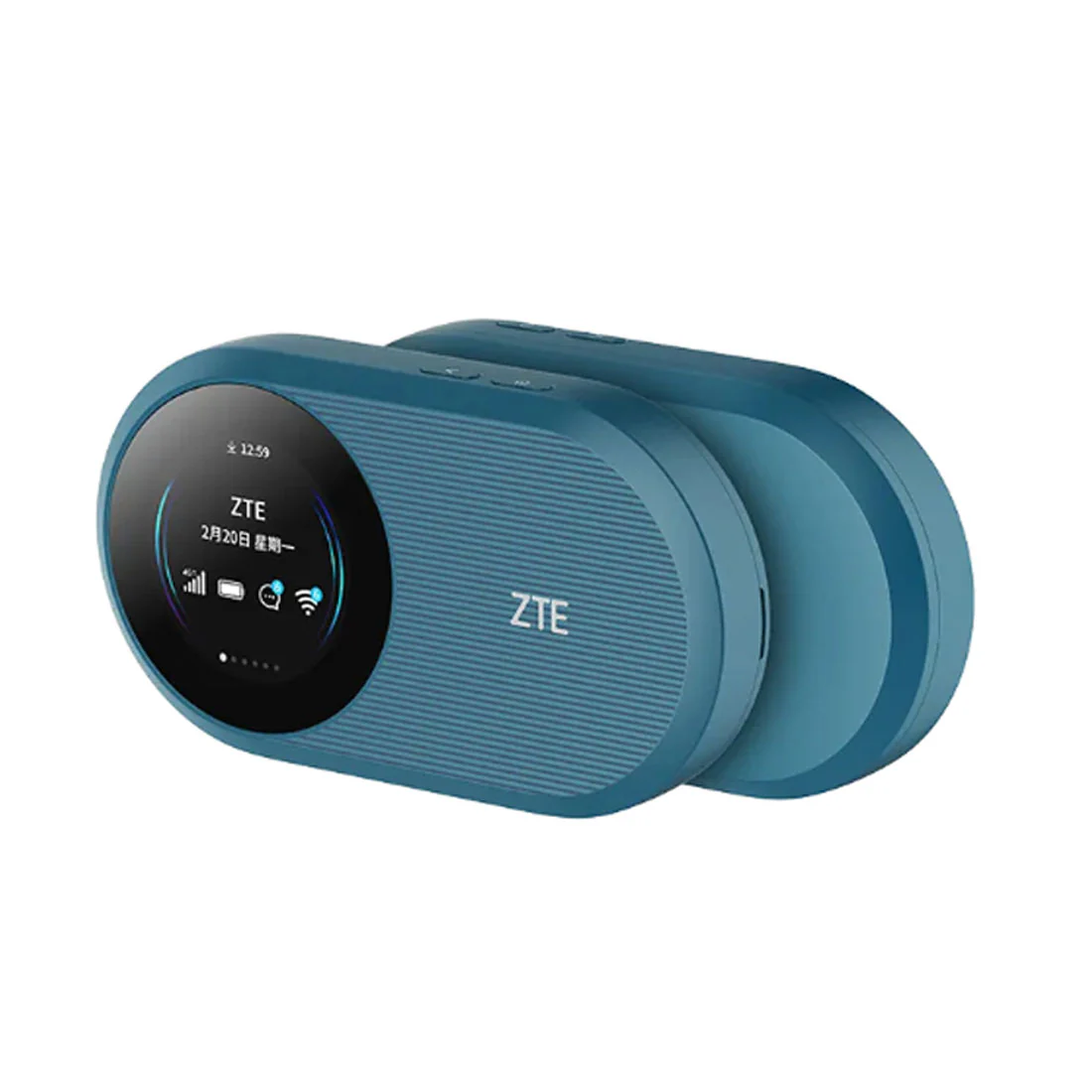

ZTE U10S Pro - 4G Mobile WiFi6 Hotspot

Key Features

• Supports up to 32 devices
• Removable 3000mAh battery
• WiFi peak download speeds up to 229Mbps

Overview

ZTE U10S Pro is a new 4G mobile WiFi hotspot router supporting WiFi 6 and peak download speeds up to 229Mbps. Up to 32 wireless devices can connect with ZTE U10S pro and access the internet.

ZTE U10S Pro is equipped with a circular screen that can query and view device operating status, speed, traffic status, connected users, management content and other information with one click. Its battery capacity is 3000mAh and has a detachable design, with a usage time of up to 10 hours in typical scenarios.

	Wireless chipset supplier	ZTE
	Routing and WiFi chipset supplier	TROLINK
	NFC	NO
	Wireless chipset model	ZX297520V3E
	Wireless processor info	Cortex-A53, cortex-A53 up to 624MHz
	Routing and WiFi chipset model	AIC8800DW
	Routing and WiFi processor info	ARM Cortex M4
	USIM/SIM slot	Standard 6PIN SIM card interface 3V SIM card and 1.8V SIM card
	Memory(SDRAM/NAND)	Modem: 1Gbits Nand+512Mbits LPDDR2
	BAND	FDD-LTE B1,2,3,5,7,8,20,28 TDD-LTE B38,40,41 UMTS B1,2,5,8
	Max. transmitter power for WiFi	2.4GHz：11b    19dBm                 11g    17dBm                              11n    16dBm                 11ax   13dBm
	Working Time	10h (ZTE Laboratory Test Value)
	Standy Time	320h
	WiFi	802.11b/g/n/ax	Yes
		2.4G MIMO:2.4GHz 1*1	Yes
		WiFi Speed： 2.4GHz ：DL287Mbps，UL229Mbps	Yes
		Bandwidth: 2.4G:  20M/40M	Yes
		Access number: up to 32	Yes
		Modulation：BPSK、QPSK、16-QAM、64-QAM、256-QAM、1024-QAM	Yes
	Antenna	4G/3G Gain： 824-960MHz: 1-2.5dBi 1700-2700MHz: 1-5.5dBi	Yes
		WiFi Gain: 2.4GHz-2.5GHz :5-7dbi	Yes
		Internal antenna for both all bands and WiFi	Yes
Hardware	Arkwork	Dimensions：108 x 59.8 x 18.9mm	Yes
		Weight：119g	Yes	device：64.4g battery：54.3g
		Battery：3000mAh, removable	Yes
	Maximum power consumption	4W	Yes
	Interface	Usb：1 TypeC usb	Yes
		SIM slot: Nano/eSIM Compatibility	Yes
		Power button	Yes
		Reset button	Yes
		WPS button	Yes
		Screen： Type: TFT Size: 1.38 inch Resolution: 240*240	Yes
Environment specifications	Operating temperature	-20 to 55° C	Yes
	Storage temperature	-40 to 70° C	Yes
	Humidity	5% to 95%	Yes
Certification		CE，WEEE，ROHS，REACH，WiFi ，TR398、ACA	Yes
Package contents
		Quick Start Guide	Yes
		User Manuel	Optional
		Warranty card	Optional
		DoC	Yes
		EAN can be customized	Yes
		TAC can be customized	Yes
Software	Device Mode
		Wireless mode	Yes
	Networking	IPv4/IPv6 dual stack (NDP IPv6)	Yes
		DHCP server	Yes
		Virtual Private Network (VPN) :	Yes
		pass-through(L2TP/PPTP/IPSec/GEE)	Yes
		NAT/NAPT	Yes
		Sip ALG	Yes
		Multiple APNs	Optional
	Firewall	Port Forwarding	Yes
		Port Filtering	Yes
		Port Mapping	Yes
		Domain Filtering	Yes
		Upnp	Yes
		DMZ	Yes
		Remote Access/Ping switch	Yes
		MAC address filtering	Yes
	WiFi	WiFi Switch	Yes
		Security mode: WPA-PSK/WPA2-PSK, WPA2-PSK/WPA3-PSK,WPA2-PSK、OPEN、WPA3-PSK	Yes
		WiFi Broadcast	Yes
		WiFi Isolation	Yes
		Auto channel selection	Yes
		WPS	Yes
		GuestSSID support	Yes
		WiFi Sleep Mode	Yes
	Device Managemnt	Connected device Management	Yes
		SMS	Yes
		PIN/PUK management	Yes
		APN management	Yes
		Upgrade: FOTA	Yes
		Language: Chinese/English	Yes
	Special Feature	Green Mode: user can set the device to save the power	Yes
