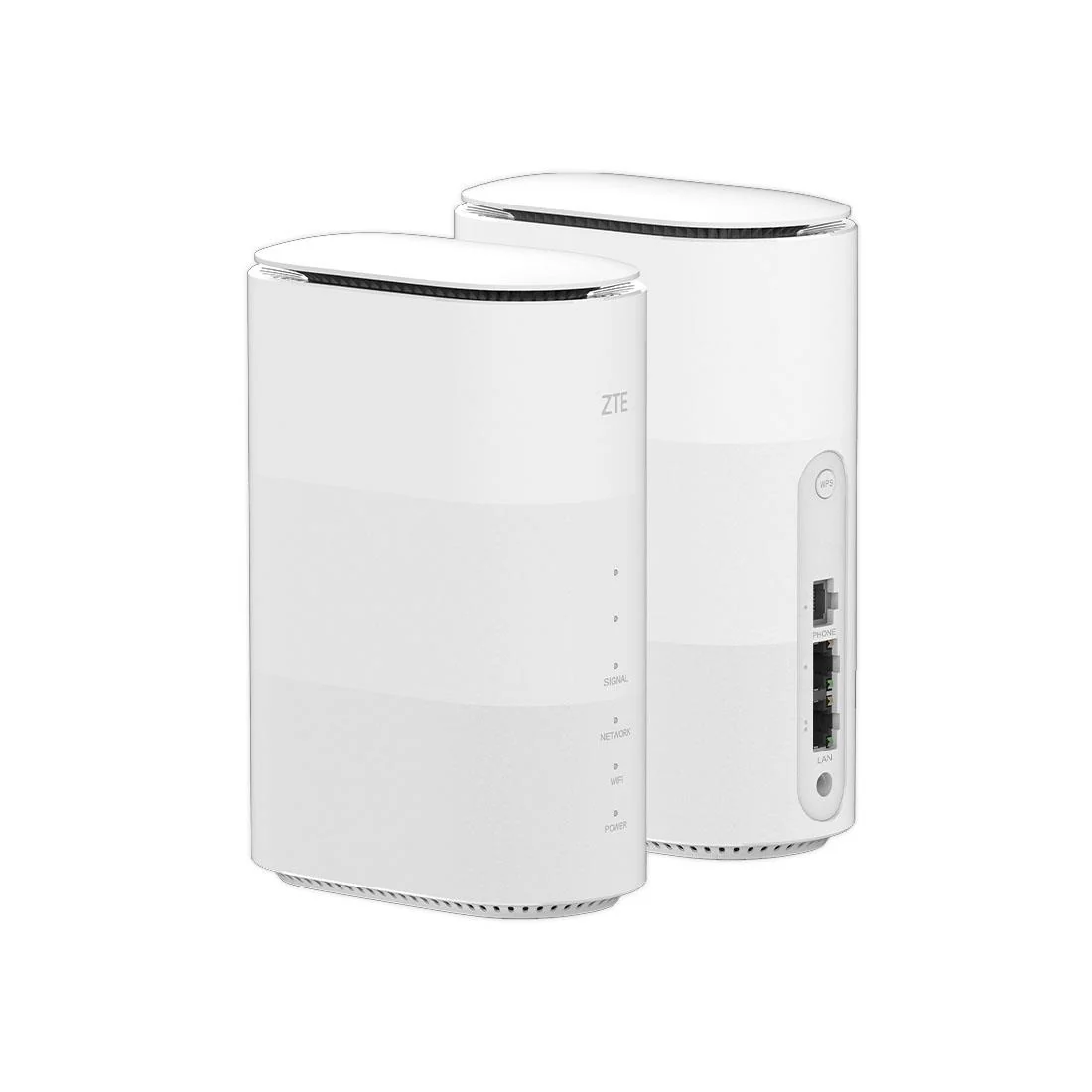

ZTE G5B - Gigabit Ethernet Dual-Band (2.4 GHz / 5 GHz) Wi-Fi 6 Wireless Router in White

Key Features

• 5G connectivity with speeds up to 3.4 Gbps (subject to mobile network!)
• WiFi 6 technology supporting 64 devices
• Easy plug-and-play setup
• Advanced security with WPA-PSK & WPA2-PSK encryption
• Parental Controls

Overview

Equipped with built in antennas
Equipped with built in antennas to boost internet further with 10 LTE/NR omni-antennas & 2 WiFi omni-antennas. VOIP & VOLTE Support – Enables multiple accounts and various call features to surpass traditional landlines, for LTE high-speed wireless communication.

WiFi6 5G router
Easy to use, plug and play. Preferred position feature makes it quick and easy to place in the best spot. Finished with a sleek & compact design making it the perfect feature for your home. Supports both wireless and wired broadband + bridge mode.

Mobile broadband router
Easily share your ultra-fast 5G connection, connect up to 64 WiFi enabled devices, including your laptop, tablet, gaming console, plus many more! No configuration required. Unlocked nano sim slot with WAN connection.

Specification

Wireless Feature	Common feature	3GPP Release16	Yes
		5G NR SA&NSA (Support:5G NR CA, 5G NR + LTE EN-DC) LTE FDD/TDD UMTS	Yes
		Modulation： Sub6G DL: 256QAM UL: 256QAM LTE DL: 256QAM UL: 256QAM	Yes
		Bandwidth of Sub6G：40MHz, 60MHz, 80MHz, 100MHz, 50MHz, 90MHz	Optional	Bandwidth of different frequency bands are different.
		Network Slicling	Yes
		Transmitter power for wireless 26dBm for N78, 23dBm for other bands	Yes
	Bands	5G: N1/3/7/8/20/28/38/40/75/77/78	Yes
		4G: B1/3/7/8/20/28/32/38/40/42/43	Yes
		3G: B1/8	Yes
		4MIMO 5G Sub6:N1/3/7/38/40/75/77/78 supports 4*4MIMO； LTE: B1/3/7 supports 4MIMO	Yes
	Speed	5G ENDC LTE FDD + Sub6G DL 2.716Gb/s UL 280Mb/s	Yes	DL 2.716 Gb/s （10layer LTE 20M 256QAM + 120M NR 256QAM 4*4MIMO 75% DL） UL 280Mb/s     （2CA LTE 20M 256QAM + 100M NR 256QAM 25% UL）
		5G ENDC LTE TDD + Sub6G DL 3.03Gb/s UL 250Mb/s	Yes	DL 3.03Gb/s （16layer LTE 20M 256QAM + 100M NR 256QAM 4*4MIMO 75% DL） UL 250Mb/s     （2CA LTE 20M 256QAM 75%+ 100M NR 256QAM 25% UL）
		5G SA (5G Sub6G -TDD) DL: 1.716Gb/s UL: 160Mb/s	Yes	DL peak rates requires: 120MHz + 256QAM + 4MIMO 75% DL duty cycle; UL peak rates requires: 100MHz + 256QAM + 2MIMO 25% duty cycle. This is theoretical Max Rate on this device platform. The different Hardware configuration and requirement will result different rate
		LTE FDD(DL Category19, UL Category18):              DL 1.6Gb/s              UL 200Mbps LTE TDD              DL 1.12Gb/s              UL 40Mb/s	Yes	FDD peak rates require DL: 256QAM + 5CA （16 layers）;  UL: 256QAM  + 2CA intra-bands and inter-bands TDD peak rates require DL: 256QAM + 5CA （16 layers）;  UL: 256QAM + 2CA intra-bands and inter-bands. And TDD frame config 2 (DL/UL   ratio 7:2) This is theoretical Max Rate on this device platform. The different Hardware configuration and requirement will result different rate
		WCDMA CS: UL 64kbps/DL 64kbps WCDMA PS: UL 384kbps/DL 384kbps HSDPA: DL 14.4Mb/s(Category 10)               DL 21Mb/s(Category 14)               DL 42Mb/s(Category 24) HSUPA:              UL 5.76Mb/s(Category 6)	Yes
	WiFi	WiFi6, 802.11b/g/n/a/ac/ax	Yes
		2*2MIMO for both 2.4G and 5G	Yes
		2.4GHz 2MIMO 688Mbps 5GHz 2MIMO 2.882Gbps The totoal theoretical speed can up to AX3600	Yes
		Bandwidth: 2.4G:  20M/40M 5G: 20M/40M/80M/160M	Yes
		Access number: up to 64	Yes
		Modulation：up to 4K-QAM	Yes
	Antenna	700~960MHz:     1~1.5dbi 1450~2700MHz: 2.5~3dbi 3300~4200MHz: 5dBi	Yes
		WiFi Gain: 2.4GHz  1.5dbi；5GHz: 2.5dbi	Yes
		Internal antenna for both all bands and WiFi	Yes	Device have built-in antennas with  10 LTE/NR omni-antennas and 2 WIFI omni-antennas , and no directional antennas inside the case.
Hardware	Arkwork	Dimensions：182mm*124mm*70mm	Yes
	Weight	about 517g	Yes
	Maximum power consumption	about 15w	Yes
	Interface	RJ45：2 2xGE	Yes
		RJ11：1	Yes
		Usb：1	Yes
		SIM slot: 4FF	Yes
		Reset button	Yes
		WPS button	Yes
	LED	Power: White	Yes
		WiFi: White	Yes
		Network: White/Blue/Red	Yes
		Singal Strength:White	Yes
		LAN: RJ45 port's LED	Yes
		Screen：NA	No
Ingress Protection rating		IP30	Yes
Environment specifications	Operating temperature	-20 to 55° C	Yes
	Storage temperature	-40 to 70° C	Yes
	Humidity	5% to 95%	Yes
Certification		CE,WEEE，ROHS，WiFi	Yes
Package contents		AC Adapter：12V/1.5A	Yes
		Ethernet cable	Yes
		Quick Start Guide	Yes
		EAN can be customized	Yes
		TAC can be customized	Yes
Software	Device Mode	Automatically mode (wireless or wire auto switch)	Yes
		Hybird mode (wireless and wired are used at same time)	Yes
		Wireless mode	Yes
		Bridge mode	Yes
		Cable Broadband Mode	Yes
	IP networking	IPv4/IPv6 dual stack (NDP IPv6)	Yes
		DHCP server	Yes
		Virtual Private Network (VPN) :	Yes
		pass-through(L2TP/PPTP/IPSec)	Yes
		L2TP client	Yes
		PPTP client	Yes
		NAT/NAPT	Yes
		Sip ALG	Yes
	Firewall	Port Forwarding	Yes
		Port Filtering	Yes
		Port Mapping	Yes
		Domain Filtering	Yes
		Upnp	Yes
		DMZ	Yes
		MAC address filtering	Yes
	WiFi	WiFi Switch	Yes
		Bandsteering	Yes
		Security mode: OPEN, WPA-PSK/WPA2-PSK, WPA2-PSK/WPA3-PSK,WPA2-PSK, WPA3-PSK	Yes
		WiFi Broadcast	Yes
		Auto channel selection	Yes
		WPS	Yes
		GuestSSID support	Yes
		WiFi Sleep Mode	Yes
	Voice	CSFB/VOIP/VOLTE	Yes
	Device Managemnt	Connected device Management	Yes
		SMS	Yes
		PIN/PUK management	Yes
		APN management	Yes
		lock band	Yes
		Upgrade: FOTA	Yes
		Device can FOTA access on bridge mode	Yes
	Special Feature	Preferred Position：Can help user to find a good position	Yes
		NFC：Andriod phone touch can access the Router WiFi	No
		Device Diagnosis will list all device running key status and give fix solution	Yes
