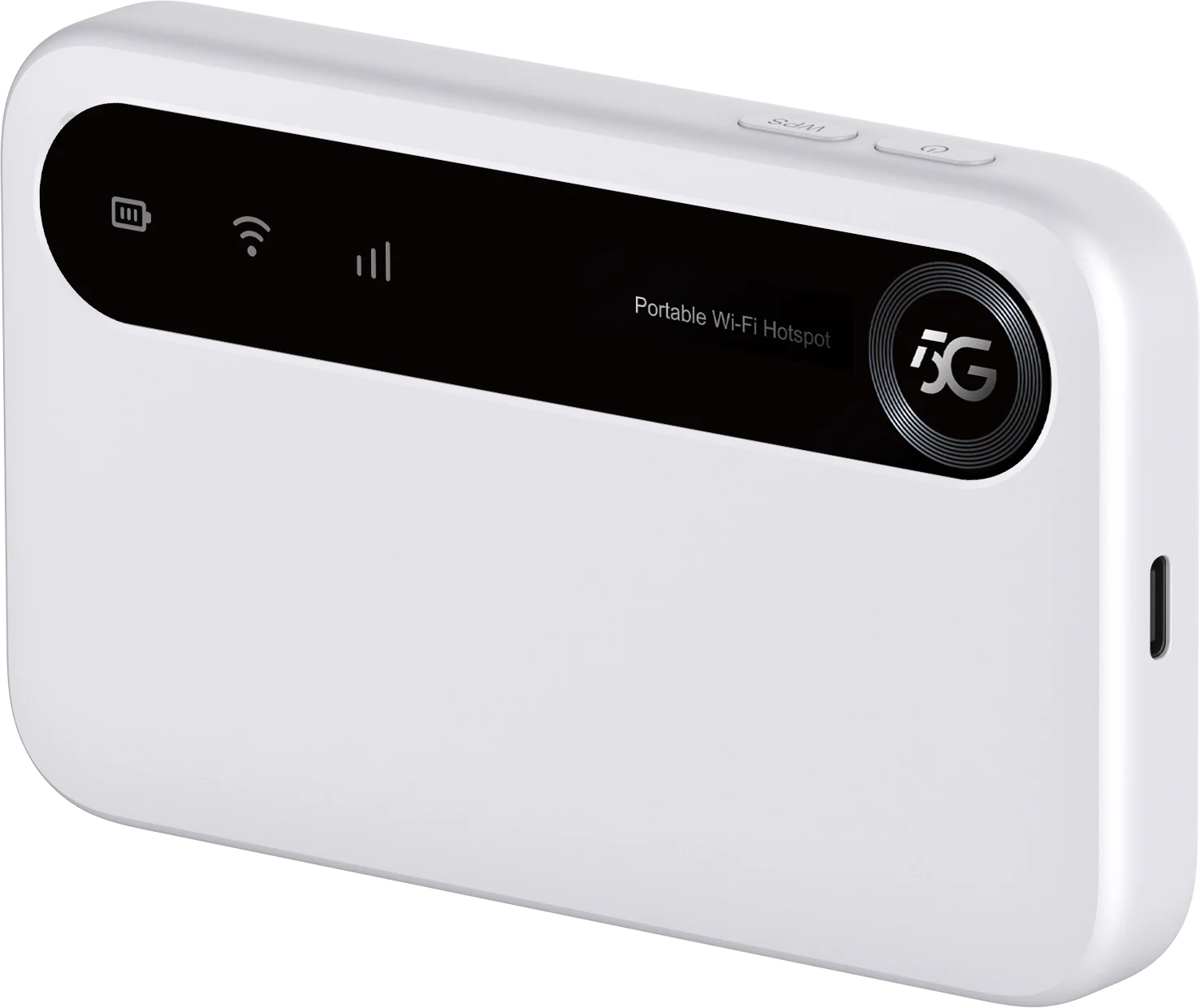

ZTE U50 - Dual Band Mobile Wifi6 Hotspot

Key Features

• 5G Mobile WiFi6
• Download speed up to 1600 Mbps; Upload speed up to 80 Mbps
• Dual Band 802.11ax (5GHz & 2.4GHz)
• Connects up to 32 devices
• 2 year manufacturer warranty

Specification

	Feature	Description
Artwork	Dimensions	18*118*72 mm
	Weight	163.7g
	Form factor	5G uFi(SA & NSA) Support: 5G NR 5G NR + LTE EN-DC
	User manual
	Quick guide
	Warranty cards
	Battery	4500mAh
	AC adapter	5V/2A
	Network cable
	EAN
	TAC
Solution	Wireless chipset supplier	Qualcomm
	Routing and WiFi chipset supplier	Qualcomm
	Wireless chipset model	SDX55
	Wireless processor info	SDX55M Arm Cortex-A7 up to 1.4GHz
	Routing and WiFi chipset model	QCA6391
	Routing and WiFi processor info	QCA6391 Dual-Band 2x2 MIMO DBS 802.11ax
	USIM/SIM slot	Standard 6PIN SIM card interface 3V SIM card and 1.8V SIM card
	Memory(SDRAM/NAND)	512MB/512MB
	MICRO SD slot
	USB interface	1
	RJ45 interface	1
	RJ11 interface
	WiFi users access	2.4GHz + 5GHz = 32
	Maximum power consumption	TBD
	LCD
	Power indication LED
	WIFI indication LED
	Network mode indication LED
	WAN signal strength indication LED
	Ethernet  signal strength indication LED
RF	Chipset	SDX55
	SRS
	Waveform	CP-OFDM for UL&DL DFT-s-OFDM for UL
	Sub Carrier	Sub6G: 30KHz, 15KHz mmW: 120KHz
	Main antenna	Internal antenna
	GSM band	Doesn't support 2G.
	UMTS band	B1/8
	LTE band	B1/3/7/8/20/28/32/38/40/42/43
	5G Sub6 Band	n1/3/7/8/20/28/38/40/77/78
	5G mmWave Band	Doesn't support mmWave.
	MIMO for wireless	5G Sub6: N78 supports 4*4MIMO LTE: 1/3/7 supports 4MIMO
	transmitter power for wireless	26dBm for  N78 23dBm for other bands
	WiFi band	2.4G & 5G
	MIMO for WiFi	2*2 MIMO for both 2.4G&5G
	MU-MIMO
	Max. transmitter power for WiFi	20dBm(Max) in 2.4G 23dBm(Max) in 5G
Technical standard	WCDMA	WCDMA CS: UL 64kbps/DL 64kbps WCDMA PS: UL 384kbps/DL 384kbps HSDPA: DL 14.4Mb/s(Category 10)               DL 21Mb/s(Category 14)               DL 42Mb/s(Category 24) HSUPA:              UL 5.76Mb/s(Category 6)
	LTE	LTE FDD(DL Category 20, UL Category20):              DL 2Gb/s              UL 150MbpsMb/s LTE TDD(DL Category 20, UL Category18)              DL 1.46Gb/s              UL 30Mb/s
	NSA 5G Sub + LTE Band	5G Sub6G - LTE FDD             DL 2.63 Gb/s             UL 525Mb/s 5G Sub6G - LTE TDD              DL 2.31 Gb/s              UL 465 Mb/s
	Bandwidth of Sub6G	20MHz, 40MHz, 50MHz, 60MHz, 80MHz, 90MHz, 100MHz
	Modulation	LTE:DL 256QAM/UL 256QAM sub-6:DL 256QAM/UL 256QAM
	BWP
	Network Slicling
	3GPP release	Release 15
	WiFi standard	802.11b/g/n/a/ac/ax
	WiFi Band	2.4G:  20M/40M 5G:     20M/40M/80M
	WiFi Speed	2.4GHz 2MIMO 575Mbps 5GHz 2MIMO 1.2Gbps The totoal spped can up to 1.775Gbps
	WiFi security	WPA-PSK/WPA2-PSK
	WPS	PBC(Push Button Config) & station PIN
	IP protocols	RFC 791 (IP)
		RFC 793 (TCP)
		RFC 768 (UDP)
		RFC 792 (ICMP)
		RFC 826 (ARP)
		RFC 1661 (PPP)
		RFC 1332 (IPCP)
		RFC 1334 (PAP)
		RFC 1994 (CHAP)
	NAT/NAPT	RFC 3022
	Browser	IE
		Firefox
		Safari
		Opera
		Chrome
	ZTE Link	Andraiod and iOS APP to management the device.
Router	Port forwarding
	IP filter
	DMZ
	UPnP
	VPN passthrough	PP2P/L2TP/IPSec
	VPN Client
	Voice
	Fax
	SMS
	MMS
	Phonebook
	Network lock
	IPv4/IPv6
	Language	English
	Firewall switch	Enable/Disable IP/MAC/Port filter
	TR069
	Online update	FOTA
HW buttons &switches	Power button
	Reset button	To restore factory default configurations after pressing for 3 seconds
	WPS button	To activate the PBC(Push Button Config) function
Approvals &Certification	CE
	ROHS
	WEEE
	GCF
	FCC
	WiFi certification
	PTCRB
	REACH
	Operating temperature	-20 to 55° C
	Storage temperature	-40 to 70° C
	Humidity	5% to 95%
