8GB GDDR6, 128-bit, 1777 MHz, 15 Gbps, PCI Express4.0 16x, DisplayPort 1.4a, HDMI, 224.1 x 116.3 x 39.2 mm

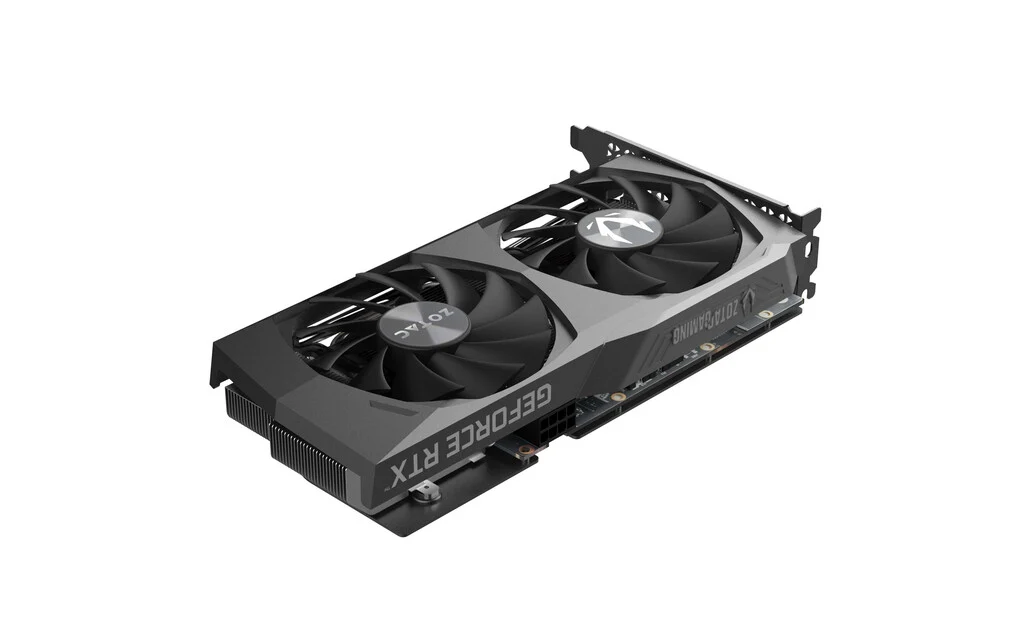

Get Amplified with the ZOTAC GAMING GeForce RTX™ 30 Series based on the NVIDIA Ampere architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and high-speed GDDR6 memory, the ZOTAC GAMING GeForce RTX 3060 8GB Twin Edge gives rise to amplified gaming.
| Processor |
| Parallel processing technology support |
Not supported |
| Processor boost clock speed |
1777 MHz |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 3060 |
| Graphics processor family |
NVIDIA |
| Memory |
| Data transfer rate |
15 Gbit/s |
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Ports & interfaces |
| DisplayPort version |
1.4a |
| HDMI version |
2.1 |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express x16 4.0 |
| Performance |
| HDCP |
Yes |
| HDCP version |
2.3 |
| OpenGL version |
4.6 |
| DirectX version |
12 Ultimate |
| TV tuner integrated |
No |
| Design |
| Product colour |
Black |
| Number of slots |
2 |
| Cooling technology |
Zotac IceStorm 2.0 |
| Cooling type |
Active |
| Power |
| Power consumption (typical) |
170 W |
| Supplementary power connectors |
1x 8-pin |
| Minimum system power supply |
600 W |
| System requirements |
| Windows operating systems supported |
Windows 10 x64 |
| Weight & dimensions |
| Depth |
39.2 mm |
| Height |
116.3 mm |
| Length |
224.1 mm |
| Packaging data |
| Package type |
Box |
| Package height |
283 mm |
| Package depth |
83 mm |
| Package width |
218 mm |
| Manual |
Yes |
