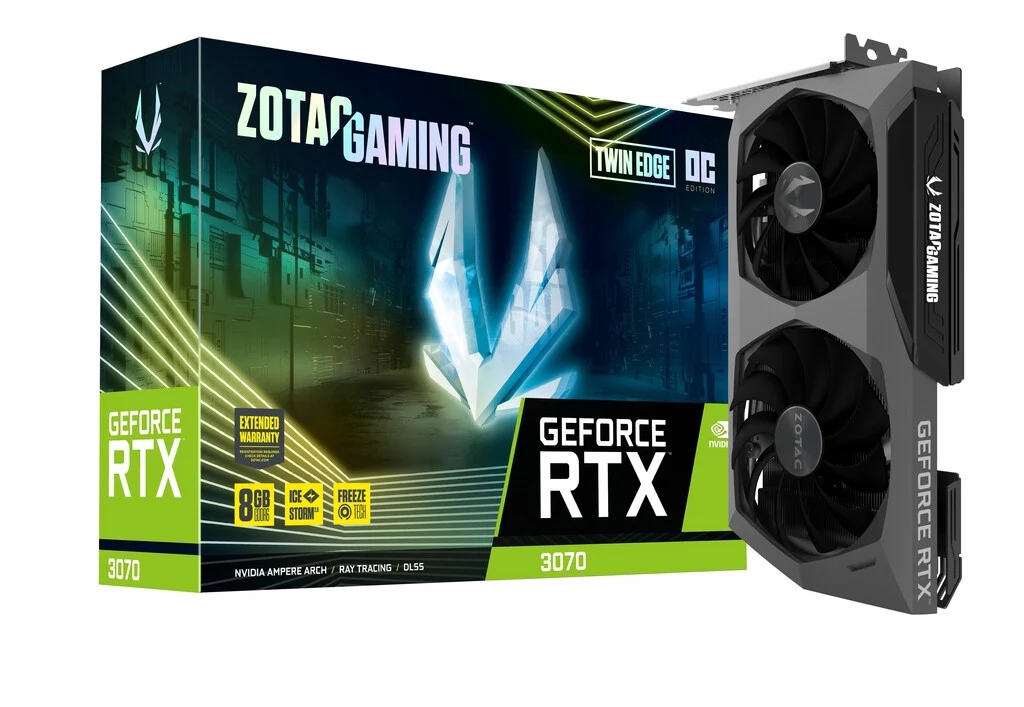

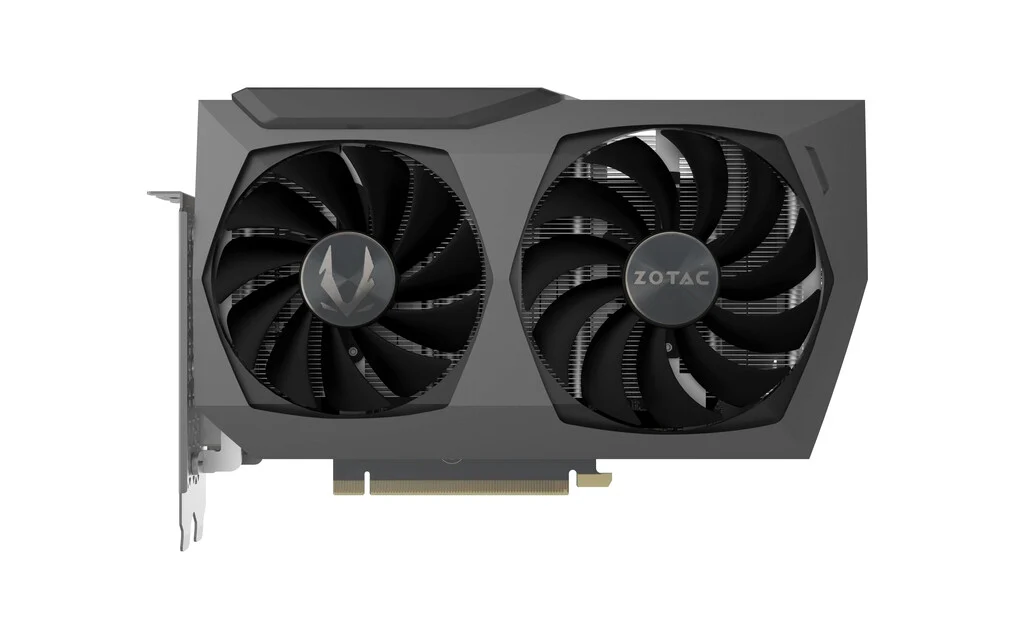

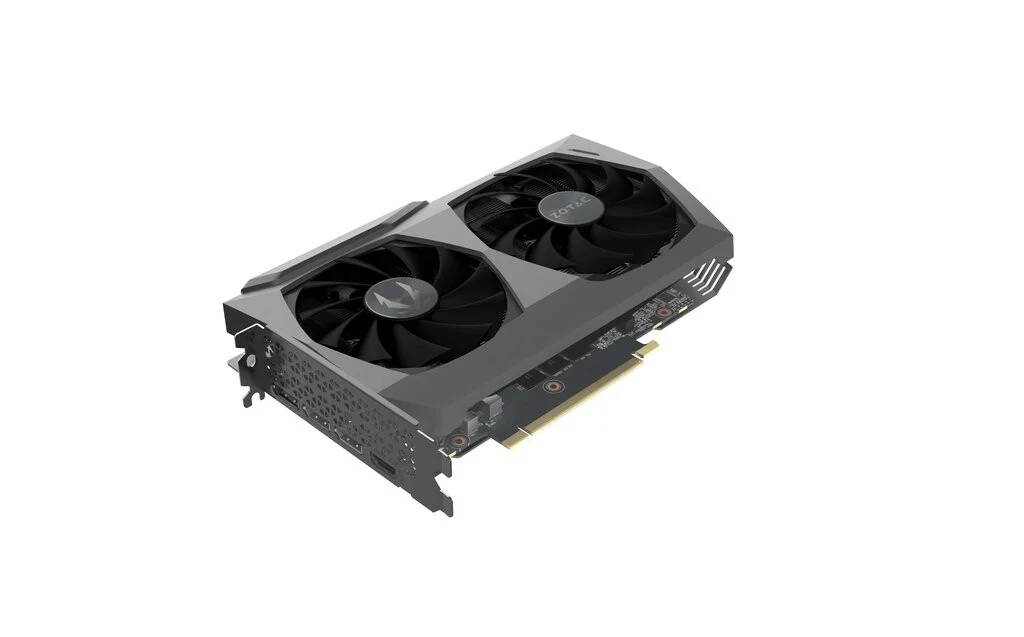

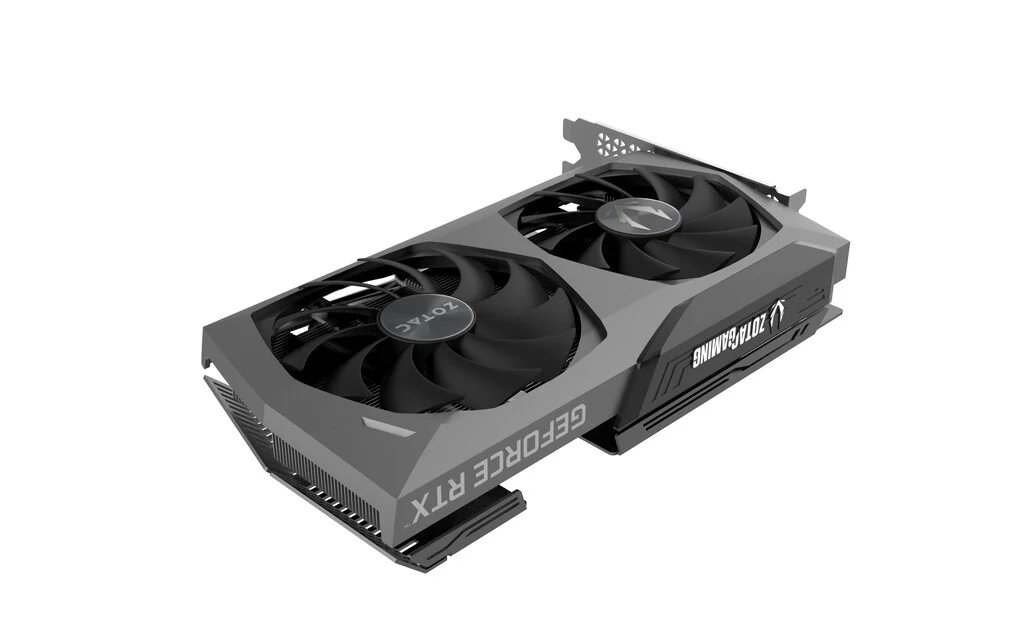

Zotac GAMING Twin Edge OC - NVIDIA 8 GB GDDR6 GeForce RTX 3070 graphics card
Live To Game with the all-new ZOTAC GAMING GeForce RTX™ 30 Series based on the NVIDIA Ampere architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast memory, the new ZOTAC GAMING graphics cards give rise to amplified gaming with ultra graphics fidelity.
RTX. IT’S ON.
Experience today’s biggest blockbusters like never before with the visual fidelity of real-time ray tracing and the ultimate performance of AI-powered DLSS. RTX. It’s On.
DLSS AI ACCELERATION
MAX FPS. MAX QUALITY. POWERED BY AI.
NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates by 1.5X or more with uncompromised image quality using the dedicated AI processing Tensor cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has arrived to gaming.
BRING DOWN THE MERCURY
ADVANCED COOLING
A more refined IceStorm 2.0 cooling system is purpose-built for wider coverage to keep the GPU cooler and running stronger, with enhancements in the visible and in what lies underneath.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| FireStream | No |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 1755 MHz |
| CUDA cores | 5888 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 3070 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 14 Gbit/s |
| Number of pipelines | 5 |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 4.0 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Illumination | Yes |
| Illumination colour | White |
| Number of slots | 2 |
| Number of fans | 2 fan(s) |
| Cooling technology | Zotac IceStorm 2.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 2x 8-pin |
| Power consumption (max) | 220 W |
| Minimum system power supply | 650 W |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10 x64 |
| Weight & dimensions | |
|---|---|
| Depth | 41.5 mm |
| Height | 141.3 mm |
| Length | 231.9 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 363 mm |
| Package depth | 100 mm |
| Package width | 261 mm |
| Manual | Yes |
