16" IPS 1920 x 1080, LED, 250 cd/m2, 7 ms, 16:9, 60 Hz, USB, HDMI, 359 x 227 x 17 mm, 2 x USB Type C

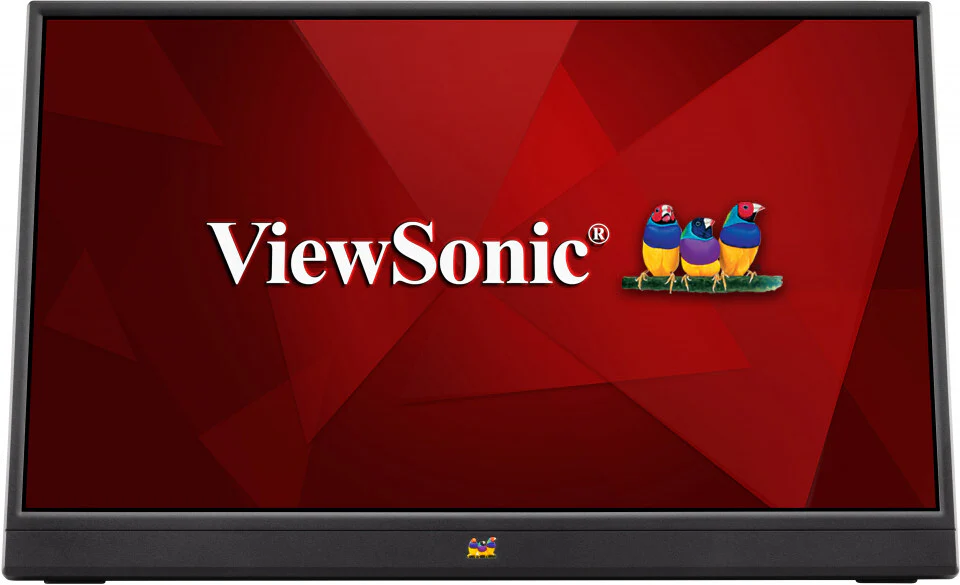

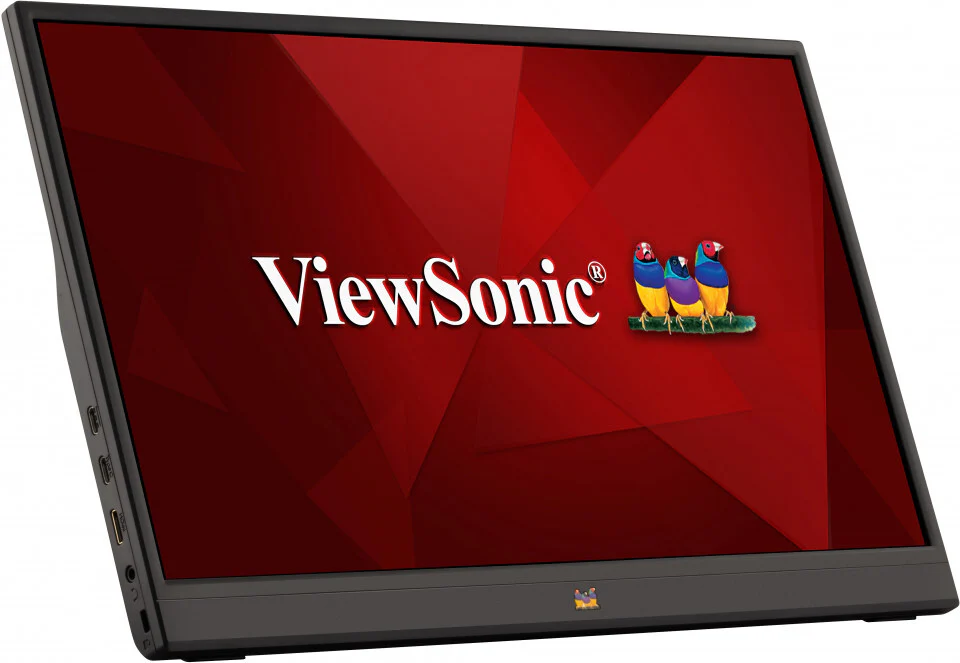

The ViewSonic VA1655 is a portable 16” Full HD monitor perfect for overcoming one-screen limitations outside the office. Extend the screen from phones, tablets, or laptops for mobile work, one-on-one presentations, or leisure entertainment. The two universal USB Type C connectors provide a one-cable solution for audiovisual and power signal transmission. The adjustable stand and pivot-able display will support your working angles.

Extend Your Content from Mobile Devices
Not only HDMI, you also can extend your screen anywhere with your built-in USB Type C laptop, tablet, or phone. It supports Windows, Android, Chrome, MacOS, iOS and iPadOS*. Be sure your laptop, tablet, or smartphone has a full-function USB-C connector that supports Display Port 1.2 Alt Mode and Power Delivery.

*To connect on iPhone or iPad with a lightning port, you will require to purchase a Lightning Digital AV Adapter from apple.com and connect via a HDMI to mini HDMI cable**.
**The HDMI to mini HDMI cable is included in the box.

Anywhere with Laptops, Tablets, and Phones

Audiovisual Extension while Power Charging
Broadcast your built-in Type C mobile device’s multimedia onto a bigger screen and charge over one cable while powering from an external power bank/outlet over the other USB Type C cable.

*Power Charging:
1. For longer use, connect to an external power bank or outlet.
2. For temporary use, connect to your mobile device only.
1> Over 2 hours when powering from your phone - Tested with the phone's built-in battery at a capacity of 4,000 mAh.
a. The phone is on, but with a blank screen.
b. The portable monitor has a brightness value of 15 and a contrast value of 70.
c. Connected by a USB Type C cable.

2> Over 1.5 hours when powering from your laptop - Tested with the laptop's built-in battery at a capacity of 53,546 mAh.
a. The laptop is on; the screen is on.
b. The portable monitor has a brightness value of 100 and a contrast value of 70.
c. Connected by a USB Type C cable.

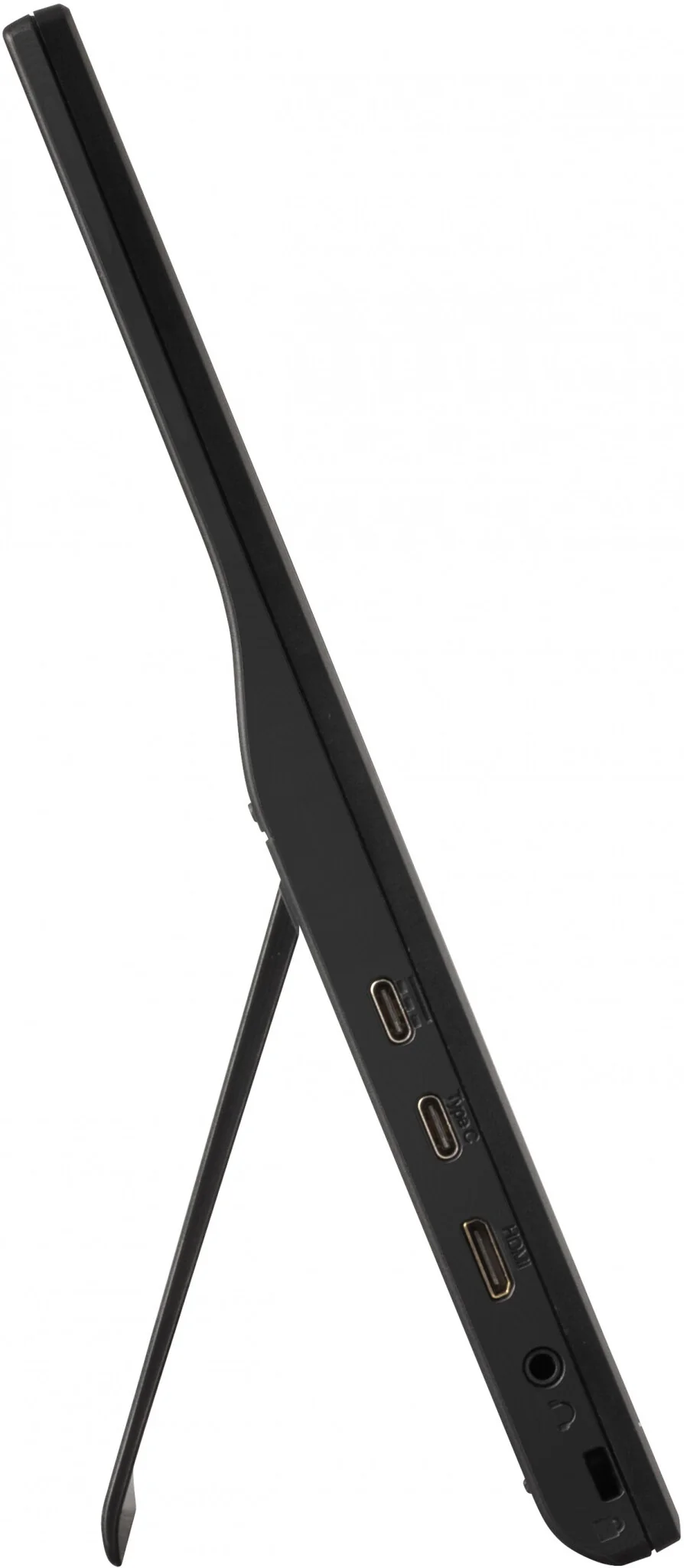

Flexible Setup with USB Type C and mini HDMI

Portable Size for Work & Fun

Larger, 16” display than most common laptops and weighing less than 1 kg with stylish sleeve case. It perfectly outfits your mobile workplace, and can be used for multimedia play when taking a break.

Working in Your Preferred Angles
View in a wide range of angles by adjusting the attached stand.
Up to 53 Degree Tilt

Supports Vertical Layout
Besides common horizontal content, you may setup a pivot screen for table-reviewing, programming, photo-editing, gaming, etc.

Pivot-able Display

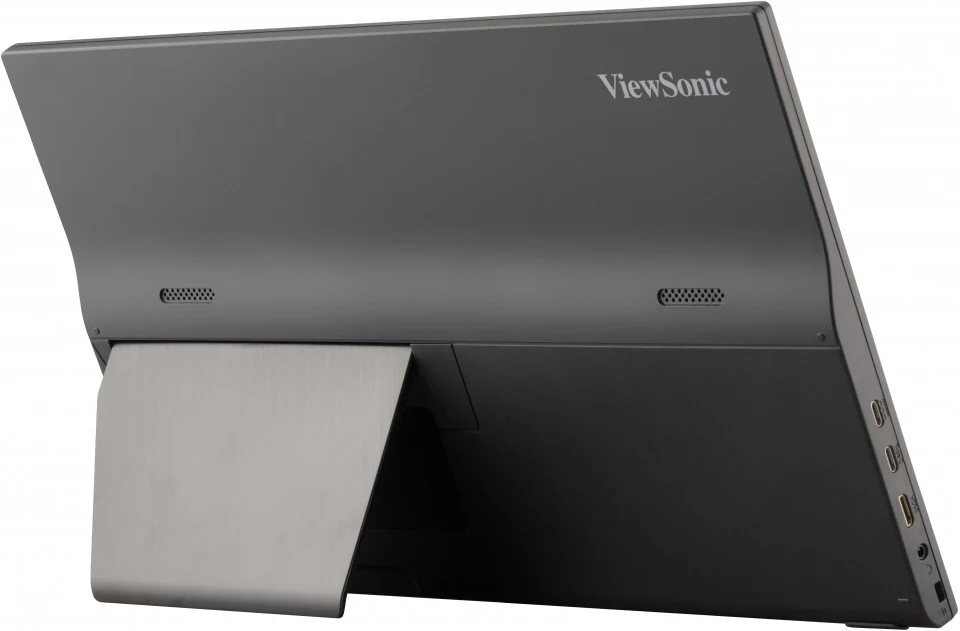

One-piece Design
With the plastic case and endurable hinge, the foldable stand makes the whole monitor a one-piece design.
Endurable hinge & Foldable stand

Display
Display brightness	250 cd/m²
NTSC coverage (typical)	45%
sRGB coverage (typical)	64%
Colour depth	8 bit
Surface hardness	3H
Digital vertical frequency	50 - 75 Hz
Digital horizontal frequency	15 - 82 kHz
Pixel pitch	0.179 x 0.179 mm
Display number of colours	16.2 million colours
Viewing angle, vertical	178°
Viewing angle, horizontal	178°
Maximum refresh rate	60 Hz
Contrast ratio (dynamic)	50000000:1
Contrast ratio (typical)	800:1
Screen shape	Flat
Anti-glare screen	Yes
Response time	7 ms
Display brightness (typical)	250 cd/m²
Panel type	IPS
HD type	Full HD
Touchscreen	No
Display technology	LED
Native aspect ratio	16:9
Display resolution	1920 x 1080 pixels
Display diagonal	40.6 cm (16")

Performance
Compatible operating systems	Windows 10 certifiedmacOS tested

Multimedia
RMS rated power	0.8 W
Number of speakers	2
Built-in speaker(s)	Yes

Design
Product colour	Black
Market positioning	Business

Ports & interfaces
Headphone outputs	1
Headphone out	Yes
Audio output	1 x 3.5 mm
Mini HDMI ports quantity	1
HDMI ports quantity	1
HDMI	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB upstream port type	USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1

Ergonomics
Tilt adjustment	Yes
Tilt angle range	30 - 53°
Pivot	Yes
Cable lock slot type	Kensington
Cable lock slot	Yes

Power
Energy efficiency scale	A to G
Power supply type	AC
Power consumption (max)	7.3 W
Power consumption (standby)	0.3 W
Power consumption (typical)	7 W
Energy consumption (SDR) per 1000 hours	7 kWh
Energy efficiency class (SDR)	C

Operational conditions
Operating relative humidity (H-H)	20 - 90%
Operating temperature (T-T)	0 - 40 °C

Packaging content
Cables included	USB Type-C

Weight & dimensions
Weight (without stand)	700 g
Height (without stand)	227 mm
Depth (without stand)	17 mm
Width (without stand)	359 mm
Weight (with stand)	700 g
Height (with stand)	277 mm
Depth (with stand)	17 mm
Width (with stand)	359 mm

Packaging data
Package height	384 mm
Package depth	72 mm
Package width	430 mm

Sustainability
European Product Registry for Energy Labelling (EPREL) code	782845
Sustainability certificates	REACH, RoHS

Logistics data
Harmonized System (HS) code	85285210
