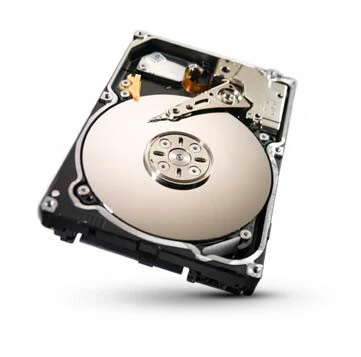

Seagate Constellation.2 - 7.2K RPM SAS 2.5" HDD - 1 TB
- Second generation of the first 2.5 inch, mainstream capacity, 15mm
z-height, nearline drive for space-constrained data centres
- Choose 6Gb/s SAS for data integrity, scalability and fast data access,
or SATA 6Gb/s for fast, economical Tier-2/nearline performance
- The industry’s most reliable 7,200 RPM drive, designed for 24×7
operation with an MTBF of 1.4M hours and an AFR of 0.62%
- Enterprise-class firmware and best-in-class rotational vibration
tolerance maximise system availability and performance
- Lowest operating power (under 6.4W) and enhanced PowerChoice™
options for additional power savings during slow or idling periods;
Workload Management™ technology helps systems to keep drives cool
- Self-Encrypting Drive (SED) option (AES-256) cuts IT drive retirement
costs while protecting data securely where it lives — on the drive1
- FIPS 140-2 Validated™ drives protect data classed as Sensitive but
- Unclassified and Protected1
| Features | |
|---|---|
| Mean time between failures (MTBF) | 1400000 h |
| Bytes per sector | 512 |
| Average latency | 4.16 ms |
| Read seek time | 8.5 ms |
| Write seek time | 9.5 ms |
| HDD interface transfer rate | 6 Gbit/s |
| Storage drive buffer size | 64 MB |
| Type | HDD |
| Interface | SAS |
| HDD speed | 7200 RPM |
| HDD capacity | 1 TB |
| HDD size | 2.5" |
| Power | |
|---|---|
| Operating voltage | 5 V |
| Power consumption (idle) | 3.85 W |
| Power consumption (typical) | 6.4 W |
| Operational conditions | |
|---|---|
| Non-operating shock | 400 G |
| Operating shock | 70 G |
| Non-operating vibration | 3 G |
| Operating vibration | 0.5 G |
| Operating temperature (T-T) | 5 - 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 200 g |
| Height | 15 mm |
| Depth | 100.5 mm |
| Width | 70.1 mm |
| Packaging data | |
|---|---|
| Quantity | 1 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717050 |
Original: $118.66
-65%$118.66
$41.53Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Second generation of the first 2.5 inch, mainstream capacity, 15mm
z-height, nearline drive for space-constrained data centres
- Choose 6Gb/s SAS for data integrity, scalability and fast data access,
or SATA 6Gb/s for fast, economical Tier-2/nearline performance
- The industry’s most reliable 7,200 RPM drive, designed for 24×7
operation with an MTBF of 1.4M hours and an AFR of 0.62%
- Enterprise-class firmware and best-in-class rotational vibration
tolerance maximise system availability and performance
- Lowest operating power (under 6.4W) and enhanced PowerChoice™
options for additional power savings during slow or idling periods;
Workload Management™ technology helps systems to keep drives cool
- Self-Encrypting Drive (SED) option (AES-256) cuts IT drive retirement
costs while protecting data securely where it lives — on the drive1
- FIPS 140-2 Validated™ drives protect data classed as Sensitive but
- Unclassified and Protected1
| Features | |
|---|---|
| Mean time between failures (MTBF) | 1400000 h |
| Bytes per sector | 512 |
| Average latency | 4.16 ms |
| Read seek time | 8.5 ms |
| Write seek time | 9.5 ms |
| HDD interface transfer rate | 6 Gbit/s |
| Storage drive buffer size | 64 MB |
| Type | HDD |
| Interface | SAS |
| HDD speed | 7200 RPM |
| HDD capacity | 1 TB |
| HDD size | 2.5" |
| Power | |
|---|---|
| Operating voltage | 5 V |
| Power consumption (idle) | 3.85 W |
| Power consumption (typical) | 6.4 W |
| Operational conditions | |
|---|---|
| Non-operating shock | 400 G |
| Operating shock | 70 G |
| Non-operating vibration | 3 G |
| Operating vibration | 0.5 G |
| Operating temperature (T-T) | 5 - 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 200 g |
| Height | 15 mm |
| Depth | 100.5 mm |
| Width | 70.1 mm |
| Packaging data | |
|---|---|
| Quantity | 1 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717050 |
