Sapphire PULSE - AMD 8 GB GDDR6 Radeon RX 6650 XT graphics card

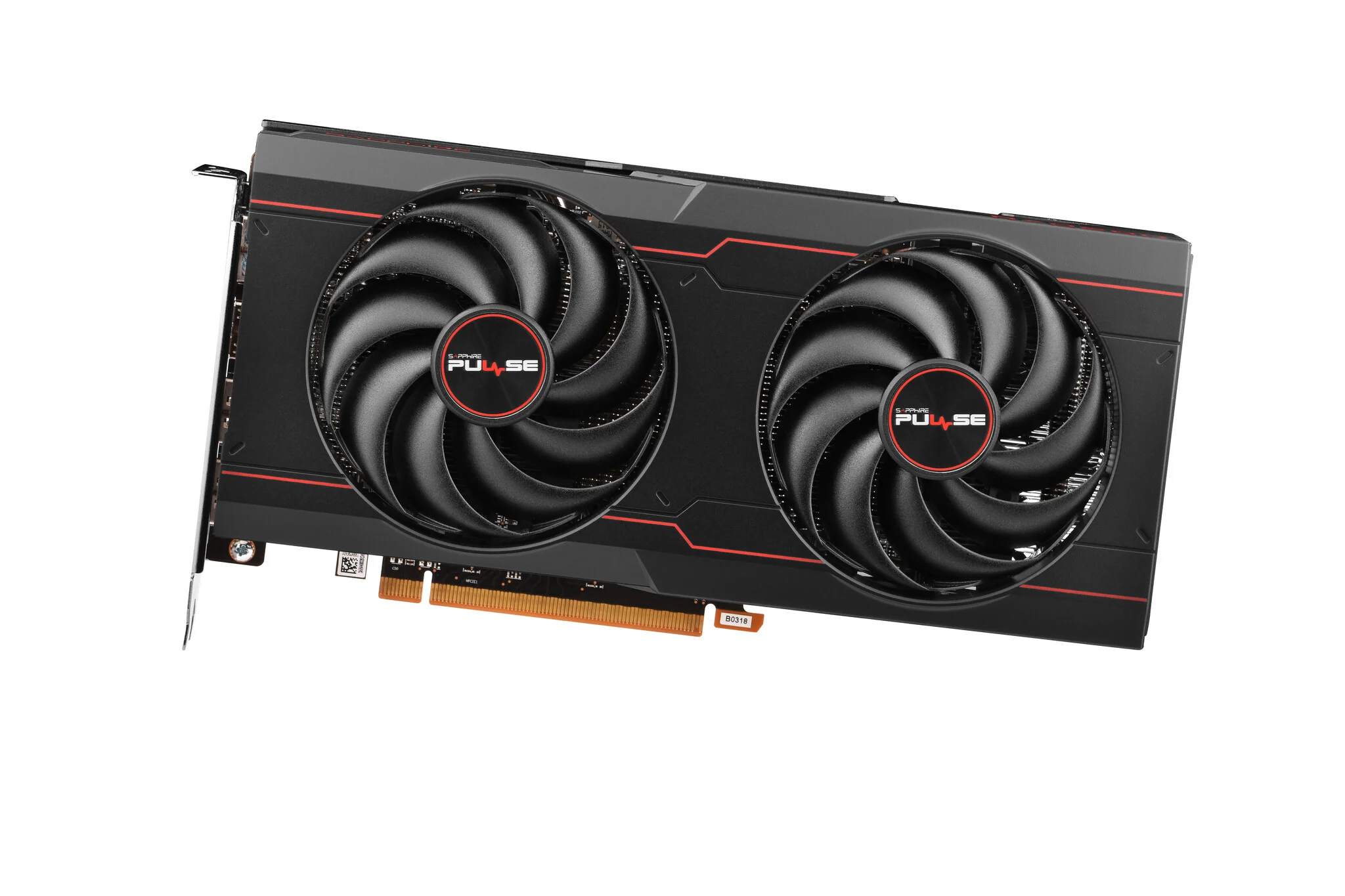

SAPPHIRE PULSE AMD Radeon™ RX 6650 XT
The SAPPHIRE PULSE AMD Radeon™ RX 6650 XT Graphics Card runs on the powerful Dual-X Cooling Technology coupled with Intelligent Fan Control to keep temperatures low and fan noise low. The refined PCB design delivers stable, reliable, and steady performance, which efficiently lowers PCB temperature and component signal noise.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Metal Backplate with Thermal Pad
The high quality aluminum backplate is not just for styling. It also protects the components on the backside of the PCB and helps dissipate the heat from the PCB with a high performance thermal pad in between.
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
| Processor | |
|---|---|
| Stream processors | 2048 |
| Parallel processing technology support | Not supported |
| Ray accelerators | 32 |
| Lithography | 7 nm |
| Infinity cache | 32 MB |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2635 MHz |
| CUDA | No |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Radeon RX 6650 XT |
| Graphics processor family | AMD |
| Memory | |
|---|---|
| Data transfer rate | 17.5 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x8 4.0 |
| Performance | |
|---|---|
| AMD FreeSync | Yes |
| Dual Link DVI | No |
| Virtual Reality (VR) ready | Yes |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Number of slots | 2 |
| Number of fans | 2 fan(s) |
| Cooling technology | Sapphire Dual-X |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Power consumption (max) | 176 W |
| Minimum system power supply | 500 W |
| System requirements | |
|---|---|
| Minimum RAM | 8192 MB |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64, Windows 7 x64 |
| General | |
|---|---|
| Product Family | PULSE |
| Weight & dimensions | |
|---|---|
| Depth | 240 mm |
| Height | 44.8 mm |
| Width | 119.8 mm |
| Packaging data | |
|---|---|
| Package type | Box |
