NZXT N7 Z790 ATX motherboard - Intel Z790 LGA 1700

Product image 1
1 / 5

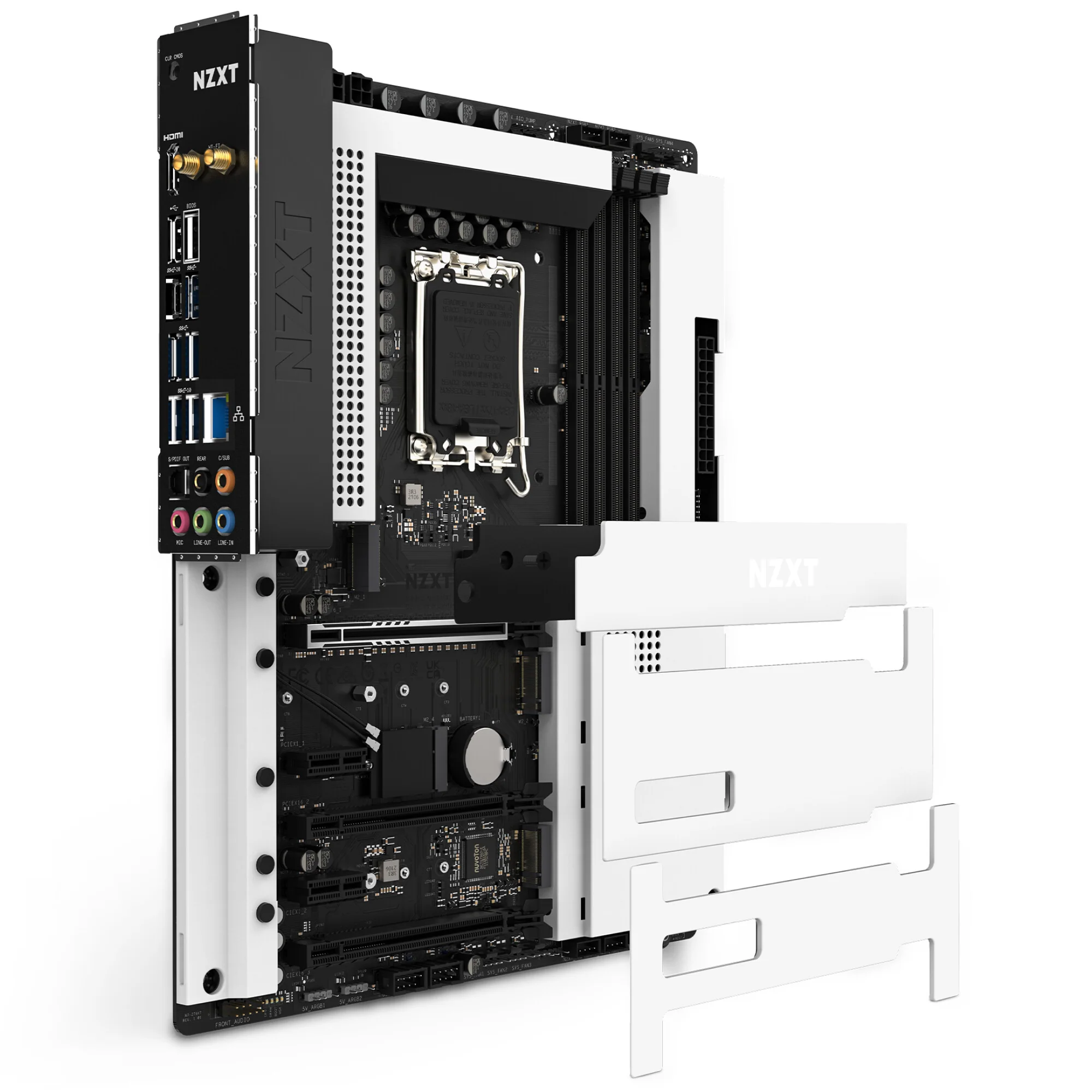

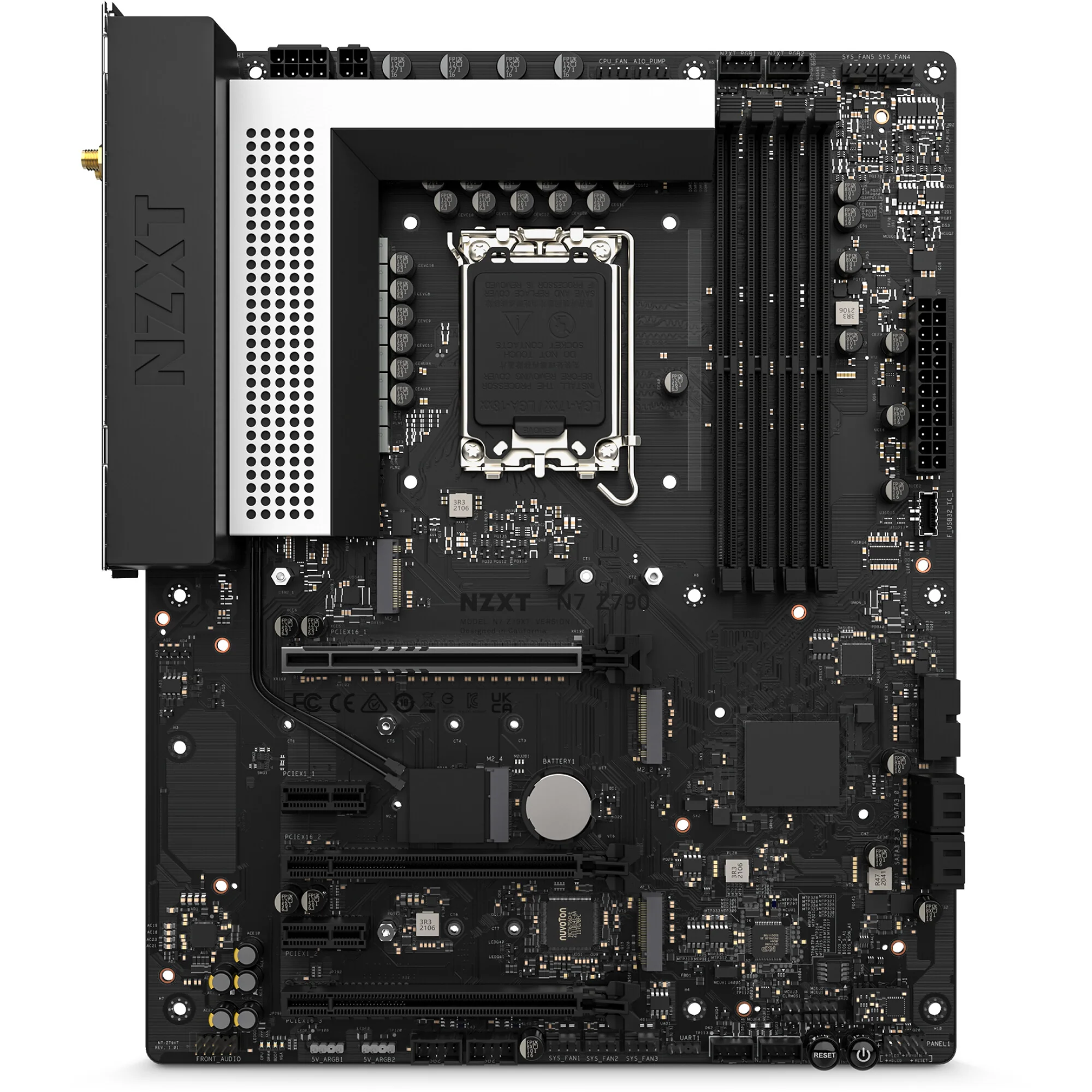

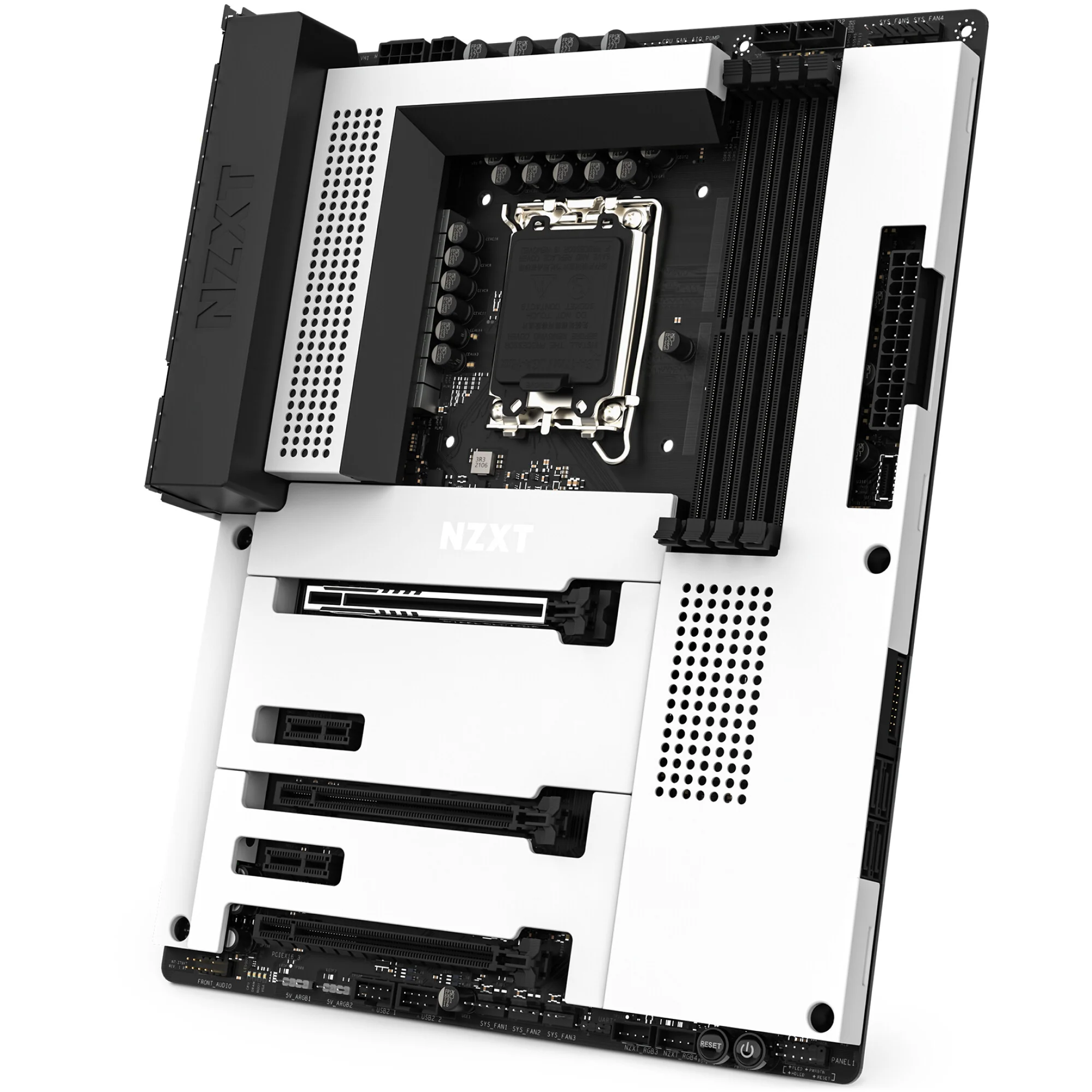

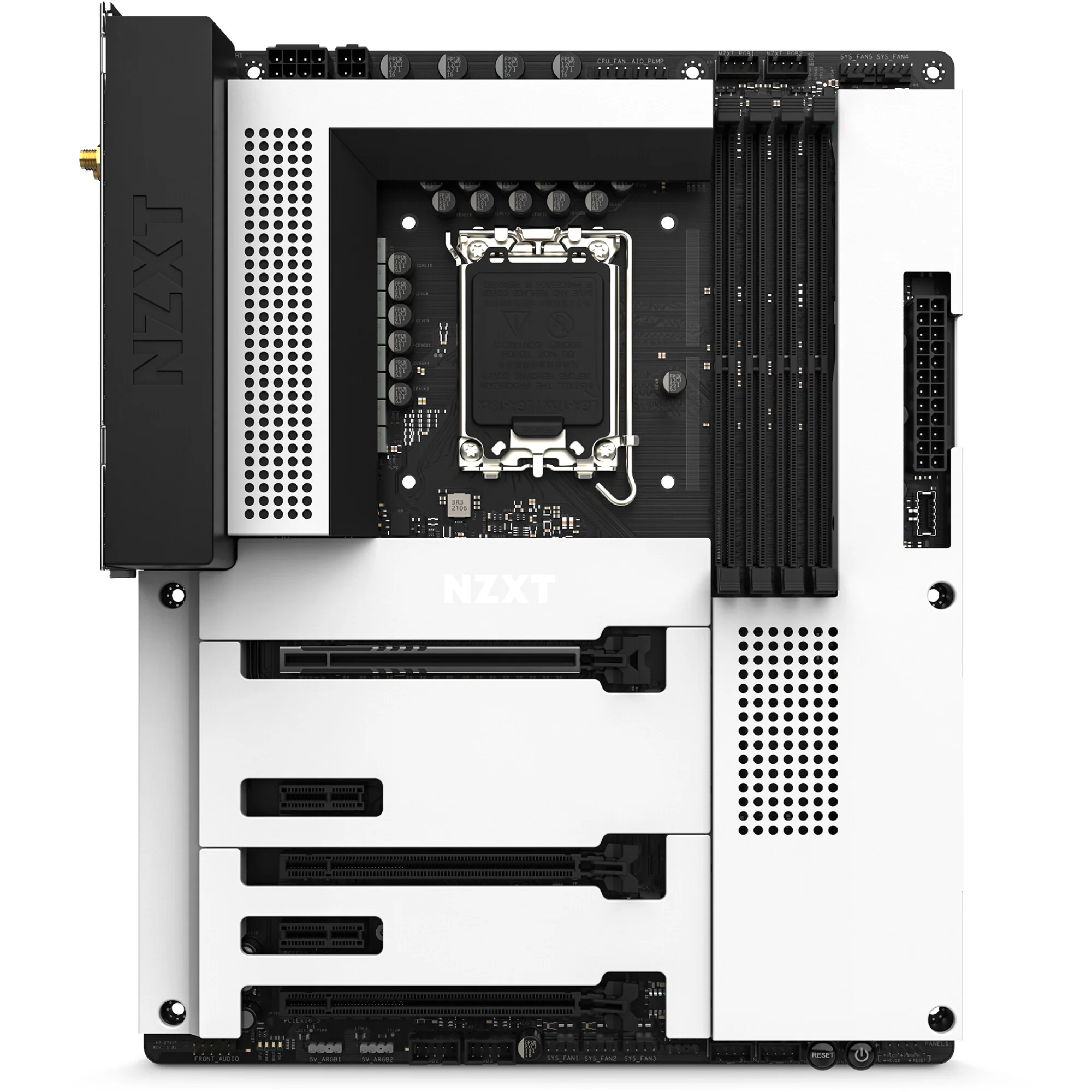

NZXT N7 Z790 ATX motherboard - Intel Z790 LGA 1700

ATX, Intel Z790 chipset, LGA 1700 socket, 4x DDR5 DIMM slots, Wi-Fi 6E, Bluetooth 5.2, 8-channel audio

This motherboard enables a visually seamless backdrop for any build with all the features of the new Intel Z790 chipset.

Processor
Supported processor sockets LGA 1700
Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor socket LGA 1700
Processor manufacturer Intel
Memory
Unbuffered memory Yes
Maximum internal memory 128 GB
Supported memory clock speeds 5000,5066,5100,5133,5200,5300,5333,5400,5600,5800,6000,6200,6400,6600,6666,6800,7000,7200,7400,7600,7800,7900,7950,8000,8333 MHz
ECC сompatibility Non-ECC
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory types DDR5-SDRAM
Storage controllers
RAID levels 0, 1, 10
RAID support Yes
Number of storage drives supported 7
Supported storage drive interfaces M.2, PCI Express 4.0, SATA III
Supported storage drive types HDD & SSD
Graphics
HDCP Yes
Parallel processing technology support Not supported
Internal I/O
RGB LED pin header Yes
12V power connector Yes
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel audio connector Yes
Number of SATA III connectors 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 2.0 connectors 2

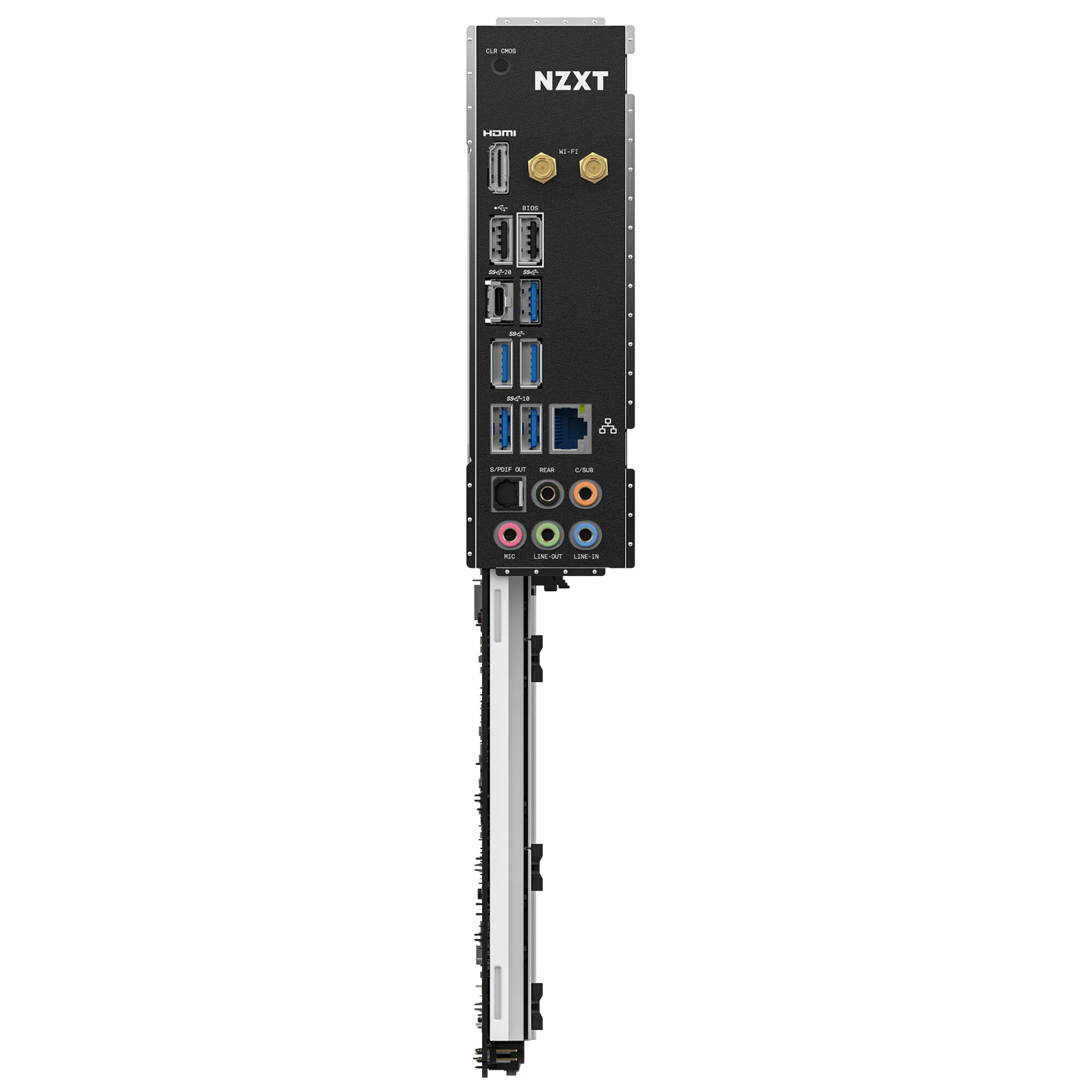

Rear panel I/O ports
USB connector type USB Type-A, USB Type-C
WiFi-AP antenna jack 2
Digital audio optical out 1
S/PDIF out port Yes
Microphone in Yes
Headphone outputs 5
HDMI version 2.1
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 2.0 ports quantity 2
Network
Bluetooth version 5.2
Bluetooth Yes
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi Yes
LAN controller Dragon RTL8125BG
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Features
Windows operating systems supported Windows 10 x64, Windows 11 x64
Audio output channels 8 channels
Audio chip Realtek ALC1220
Motherboard chipset Intel Z790
Motherboard chipset family Intel
Motherboard form factor ATX
Component for PC
Expansion slots
Number of M.2 (M) slots 1
PCI Express x16 (Gen 5.x) slots 1
PCI Express x16 (Gen 4.x) slots 2
PCI Express x1 (Gen 3.x) slots 2
BIOS
Clear CMOS button Yes
Packaging content
Cables included SATA
$126.99

Original: $362.84

-65%
NZXT N7 Z790 ATX motherboard - Intel Z790 LGA 1700—

$362.84

$126.99
