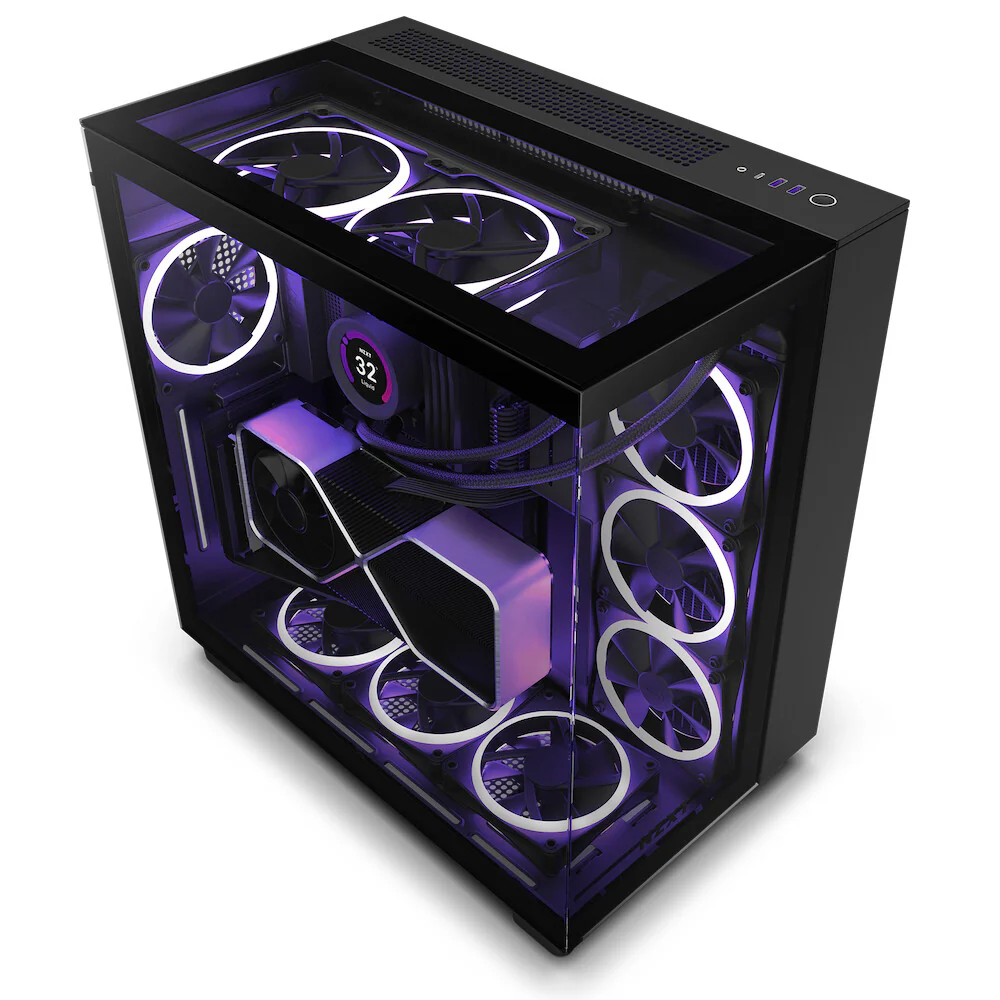

NZXT H9 Elite - ATX Mid Tower Case in Black
The H9 Elite is designed to show off every angle of your build with a tempered glass top panel and a built-in RGB & Fan Controller. The unique wraparound glass design with a dual-chamber layout is the perfect showcase for premium components.
- Unique uninterrupted glass panel for a clear view of the interior
- Intuitive cable management and dual chamber design
- Room for ten fans or three 360mm Radiators
- Tempered glass top panel and included RGB & Fan Controller
- Direct airflow to the GPU for handling high-powered components
- Enhanced experience with other products from the NZXT ecosystem
- Includes three F Series 120mm RGB Duo Fans and one F120Q Fan
GPU Capacity
The H9 Elite has 435mm of GPU clearance, offering room for the latest NVIDIA 40 Series and AMD 7000 Series cards.
Fan Capacity
The H9 Elite has room for 10 fans. With the capacity for 3x120mm fans on the side, 3 x 120mm or 2x140mm on the top and bottom, and 1 x120mm on the rear.
Radiator Capacity
The H9 Elite has room for up to a 360mm radiator on the top, bottom, or side, and up to a 120mm radiator on the rear.
| Design | |
|---|---|
| Maximum PSU length | 20 cm |
| Maximum CPU cooler height | 16.5 cm |
| Number of expansion slots | 7 |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 6 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Material | Stainless steel, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
| Ports & interfaces | |
|---|---|
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 360 mm |
| Rear radiator sizes supported | 120 mm |
| Side radiator sizes supported | 360 mm |
| Front radiator sizes supported | 360 mm |
| Fan speed | 500 - 1800 RPM |
| Maximum airflow | 62.18 cfm |
| Fan 2 maximum airflow | 48.58 cfm |
| Bottom fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 5 |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 5 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Side fans diameters supported | 120 mm |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Weight & dimensions | |
|---|---|
| Weight | 13.1 kg |
| Height | 495 mm |
| Depth | 466 mm |
| Width | 290 mm |
