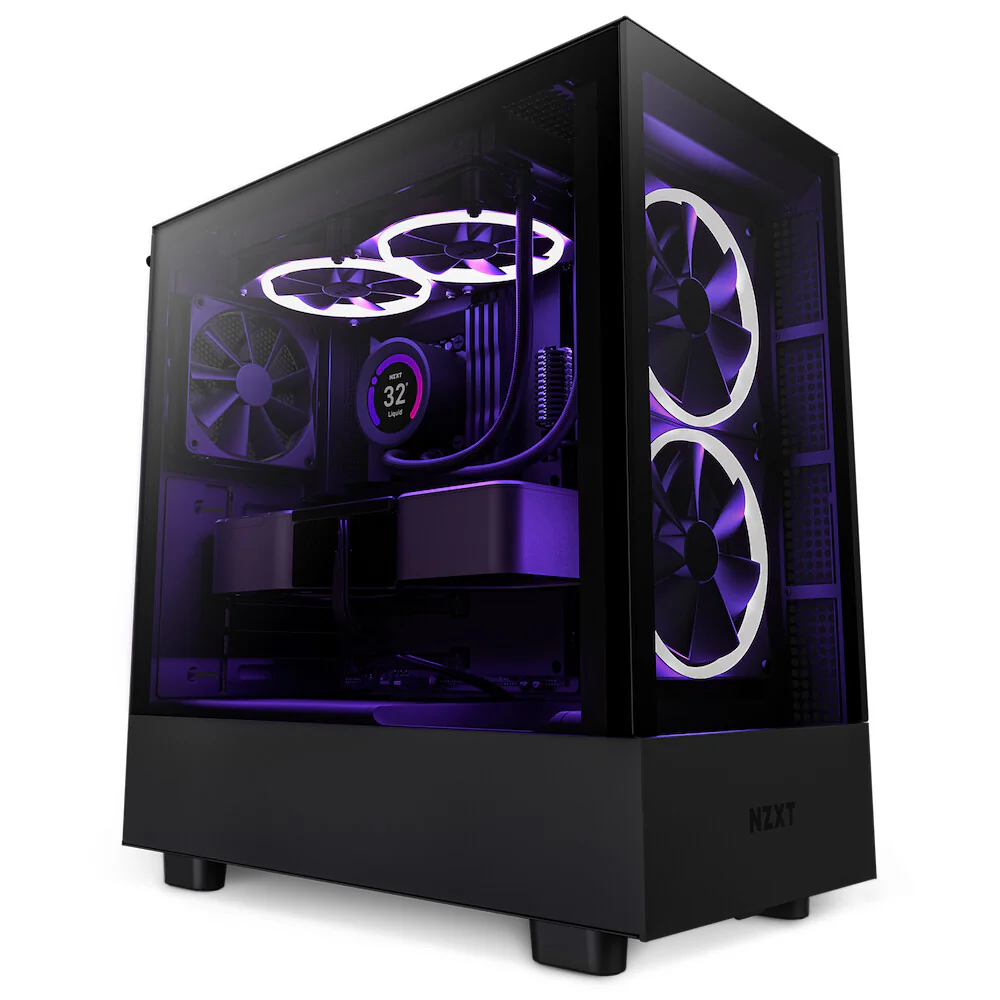

NZXT H5 Elite - ATX Mid Tower Case in Black / Transparent
The H5 Elite features a tempered glass front panel and built-in RGB functionality to showcase various lighting components. With optimized thermal performance and intuitive cable management, the H5 Elite is an ideal chassis for most builds.
Fan Capacity
Fan mounts offer space for two 140mm fans on the front panel and two 120mm fans on the top panel.
Top: 2x 120mm
Front: 2x 140mm / 2x 120mm
Rear: 1x 120mm
Bottom: 1x 120mm
Radiator Capacity
The top panel offers space for a 240mm radiator and the front panel provides room for a 280mm radiator.
| Design | |
|---|---|
| On/off button | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Side window | Yes |
| Number of expansion slots | 7 |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 1 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Product colour | Black, Transparent |
| Material | Glass, Steel |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120 mm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 140 mm |
| Maximum airflow | 89.48 cfm |
| Bottom fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 1 |
| Top fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 140 mm |
| Number of front fans supported (max) | 2 |
| Front fans installed | 2x 140 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 8.1 kg |
| Height | 464 mm |
| Depth | 446 mm |
| Width | 227 mm |
| Packaging data | |
|---|---|
| LED controller | Yes |
