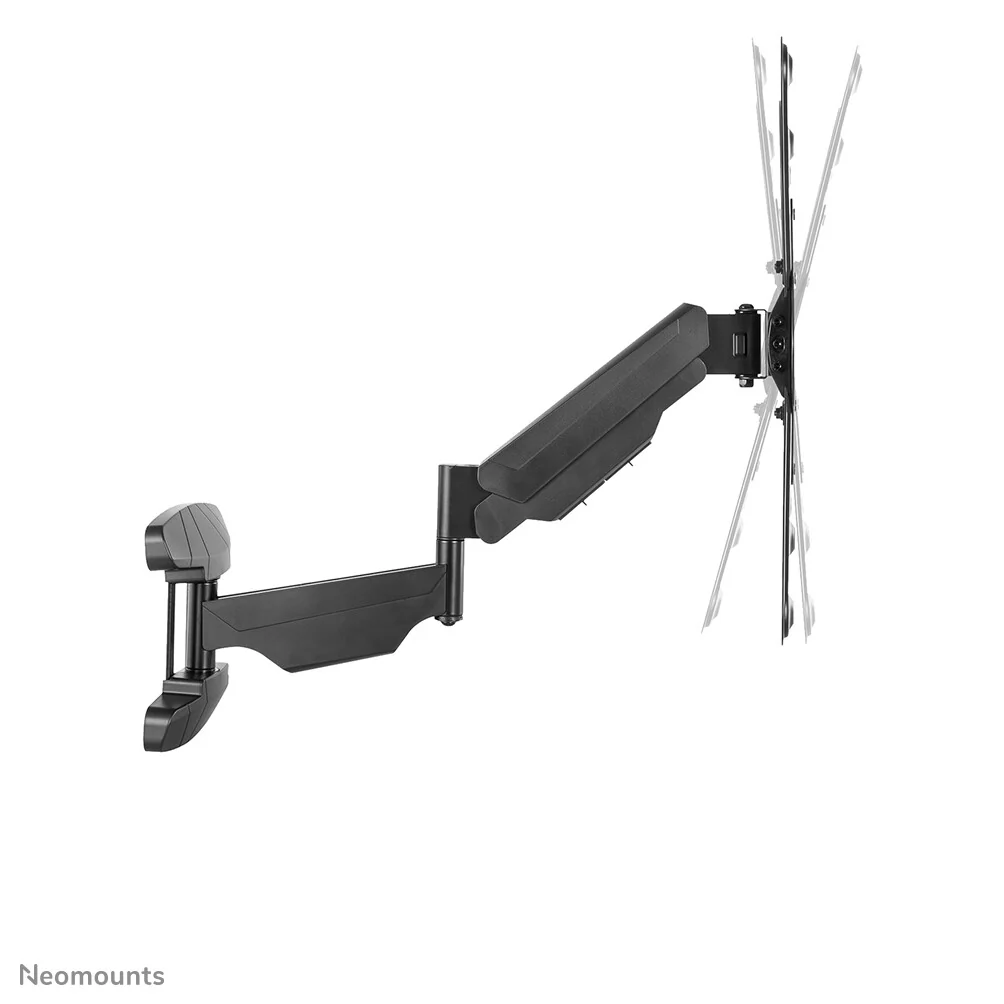

Neomounts WL70-550BL14 - Wall TV mount for 81.3 cm (32") to 139.7 cm (55")
The Neomounts WL70-550BL14 is a full motion wall mount for flat screens up to 55" with a maximum weight capacity of 30 kg. The versatile tilt (20°) and swivel (180°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.
The WL70-550BL14 has a depth of 6,1-56,5 cm and is suitable for screens that meet VESA hole pattern 75x75 to 400x400 mm.
The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.
| Mounting | |
|---|---|
| Distance to the wall (max) | 56.5 cm |
| Distance to the wall (min) | 6.1 cm |
| Number of displays supported | 1 |
| Panel mounting interface | 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400,400 x 300 |
| Maximum VESA mount | 400 x 400 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Screws |
| Mounting type | Wall |
| Maximum screen size | 139.7 cm (55") |
| Minimum screen size | 81.3 cm (32") |
| Maximum weight capacity | 30 kg |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Cable management | Yes |
| Angle of rotation | 3° |
| Swivel angle | 180° |
| Tilt angle range | -15 - 5° |
| Height adjustment range | 0 - 282 mm |
| Height adjustment type | Gas spring |
| Height adjustment | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Package net weight | 5.5 kg |
| Package height | 75 mm |
| Package depth | 505 mm |
| Package width | 365 mm |
| Height | 450 mm |
| Depth | 565 mm |
| Width | 450 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Master (outer) case net weight | 13.8 kg |
| Products per pallet (EU) | 72 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per master (outer) case | 3 pc(s) |
| Master (outer) case height | 345 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case width | 380 mm |
| Other features | |
|---|---|
| Country of origin | China |
- WL70-550BL14_Video_EN
