Neomounts WL70-440BL11 Wall monitor mount for 43.2 cm (17") to 81.3 cm (32")
The Neomounts WL70-440BL11 is a full motion wall mount for flat screens up to 32" with a maximum weight capacity of 9 kg. The versatile tilt (135°), rotate (360°) and swivel (180°) technology allows you to create the optimum viewing angle.
The WL70-440BL11 has a depth of 9-38 cm and is suitable for screens that meet VESA hole pattern 75x75 to 100x100 mm.

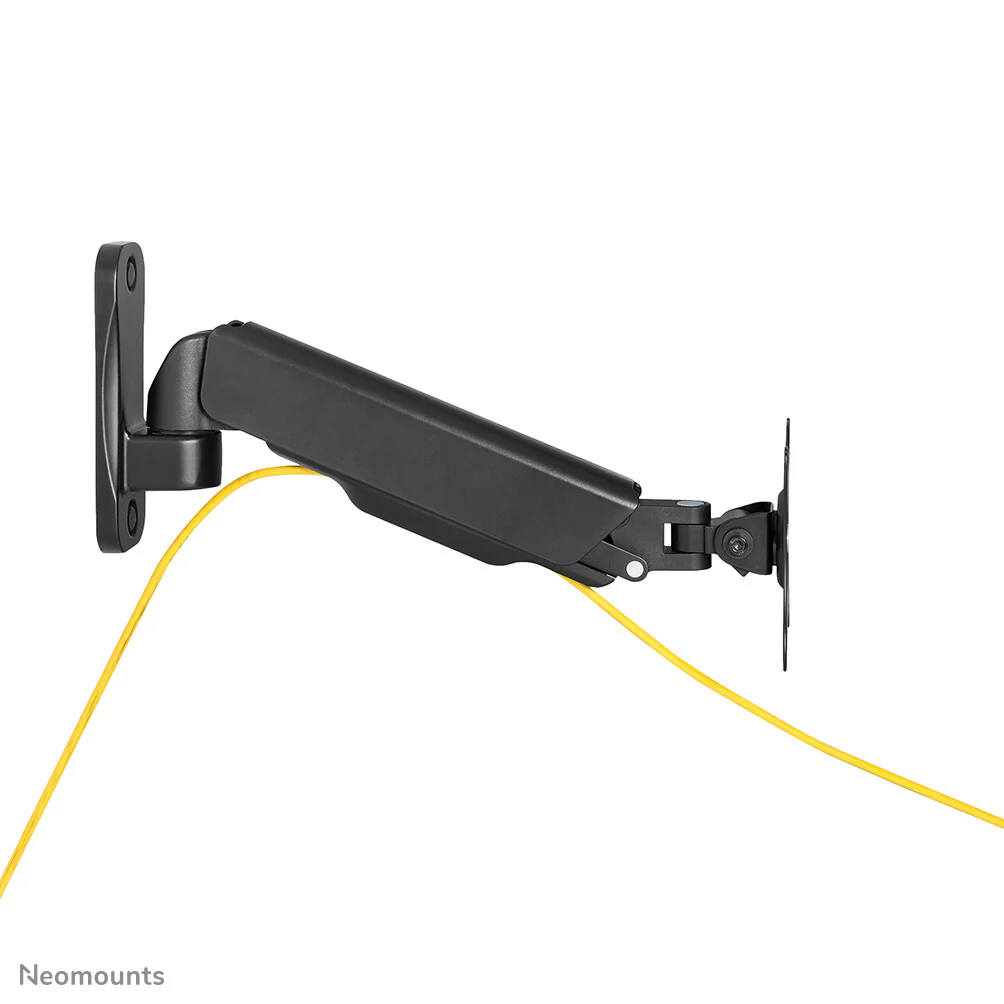

The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.
| Mounting | |
|---|---|
| Distance to the wall (max) | 38 cm |
| Distance to the wall (min) | 9 cm |
| Number of displays supported | 1 |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Suitable for TV | Yes |
| Mounting | Screws |
| Mounting type | Wall |
| Maximum screen size | 81.3 cm (32") |
| Minimum screen size | 43.2 cm (17") |
| Maximum weight capacity | 9 kg |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Cable management | Yes |
| Angle of rotation | 360° |
| Swivel angle | 180° |
| Tilt angle range | -45 - 90° |
| Height adjustment range | 0 - 250 mm |
| Height adjustment type | Gas spring |
| Height adjustment | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Package net weight | 1.7 kg |
| Package height | 90 mm |
| Package depth | 440 mm |
| Package width | 195 mm |
| Height | 321 mm |
| Depth | 315 mm |
| Width | 117 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Master (outer) case net weight | 1.3 kg |
| Products per pallet (EU) | 108 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case height | 90 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case width | 195 mm |
| Other features | |
|---|---|
| Country of origin | China |
