Neomounts WL35S-950BL19 - Heavy duty TV wall mount for 139.7 cm (55") to 2.79 m (110")

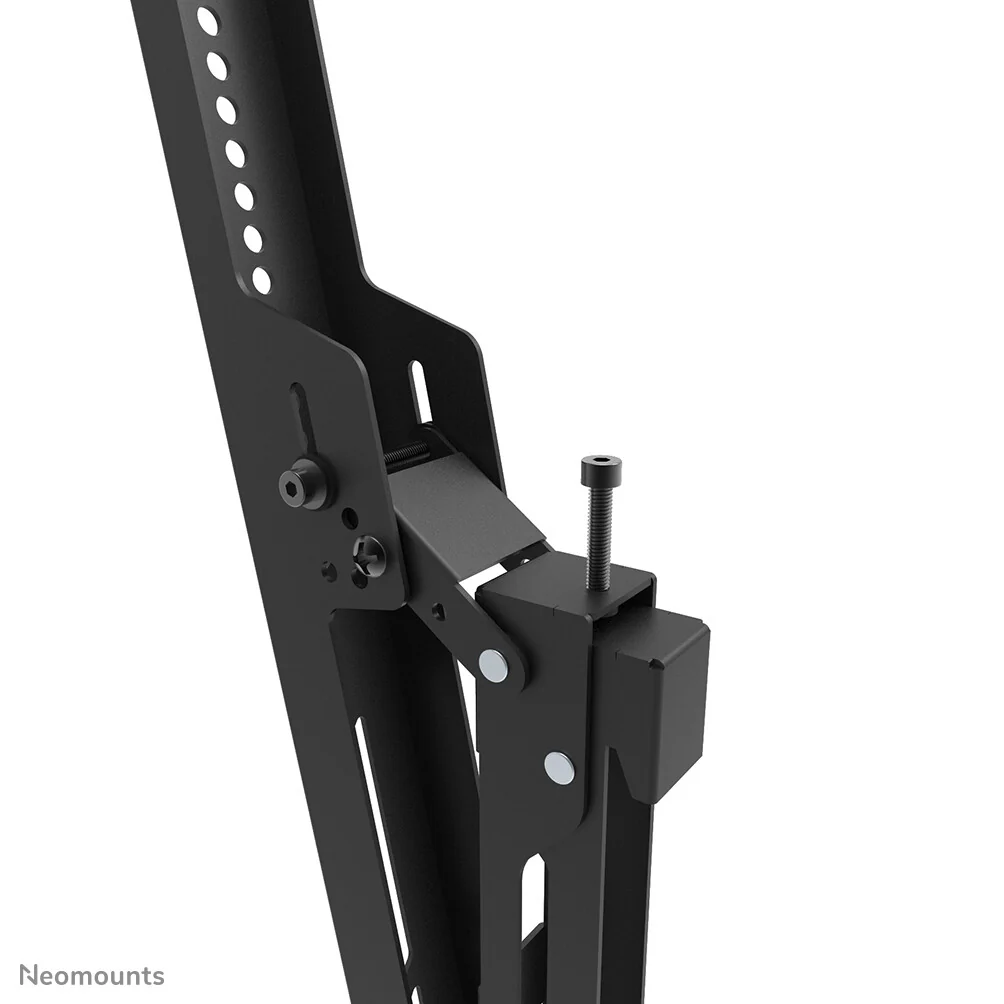

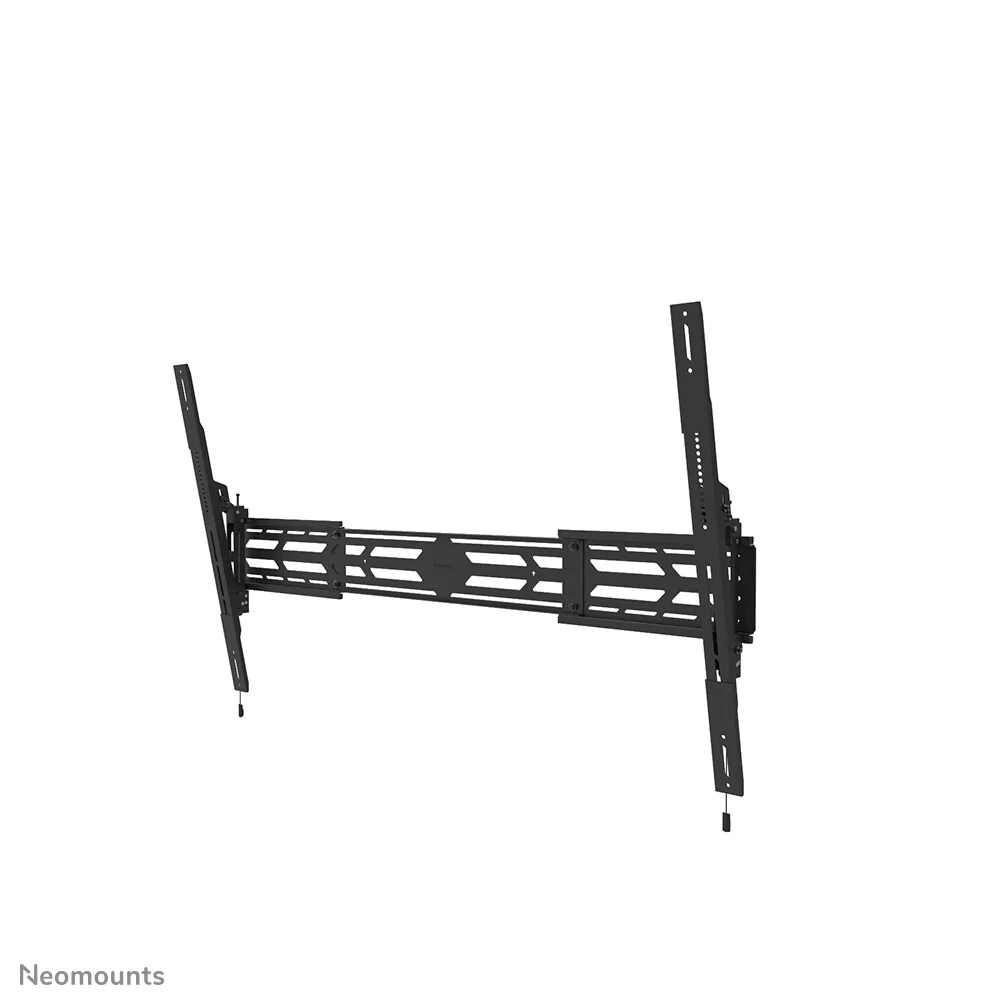

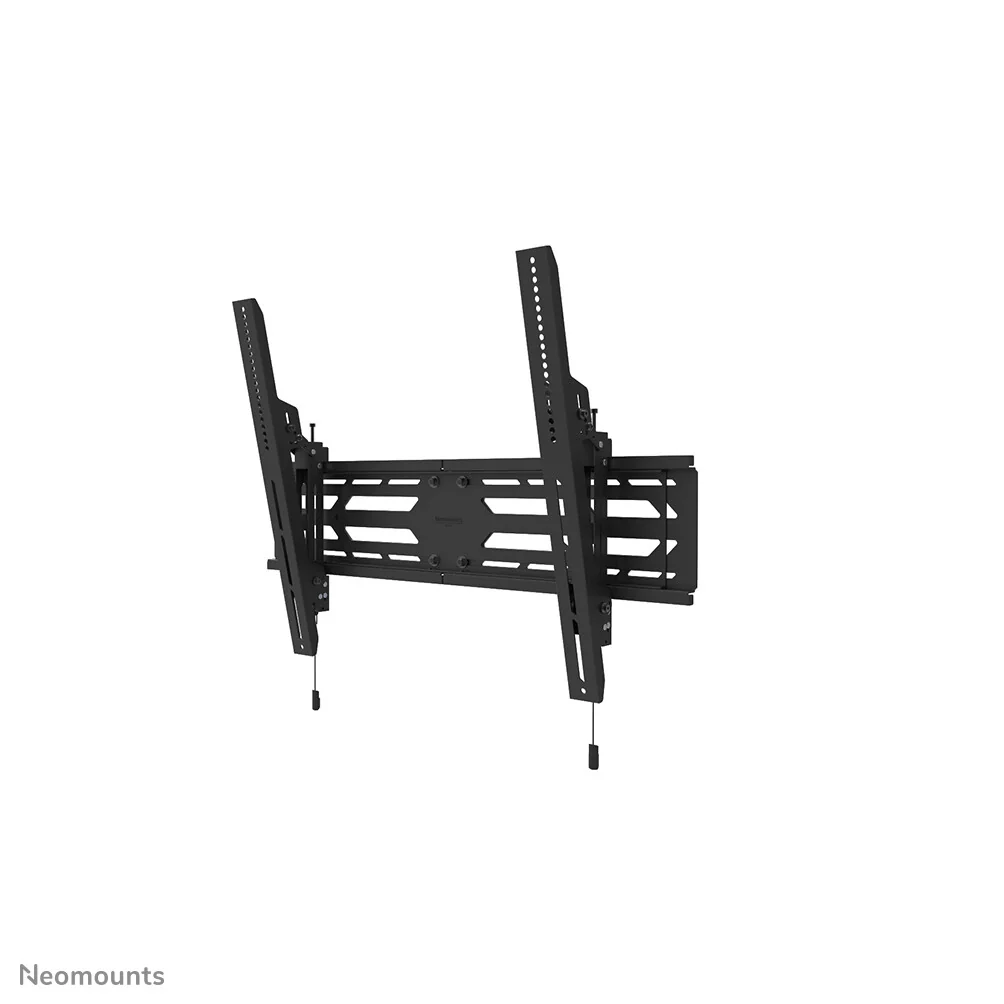

The Neomounts WL35S-950BL19 is a tiltable heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 160 kg. The versatile tilt technology, with 3 lockable tilt presets (4°, 8° and 12°), allows you to create the optimum viewing angle. It is possible to install the screen in both portrait and landscape orientation. The mount features individual height adjustable brackets and level adjustment is available for the perfect installation.

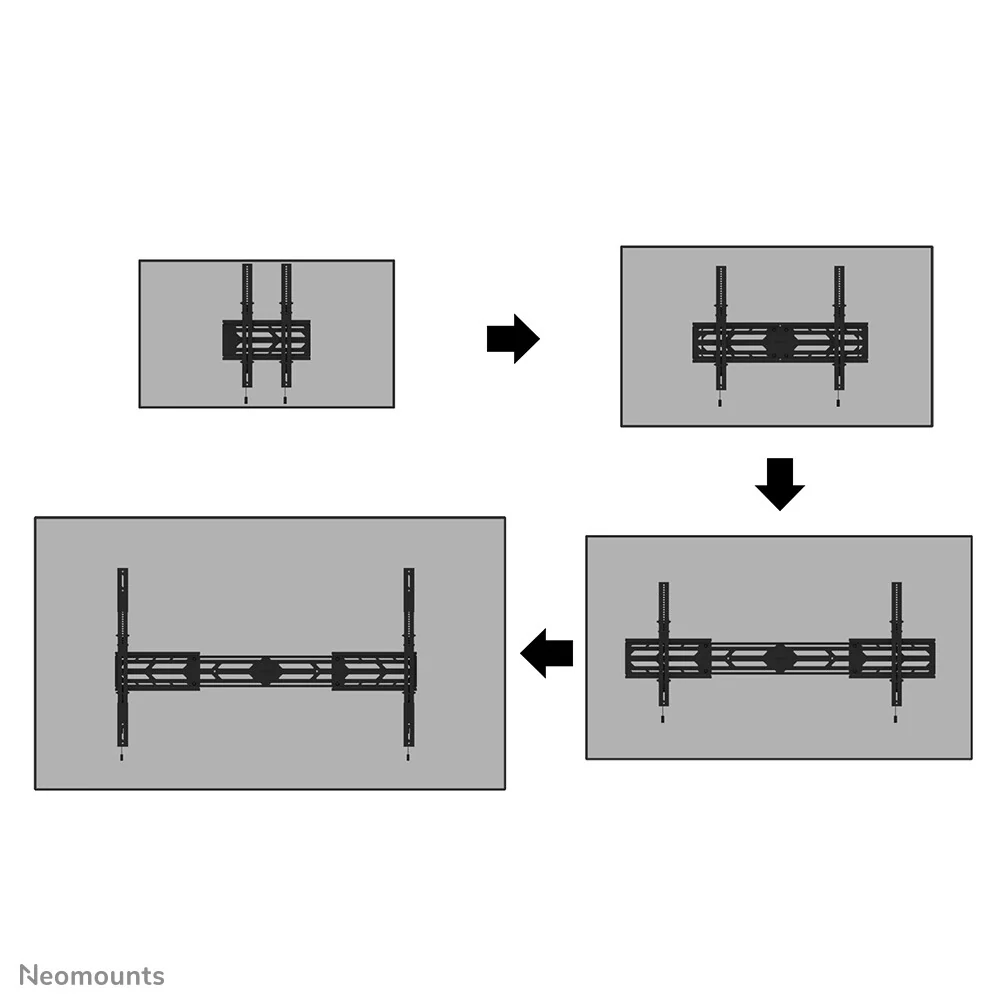

The WL35S-950BL19 has a depth of 8,8 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 110". It is possible to lock the mount using a padlock (not included).

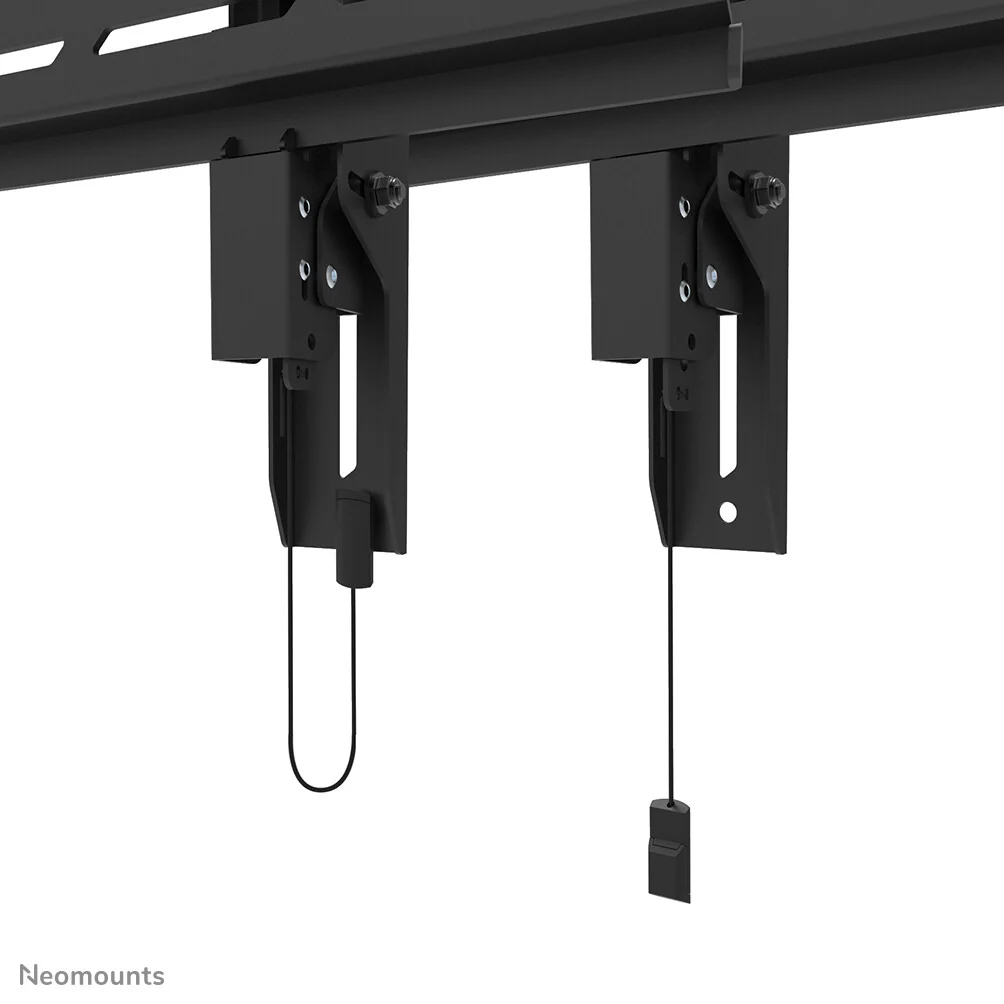

The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.
| Mounting | |
|---|---|
| Distance to the wall (max) | 9 cm |
| Number of displays supported | 1 |
| Panel mounting interface | 1500 x 900,100 x 100,100 x 150,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 900,300 x 300,350 x 350,400 x 200,400 x 400,400 x 300,400 x 500,400 x 600,440 x 400,460 x 640,500 x 400,600 x 200,600 x 300,600 x 400,600 x 600,600 x 500,680 x 300,800 x 200,800 x 400,800 x 600,800 x 800,800 x 500,900 x 600,1000 x 400,1000 x 600,1000 x 700,1000 x 800,1200 x 600,1200 x 800,1400 x 800 |
| Maximum VESA mount | 1500 x 900 mm |
| Minimum VESA mount | 100 x 100 mm |
| Suitable for TV | Yes |
| Mounting type | Wall |
| Maximum screen size | 2.79 m (110") |
| Minimum screen size | 139.7 cm (55") |
| Maximum weight capacity | 160 kg |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Pivot angle | -3 - 3° |
| Tilt angle range | 0 - 12° |
| Height adjustment range | 0 - 20 mm |
| Height adjustment | Yes |
| Design | |
|---|---|
| Accepts padlock | Yes |
| Product colour | Black |
| Technical details | |
|---|---|
| Warranty period | 5 year(s) |
| Weight & dimensions | |
|---|---|
| Package net weight | 12.5 kg |
| Package height | 918 mm |
| Package depth | 98 mm |
| Package width | 222 mm |
| Height | 936 mm |
| Depth | 90 mm |
| Width | 1600 mm |
| Logistics data | |
|---|---|
| Master (outer) case net weight | 22.1 kg |
| Products per pallet (EU) | 36 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case height | 938 mm |
| Master (outer) case length | 242 mm |
| Master (outer) case width | 211 mm |
| Other features | |
|---|---|
| Width adjustment range | 893 - 1600 mm |
| Country of origin | China |
Original: $226.57
-65%$226.57
$79.30Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Neomounts WL35S-950BL19 is a tiltable heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 160 kg. The versatile tilt technology, with 3 lockable tilt presets (4°, 8° and 12°), allows you to create the optimum viewing angle. It is possible to install the screen in both portrait and landscape orientation. The mount features individual height adjustable brackets and level adjustment is available for the perfect installation.
The WL35S-950BL19 has a depth of 8,8 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 110". It is possible to lock the mount using a padlock (not included).
The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.
| Mounting | |
|---|---|
| Distance to the wall (max) | 9 cm |
| Number of displays supported | 1 |
| Panel mounting interface | 1500 x 900,100 x 100,100 x 150,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 900,300 x 300,350 x 350,400 x 200,400 x 400,400 x 300,400 x 500,400 x 600,440 x 400,460 x 640,500 x 400,600 x 200,600 x 300,600 x 400,600 x 600,600 x 500,680 x 300,800 x 200,800 x 400,800 x 600,800 x 800,800 x 500,900 x 600,1000 x 400,1000 x 600,1000 x 700,1000 x 800,1200 x 600,1200 x 800,1400 x 800 |
| Maximum VESA mount | 1500 x 900 mm |
| Minimum VESA mount | 100 x 100 mm |
| Suitable for TV | Yes |
| Mounting type | Wall |
| Maximum screen size | 2.79 m (110") |
| Minimum screen size | 139.7 cm (55") |
| Maximum weight capacity | 160 kg |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Pivot angle | -3 - 3° |
| Tilt angle range | 0 - 12° |
| Height adjustment range | 0 - 20 mm |
| Height adjustment | Yes |
| Design | |
|---|---|
| Accepts padlock | Yes |
| Product colour | Black |
| Technical details | |
|---|---|
| Warranty period | 5 year(s) |
| Weight & dimensions | |
|---|---|
| Package net weight | 12.5 kg |
| Package height | 918 mm |
| Package depth | 98 mm |
| Package width | 222 mm |
| Height | 936 mm |
| Depth | 90 mm |
| Width | 1600 mm |
| Logistics data | |
|---|---|
| Master (outer) case net weight | 22.1 kg |
| Products per pallet (EU) | 36 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case height | 938 mm |
| Master (outer) case length | 242 mm |
| Master (outer) case width | 211 mm |
| Other features | |
|---|---|
| Width adjustment range | 893 - 1600 mm |
| Country of origin | China |
