Neomounts DS70PLUS-450WH1 - Desk monitor mount for 43.2 cm (17") to 124.5 cm (49")

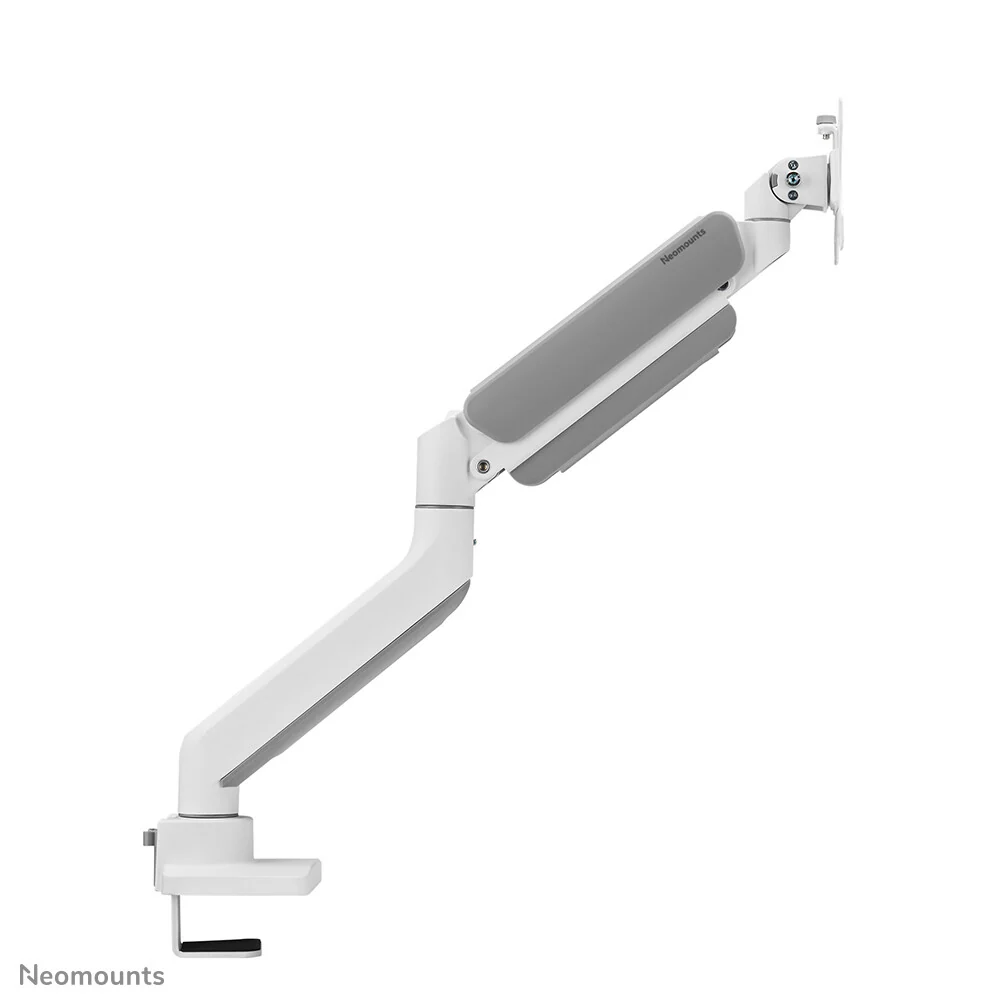

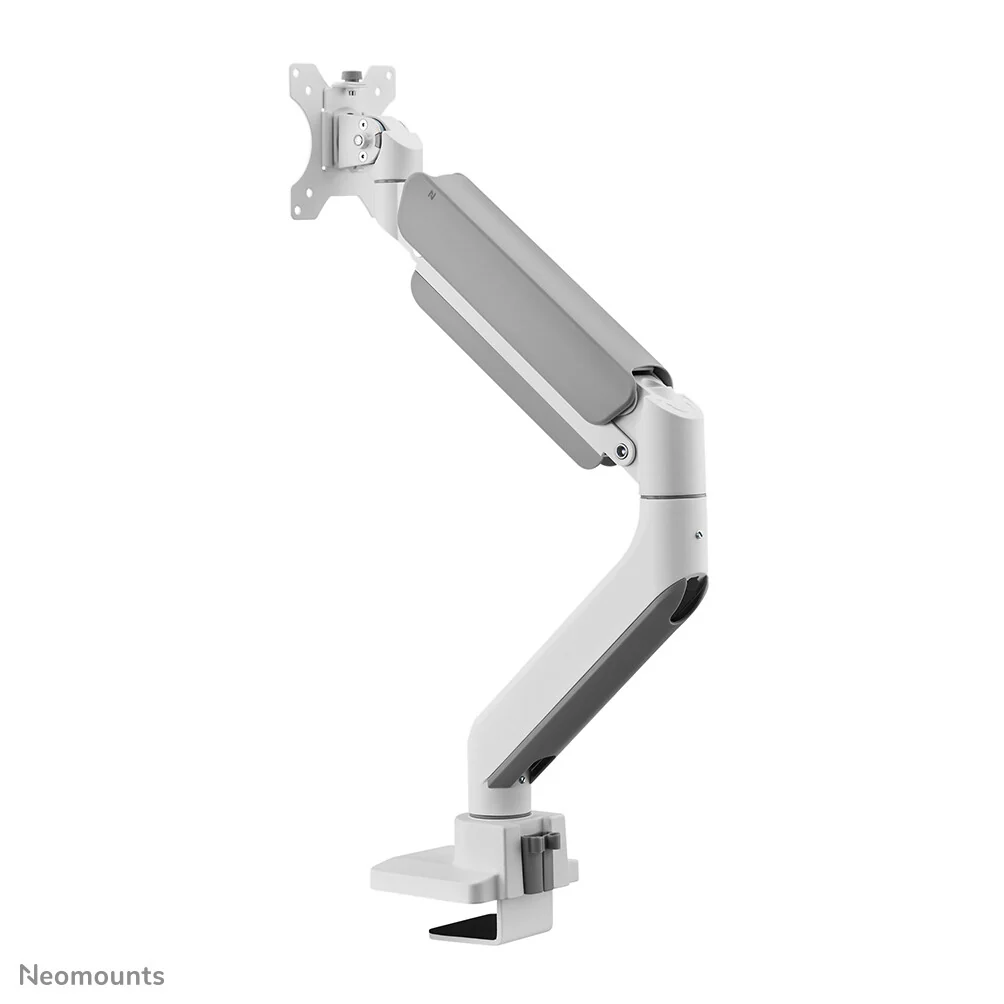

The Neomounts DS70PLUS-450WH1 NEXT Core is a full motion desk mount for curved ultra-wide screens up to 49". The mount features a strengthened head specifically designed for curved ultra-wide screens and to support a higher maximum weight up to 18 kg (curved 14 kg). The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (5,4-49,7 cm), to create the perfect working position.
The DS70PLUS-450WH1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS70PLUS-450WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the NEXT Core is 100% plastic free and entirely made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.

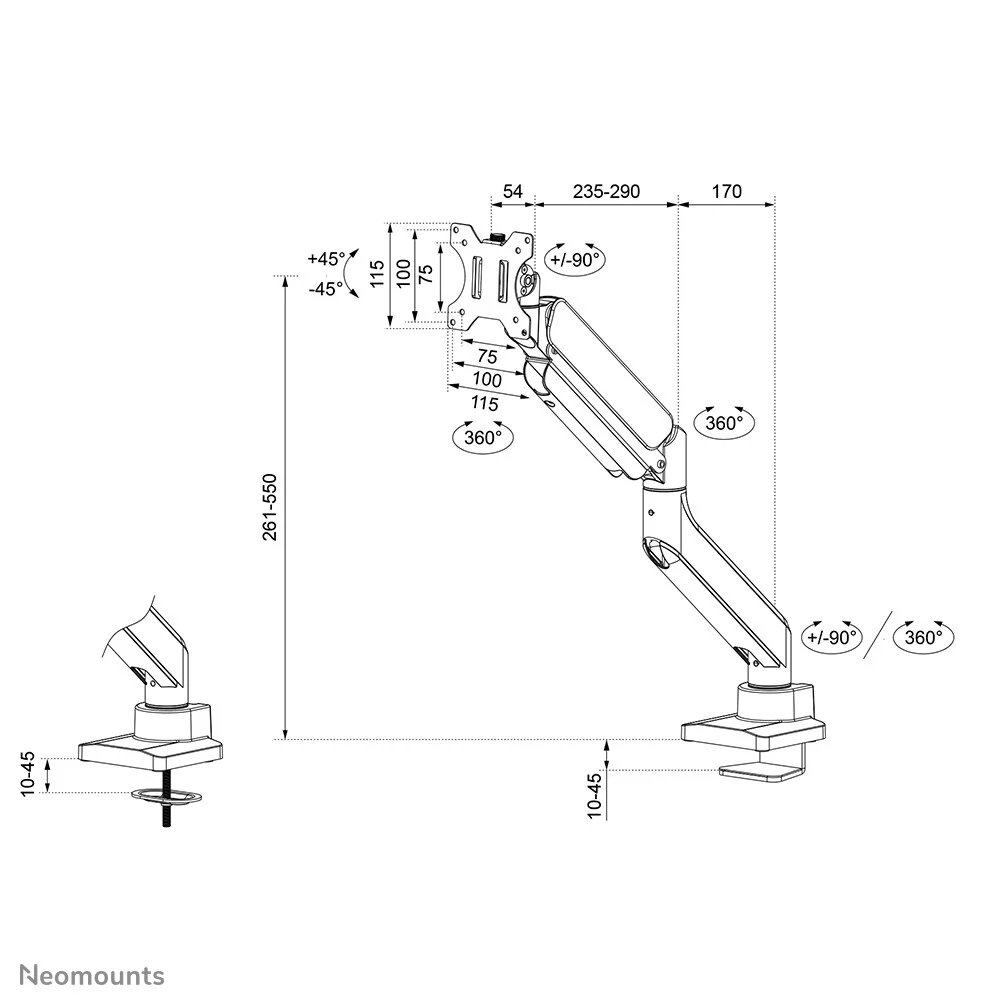

| Mounting | |
|---|---|
| Distance to the wall (max) | 56.8 cm |
| Distance to the wall (min) | 10.8 cm |
| Desk thickness (max) | 4.5 cm |
| Desk thickness (min) | 1 cm |
| Number of displays supported | 1 |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Maximum screen size | 124.5 cm (49") |
| Minimum screen size | 43.2 cm (17") |
| Maximum weight capacity | 18 kg |
| Ergonomics | |
|---|---|
| Rotating | Yes |
| Cable management | Yes |
| Angle of rotation | 80° |
| Swivel angle range | -90 - 90° |
| Swivelling | Yes |
| Tilt angle range | -45 - 45° |
| Depth adjustment range | 54 - 511 mm |
| Adjustable depth | Yes |
| Height adjustment range | 261 - 555 mm |
| Height adjustment type | Gas spring |
| Height adjustment | Yes |
| Design | |
|---|---|
| Housing material | Steel |
| Product colour | White |
| Weight & dimensions | |
|---|---|
| Package net weight | 5.1 kg |
| Package type | Box |
| Package height | 445 mm |
| Package depth | 127 mm |
| Package width | 280 mm |
| Height | 653 mm |
| Depth | 568 mm |
| Width | 120 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Master (outer) case net weight | 16 kg |
| Products per pallet (EU) | 64 pc(s) |
| Harmonized System (HS) code | HS7326909890 |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case height | 580 mm |
| Master (outer) case length | 275 mm |
| Master (outer) case width | 460 mm |
| Other features | |
|---|---|
| Country of origin | China |
- DS70PLUS-450WH1_Video_EN
