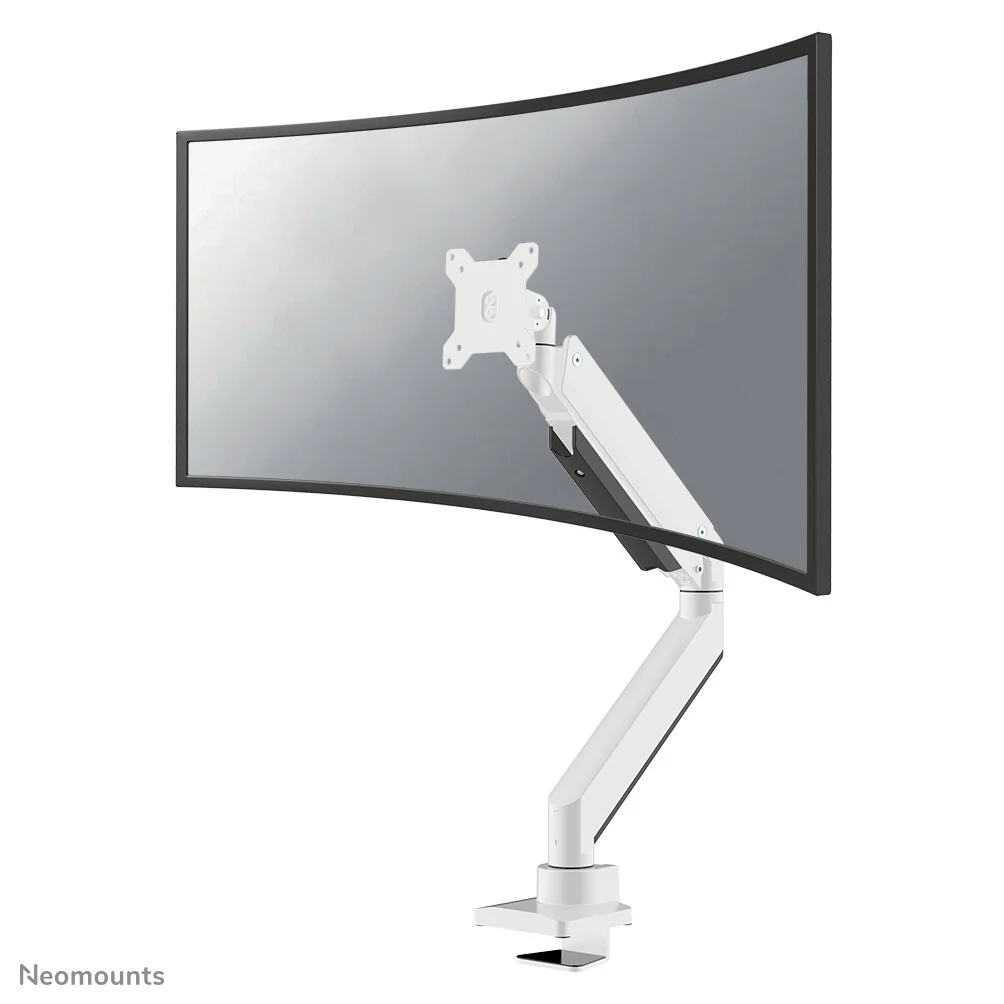

Neomounts NM-D775WHITEPLUS Full Motion desk monitor arm (clamp & grommet) for 10-49" Curved Monitor Screens, Height Adjustable (gas spring) - White

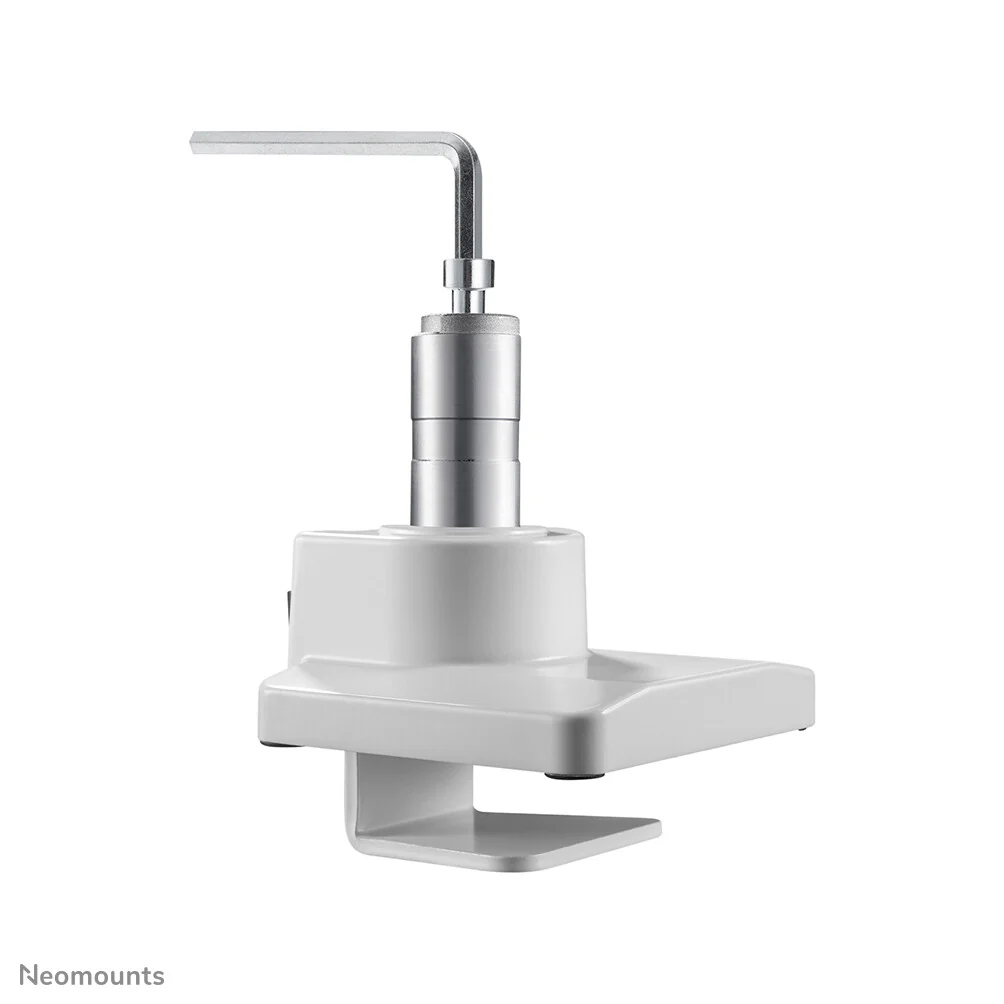

The Neomounts NM-D775WHITEPLUS is a tilt-, swivel and rotatable desk mount for curved screens up to 49". This mount is a great choice for space saving placement on desks using a top-fix desk clamp or grommet mount.
The NM-D775WHITEPLUS mounts are specifically designed to support curved screens. They feature a strengthened head for curved screens and are designed to support a higher total capacity up to 49" and a maximum weight of 18 kg.

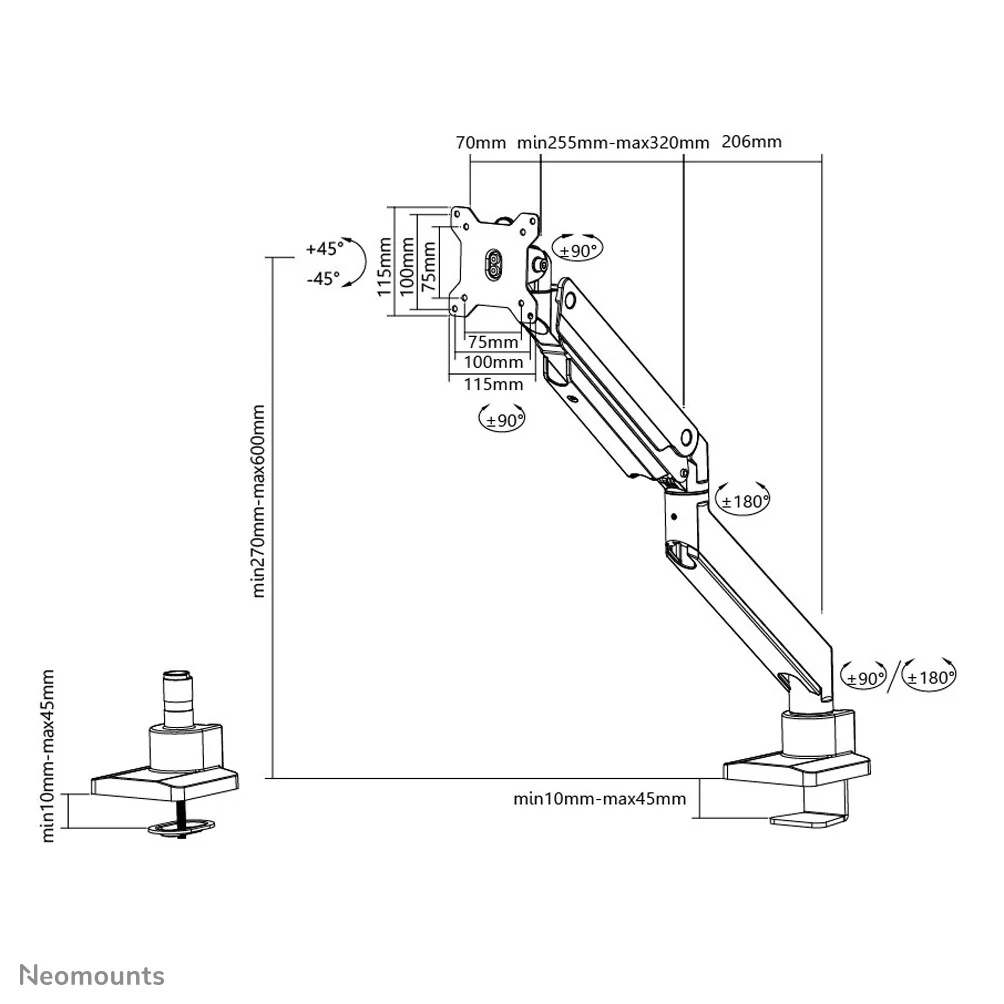

Neomounts unique tilt (180°), rotate (360°) and swivel (180°/ 360°) technology allows the NM-PLUS mounts to change to any viewing angle for optimal use of the capabilities of the ultra-wide screen. The mount is equipped with a 180° stop mechanism. The mounts are easily adjustable in height to 60 centimetres, using a gas spring. Additionally, the mounts are also adjustable in depth, from 0 to 63 centimetres.

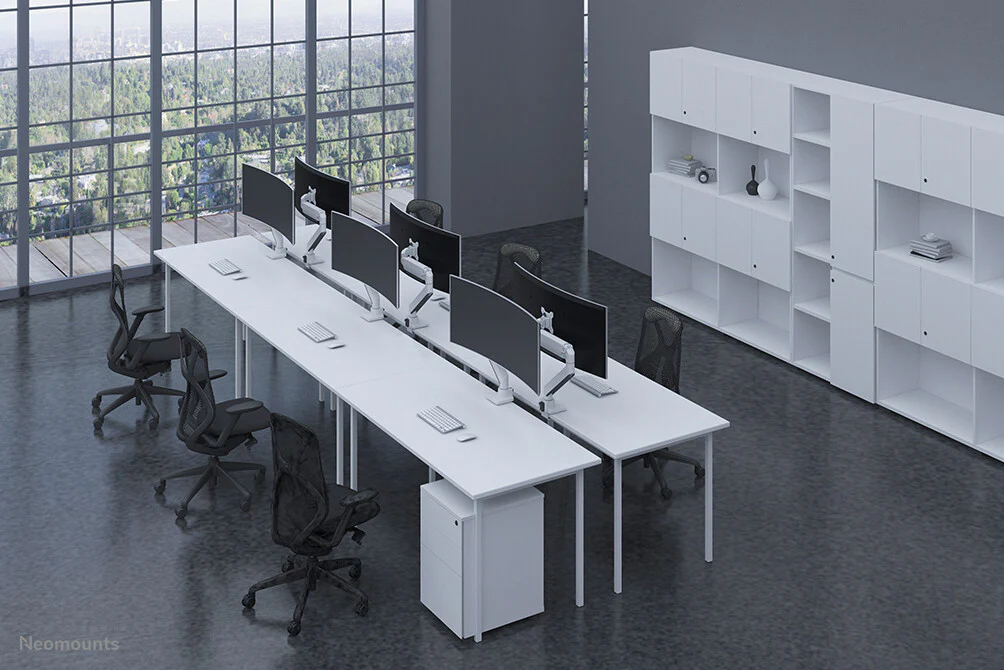

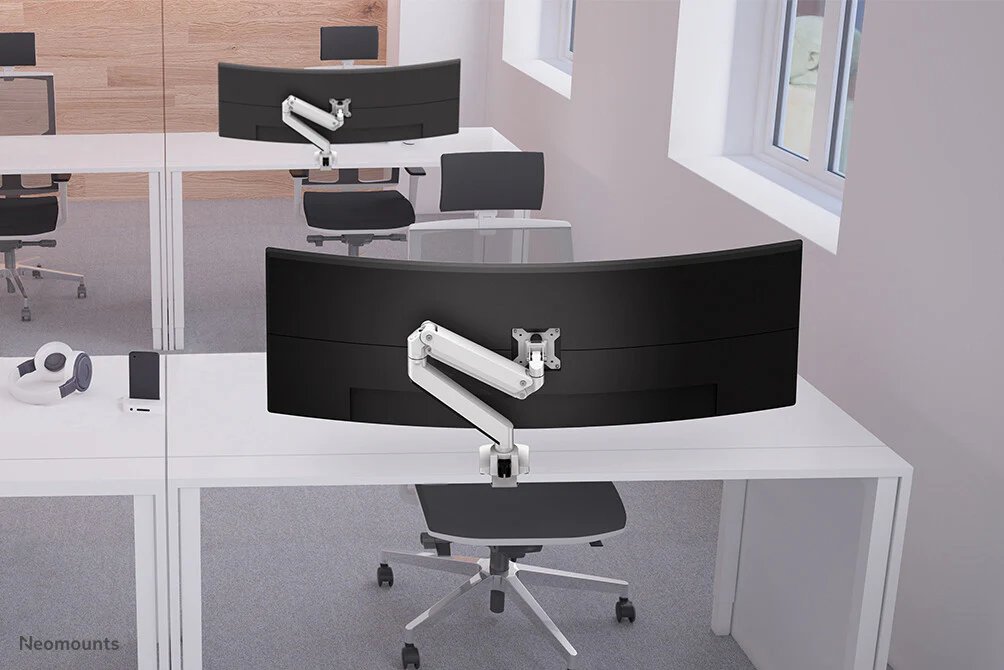

A unique cable management conceals and routes cables from mount to the ultra-wide screen. The NM-D775WHITEPLUS desk mounts are ideal for use in offices, on counters and in reception areas.
All installation material is included with the product.
| Mounting |
|---|
| Number of displays supported |
1 |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Maximum VESA mount |
100 x 100 mm |
| Minimum VESA mount |
75 x 75 mm |
| Mounting |
Clamp/Bolt-through |
| Mounting type |
Desk |
| Maximum screen size |
124.5 cm (49") |
| Minimum screen size |
25.4 cm (10") |
| Maximum weight capacity |
18 kg |
| Ergonomics |
|---|
| Cable management |
Yes |
| Angle of rotation |
180° |
| Swivel angle |
360° |
| Tilt angle range |
0 - 90° |
| Depth adjustment range |
0 - 630 mm |
| Adjustable depth |
Yes |
| Height adjustment range |
270 - 600 mm |
| Height adjustment type |
Gas spring |
| Height adjustment |
Yes |
| Design |
|---|
| Product colour |
White |
| Weight & dimensions |
|---|
| Package net weight |
5.2 kg |
| Package height |
555 mm |
| Package depth |
123 mm |
| Package width |
240 mm |
| Height |
600 mm |
| Depth |
630 mm |
| Logistics data |
|---|
| Master (outer) case net weight |
4.8 kg |
| Products per pallet (EU) |
72 pc(s) |
| Harmonized System (HS) code |
7326909890 |
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case gross weight |
5.2 kg |
| Master (outer) case height |
575 mm |
| Master (outer) case length |
265 mm |
| Master (outer) case width |
500 mm |
| Other features |
|---|
| Country of origin |
China |
