Neomounts DS60-425BL1 - Desk monitor mount for 43.2 cm (17") to 68.6 cm (27")

Neomounts DS60-425BL1 full motion desk monitor arm for 17-27" screens - Black

The Neomounts DS60-425BL1 NEXT Lite is a full motion desk mount for screens up to 27" with a maximum weight capacity of 8 kg. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal viewing angle for your screen. Additionally, the mount has manual height and depth adjustment to create the perfect working position.

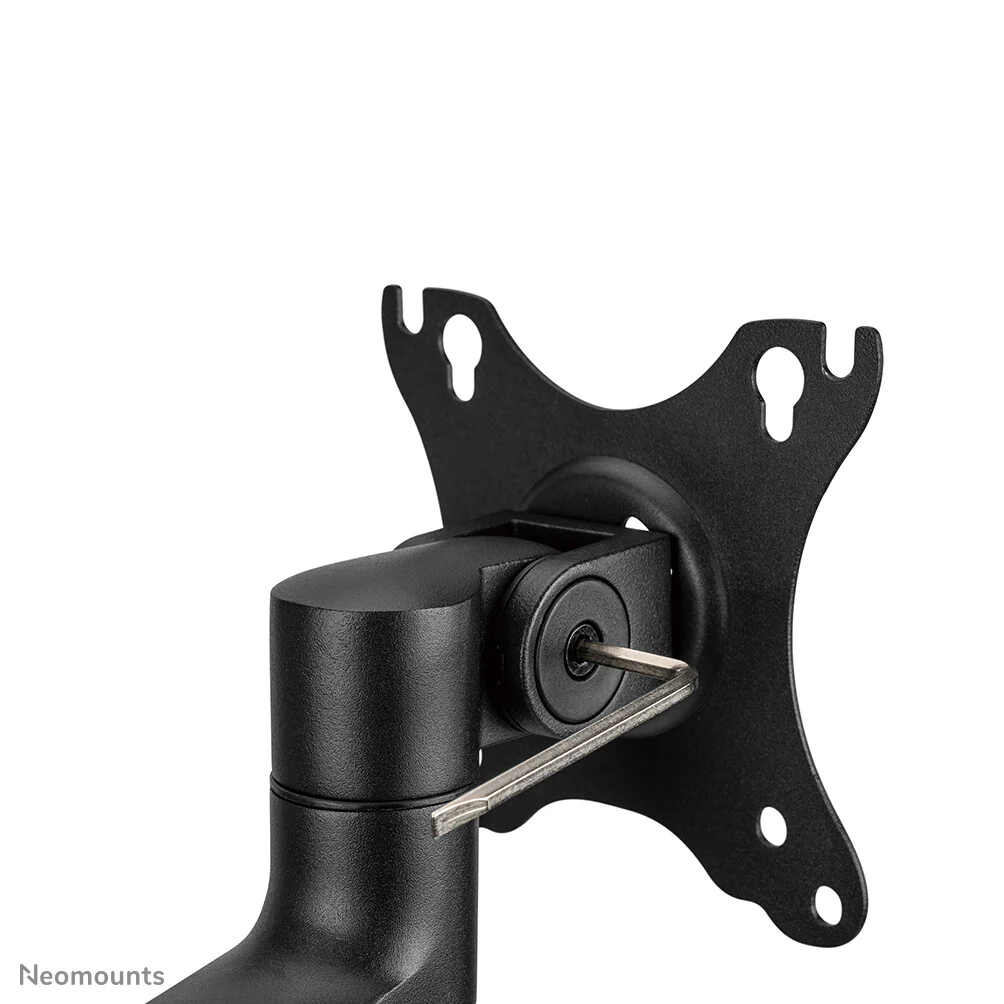

Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS60-425BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS60-425BL1 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.

The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.

Mounting

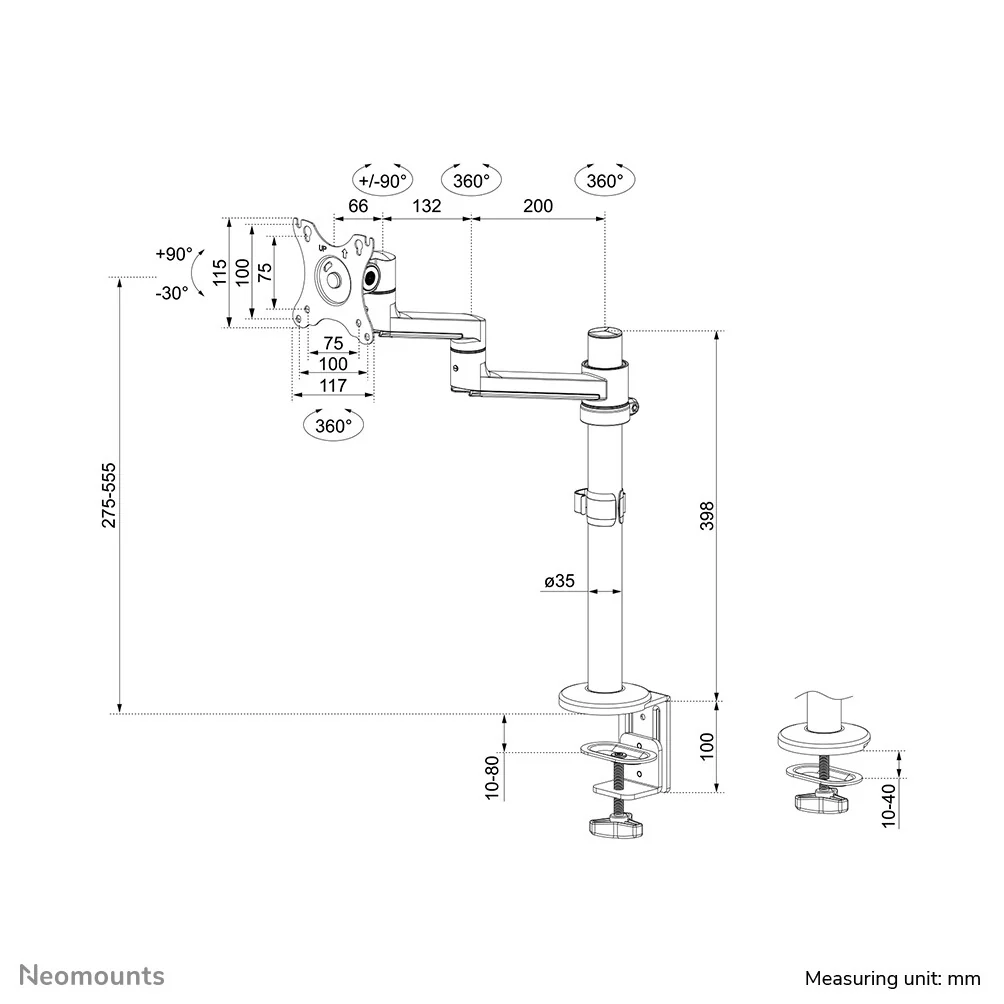

Distance to the wall (max) 45.9 cm
Distance to the wall (min) 12.8 cm
Grommet mount desk thickness (max) 4 cm

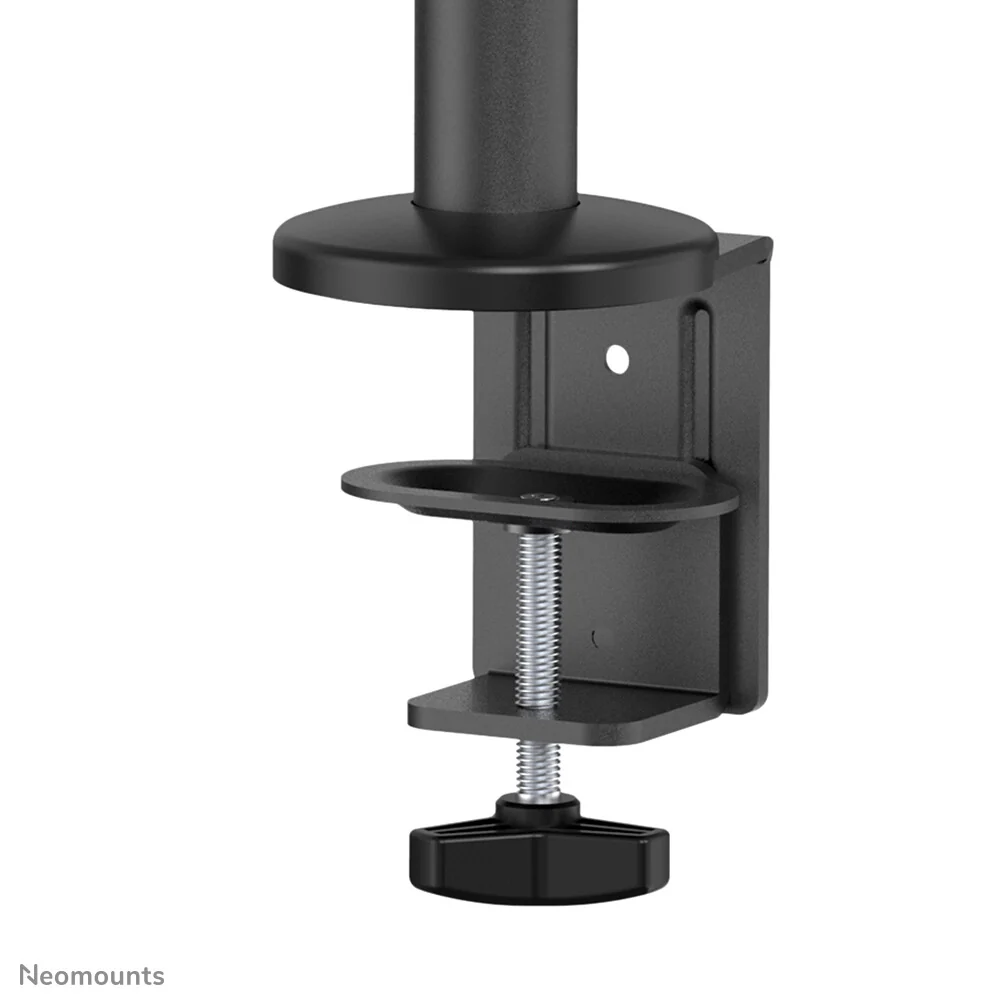

Clamp mount desk thickness (max) 8 cm
Desk thickness (max) 8 cm
Desk thickness (min) 1 cm
Number of displays supported 1
Panel mounting interface 75 x 75,75 x 100,100 x 100
Maximum VESA mount 100 x 100 mm
Minimum VESA mount 75 x 75 mm
Mounting Clamp/Bolt-through
Mounting type Desk
Maximum screen size 68.6 cm (27")
Minimum screen size 43.2 cm (17")
Maximum weight capacity 8 kg
Ergonomics
Feet colour Black
Feet Yes
Cable management Yes
Angle of rotation 360°
Swivel angle range -30 - 90°
Swivelling Yes
Tilt angle range -30 - 90°
Depth adjustment range 6.6 - 39.8 mm
Adjustable depth Yes
Height adjustment range 27.5 - 55.5 mm
Height adjustment type Manual
Height adjustment Yes
Design
Orientation Landscape/Portrait
Housing material Steel
Product colour Black
Weight & dimensions
Package net weight 3 kg
Package height 440 mm
Package depth 103 mm
Package width 140 mm
Height 611 mm
Depth 459 mm
Width 453 mm
Packaging content
VESA mount included Yes
Clamp included Yes
Packaging data
Quantity per pack 1 pc(s)
Logistics data
Master (outer) case net weight 15.2 kg
Products per pallet (EU) 120 pc(s)
Harmonized System (HS) code HS7326909890
Products per master (outer) case 6 pc(s)
Master (outer) case height 455 mm
Master (outer) case length 330 mm
Master (outer) case width 300 mm
Other features
Country of origin China
  • DS60-425BL1_Video_EN
$103.10
Neomounts DS60-425BL1 - Desk monitor mount for 43.2 cm (17") to 68.6 cm (27")—
$103.10
