Neomounts DS70-750BL2 - Desk monitor mount for 43.2 cm (17") to 68.6 cm (27")

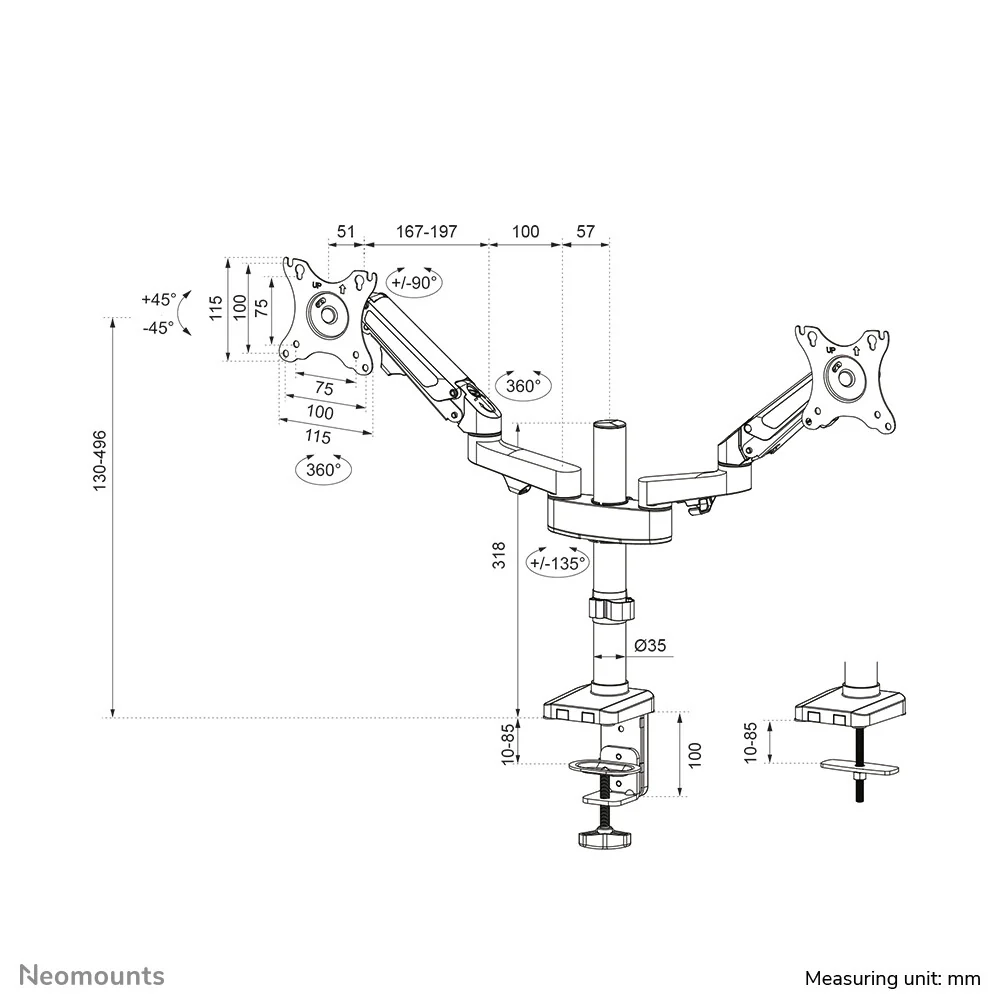

The Neomounts DS70-750BL2 is a full motion desk mount for two flat screens up to 27" with a maximum weight capacity of 7 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screens. Additionally, the mount features gas spring height adjustment (7,3-48,1 cm) and depth adjustment (0-37,8 cm), to create the perfect working position.

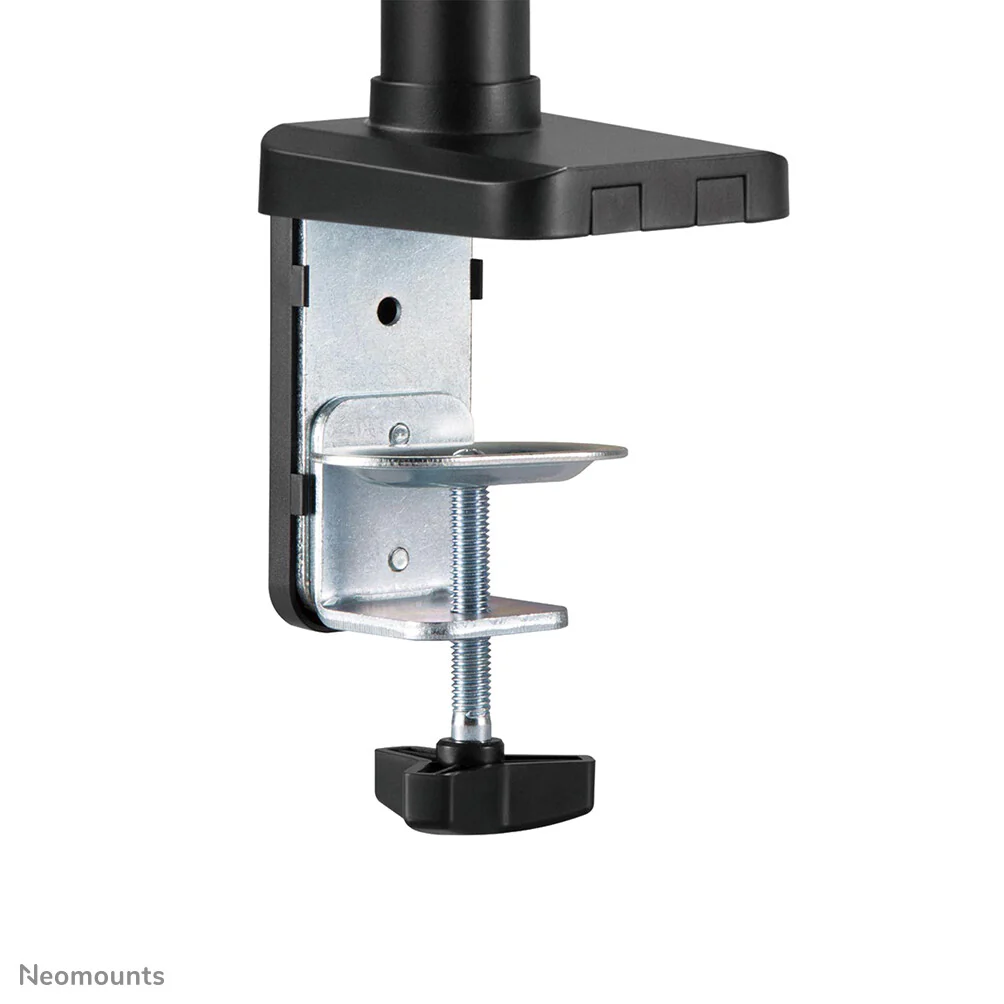

The DS70-750BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-750BL2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
| Mounting | |
|---|---|
| Number of displays supported | 2 |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Bolt-through |
| Maximum weight capacity (per display) | 7 kg |
| Mounting type | Desk |
| Maximum screen size | 68.6 cm (27") |
| Minimum screen size | 43.2 cm (17") |
| Maximum weight capacity | 7 kg |
| Ergonomics | |
|---|---|
| Rotating | Yes |
| Tilt adjustment | Yes |
| Cable management | Yes |
| Angle of rotation | 180° |
| Swivel angle range | -90 - 90° |
| Tilt angle range | -45 - 45° |
| Depth adjustment range | 0 - 378 mm |
| Adjustable depth | Yes |
| Height adjustment range | 73 - 481 mm |
| Height adjustment type | Gas spring |
| Height adjustment | Yes |
| Design | |
|---|---|
| Orientation | Landscape/Portrait |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Package net weight | 4.4 kg |
| Package height | 425 mm |
| Package depth | 132 mm |
| Package width | 266 mm |
| Height | 679 mm |
| Depth | 440 mm |
| Width | 825 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Master (outer) case net weight | 14.4 kg |
| Products per pallet (EU) | 64 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case height | 550 mm |
| Master (outer) case length | 280 mm |
| Master (outer) case width | 440 mm |
| Other features | |
|---|---|
| Country of origin | China |
