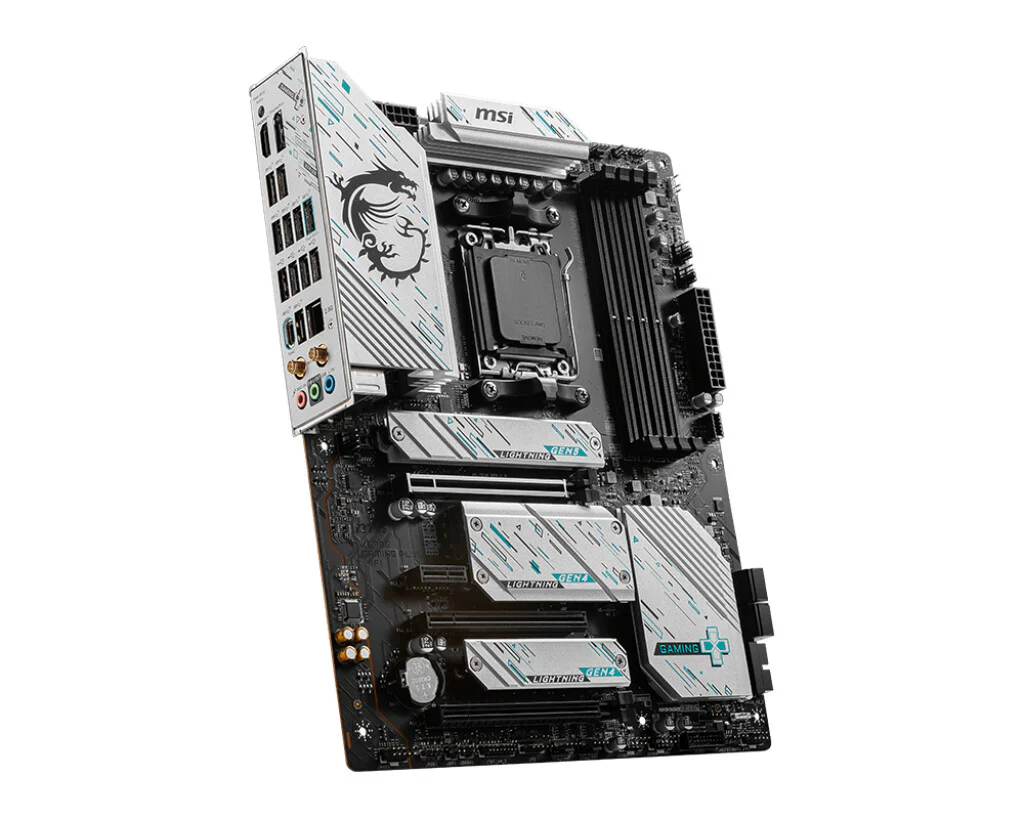

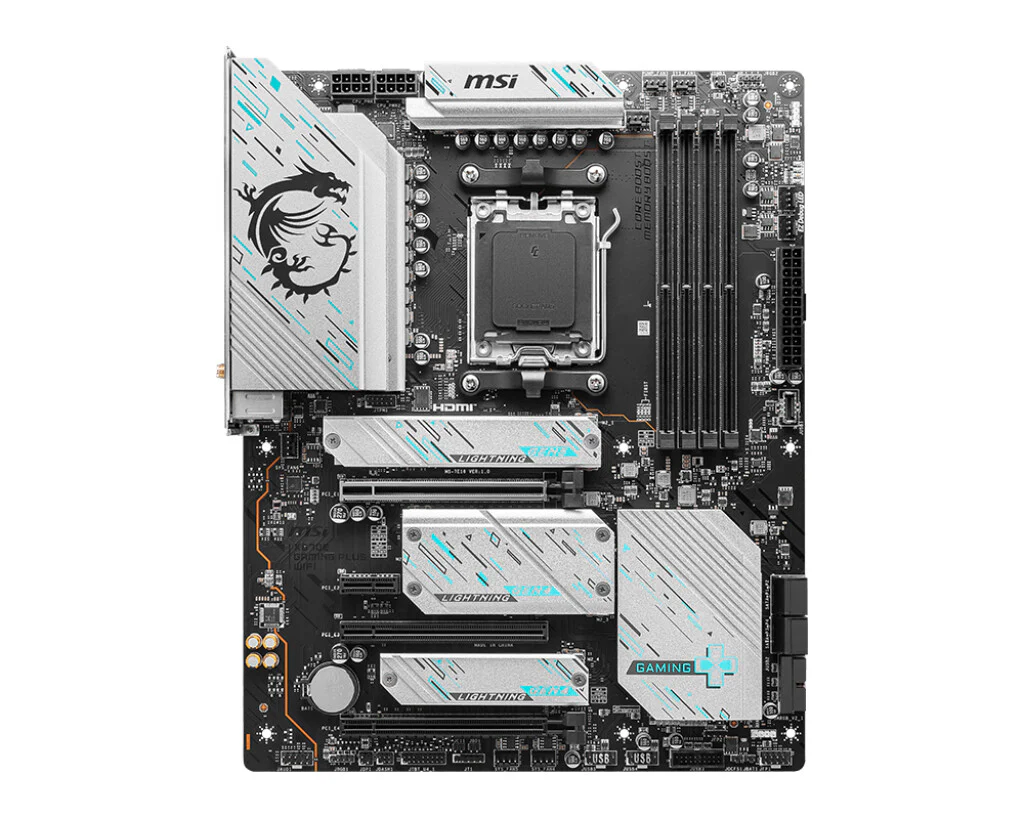

MSI X670E GAMING PLUS WIFI ATX motherboard - AMD X670 Socket AM5
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
| Processor | |
|---|---|
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Maximum internal memory | 192 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Internal I/O | |
|---|---|
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 2.0 connectors | 4 |
| Rear panel I/O ports | |
|---|---|
| S/PDIF out port | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Network | |
|---|---|
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| LAN controller | Realtek RTL8125-BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | AMD X670 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
|---|---|
| System Management BIOS (SMBIOS) version | 3.5 |
| ACPI version | 6.4 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Weight & dimensions | |
|---|---|
| Depth | 304.8 mm |
| Width | 243.8 mm |
