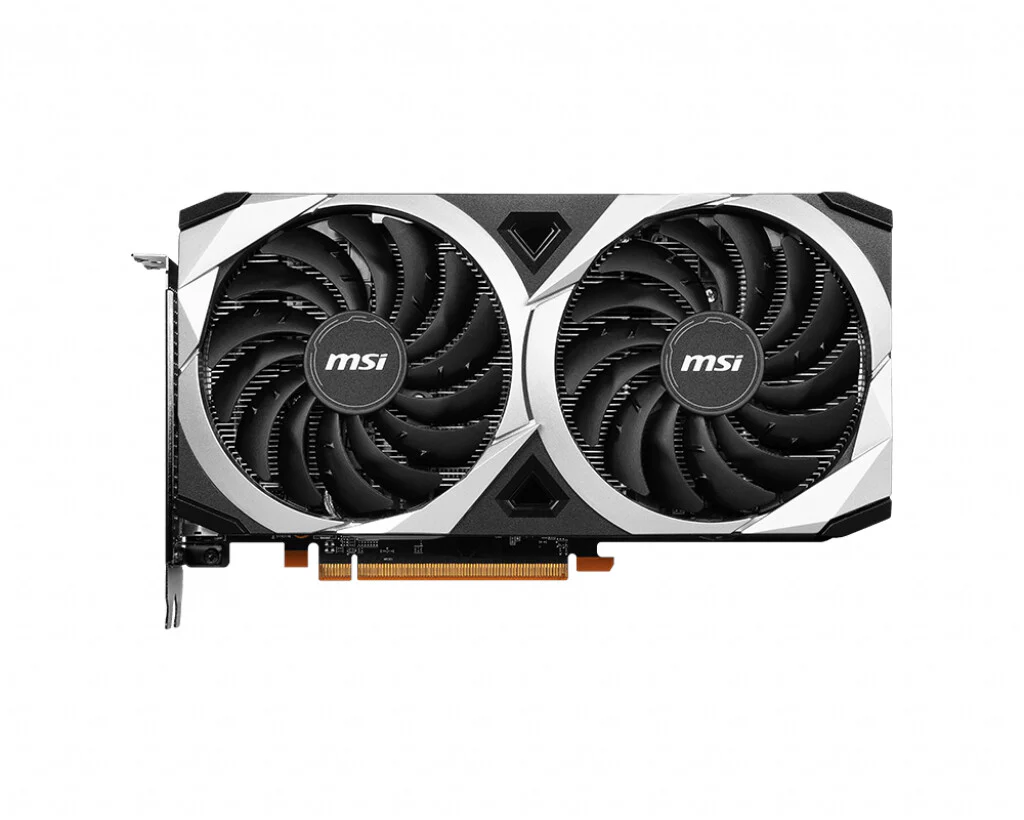

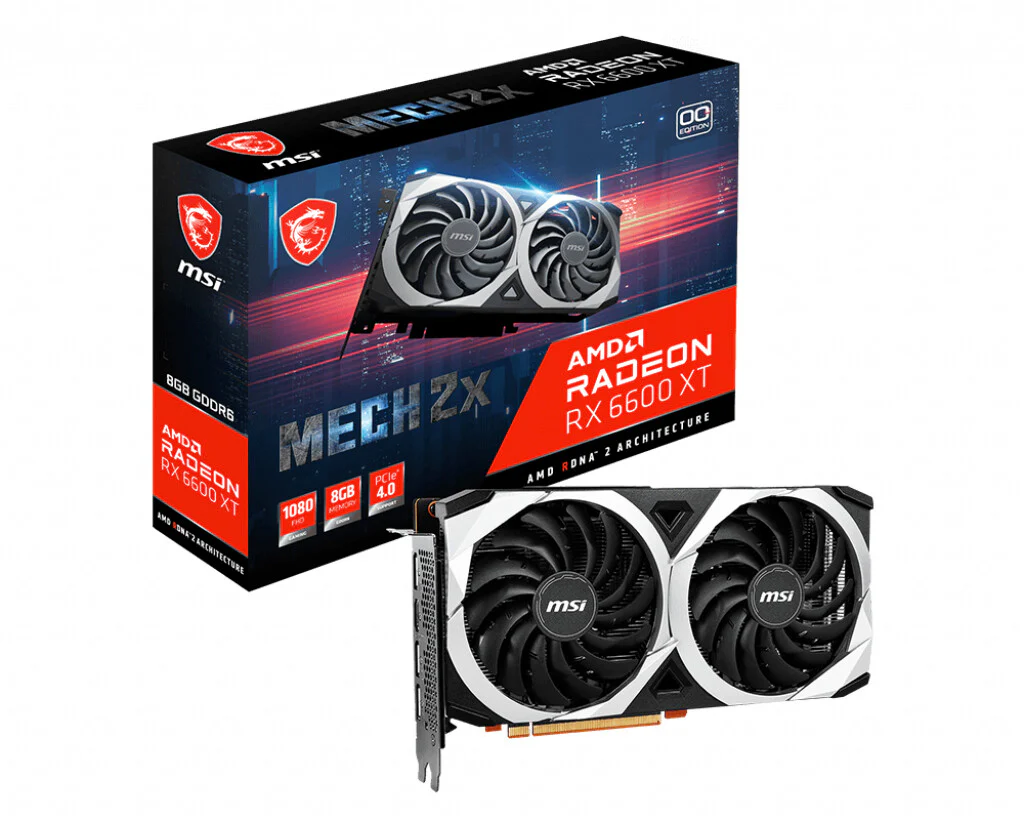

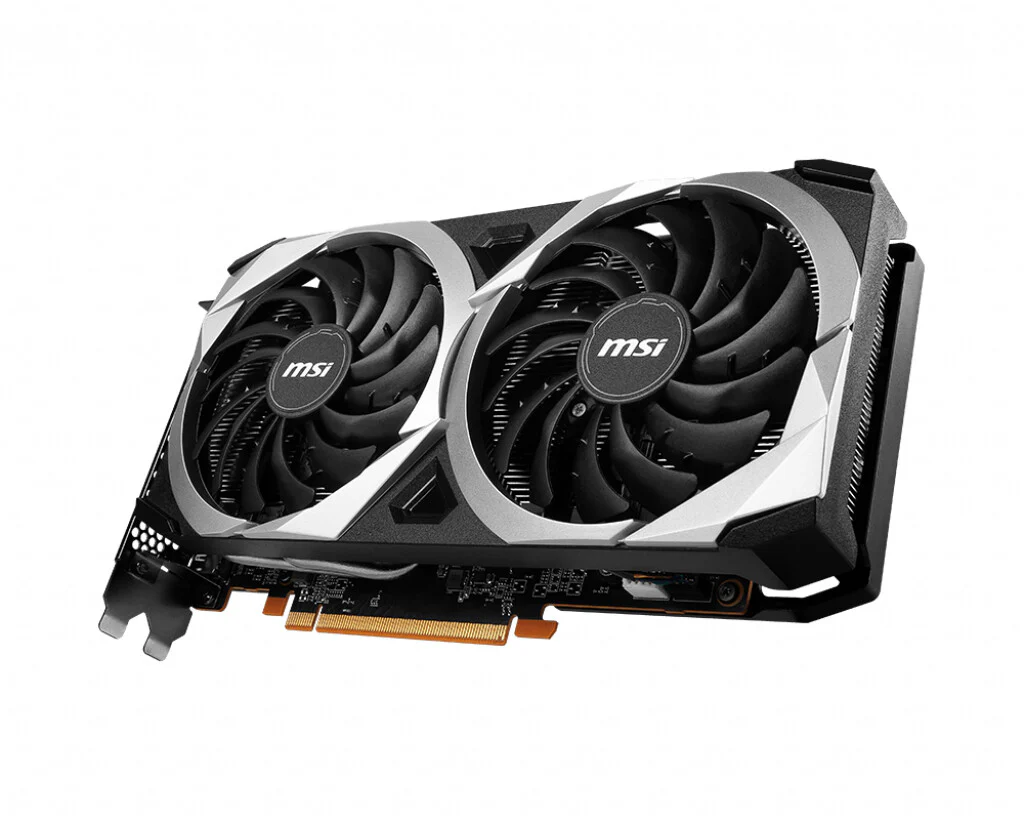

AMD Radeon RX 6600 XT, 8GB GDDR6, 128 bit, PCI Express 4.0, 1 x HDMI (2.1), 3 x DP (1.4), CUDA, DirectX 12.0, OpenGL 4.6, VR, 160W
ARM YOURSELF FOR THE FINAL BLOW
MECH brings a performance-focused design that maintains the essentials to accomplish any task at hand.
Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.

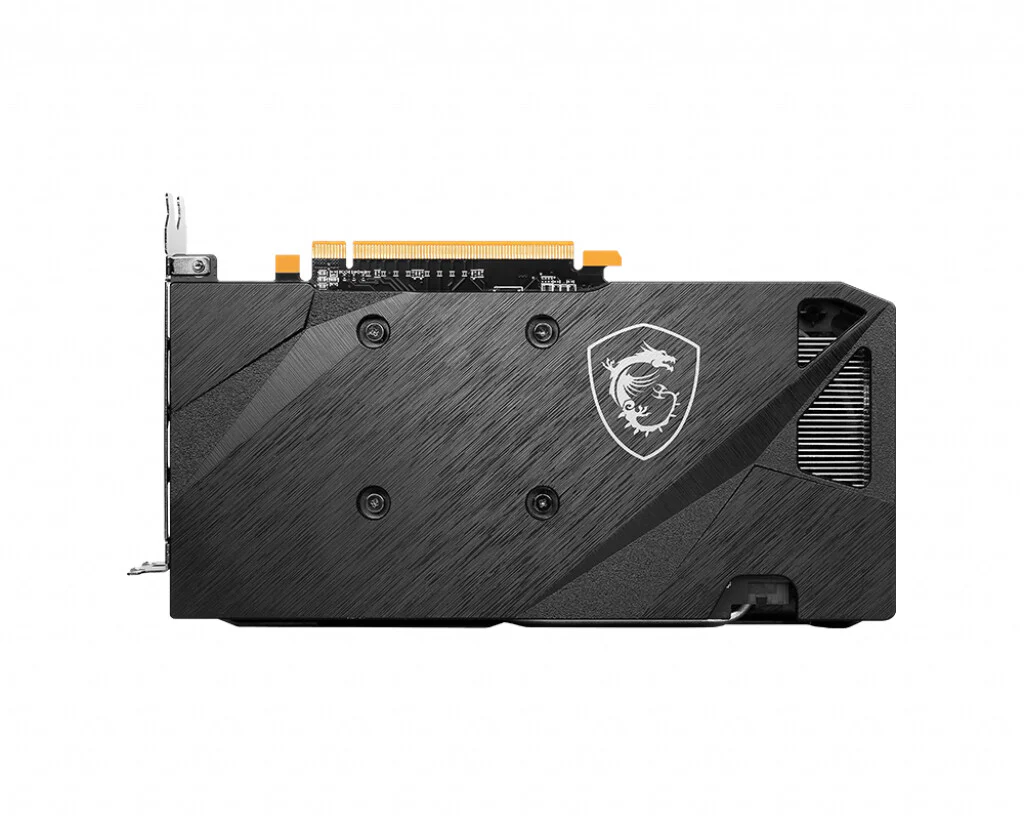

BACKPLATE
A clean-looking brushed-finish backplate reinforces the length of the card.
TOUGH ENOUGH TO BACK YOU UP!
MECH has been crafted to serve you well during intense gameplay. This legendary item has extra power unlocked through the Custom PCB.
BETTER SAFE THAN SORRY
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
FORGED FROM ENHANCED MATERIALS
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation, and high-performance reliability.
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed up power circuitry for pushing the card to its limits.
Bringing It All Together
MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak and optimize in real-time with just a few clicks.
| Processor |
|---|
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| CUDA cores |
2048 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
Radeon RX 6600 XT |
| Graphics processor family |
AMD |
| Memory |
|---|
| Data transfer rate |
16 Gbit/s |
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |

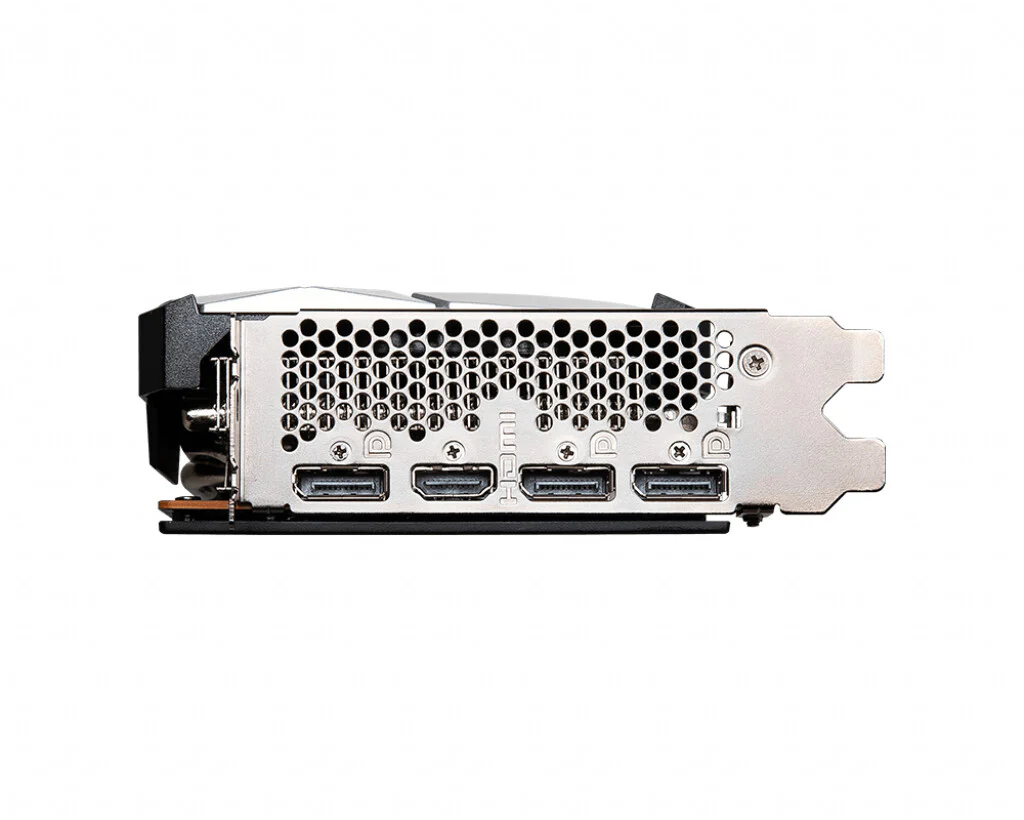

| Ports & interfaces |
|---|
| DisplayPort version |
1.4 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express 4.0 |
| Performance |
|---|
| HDCP |
Yes |
| Virtual Reality (VR) ready |
Yes |
| OpenGL version |
4.6 |
| DirectX version |
12.0 |
| TV tuner integrated |
No |
| Design |
|---|
| Product colour |
Black, Silver |
| Number of slots |
2 |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Bracket height |
Full-Height (FH) |
| Number of fans |
2 fan(s) |
| Cooling technology |
MSI TORX Fan 3.0 |
| Cooling type |
Active |
| Power |
|---|
| Power consumption (typical) |
160 W |
| Supplementary power connectors |
1x 8-pin |
| Minimum system power supply |
500 W |
| General |
|---|
| Product Family |
MECH |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
|---|
| Depth |
235 mm |
| Height |
125 mm |
| Width |
46 mm |
| Weight |
721 g |
| Packaging data |
|---|
| Package type |
Box |
