NVIDIA GeForce RTX 2060 SUPER, 8GB GDDR6, 256 bit, PCI Express x16 3.0, 1 x HDMI (2.0b), 3 x DP (1.4), CUDA, DirectX 12.0, OpenGL 4.5, VR, 175W
NVIDIA Turing™ Architecture
GeForce RTX is powered by Nvidia Turing, the world's most advanced GPU architecture for gamers and creators. Get truly next-gen performance and features with dedicated AI and ray tracing cores for the ultimate experience.
Get SUPER Powers
The new GeForce RTX SUPER™ Series has even more cores and higher clocks, bringing you performance that’s up to 25% faster than the original RTX 20 Series and 6X faster than the previous-generation 10 Series GPUs. It’s time to gear up and get super powers.
GeForce Experience
Capture and share videos, screenshots, and livestreams with friends. Keep your drivers up to date and optimize your game settings. GeForce Experience™ lets you do it all. It’s the essential companion to your GeForce graphics card.
PLAY HARD STAY SILENT
The much anticipated return of MSI’s iconic dual fan GAMING series. Combining a mix of black and gunmetal grey with a classy brushed metal backplate, this masterpiece provides you premium design with magnificent and smooth RGB light effects on the outside. The new MSI GAMING card is designed to amaze you!
TWIN FROZR 7 THERMAL DESIGN
The 7th generation of the famous MSI TWIN FROZR Thermal Design brings the most advanced technology for ultimate cooling performance. It features the new TORX FAN 3.0 combined with groundbreaking aerodynamic feats. This means stable performance and a silent experience are guaranteed thanks to low temperatures.
TRACES OF BRILLIANCE
Underneath all the metal are the multilayered electric highways that make up the Printed Circuit Board. They connect all the vital components and allow them to communicate at lightning speed.
EXPERIENCE
Get the most out of your MSI graphics card in terms of performance and experience almost unlimited customization options with the included software.
| Processor |
|---|
| Parallel processing technology support |
Not supported |
| FireStream |
No |
| Maximum displays per videocard |
4 |
| Processor boost clock speed |
1650 MHz |
| CUDA cores |
2176 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 2060 SUPER |
| Graphics processor family |
NVIDIA |
| Memory |
|---|
| Data transfer rate |
14 Gbit/s |
| Memory bus |
256 bit |
| Graphics card memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |

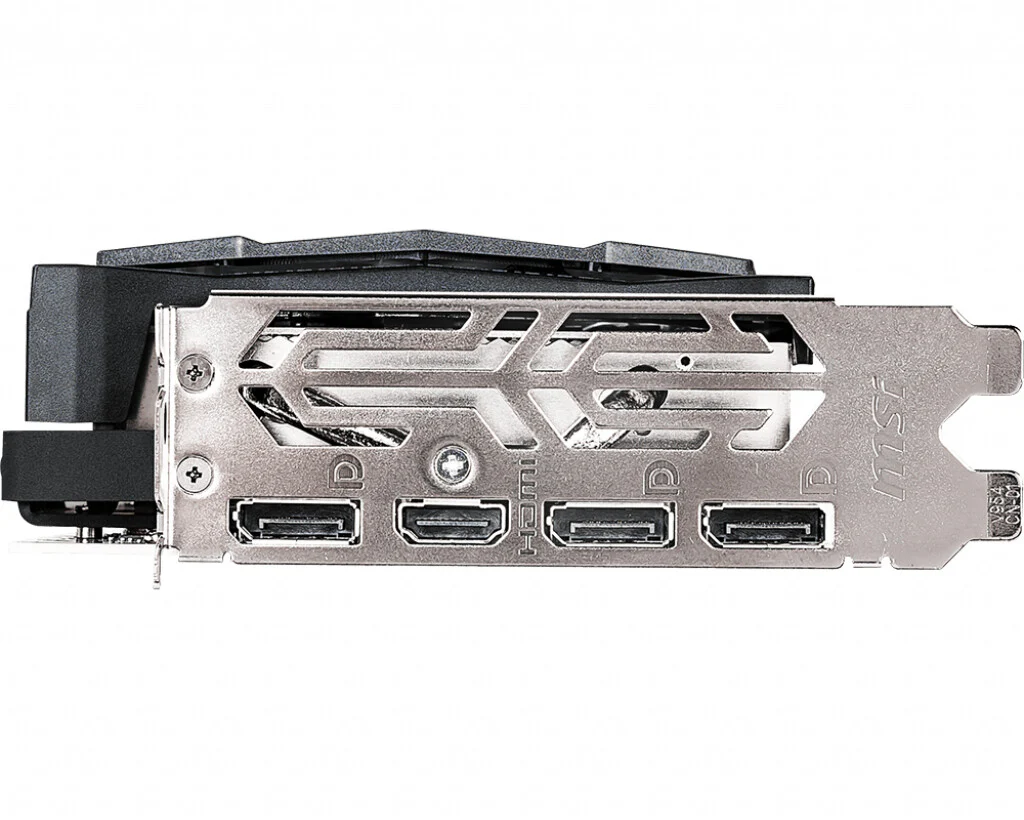

| Ports & interfaces |
|---|
| DisplayPort version |
1.4 |
| HDMI version |
2.0b |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express x16 3.0 |
| Performance |
|---|
| NVIDIA G-SYNC |
Yes |
| Dual Link DVI |
No |
| HDCP |
Yes |
| Virtual Reality (VR) ready |
Yes |
| OpenGL version |
4.5 |
| DirectX version |
12.0 |
| TV tuner integrated |
No |
| PhysX |
Yes |
| Design |
|---|
| Product colour |
Black, Grey |
| Illumination |
Yes |
| Illumination colour |
Multi |
| Number of slots |
2 |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Bracket height |
Full-Height (FH) |
| Number of fans |
2 fan(s) |
| Cooling technology |
MSI TORX Fan 3.0 |
| Cooling type |
Active |
| Power |
|---|
| Power consumption (typical) |
175 W |
| Supplementary power connectors |
1x 8-pin |
| Minimum system power supply |
550 W |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10 |
| General |
|---|
| Product Family |
GAMING |
| Weight & dimensions |
|---|
| Depth |
52 mm |
| Height |
128 mm |
| Length |
248 mm |
| Weight |
981 g |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
1.58 kg |
