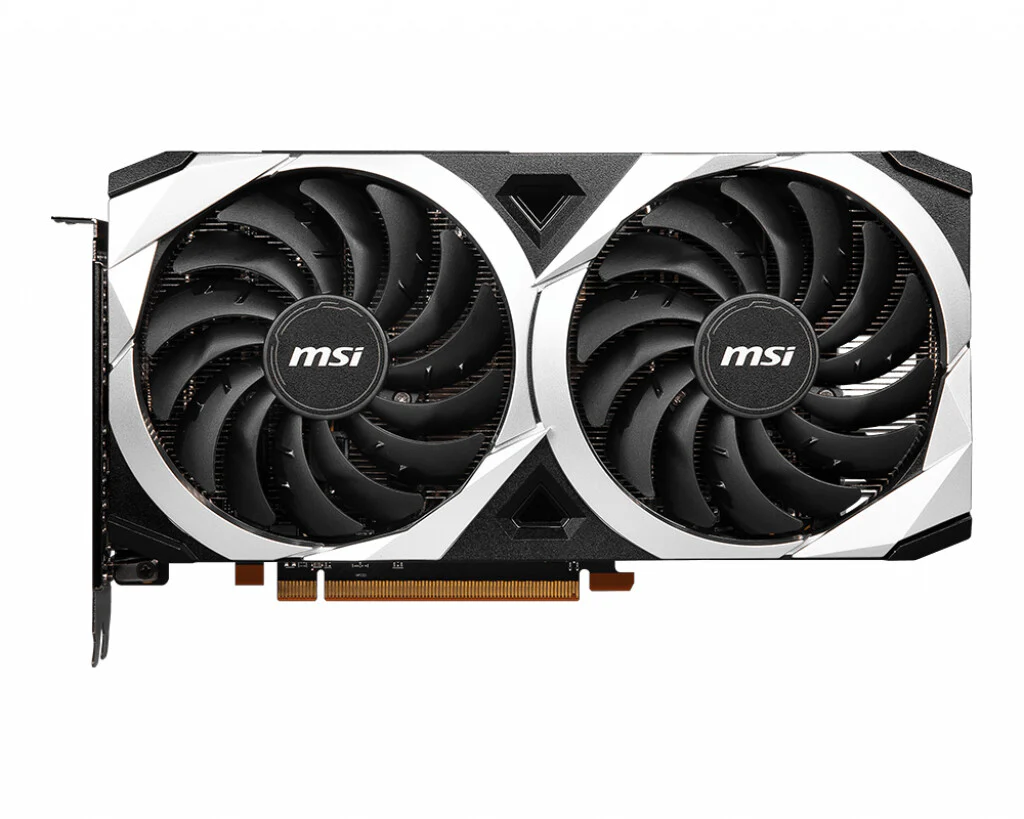

AMD Radeon RX 6650 XT, 8GB GDDR6, 128 bit, 1750MHz, PCI Express 4.0, 1 x HDMI (2.1), 3 x DP (1.4a), DirectX 12 Ultimate, OpenGL 4.6, VR, 175W
ARM YOURSELF FOR THE FINAL BLOW
MECH brings a performance-focused design that maintains the essentials to accomplish any task at hand.
Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
BETTER SAFE THAN SORRY
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
FORGED FROM ENHANCED MATERIALS
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation, and high-performance reliability.
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed up power circuitry for pushing the card to its limits.
Bringing It All Together
MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak and optimize in real-time with just a few clicks.
| Processor |
|---|
| Stream processors |
2048 |
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| Processor boost clock speed (Gaming mode) |
2447 MHz |
| Processor boost clock speed (OC mode) |
2669 MHz |
| CUDA |
No |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
Radeon RX 6650 XT |
| Graphics processor family |
AMD |
| Memory |
|---|
| Memory clock speed |
1750 MHz |
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Ports & interfaces |
|---|
| DisplayPort version |
1.4a |
| HDMI version |
2.1 |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express 4.0 |
| Performance |
|---|
| AMD FreeSync |
Yes |
| Dual Link DVI |
No |
| HDCP |
Yes |
| Virtual Reality (VR) ready |
Yes |
| OpenGL version |
4.6 |
| DirectX version |
12 Ultimate |
| TV tuner integrated |
No |
| Design |
|---|
| Product colour |
Black, Silver |
| Number of fans |
2 fan(s) |
| Cooling technology |
MSI TORX Fan 3.0 |
| Cooling type |
Active |
| Power |
|---|
| Power consumption (typical) |
175 W |
| Supplementary power connectors |
1x 8-pin |
| Minimum system power supply |
500 W |
| General |
|---|
| Product Family |
MECH |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
|---|
| Depth |
47 mm |
| Height |
125 mm |
| Length |
235 mm |
| Weight |
675 g |
| Packaging data |
|---|
| Package type |
Box |
