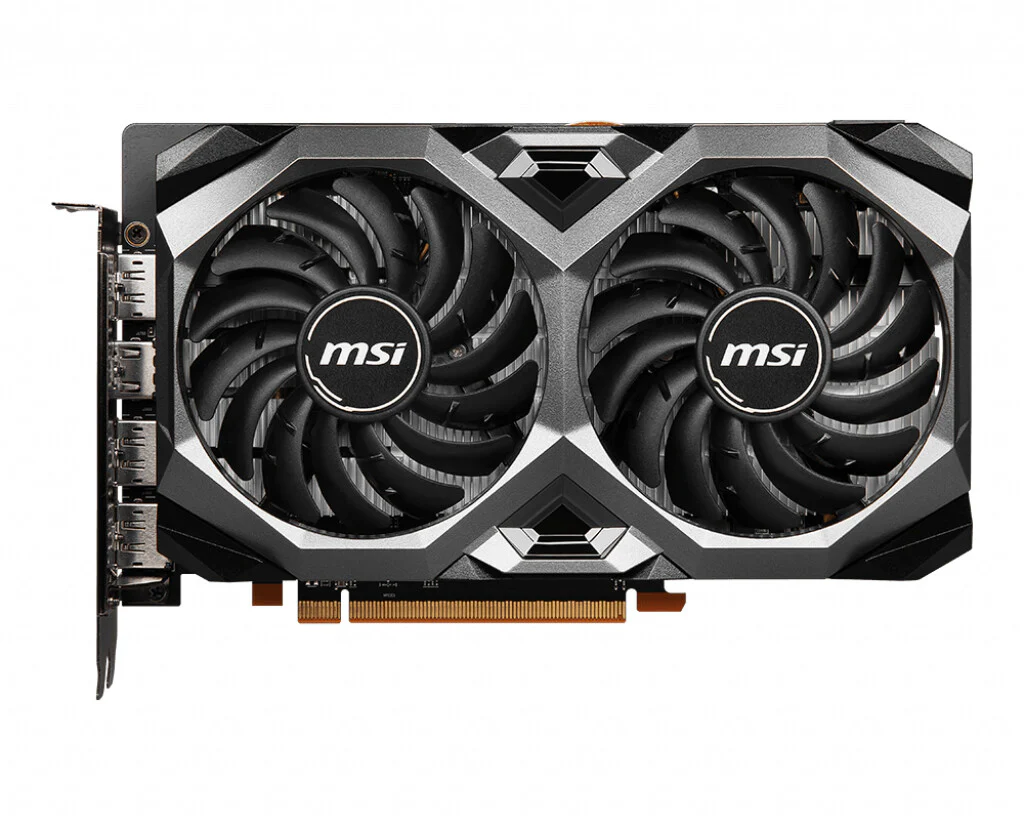

MSI MECH 2X OC V1 - AMD 8 GB GDDR6 Radeon RX 6600 XT graphics card
Radeon RX 6000 MECH SERIES
ARM YOURSELF FOR THE FINAL BLOW
MECH brings a performance-focused design that maintains the essentials to accomplish any task at hand.
Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
STRONG BACKBONE
A sturdy backplate helps to strengthen the graphics card and complements the design to look even better.
TOUGH ENOUGH TO BACK YOU UP!
MECH has been crafted to serve you well during intense gameplay. This legendary item has extra power unlocked through the Custom PCB.
BETTER SAFE THAN SORRY
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
TRACES OF BRILLIANCE
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed up power circuitry for pushing the card to its limits.
| Processor | |
|---|---|
| Stream processors | 2048 |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2602 MHz |
| CUDA | No |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Radeon RX 6600 XT |
| Graphics processor family | AMD |
| Memory | |
|---|---|
| Data transfer rate | 16 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|

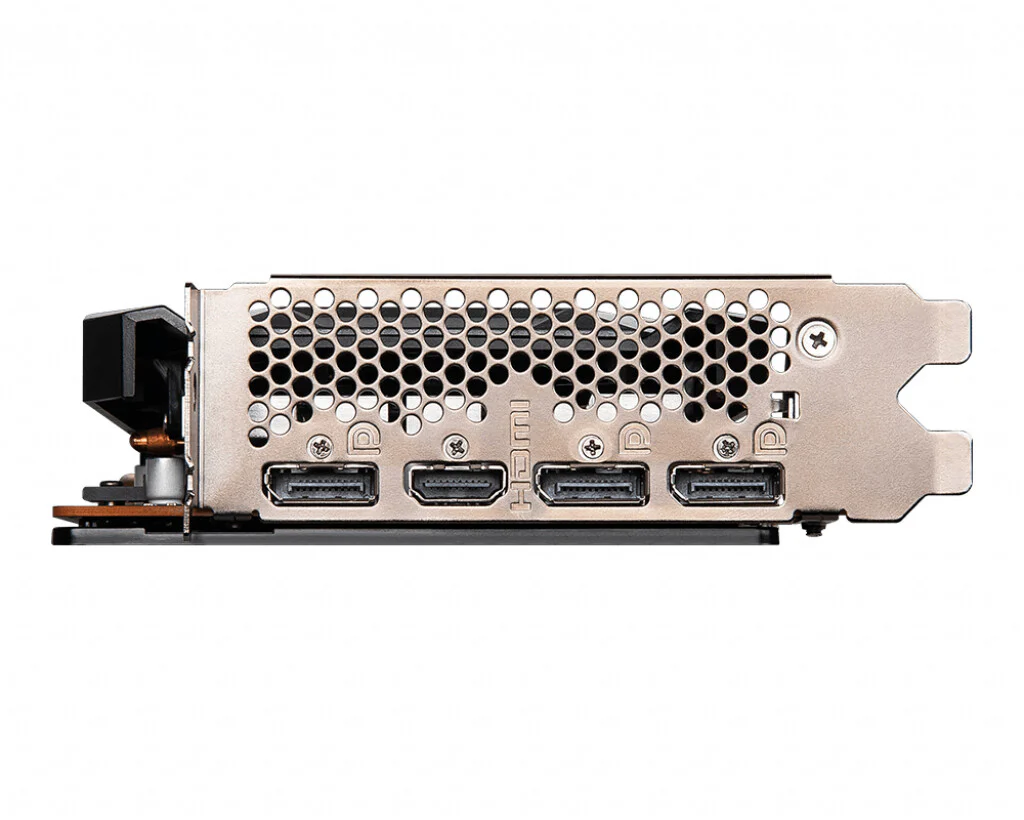

| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x8 4.0 |
| Performance | |
|---|---|
| AMD FreeSync | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black, Grey |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Number of fans | 2 fan(s) |
| Cooling technology | MSI TORX Fan 3.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 160 W |
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 500 W |
| General | |
|---|---|
| Product Family | MECH |
| Weight & dimensions | |
|---|---|
| Depth | 42 mm |
| Height | 128 mm |
| Length | 215 mm |
| Weight | 728 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.08 kg |
| User guide | Yes |
