DDR4, Intel, LGA1700, PCI-E, M.2, USB

EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

CORE BOOST TECHNOLOGY
Combining 2x 8-pin power connectors and premium layout design, that is ready for unleashing the maximum performance

PREMIUM PCB MATERIAL
6 layer PCB with the use of server grade material and 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

AUDIO BOOST 5
Isolated audio with high quality audio processor & amp for the most immersive gaming experience.

Processor
Compatible processor series	Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor socket	LGA 1700
Processor manufacturer	Intel

Memory
Maximum internal memory	128 GB
Supported memory clock speeds	2133,2400,2666,2933,3300,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800,5000,5066,5200 MHz
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM

Storage controllers
Supported storage drive interfaces	M.2, SATA

Graphics
Parallel processing technology support	Crossfire

Internal I/O
TPM connector	Yes
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	4
USB 2.0 connectors	4

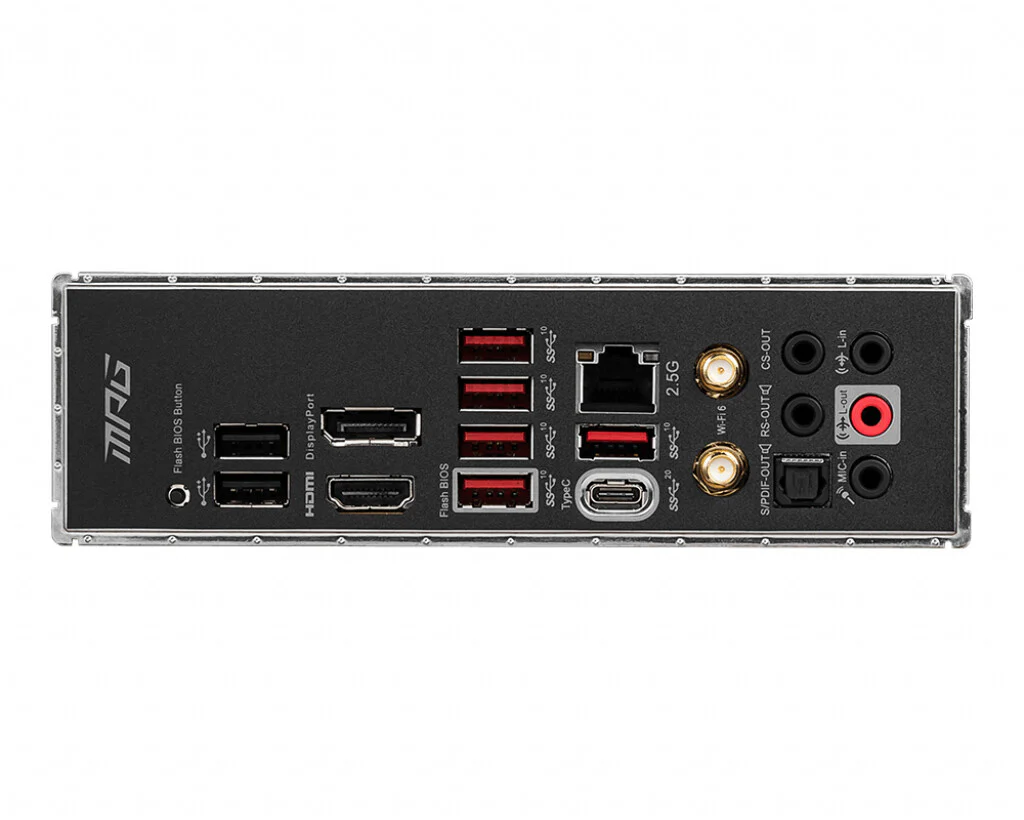

Rear panel I/O ports
DisplayPorts quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	4

Network
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi	Yes
LAN controller	Intel I225-V
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes

Features
Windows operating systems supported	Windows 10, Windows 11
Audio output channels	5.1 channels
Motherboard chipset	Intel Z690
Motherboard chipset family	Intel
Motherboard form factor	ATX
Component for	PC

Expansion slots
Number of M.2 (M) slots	4
PCI Express x16 slots	3
PCI Express x1 slots	1

Logistics data
Harmonized System (HS) code	84733020

Weight & dimensions
Height	65 mm
Depth	244 mm
Width	305 mm

Other features
Weight	1 kg
