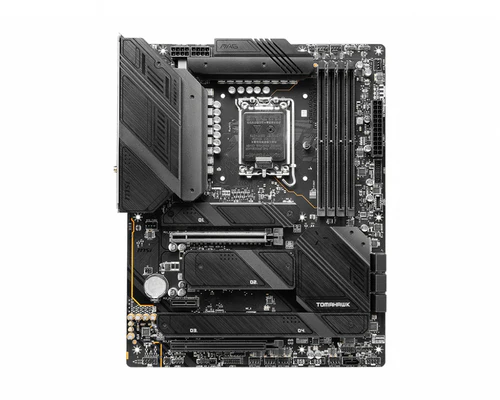

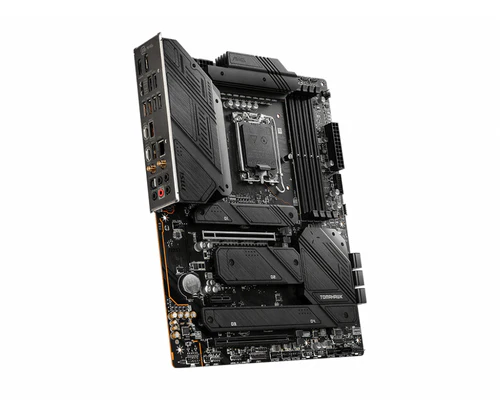

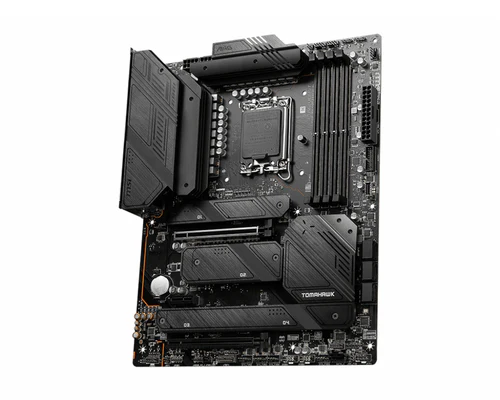

MSI MAG Z790 TOMAHAWK WIFI ATX motherboard - Intel Z790 LGA 1700
The MAG series fights alongside gamers in pursuit of honour.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone' allows for easy and safe installation and a perfect fit.
DIY 2.0 - INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G
Using USB 3.2 devices has never been faster! MPG X670 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
|
Internal I/O |
|
|---|---|
|
Number of M.2 (M) slots |
4 |
|
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
|
Front panel connector |
Yes |
|
Supported storage drive interfaces |
M.2, PCI Express |
|
USB 2.0 connectors |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
|
TPM connector |
Yes |
|
Number of SATA connectors |
0 |
|
Number of SATA III connectors |
7 |
|
Number of SATA II connectors |
0 |
|
Front panel audio connector |
Yes |
|
CPU fan connector |
Yes |
|
Chassis intrusion connector |
Yes |
|
RGB LED pin header |
Yes |
|
Technical details |
|
|
Motherboard chipset family |
Intel |
|
Motherboard chipset |
Intel Z790 |
|
Supported processor sockets |
LGA 1700 |
|
Parallel processing technology support |
Not supported |
|
HDMI version |
2.1 |
|
Motherboard form factor |
ATX |
|
Component for |
PC |
|
Maximum internal memory supported by processor |
192 GB |
|
Audio |
|
|
Audio output channels |
7.1 channels |
|
Performance |
|
|
Supported storage drive types |
HDD & SSD |
|
Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
|
Motherboard chipset family |
Intel |
|
Motherboard chipset |
Intel Z790 |
|
RAID levels |
0, 5, 10 |
|
Supported processor sockets |
LGA 1700 |
|
Audio output channels |
7.1 channels |
|
Motherboard form factor |
ATX |
|
Component for |
PC |
|
Processor |
|
|
Processor manufacturer |
Intel |
|
Maximum internal memory supported by processor |
192 GB |
|
Compatible processor series |
Intel® Celeron®, Intel® Pentium® Gold |
|
Supported processor sockets |
LGA 1700 |
|
Processor socket |
LGA 1700 |
|
Memory |
|
|
Number of memory slots |
4 |
|
Supported memory types |
DDR5-SDRAM |
|
Memory channels |
Dual-channel |
|
Supported memory clock speeds |
4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz |
|
Maximum internal memory |
192 GB |
|
Unbuffered memory |
Yes |
|
Supported memory clock speed (max) |
7200 MHz |
|
ECC сompatibility |
Non-ECC |
|
Storage controllers |
|
|
Supported storage drive types |
HDD & SSD |
|
Supported storage drive interfaces |
M.2, PCI Express |
|
RAID levels |
0, 5, 10 |
|
RAID support |
Yes |
|
Graphics |
|
|
Parallel processing technology support |
Not supported |
|
Rear panel I/O ports |
|
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
|
DisplayPort version |
1.4 |
|
USB 2.0 ports quantity |
0 |
|
VGA (D-Sub) ports quantity |
0 |
|
S/PDIF out port |
Yes |
|
HDMI version |
2.1 |
|
HDMI ports quantity |
1 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
DisplayPorts quantity |
1 |
|
USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
|
Network |
|
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
|
Ethernet interface type |
2.5 Gigabit Ethernet |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.3 |
|
Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
|
Features |
|
|
Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
|
Motherboard chipset family |
Intel |
|
Motherboard chipset |
Intel Z790 |
|
Supported processor sockets |
LGA 1700 |
|
Audio output channels |
7.1 channels |
|
Motherboard form factor |
ATX |
|
Component for |
PC |
|
Product colour |
Black |
|
Expansion slots |
|
|
Number of M.2 (M) slots |
4 |
|
PCI Express x1 (Gen 4.x) slots |
1 |
|
PCI Express x16 (Gen 5.x) slots |
2 |
|
BIOS |
|
|
BIOS type |
UEFI AMI |
|
BIOS memory size |
256 Mbit |
|
ACPI version |
6.4 |
|
System Management BIOS (SMBIOS) version |
3.5 |
|
Software |
|
|
Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
|
Weight & dimensions |
|
|
Width |
243.8 mm |
|
Depth |
304.8 mm |
|
Packaging content |
|
|
Cables included |
SATA |
|
Other features |
|
|
PCI Express x1 (Gen 4.x) slots |
1 |
