NVIDIA GeForce RTX 4080 SUPER, 2625MHz, 16GB GDDR6X, 256 bit, PCI Express 4.0, 1 x HDMI (2.1a), 3 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6, 320W
Expert series graphics cards are designed to excel. A push-pull airflow system directs internal heat either away or outside the graphics card to enhance GPU cooling. The aluminum alloy casing bestows durability and stability, while imparting a refined appearance that emphasizes the premium graphics card design.
FLOW FROZR THERMAL DESIGN
MSI's Flow Frozr tech enhances graphics card cooling for optimal GPU performance and can aide heat dissipation across the entire system when it expels warm air out through the rear IO.
FINE CRAFT, PREMIUM QUALITY
Meticulously crafted from aluminum alloy and shaped using precision craftsmanship, the EXPERT Graphics Card boasts premium materials and refined aesthetics, presenting a high-quality appearance.
TOP CLASS COMPONENT & OPTIMIZATION
By incorporating top-notch components and an optimized design, the EXPERT graphics card aims to achieve excellent reliability and stability, while maximizing performance to its utmost potential.
BRINGING IT ALL TOGETHER
MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks.
| Processor |
|---|
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| Processor boost clock speed |
2610 MHz |
| Processor frequency |
2625 MHz |
| CUDA cores |
10240 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 4080 SUPER |
| Graphics processor family |
NVIDIA |
| Memory |
|---|
| Memory bandwidth (max) |
23 GB/s |
| Memory bus |
256 bit |
| Graphics card memory type |
GDDR6X |
| Discrete graphics card memory |
16 GB |

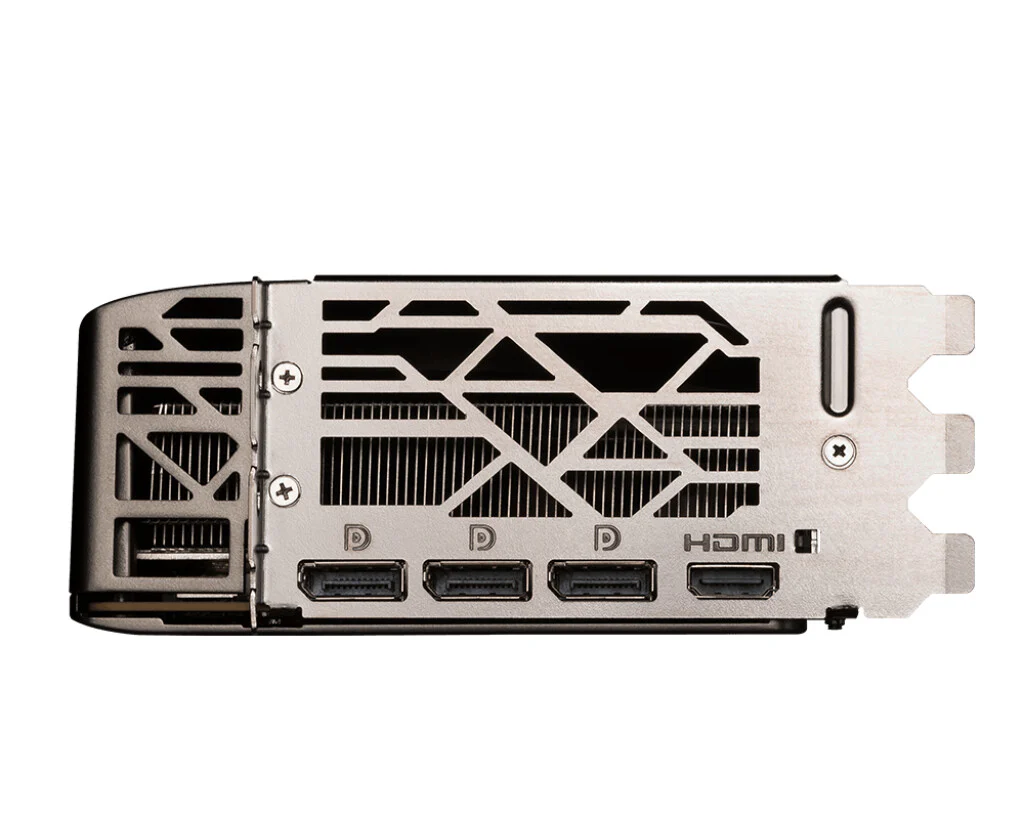

| Ports & interfaces |
|---|
| DisplayPort version |
1.4a |
| HDMI version |
2.1a |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express 4.0 |
| Performance |
|---|
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
Yes |
| Dual Link DVI |
No |
| HDCP |
Yes |
| OpenGL version |
4.6 |
| DirectX version |
12 Ultimate |
| TV tuner integrated |
No |
| Design |
|---|
| Product colour |
Grey |
| Illumination |
Yes |
| Illumination colour |
Multi |
| Number of slots |
3 |
| Form factor |
Full-Height/Half-Length (FH/HL) |
| Number of fans |
1 fan(s) |
| Cooling type |
Active |
| Power |
|---|
| Power consumption (typical) |
320 W |
| Supplementary power connectors |

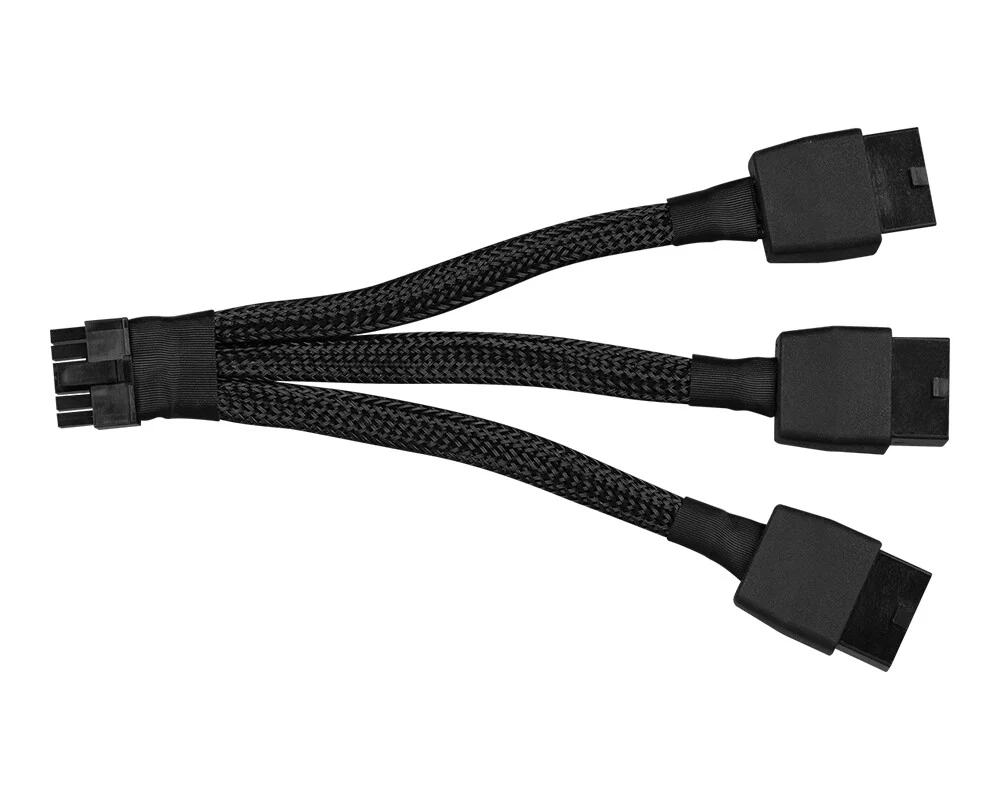

1x 16-pin |
| Minimum system power supply |
850 W |
| Weight & dimensions |
|---|
| Depth |
312 mm |
| Height |
141 mm |
| Width |
61 mm |
| Weight |
1.99 kg |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
2.91 kg |
