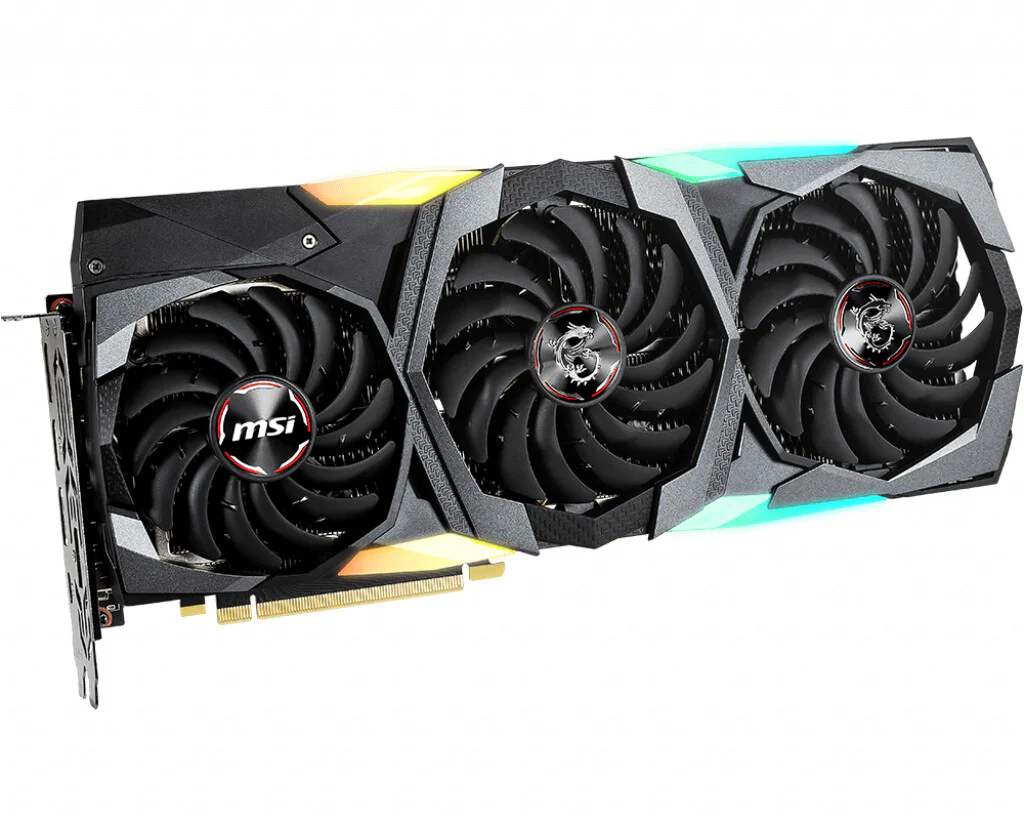

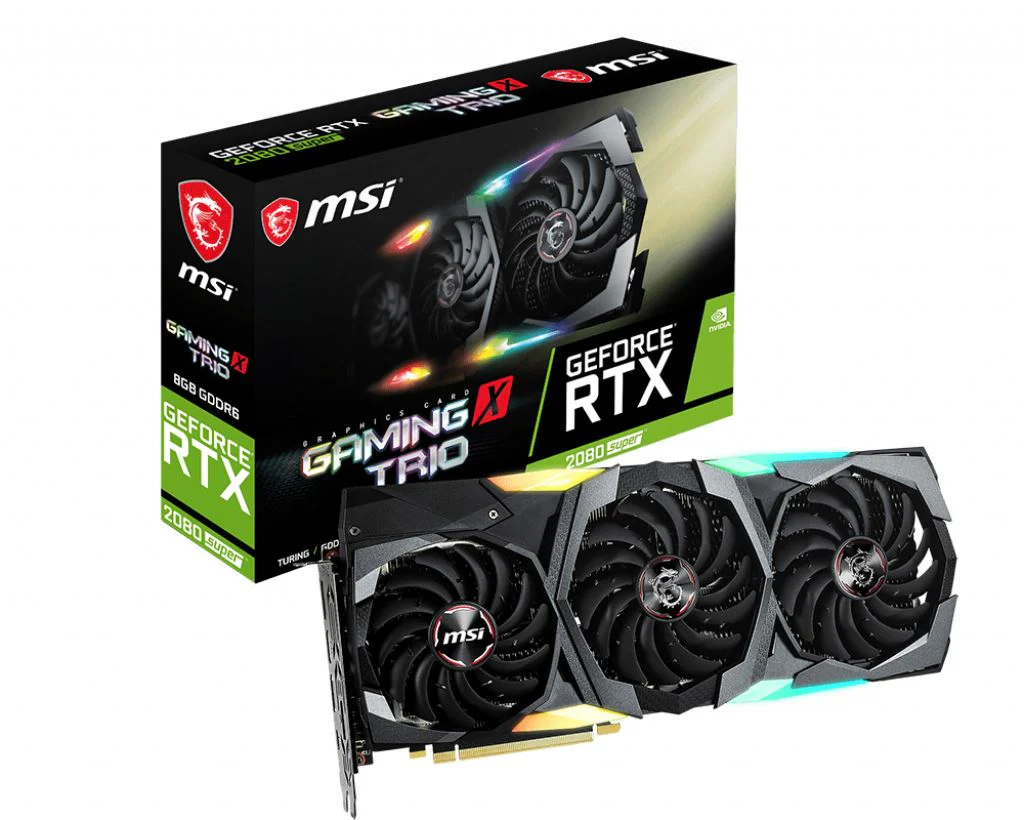

GeForce RTX 2080 SUPER GAMING X TRIO, 1845 MHz, 8GB GDDR6, 256-bit, DP 1.4, HDMI 2.0b, USB C, 2x 8-pin, PCI Express x16 3.0, 328x140x56.5 mm
NVIDIA Turing™ Architecture
GeForce RTX is powered by Nvidia Turing, the world's most advanced GPU architecture for gamers and creators. Get truly next-gen performance and features with dedicated AI and ray tracing cores for the ultimate experience.
Get SUPER Powers
The new GeForce RTX SUPER™ Series has even more cores and higher clocks, bringing you performance that’s up to 25% faster than the original RTX 20 Series and 6X faster than the previous-generation 10 Series GPUs. It’s time to gear up and get super powers.
GeForce Experience
Capture and share videos, screenshots, and livestreams with friends. Keep your drivers up to date and optimize your game settings. GeForce Experience™ lets you do it all. It’s the essential companion to your GeForce graphics card.
THE RETURN OF THE BEAST

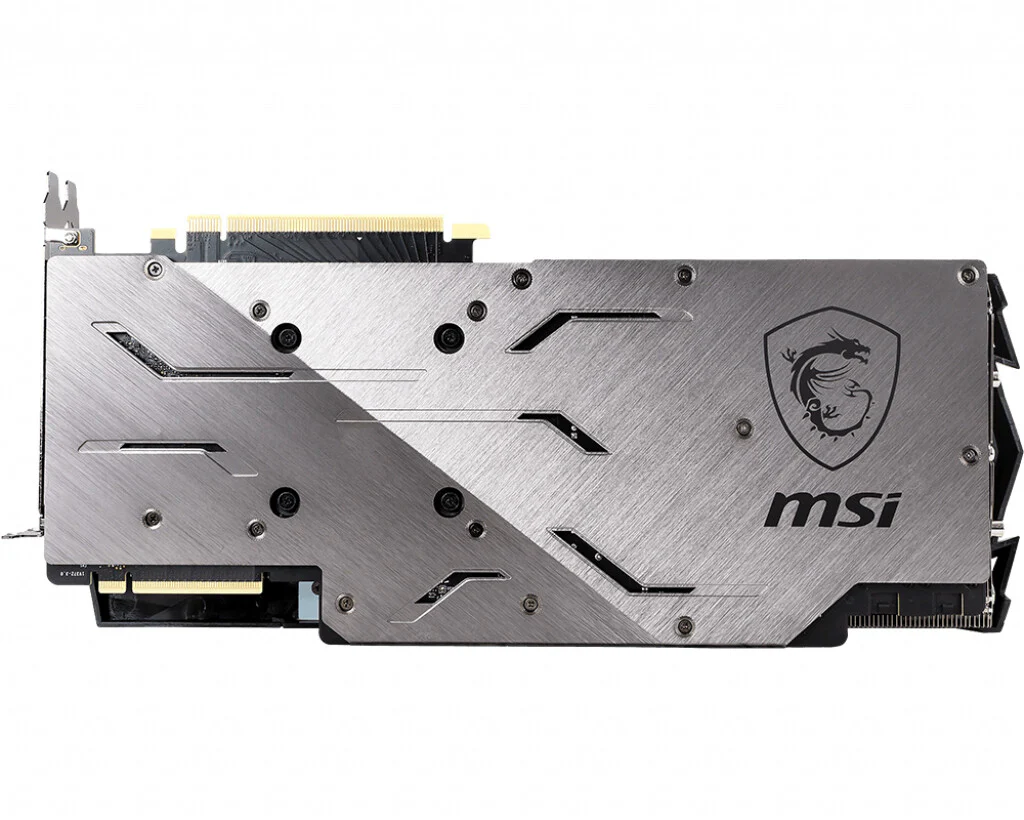

The GeForce RTX 20 Series GAMING TRIO is the return of MSI’s mighty three-fan graphics card. Only reserved for the most powerful of GPU’s, the TRIO Series features a mix of black and gunmetal grey with elegant shapes and a classy brushed metal backplate that matches the front. This looks great with the gorgeous RGB effects found on the front and the side of the card, which can be controlled using MSI’s Mystic Light software and made to synchronize with other RGB components.

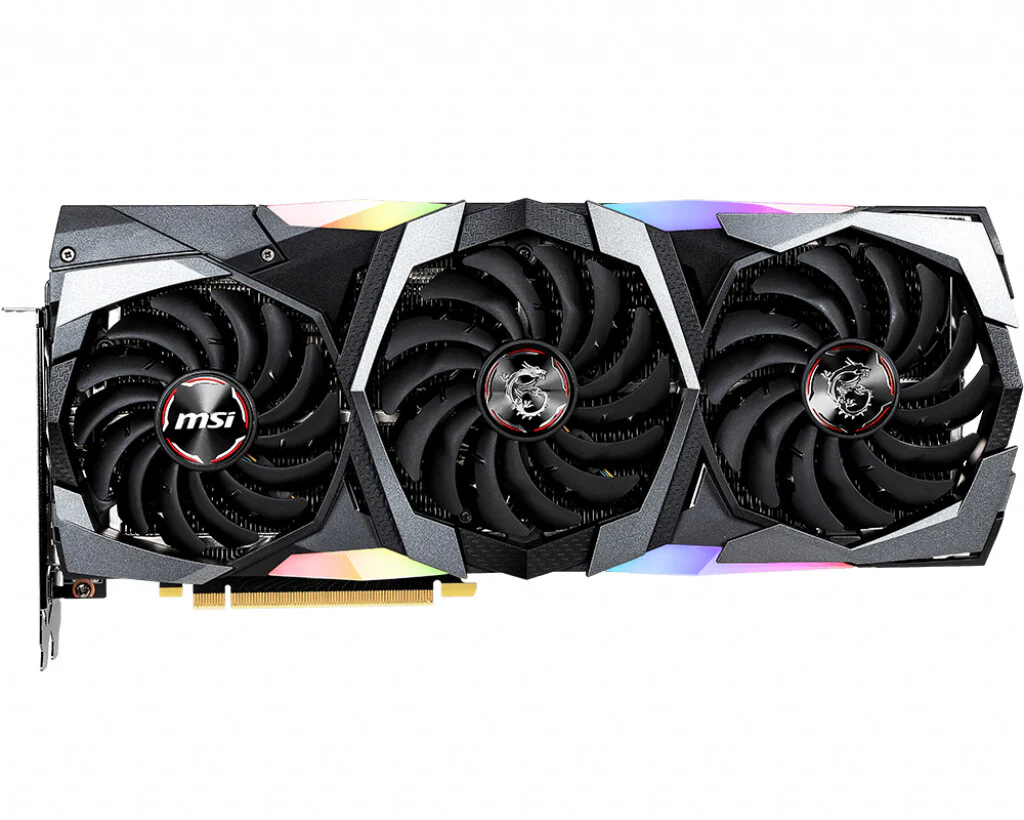

TRI-FROZR THERMAL DESIGN
MSI’s reputation for excellent cooling is well known and continued by the new TRI-FROZR cooler. Using three fans on a huge heatsink ensures a cool & quiet experience for you.
TRACES OF BRILLIANCE
Underneath all the metal are the multilayered electric highways that make up the Printed Circuit Board. They connect all the vital components and allow them to communicate at lightning speed.
EXPERIENCE
Get the most out of your MSI graphics card in terms of performance and experience almost unlimited customization options with the included software.
| Processor |
|---|
| Parallel processing technology support |
NVLink |
| FireStream |
No |
| Maximum displays per videocard |
5 |
| Processor boost clock speed |
1845 MHz |
| CUDA cores |
3072 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 2080 SUPER |
| Graphics processor family |
NVIDIA |
| Memory |
|---|
| Memory clock speed |
15500 MHz |
| Memory bus |
256 bit |
| Graphics card memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |

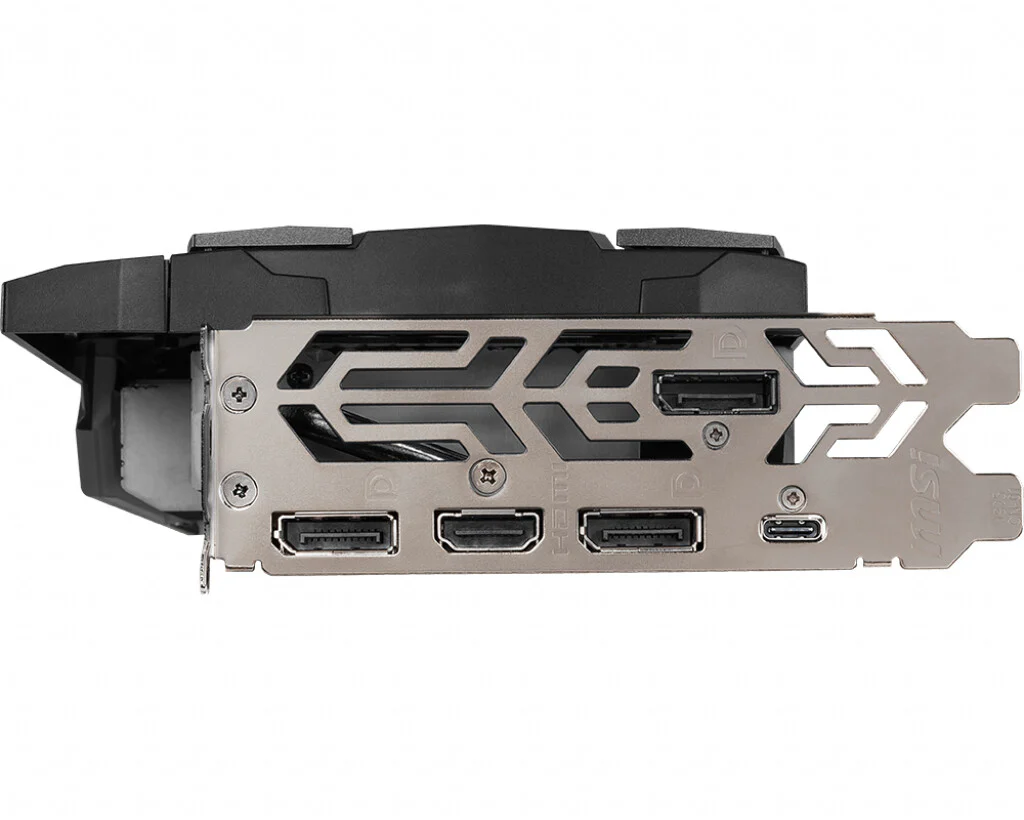

| Ports & interfaces |
|---|
| USB Type-C ports quantity |
1 |
| DisplayPort version |
1.4 |
| HDMI version |
2.0b |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express x16 3.0 |
| Performance |
|---|
| NVIDIA G-SYNC |
Yes |
| Dual Link DVI |
No |
| HDCP |
Yes |
| Virtual Reality (VR) ready |
Yes |
| OpenGL version |
4.5 |
| DirectX version |
12.0 |
| TV tuner integrated |
No |
| Design |
|---|
| Product colour |
Black |
| Illumination |
Yes |
| Illumination colour |
Blue, Green, Red |
| Number of fans |
3 fan(s) |
| Cooling type |
Active |
| Power |
|---|
| Power consumption (typical) |
250 W |
| Supplementary power connectors |
2x 8-pin |
| General |
|---|
| Product Family |
GAMING |
| Weight & dimensions |
|---|
| Depth |
56.5 mm |
| Height |
140 mm |
| Length |
328 mm |
| Weight |
1.53 kg |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
2.35 kg |
| User guide |
Yes |
| Drivers included |
Yes |
