23.8" (2560 x 1440, IPS), 123 dpi, 178° / 178°, 4 ms, 1000:1, 300 cd/m², 2 x 1W, 4 x USB 3.1, HDMI, 2 x DisplayPort, 1 x USB 3.0 Type C, LAN, 6.39 kg
UNIFYING SIMPLICITY AND AESTHETICS
An immersive visual experience and enhanced productivity are what you get when using the ThinkVision P24h-2L. Its 23.8-inch display comes with QHD resolution, In-Plane Switching (IPS), and 3-side NearEdgeless bezels. This monitor offers versatile connectivity options for seamless collaboration in a multiscreen setup. Smart Power function* intelligently detects overall power consumption and dynamically manages power delivery. With Natural Low Blue Light technology built in, this monitor doesn’t compromise on color performance or picture quality while reducing harmful blue light.
Astonishing Display
With 1.77 times the pixels than Full-HD in the 3-side NearEdgeless IPS panel, the monitor’s QHD resolution offers more screen real estate to carry out everyday tasks with clarity and ease. The ThinkVision P24h-2L is factory calibrated (avg. Delta E<2) to deliver the truest view of original content. 99% sRGB, 99% BT.709, and 83% DCI-P3 color gamuts ensure color consistency throughout, delivering vibrant and striking image quality
Performance at Its Best
The ThinkVision P24h-2L, a USB-C Hub monitor offers a one-cable solution that simultaneously transmits power, video, audio, and data. Create a multi-monitor setup with its daisy-chaining functionality for seamless multitasking. Built-in speakers with immersive audio enhance collaboration. Smart Power* technology intelligently distributes power supply while optimizing overall power consumption.
Integrated Ergonomics
Customize the ThinkVision P24h-2L for maximum comfort with its tilt, lift, pivot, and swivel functionality. Keep your desk clutter-free with the cable management system, small square base, and integrated phone holder. This monitor has flexible VESA mounting options so you can install it on a wall or over a desk. Equipped with ThinkColor Software,** this monitor lets you adjust display settings using the mouse in OSD, offering a better user experience. This TÜV Rheinland Eye Comfortcertified monitor possesses Natural Low Blue Light technology that maintains color performance while allowing you to work effortlessly without worrying about eye fatigue.
| Display |
|---|
| sRGB coverage (typical) |
99% |
| Colour gamut |
99% |
| RGB colour space |
sRGB |
| Viewable size, vertical |
31.3 cm |
| Viewable size, horizontal |
53.5 cm |
| Pixel density |
123 ppi |
| Pixel pitch |
0.2058 x 0.2058 mm |
| Response time (fast) |
4 ms |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (dynamic) |
3000000:1 |
| Contrast ratio (typical) |
1000:1 |
| Aspect ratio |
16:9 |
| Supported video modes |
1440p |
| Supported graphics resolutions |
2560 x 1440 |
| Screen shape |
Flat |
| Display surface |
Matt |
| Response time |
6 ms |
| Display brightness (typical) |
300 cd/m² |
| Backlight type |
W-LED |
| Panel type |
IPS |
| HD type |
Quad HD |
| Touchscreen |
No |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
2560 x 1440 pixels |
| Display diagonal |
60.5 cm (23.8") |
| Performance |
|---|
| Compatible operating systems |
Windows 7, Windows 10 |
| Low Blue Light technology |
Yes |
| Multimedia |
|---|
| RMS rated power |
1 W |
| Number of speakers |
2 |
| Built-in camera |
No |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Certification |
TÜV Low Blue Light, TÜV Rheinland Eye Comfort, Eyesafe Display, CCC, TCO Edge 2.0 |
| Feet colour |
Black |
| Front bezel colour |
Black |
| Colour name |
Raven Black |
| Product colour |
Black |
| Market positioning |
Business |

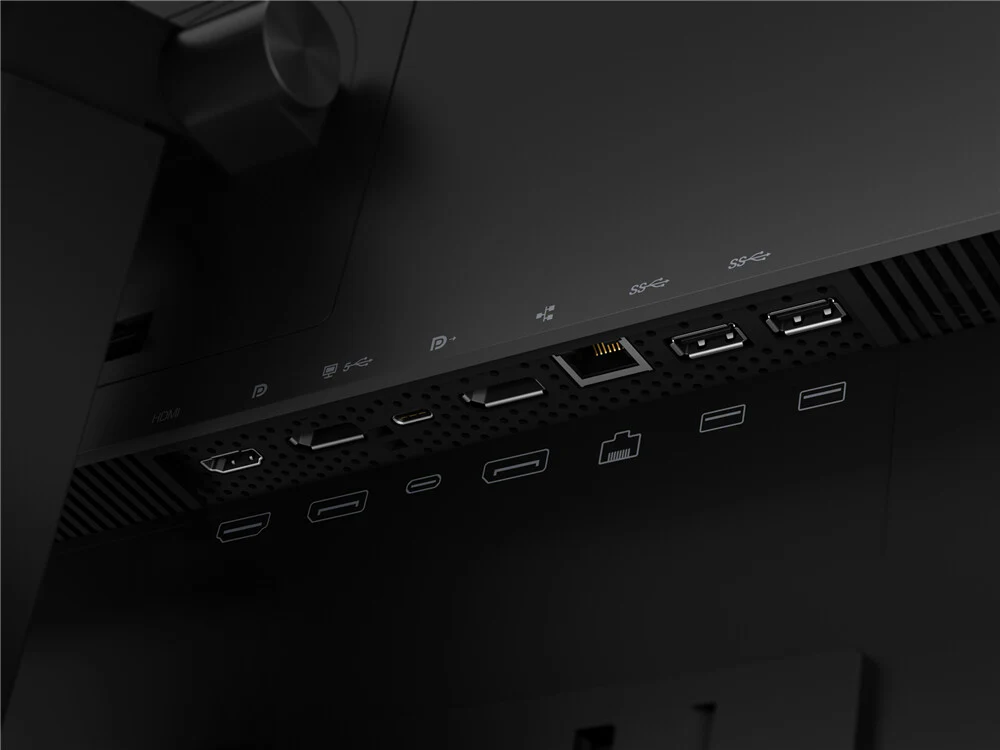

| Ports & interfaces |
|---|
| AC (power) in |
Yes |
| Headphone out |
No |
| Audio input |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
2 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| DVI port |
No |
| USB Power Delivery up to |
75 W |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB Type-A downstream ports quantity |
4 |
| Number of USB Type-C upstream ports quantity |
1 |
| USB upstream port type |
USB Type-C |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub |
Yes |
| Ergonomics |
|---|
| Tilt adjustment |
Yes |
| Tilt angle range |
-5 - 35° |
| Swivel angle range |
-45 - 45° |
| Swivelling |
Yes |
| Pivot angle |
-90 - 90° |
| Pivot |
Yes |
| Height adjustment |
15 cm |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| Annual energy consumption |
59.5 kWh |
| Energy efficiency scale |
A to G |
| AC input frequency |
45/63 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (max) |
132 W |
| Power consumption (typical) |
23 W |
| Energy consumption (SDR) per 1000 hours |
20 kWh |
| Energy efficiency class (SDR) |
F |
| Packaging content |
|---|
| DisplayPort cable length |
1.8 m |
| Quick start guide |
Yes |
| Cables included |
DisplayPort, USB Type-C to USB Type-C |
| Stand included |
Yes |
| Weight & dimensions |
|---|
| Bezel width (bottom) |
2.14 cm |
| Bezel width (top) |
2 mm |
| Bezel width (side) |
2 mm |
| Weight (without stand) |
4.1 kg |
| Height (without stand) |
325.7 mm |
| Depth (without stand) |
44.6 mm |
| Width (without stand) |
539.8 mm |
| Weight (with stand) |
6.39 kg |
| Height (with stand) |
539.8 mm |
| Depth (with stand) |
205 mm |
| Width (with stand) |
570 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
8.46 kg |
| Package height |
423 mm |
| Package depth |
149 mm |
| Package width |
620 mm |
| Sustainability |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
390253 |
| Sustainability certificates |
ENERGY STAR, EPEAT Silver, RoHS, TCO |
| Sustainability compliance |
Yes |
| General |
|---|
| Product Family |
ThinkVision |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
