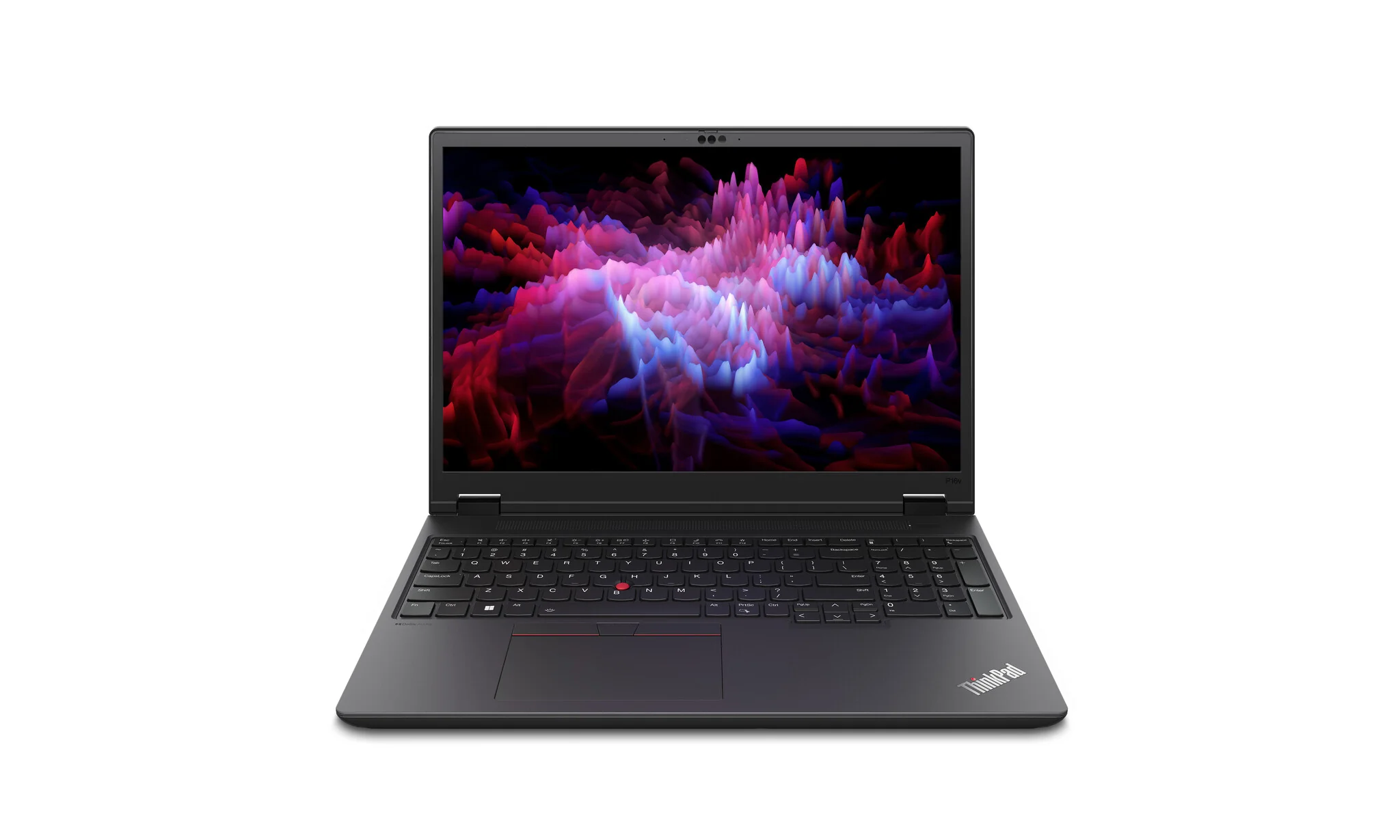

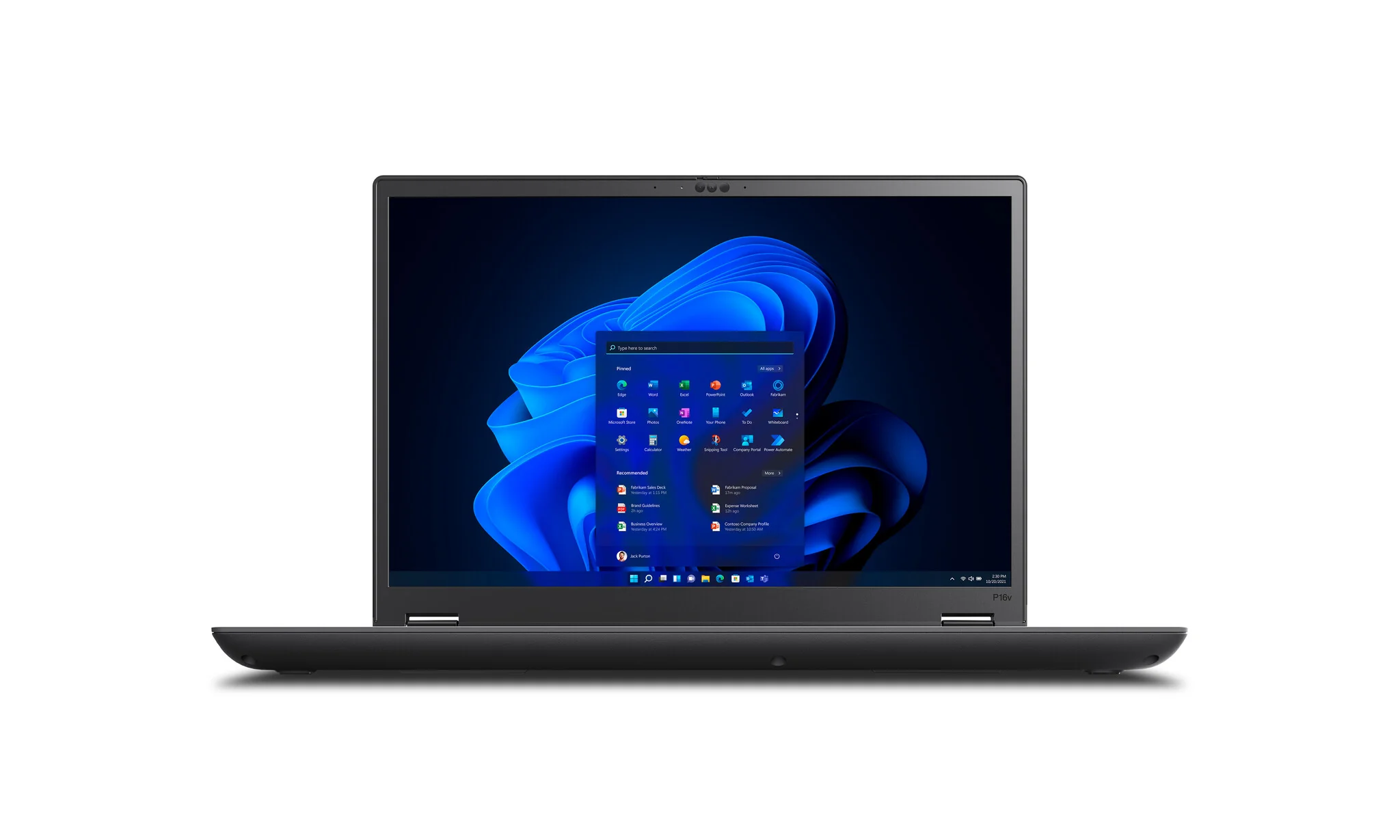

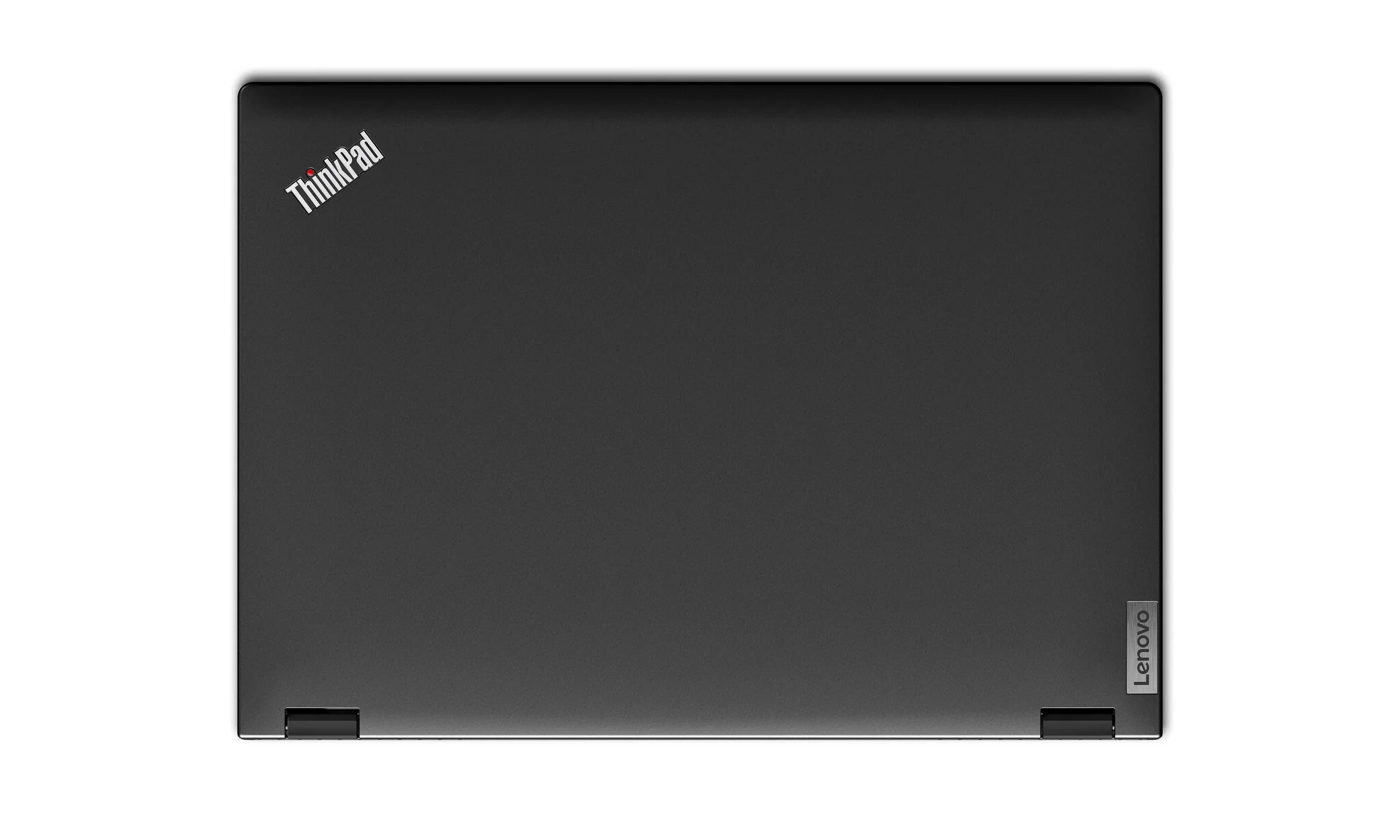

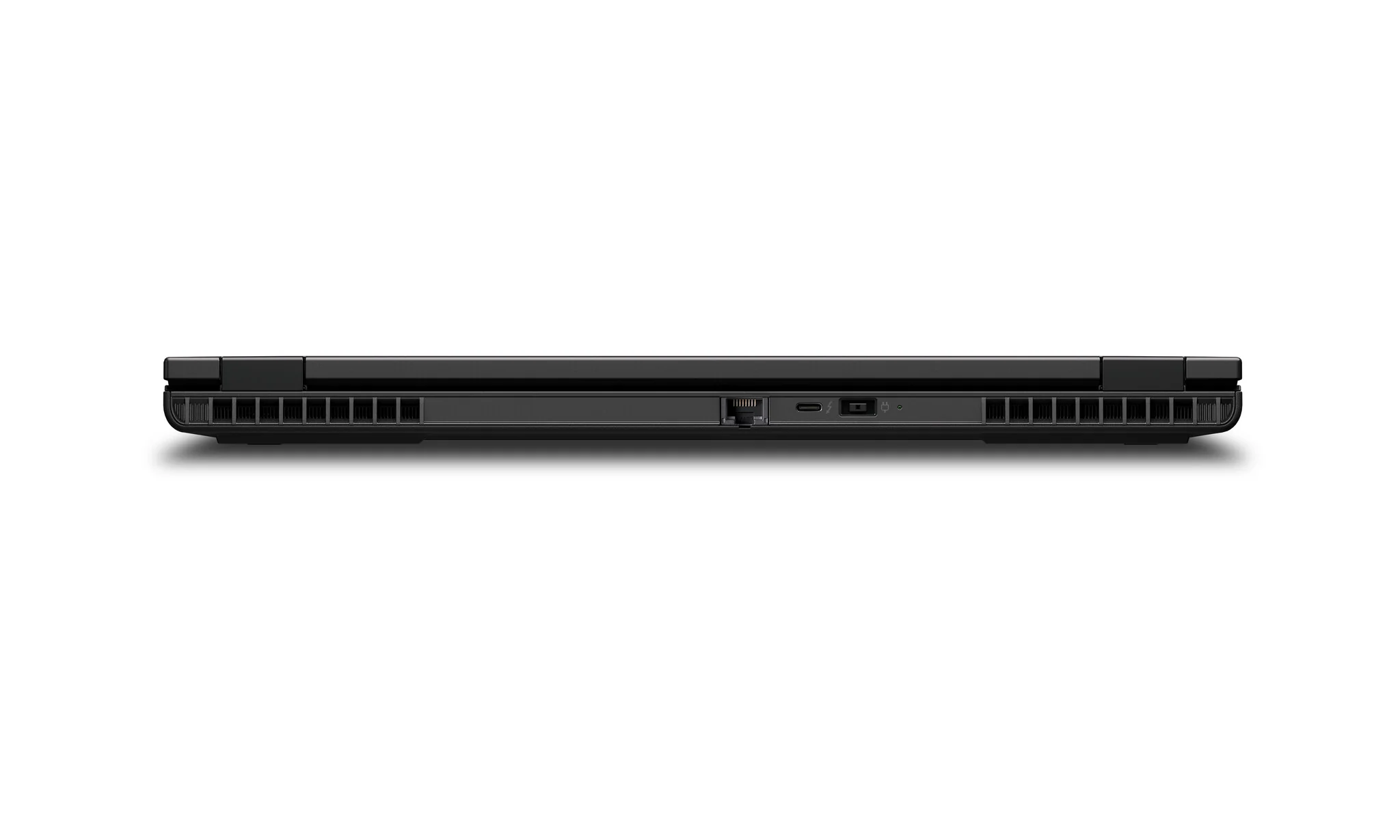

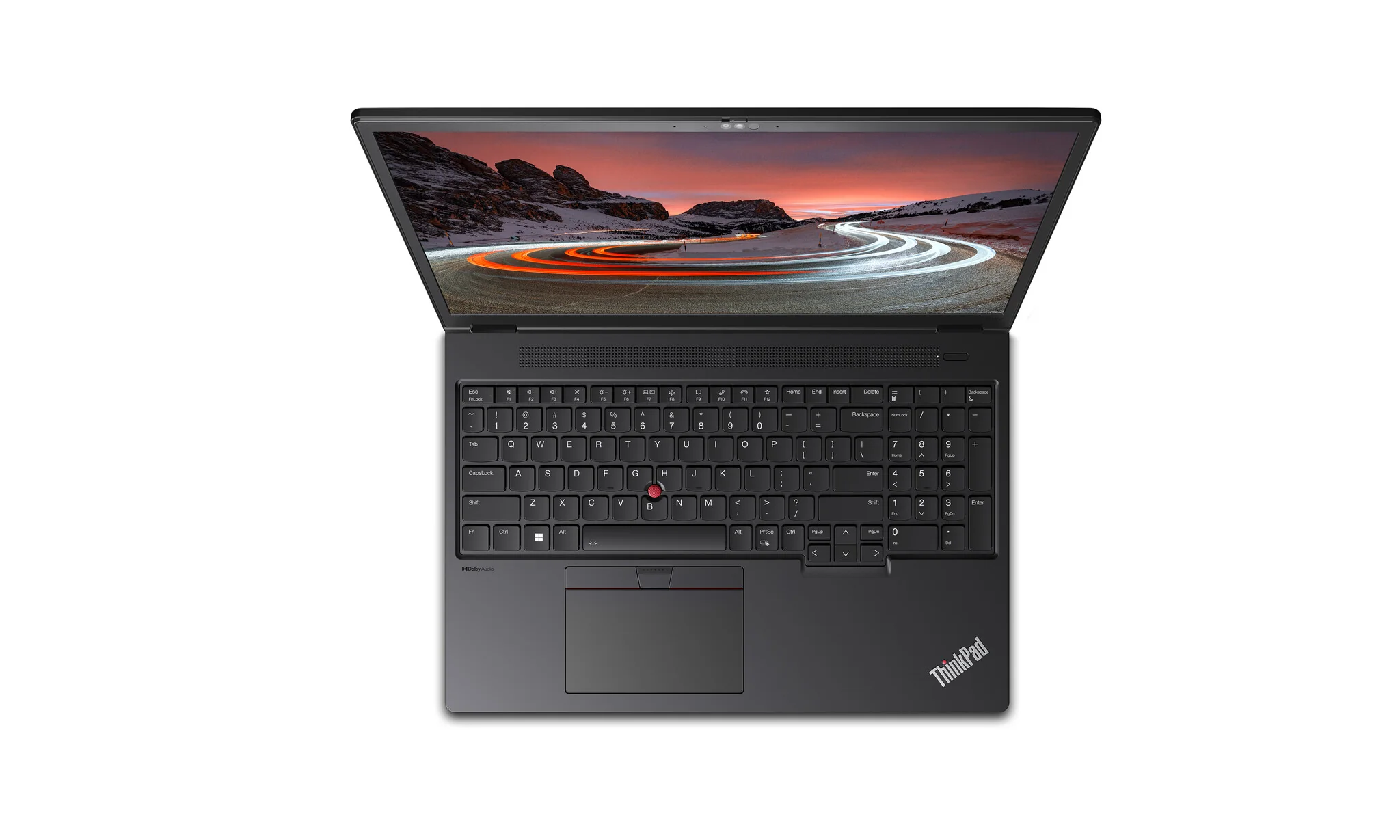

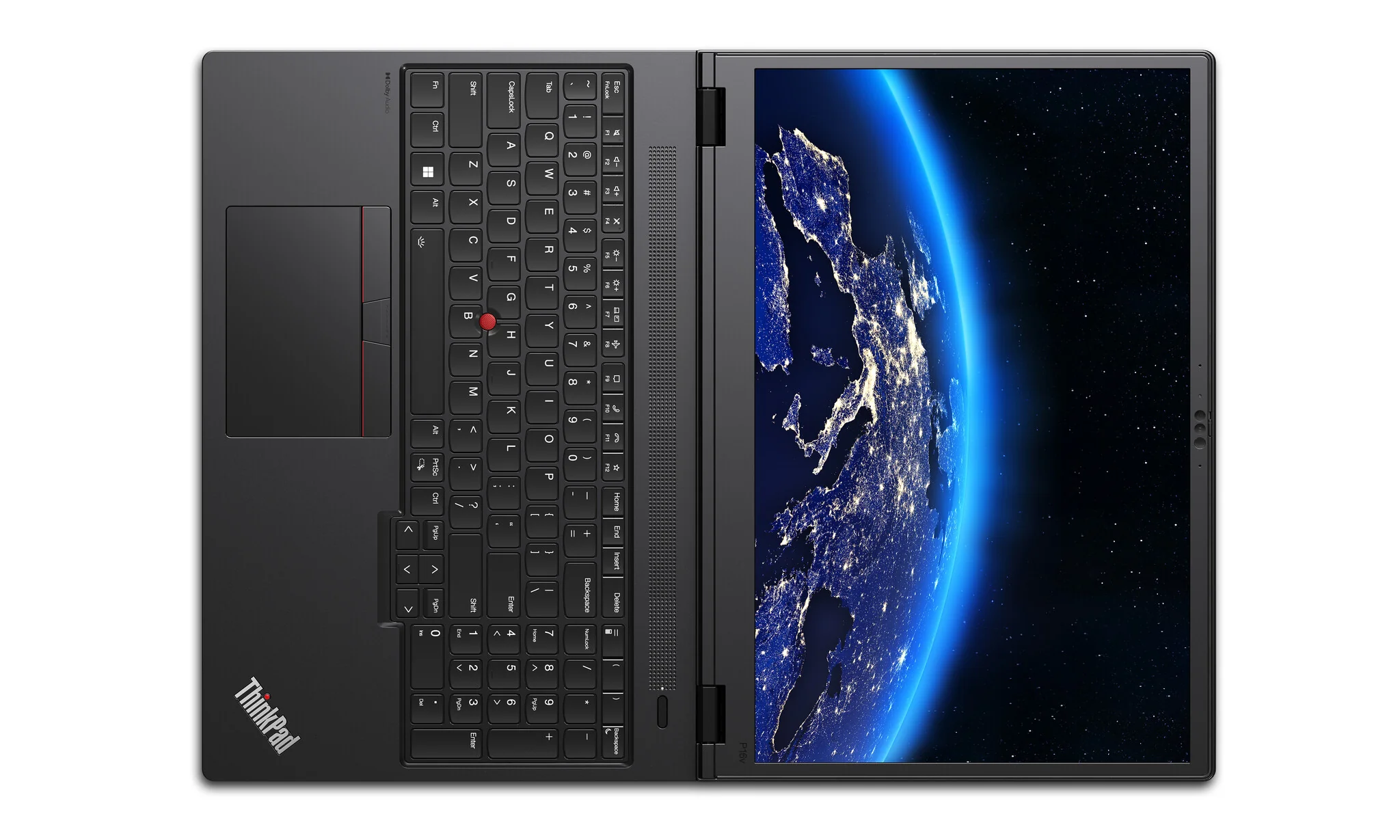

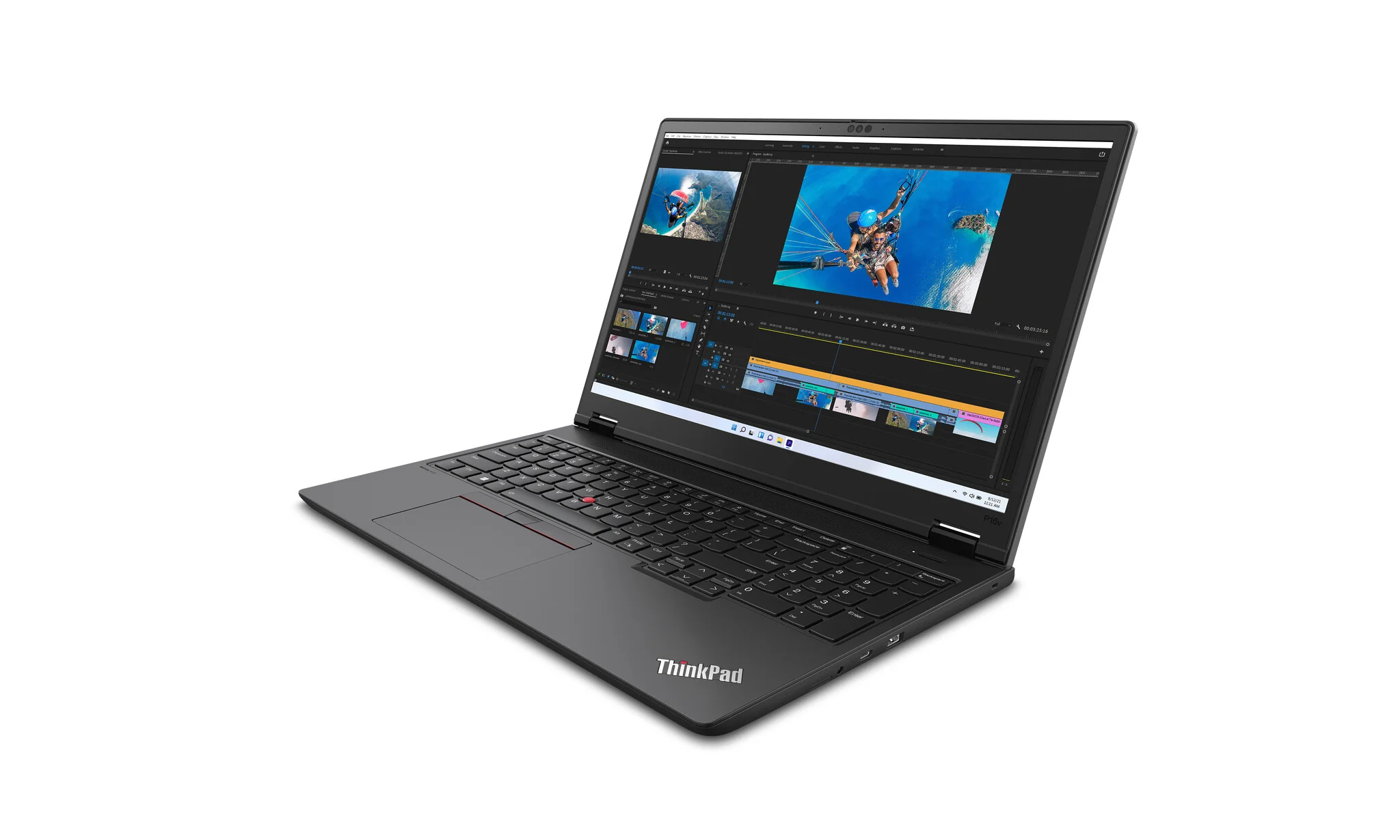

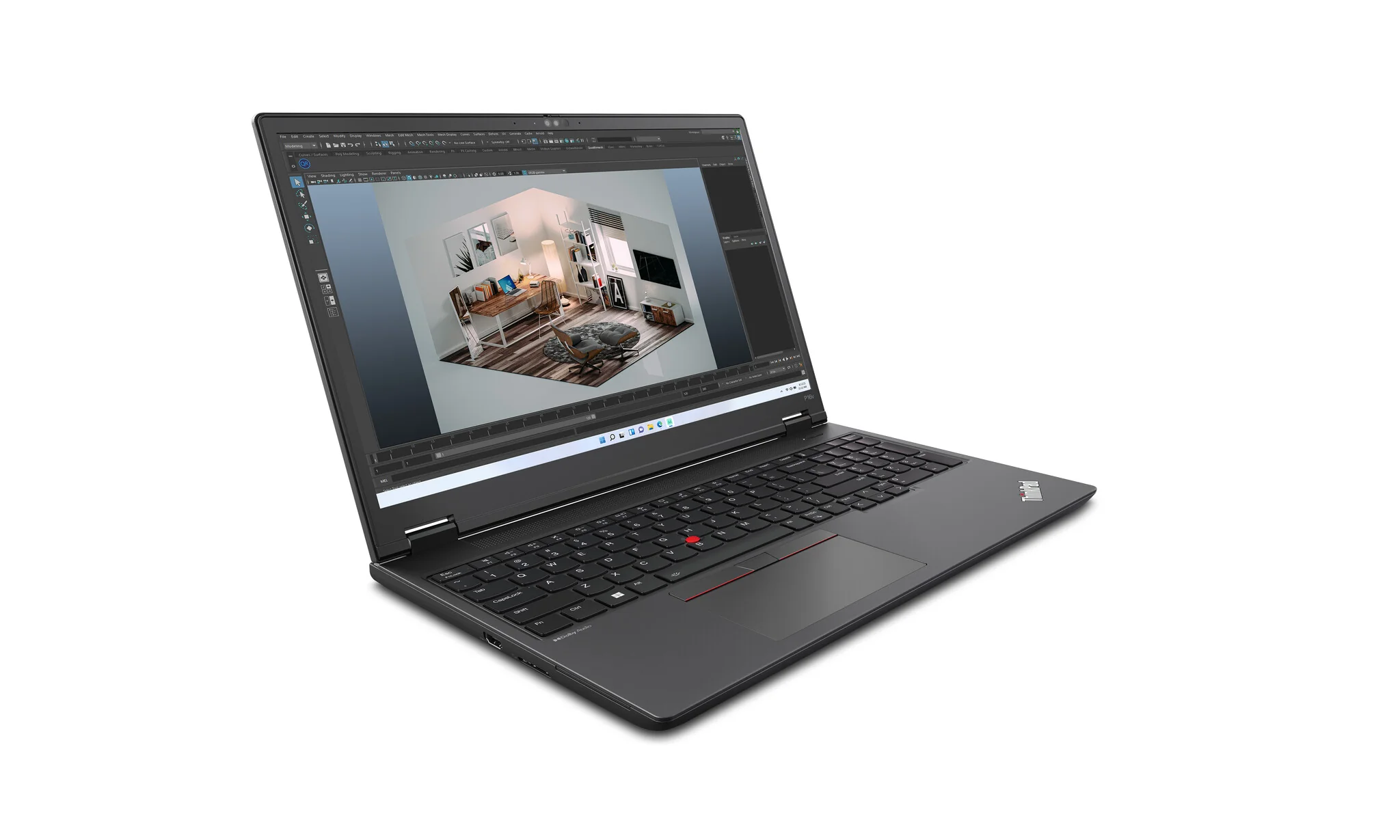

Intel Core Ultra 7 155H, 16C (6P + 8E + 2LPE)/22T, Max Turbo up to 4.8GHz, 24MB, 2x 16GB SO-DIMM DDR5-5600 Non-ECC, 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, 16" WUXGA (1920x1200) IPS 300nits 45% NTSC, NVIDIA RTX 1000 Ada Generation 6GB, Intel Wi-Fi 6E AX211 11ax 2x2 + BT5.3, 5.0MP + IR with Privacy Shutter and Human Presence Detection, Windows 11 Pro

Performance, Portability, & Affordability All in One
- 16″ mobile workstation with Intel® Core™ Ultra processor & up to Intel vPro®
- AI-ready Neuro Processing Unit (NPU) for large workloads & heavy multitasking
- Enable high-end workloads & animations with up to NVIDIA® RTX™ 3000 Ada GPUs
- Protected by ThinkShield, ISV certified, & MIL-STD 810H tested for durability

Versatile Workstation for Smart Work
Designed for innovators and professionals, the 16″ ThinkPad P16v Gen 2 mobile workstation packs the power of Intel® Core Ultra™ processors with Intel vPro® and AI-ready integrated Neuro Processing Unit (NPU) for anything you want to do. Even better — it boasts OS alternatives, embracing performance, versatility, mobility, and affordability.

Execute Workloads Like a Boss
Now, multitask and execute complex workflows in AI effortlessly with up to NVIDIA® RTX™ 3000 Ada laptop GPUs. Produce high-quality images and animations, and create high-end 3D visualizations, thanks to vast memory and storage options. Also, this mobile workstation runs software optimally as it is Independent Software Vendor (ISV)* certified.*See the complete list of ISV certifications

Embark on a Stunning Visual Journey
With entry-level to premium display options, narrow bezels for an unobstructed gaze, and a range of brightness and colour gamut options, this 16″ ThinkPad mobile workstation is a visual powerhouse. Choose a 5MP + infrared webcam to enjoy stunning clarity during video calls with HDR400 and Dolby Vision® and elevate online meetings.*Dolby Vision® on select panels only

User Experience Functionality Reimagined
With a spill-resistant, full-sized backlit keyboard containing a numeric pad, LED on some keys, and a large TrackPad (115mm / 4.53″), the 16″ ThinkPad P16v Gen 2 workstation is engineered for accessibility, functionality, and usability. Add a Thunderbolt™ 4 Docking station to expand your useable visual real estate with one or two external displays.

Your Connectivity Playground
Access designs and move large files at lightning-fast data transfer speed (up to 40Gbps) of Thunderbolt™ 4. Delve into seamless online interactions on WiFi, Ethernet, or 4G/5G. Instantly transfer photos from your phone to the device with Magic Move, and sync data to your workstation with just a tap or swipe via Near Field Communication (NFC).

Fearless in Security, Durability, & Form
Protected by ThinkShield, the ThinkPad P16v Gen 2 mobile workstation includes a fingerprint reader for easy log in and self-healing BIOS to restore earlier system settings. It is MIL-SPEC tested for ultimate durability, energy efficient with several certifications including EPEAT® Gold, and comprises recycled components and plastic-free packaging.

Design
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Form factor	Clamshell
Colour name	Black
Product colour	Black
Product type	Mobile workstation

Display
Maximum refresh rate	60 Hz
RGB colour space	NTSC
Colour gamut	45%
Display brightness	300 cd/m²
Anti-glare screen	Yes
LED backlight	Yes
Native aspect ratio	16:10
Panel type	IPS
HD type	WUXGA
Touchscreen	No
Display resolution	1920 x 1200 pixels
Display diagonal	40.6 cm (16")

Processor
Processor base power	28 W
Maximum turbo power	115 W
Motherboard chipset	Intel SoC
Processor cache type	Smart Cache
Processor cache	24 MB
Processor cores	16
Performance cores	6
Efficient cores	8
Processor threads	22
Performance-core Max Turbo Frequency	4.8 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Processor boost frequency	4.8 GHz
Performance-core base frequency	1.4 GHz
Efficient-core base frequency	0.9 GHz
Processor model	155H
Low Power Efficient-core Base Frequency	700 MHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-cores	2
Processor generation	Intel® Core™ Ultra (Series 1)
Processor family	Intel Core Ultra 7
Processor manufacturer	Intel

Neural processor unit (NPU)
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
AI datatype support on NPU	FP16, FP32, Int8
Windows Studio effects support	Yes
Sparsity support	Yes
Maximum frequency NPU	1.4 GHz
Neural processor unit (NPU)	Intel AI Boost

Memory
Non-ECC	Yes
Memory channels	Dual-channel
Maximum internal memory	96 GB
Memory slots	2x SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR5-SDRAM
Internal memory	32 GB

Storage
Compatible memory cards	SD
Card reader integrated	Yes
Optical drive type	No
SSD form factor	M.2
SSD interface	PCI Express 4.0
NVMe	Yes
SSD capacity	1 TB
Number of SSDs installed	1
Total SSDs capacity	1 TB
Storage media	SSD
Total storage capacity	1 TB

Graphics
Discrete graphics memory type	GDDR6
Discrete graphics card memory	6 GB
On-board graphics card model	Intel Arc Graphics
On-board graphics card family	Intel Arc Graphics
On-board GPU manufacturer	Intel
Discrete graphics card model	NVIDIA RTX 1000 Ada
Discrete GPU manufacturer	NVIDIA
Discrete graphics card	Yes
On-board graphics card	Yes

Audio
Number of microphones	2
Built-in microphone	Yes
Speaker power	2 W
Number of built-in speakers	2
Audio system	Dolby Audio Premium
Audio chip	Realtek ALC3287

Camera
Privacy type	Privacy shutter
Privacy camera	Yes
Infrared (IR) camera	Yes
Front camera resolution (numeric)	5 MP
Front camera	Yes

Network
WWAN	Not installed
Near Field Communication (NFC)	No
Bluetooth version	5.3
Bluetooth	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Ethernet LAN	Yes
WLAN controller model	Intel Wi-Fi 6E AX211
WLAN controller manufacturer	Intel
Antenna type	2x2
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Mobile network connection	No

Ports & interfaces
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Power Delivery	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Combo headphone/mic port	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1

Keyboard
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard language	UK English
Pointing device	ThinkPad UltraNav

Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro

Battery
Fast charging	Yes
Battery capacity	90 Wh
Battery technology	Lithium Polymer (LiPo)

Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
AC adapter power	170 W

Security
Password protection type	BIOS, Power on, SSD, Supervisor
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Windows Hello	Yes
Fingerprint reader	Yes
Smart card reader	Yes
Cable lock slot type	Kensington
Cable lock slot	Yes

Operational conditions
Maximum shipping altitude	3048 m
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	8 - 95%
Storage temperature (T-T)	5 - 43 °C
Operating temperature (T-T)	5 - 35 °C

Certificates
Certification	MIL-STD-810H
PSTI certified	Yes
Compliance certificates	RoHS

Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, TCO
Sustainability compliance	Yes

Weight & dimensions
Height	24.7 mm
Depth	262 mm
Width	365 mm
Weight	2.22 kg

General
Product Family	ThinkPad
Product Series	P
