54.6cm (21.5") Full HD 1920 x 1080 W-LED IPS, 16:9, 250cd/m², 16.78M, 6ms, 178°/178°, 1000:1

Modular convenience
The ThinkCentre TIO22 Gen 4 makes it easy to create your own modular all-in-one (AIO)—simply plug a compatible ThinkCentre Tiny, Nano, or similar PC (not supplied) into the back of monitor. It instantly becomes a self-contained, fully functional AIO. But unlike other AIOs, the monitor and CPU refresh separately, making upgrades efficient and easy. The TIO is compatible with most ThinkCentre Tiny or Nano PCs*, so you can have the right all-in-one for your business now.*See Tech Specs for a complete list of compatible Lenovo PCs and generations. Monitor, keyboard, and PC sold separately.

Purposeful design

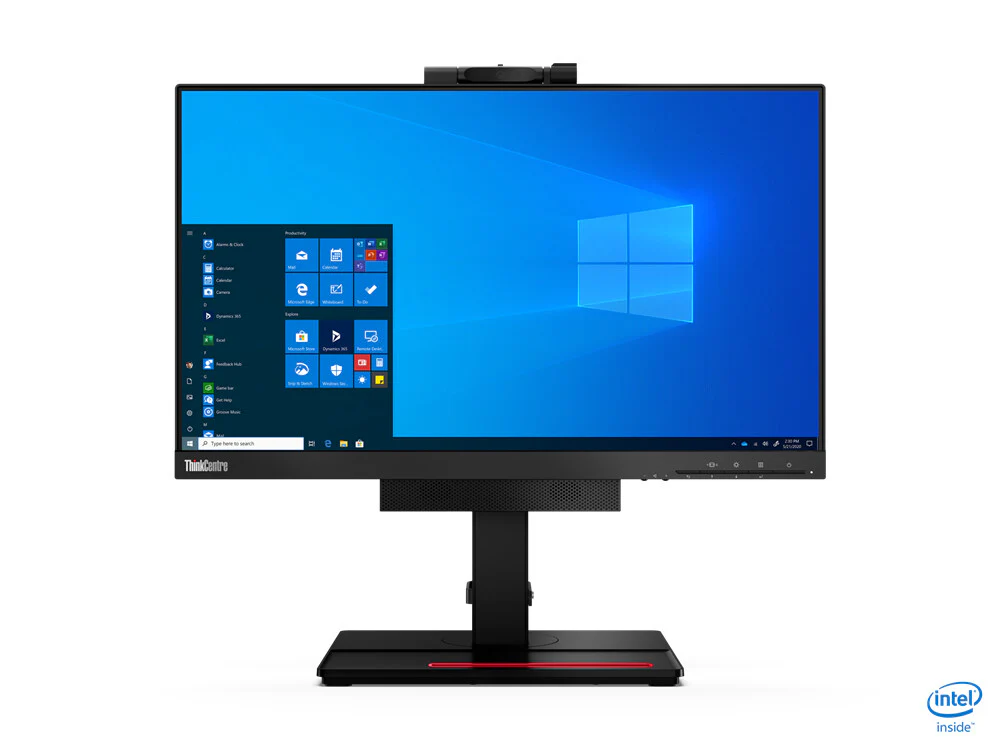

This TIO’s 21.5" FHD display is sleek and borderless and the unit takes up less space than previous generations. Its back cover has been redesigned for optimal heat dissipation and PC performance, and the stand includes a handy storage slot for your smartphone. The display also offers optional 10-point multitouch. It can also be used as a second display for your laptop, via DisplayPort.Monitor, keyboard, and PC sold separately.

Connect and collaborate
Thanks to the two 2W speakers and 720p rotatable camera and microphone, video calls are seamless and crystal-clear. The camera also features ThinkShutter, a privacy cover for when you’re not videoconferencing. Additionally, the TIO22 Gen 4 has plenty of ports, all conveniently situated for you to recharge and connect your other devices.PC sold separately.

Ease & comfort of use

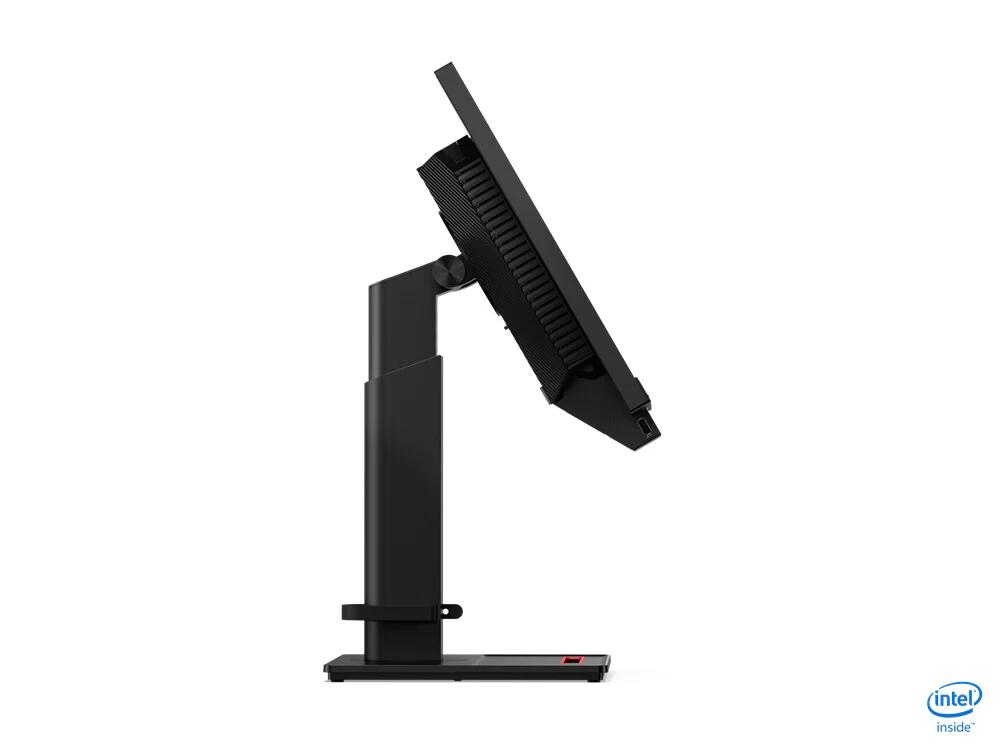

The TIO22 Gen 4 has been independently tested and certified by TÜV Rheinland to be eye-friendly. It also has an antiglare filter to help make your viewing more comfortable. Its redesigned stand has an additional 40mm of vertical lift, allowing for better ergonomics and more range in meeting your eye level. It also swivels 45 degrees in either direction, while the display tilts from -5 to 30 degrees and even rotates up to 90 degrees clockwise.

Display
NTSC coverage (typical)	72%
Colour depth	8 bit
Viewable size, vertical	26.8 cm
Viewable size, horizontal	47.6 cm
Pixel density	102.4 ppi
Pixel pitch	0.24795 x 0.24795 mm
Response time (fast)	4 ms
Viewing angle, vertical	178°
Viewing angle, horizontal	178°
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1000:1
Supported graphics resolutions	1920 x 1080 (HD 1080)
Screen shape	Flat
Response time	6 ms
Display brightness (typical)	250 cd/m²
Panel type	IPS
HD type	Full HD
Touchscreen	No
Display technology	LED
Native aspect ratio	16:9
Display resolution	1920 x 1080 pixels
Display diagonal	54.6 cm (21.5")

Performance
Compatibility	P340 / P330 / P320 / M90q / M80q / M70q / M75q / M920(x) / M720 / M910(x) / M710 / M715 / M900(x) / M700 / M630e / M625 / M600 Tiny/ M90n / M75n Nano (with TIO kit)
AMD FreeSync	No
NVIDIA G-SYNC	No

Multimedia
Built-in microphone	Yes
RMS rated power	4 W
Number of speakers	2
Built-in camera	Yes
Built-in speaker(s)	Yes

Design
Certification	TCO 8.0, TCO edge 2.0, UL GREENGUARD, Erp lot5, WEEE, TUV Eye comfort
Feet colour	Black
Front bezel colour	Black
Product colour	Black

Ports & interfaces
DisplayPorts quantity	1
Number of upstream ports	1
Built-in USB hub	Yes

Ergonomics
Tilt adjustment	Yes
On Screen Display (OSD)	Yes
Tilt angle range	-5 - 30°
Swivel angle range	-45 - 45°
Swivelling	Yes
Pivot angle	-5 - 90°
Pivot	Yes
Height adjustment	15 cm
Height adjustment	Yes
Cable lock slot type	Kensington
Cable lock slot	Yes
VESA mounting	Yes

Power
Power consumption (max)	25 W
Power consumption (standby)	0.5 W
Power consumption (typical)	14 W

Packaging content
Stand included	Yes

Weight & dimensions
Bezel width (bottom)	2.21 cm
Bezel width (top)	2 mm
Bezel width (side)	2 mm
Weight (without stand)	3.41 kg
Height (without stand)	339 mm
Depth (without stand)	65.3 mm
Width (without stand)	489 mm
Weight (with stand)	6.58 kg
Height (with stand)	568.2 mm
Depth (with stand)	220.4 mm
Width (with stand)	489 mm

Sustainability
Sustainability certificates	EPEAT Silver, ENERGY STAR

Technical details
Compliance certificates	RoHS

Other features
Multi-touch	Yes
