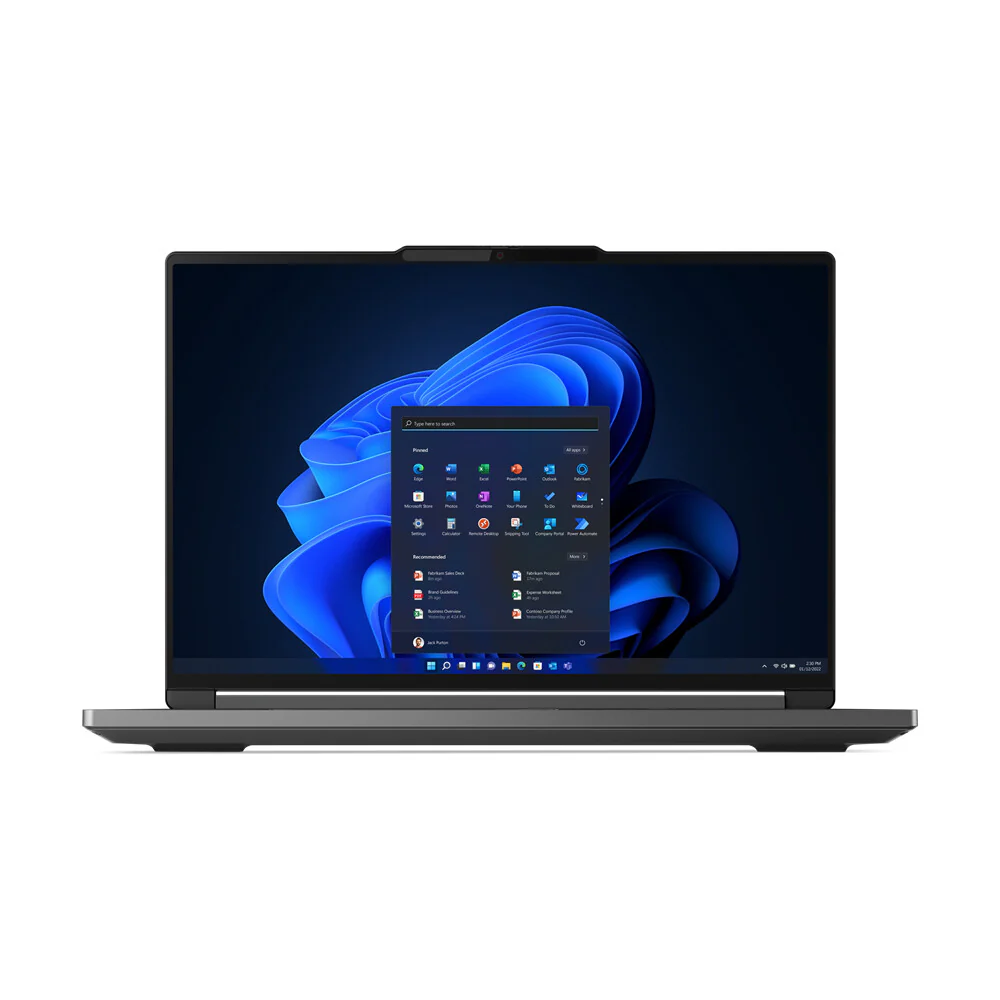

Intel Core i7-13700H (24MB Cache), 16GB DDR5-SDRAM, 512GB SSD, 40.6 cm (16") WQXGA 2560 x 1600 IPS, Intel Iris Xe Graphics, NVIDIA GeForce RTX 4060 (8GB GDDR6), WLAN, Webcam, Windows 11 Pro

Design
Housing material	Aluminium
Form factor	Clamshell
Colour name	Storm Grey
Product colour	Grey
Product type	Laptop

Display
High Dynamic Range (HDR) technology	Dolby Vision
High Dynamic Range (HDR) supported	Yes
Contrast ratio (typical)	1200:1
Maximum refresh rate	60 Hz
RGB colour space	sRGB
Colour gamut	100%
Display brightness	400 cd/m²
Anti-glare screen	Yes
LED backlight	Yes
Native aspect ratio	16:10
Panel type	IPS
HD type	WQXGA
Touchscreen	No
Display resolution	2560 x 1600 pixels
Display diagonal	40.6 cm (16")

Processor
Processor base power	45 W
Maximum turbo power	115 W
Configurable TDP-down	35 W
Motherboard chipset	Intel SoC
Processor cache type	Smart Cache
Processor cache	24 MB
Processor cores	14
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	5 GHz
Efficient-core Max Turbo Frequency	3.7 GHz
Processor boost frequency	5 GHz
Processor model	i7-13700H
Processor generation	13th gen Intel® Core™ i7
Processor family	Intel® Core™ i7
Processor manufacturer	Intel

Memory
Memory channels	Dual-channel
Maximum internal memory	32 GB
Memory slots	2x SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory clock speed	5200 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR5-SDRAM
Internal memory	16 GB

Storage
Card reader integrated	Yes
Optical drive type	No
SSD form factor	M.2
SSD interface	PCI Express 4.0
NVMe	Yes
SSD capacity	512 GB
Number of SSDs installed	1
Total SSDs capacity	512 GB
Storage media	SSD
Total storage capacity	512 GB

Graphics
Discrete graphics memory type	GDDR6
Discrete graphics card memory	8 GB
On-board graphics card model	Intel Iris Xe Graphics
On-board GPU manufacturer	Intel
Discrete graphics card model	NVIDIA GeForce RTX 4060
Discrete GPU manufacturer	NVIDIA
Discrete graphics card	Yes
On-board graphics card	Yes

Audio
Number of microphones	2
Built-in microphone	Yes
Number of built-in speakers	4
Audio system	Dolby Atmos

Camera
Privacy type	Privacy shutter
Privacy camera	Yes
Infrared (IR) camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Front camera	Yes

Network
WWAN	Not installed
Bluetooth version	5.1
Bluetooth	Yes
Ethernet LAN	No
Antenna type	2x2
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Mobile network connection	No

Ports & interfaces
USB Power Delivery	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Combo headphone/mic port	Yes
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
HDMI version	2.1
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2

Performance
Ambient light sensor	Yes

Keyboard
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard language	UK English
Pointing device	Touchpad

Software
Operating system language	English
Operating system installed	Windows 11 Pro

Processor special features
CPU configuration (max)	1

Battery
Fast charging time (50%)	30 min
Fast charging	Yes
Continuous video playback time	18 h
Battery life (max)	10.5 h
Battery capacity	80 Wh
Battery technology	Lithium Polymer (LiPo)

Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50 - 60 Hz
AC adapter power	230 W

Security
Password protection type	Power on, Supervisor, HDD
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Fingerprint reader	Yes
Cable lock slot type	Kensington
Cable lock slot	Yes

Operational conditions
Maximum shipping altitude	3048 m
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	8 - 95%
Storage temperature (T-T)	5 - 43 °C
Operating temperature (T-T)	5 - 35 °C

Certificates
Certification	FSCMIL-STD-810HLow-VOC

Sustainability
Sustainability certificates	RoHS, TCO, ENERGY STAR, EPEAT Gold, ErP

Weight & dimensions
Height	19.9 mm
Depth	255 mm
Width	354.6 mm
Weight	2.2 kg

General
Product Family	ThinkBook
