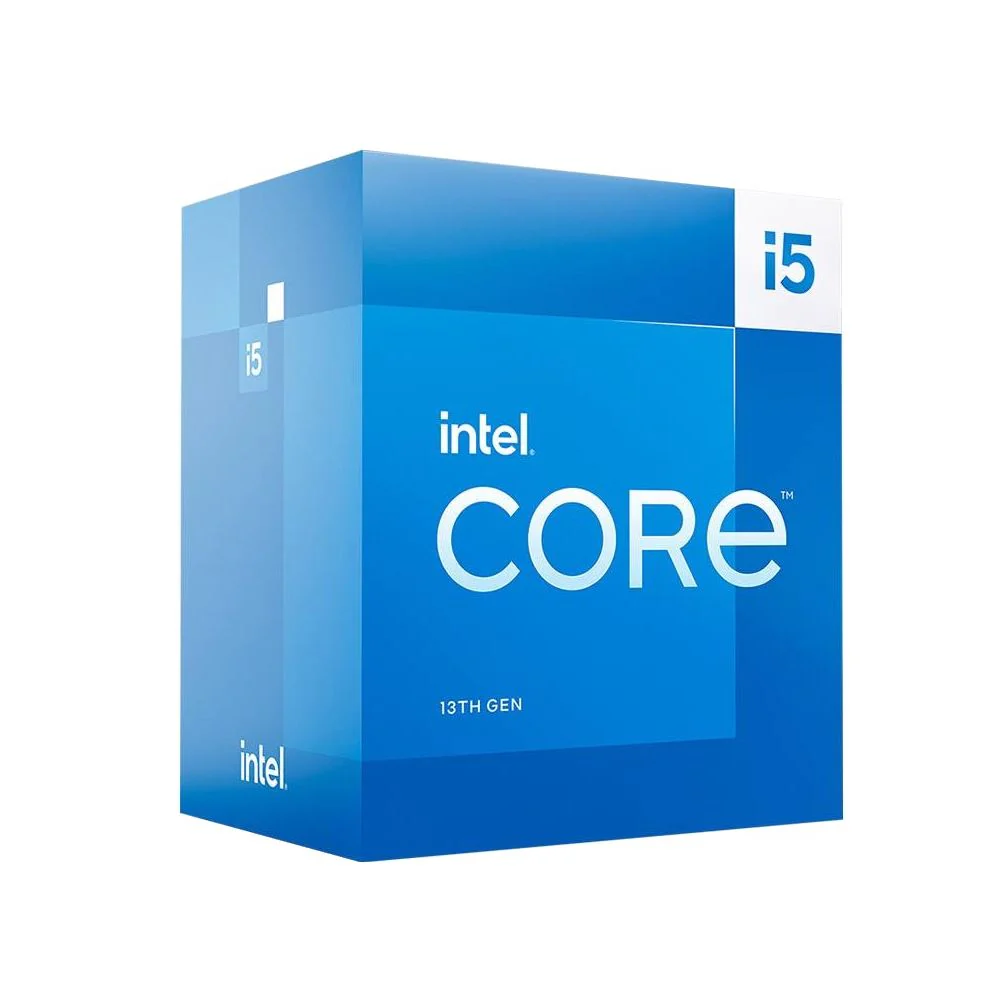

Intel Core i5-13400 Processor 20 MB Smart Cache Box

Key Features

• Processor Family: Intel Core i5
• Processing Socket: LGA 1700
• Number of Cores: 10
• Graphics Type: On-Board Graphics
• Cooling: Cooler Not Included
• Boxed?: Boxed

Overview

Intel® Gaussian & Neural Accelerator Intel® Gaussian & Neural Accelerator (GNA) is an ultra-low power accelerator block designed to run audio and speed-centric AI workloads. Intel® GNA is designed to run audio based neural networks at ultra-low power, while simultaneously relieving the CPU of this workload. Intel® Deep Learning Boost (Intel® DL Boost) A new set of embedded processor technologies designed to accelerate AI deep learning use cases. It extends Intel AVX-512 with a new Vector Neural Network Instruction (VNNI) that significantly increases deep learning inference performance over previous generations. Intel® Speed Shift Technology Intel® Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency. Intel® Turbo Boost Technology Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t. Intel® 64 Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory. Idle States Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states. Thermal Monitoring Technologies Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor (DTS) detects the core's temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits. Intel® Volume Management Device (VMD) Intel® Volume Management Device (VMD) provides a common, robust method of hot plug and LED management for NVMe-based solid state drives.

Processor
Processor generation	13th gen Intel® Core™ i5
Processor manufacturer	Intel
Processor codename	Raptor Lake
Processor cache	20 MB
Processor ARK ID	230495
Processor model	i5-13400
Processor threads	16
Processor operating modes	64-bit
Processor boost frequency	4.6 GHz
Processor family	Intel® Core™ i5
Processor cores	10
Box	Yes
Processor socket	LGA 1700
Processor cache type	Smart Cache
Performance cores	6
Efficient cores	4
Performance-core boost frequency	4.6 GHz
Performance-core base frequency	2.5 GHz
Efficient-core boost frequency	3.3 GHz
Efficient-core base frequency	1.8 GHz
Processor base power	65 W
Maximum turbo power	154 W
Maximum number of DMI lanes	8
Memory
Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR4-SDRAM, DDR5-SDRAM
Memory channels	Dual-channel
Memory bandwidth (max)	76.8 GB/s
Graphics
Discrete graphics card	No
On-board graphics card outputs supported	Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
On-board graphics card maximum resolution (DisplayPort)	7680 x 4320 pixels
Number of execution units	24
On-board graphics card ID	0x4682/0xA782
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)	5120 x 3200 pixels
On-board graphics card refresh rate at maximum resolution (HDMI)	60 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	120 Hz
Number of displays supported (on-board graphics)	4
On-board graphics card maximum resolution (HDMI)	4096 x 2160 pixels
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card model	Intel UHD Graphics 730
On-board graphics card	Yes
On-board graphics card dynamic frequency (max)	1550 MHz
On-board graphics card base frequency	300 MHz
Discrete graphics card model	Not available
Multi-Format Codec Engines	1
Technical details
Intel® Secure Key	Yes
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Quick Sync Video Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
PCI Express slots version	4.0, 5.0
PCI Express configurations	1x16+1x4, 2x8+1x4
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Scalability	1S
L2 cache	9728 KB
Intel VT-x with Extended Page Tables (EPT)	Yes
Embedded options available	Yes
CPU configuration (max)	1
Graphics output	eDP 1.4b, DP 1.4a, HDMI 2.1
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Market segment	Desktop
Launch date	Q1'23
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
OpenCL version	3.0
Features
On-board graphics card ID	0x4682/0xA782
Maximum number of PCI Express lanes	20
Processor package size	45 x 37.5 mm
Processor ARK ID	230495
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	4.0, 5.0
PCI Express configurations	1x16+1x4, 2x8+1x4
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Scalability	1S
Embedded options available	Yes
CPU configuration (max)	1
Market segment	Desktop
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	740.17B1
Use conditions	PC/Client/Tablet
Direct Media Interface (DMI) Revision	4.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Intel Turbo Boost Max Technology 3.0	No
Intel® Speed Shift Technology	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Intel® Quick Sync Video Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Boot Guard	Yes
Intel® Volume Management Device (VMD)	Yes
Intel® Deep Learning Boost (Intel® DL Boost)	Yes
Mode-based Execute Control (MBE)	Yes
Intel® Control-flow Enforcement Technology (CET)	Yes
Intel® Thread Director	Yes
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0	Yes
Intel® Standard Manageability (ISM)	Yes
Operational conditions
Tjunction	100 °C
Logistics data
Harmonized System (HS) code	8542310001
Weight & dimensions
Processor package size	45 x 37.5 mm
Other features
L2 cache	9728 KB
CPU configuration (max)	1
Graphics output	eDP 1.4b, DP 1.4a, HDMI 2.1
