Intel Arc A580, 2000MHz, 8GB GDDR6, 256 bit, PCI Express x16 4.0, 1 x HDMI (2.0b), 3 x DP (2.0), DirectX 12 Ultimate, OpenGL 4.6

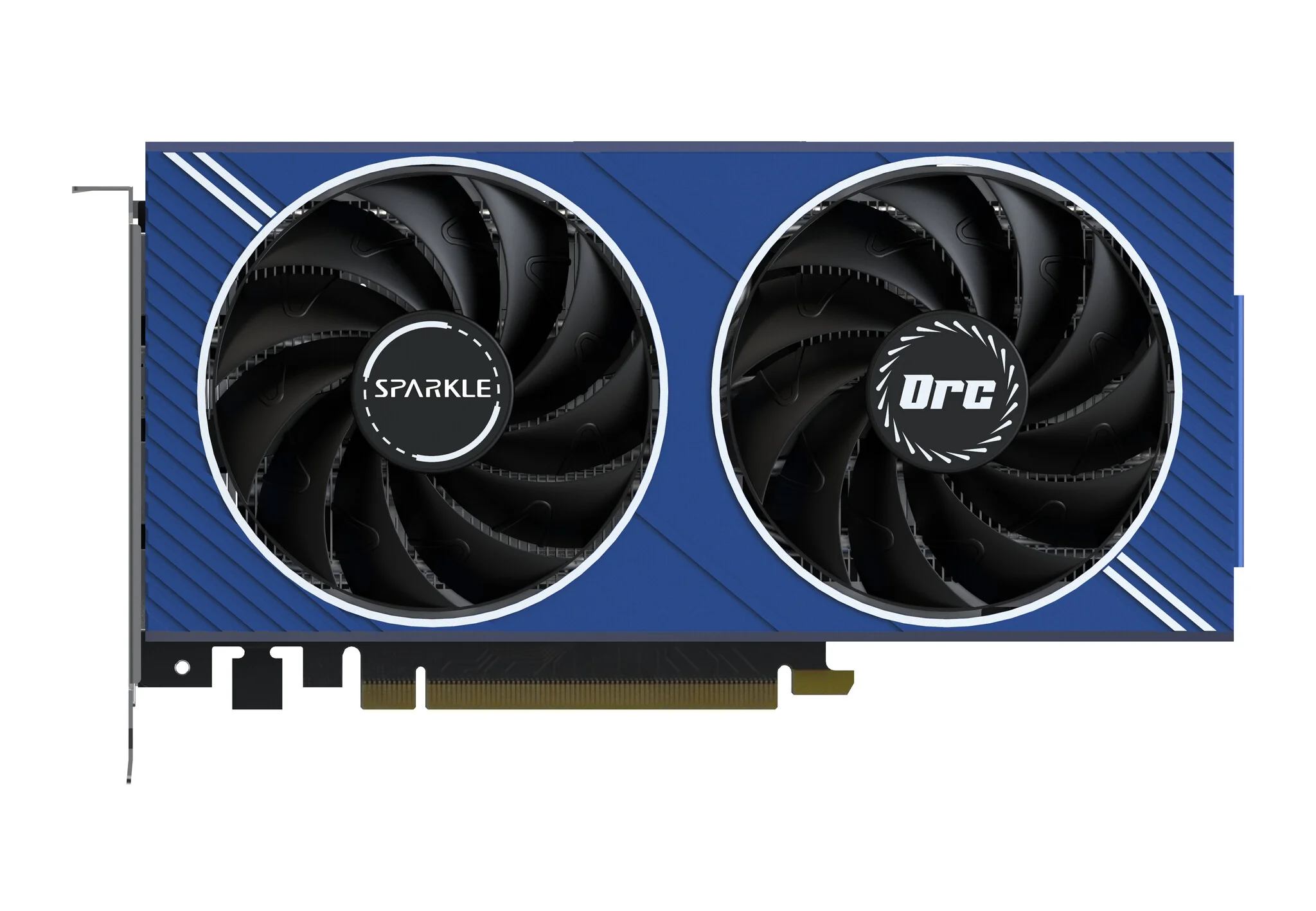

The SPARKLE Intel Arc A580 ORC OC Edition is ready to level up your performance. Experience
advanced fast-paced gaming and unleash your creativity with brand new Intel Arc A580.
ORC Series equipped TORN Cooling with double customized AXL fans, 2.2-slot design and full-metal
backplate for compatibility with all types of gaming case. ORC series also has patented(pending)
ThermalSync™, which allow users monitor their GPU temperatures at all times.
| Processor |
|---|
| Processor frequency |
2000 MHz |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
Arc A580 |
| Graphics processor family |
Intel |
| Memory |
|---|
| Memory bandwidth (max) |
512 GB/s |
| Data transfer rate |
16 Gbit/s |
| Memory bus |
256 bit |
| Graphics card memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Ports & interfaces |
|---|
| DisplayPort version |
2.0 |
| HDMI version |
2.0b |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express x16 4.0 |
| Performance |
|---|
| Video formats supported |
VP9 |
| Intel® Xe Matrix Extensions (Intel® XMX) Engines |
384 |
| Xe-cores |
24 |
| Dual Link DVI |
No |
| OpenCL version |
3.0 |
| OpenGL version |
4.6 |
| DirectX version |
12 Ultimate |
| TV tuner integrated |
No |
| Design |
|---|
| Product colour |
Black, Blue, Silver |
| Number of slots |
2.2 |
| Number of fans |
2 fan(s) |
| Cooling type |
Active |
| Power |
|---|
| Minimum system power supply |
600 W |
| System requirements |
|---|
| Linux operating systems supported |
Ubuntu 22.04 |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Weight & dimensions |
|---|
| Depth |
101 mm |
| Height |
40.9 mm |
| Width |
222 mm |
| Weight |
742 g |
| Packaging data |
|---|
| Package type |
Box |
