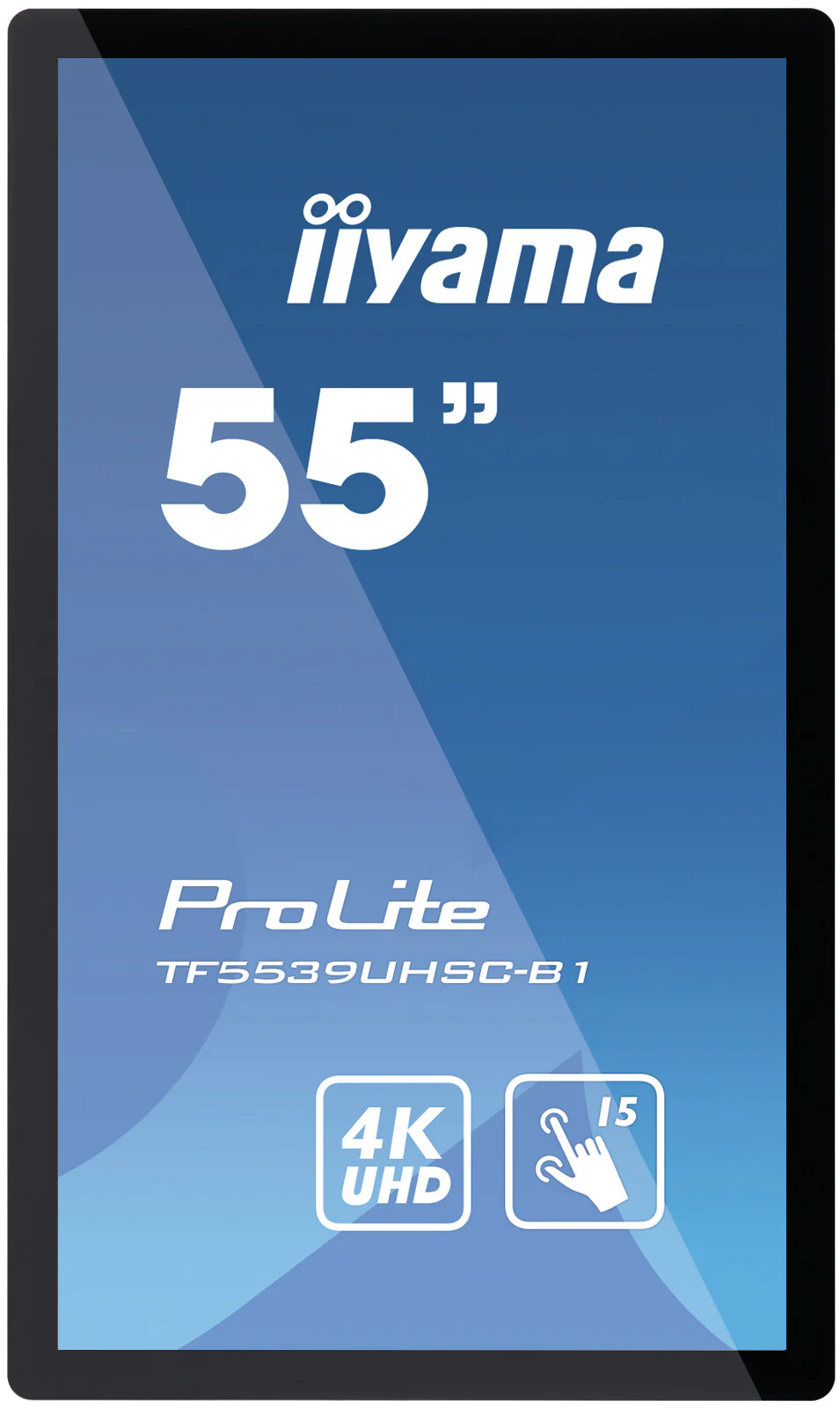

iiyama ProLite TF5539UHSC-B1AG computer monitor 139.7 cm (55") 3840 x 2160 pixels 4K Ultra HD LED Touchscreen Multi-user Black
iiyama ProLite TF5539UHSC-B1AG computer monitor 139.7 cm (55") 3840 x 2160 pixels 4K Ultra HD LED Touchscreen Multi-user Black

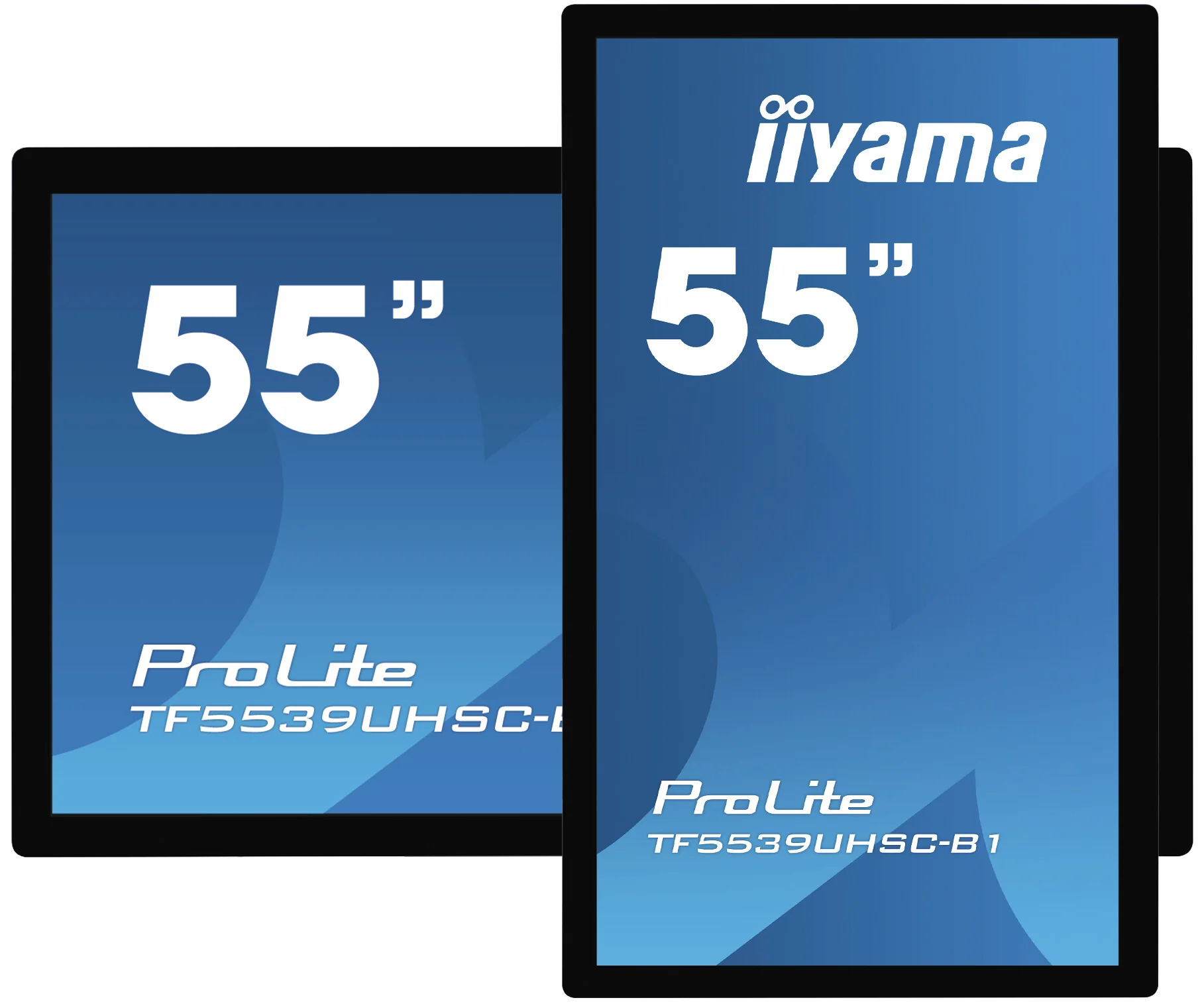

55" Open Frame PCAP interactive large format display with 15pt touch capability, IPS panel technology and touch through glass function for landscape, portrait or face up use
The 4K UHD (3840x2160) Open Frame TF5539UHSC-B1AG with Touch-Through-Glass function guarantees a seamless and accurate touch response for true kiosk integration or interactive behind-glass-retail applications. The IPS panel technology offers exceptional colour performance and wide viewing angles, making it a perfect solution for interactive shop windows, education, kiosks and in-store communications. Featuring a metal housing with 60950-1 ball-drop proof, scratch-resistant and edge-to-edge glass, this display can be installed in the most demanding environments for an 24/7 usage and in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF5539UHSC-B1AG can be equipped with optional external mounting brackets (OMK4-2) making it an ideal solution for kiosk integrators and interactive multimedia.
IPS TECHNOLOGY
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
| Display | |
|---|---|
| Display brightness | 500 cd/m² |
| Surface hardness | 7H |
| Display diagonal (metric) | 139 cm |
| Horizontal scan range | 30 - 83 kHz |
| Pixel pitch | 0.315 x 0.315 mm |
| Display number of colours | 1.073 billion colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1100:1 |
| Screen shape | Flat |
| Response time | 8 ms |
| Number of simultaneous touchpoints | 15 |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Touchscreen type | Multi-user |
| Panel type | IPS |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 3840 x 2160 pixels |
| Display diagonal | 139.7 cm (55") |
| Performance | |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in microphone | No |
| RMS rated power | 16 W |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Certification | CB, CE, EAC, RoHS, ErP, WEEE, cULus, REACH |
| Glass thickness | 4 mm |
| International Protection (IP) code | IP54 |
| Housing material | Metal |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| RS-232C | Yes |
| HDCP | Yes |
| Microphone in | Yes |
| Audio output | 1 |
| Audio input | 1 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4/2.0 |
| HDMI ports quantity | 2 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Touch port | Yes |
| Ergonomics | |
|---|---|
| Number of OSD languages | 8 |
| On Screen Display (OSD) languages | German, Dutch, English, Spanish, French, Italian, Polish, Russian |
| On Screen Display (OSD) | Yes |
| Wall mountable | Yes |
| Panel mounting interface | 600 x 400 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 155 W |
| Energy consumption (SDR) per 1000 hours | 151 kWh |
| Energy efficiency class (SDR) | G |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |
|---|---|
| Cables included | AC, DisplayPort, HDMI, USB |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 41 kg |
| Height (without stand) | 749.4 mm |
| Depth (without stand) | 68 mm |
| Width (without stand) | 1271.5 mm |
| Packaging data | |
|---|---|
| Package weight | 46.5 kg |
| Package height | 930 mm |
| Package depth | 245 mm |
| Package width | 1400 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | CE, REACH, RoHS, WEEE |
| General | |
|---|---|
| Product Family | ProLite |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
| Other features | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Mean time between failures (MTBF) | 50000 h |
| Display viewable area (HxV) | 1209.6 x 680.4 mm |
| Placement supported | Horizontal/Vertical |
