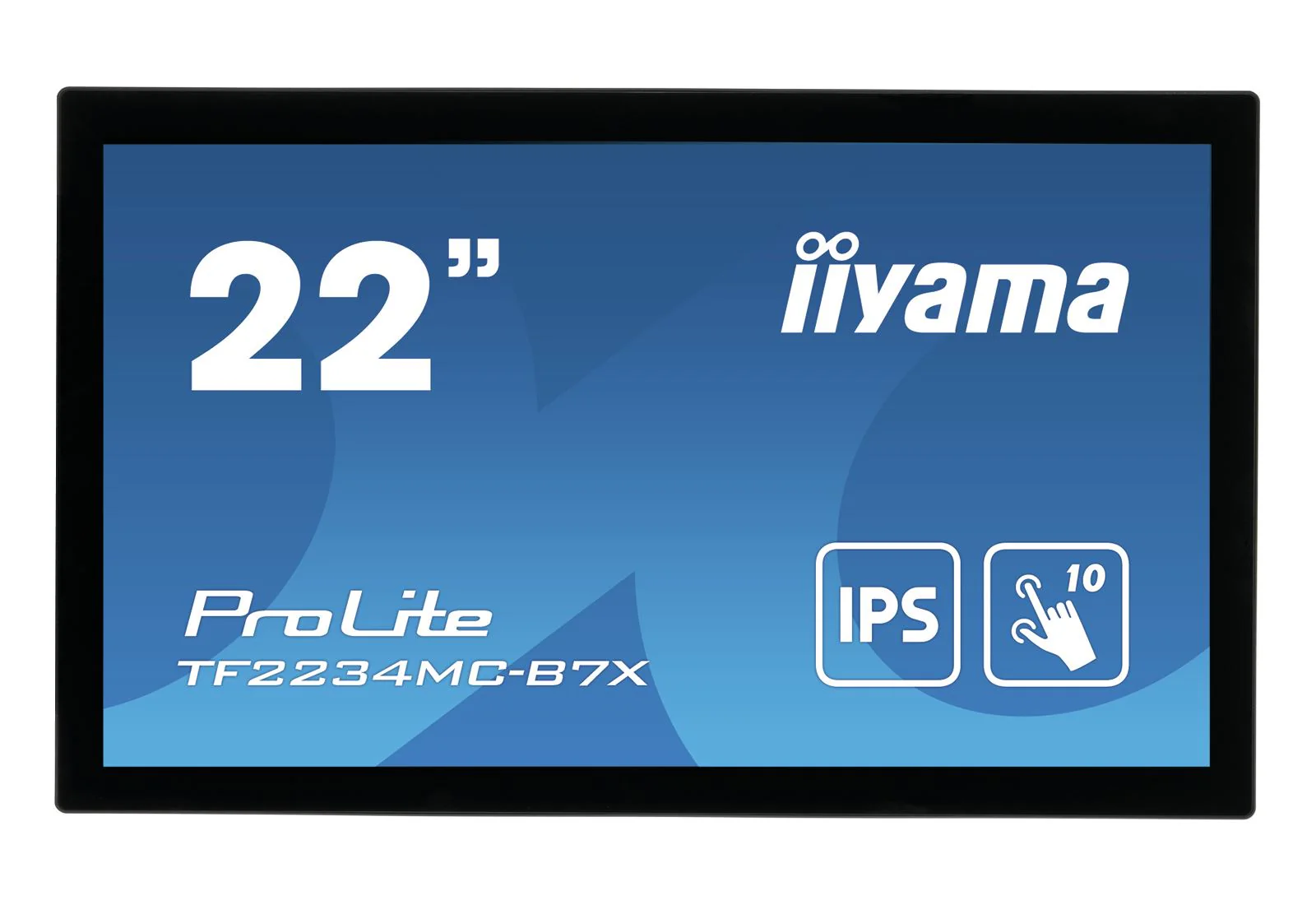

iiyama ProLite TF2234MC-B7X Computer Monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black

Key Features

• Display Size: 21.5 Inches
• Display Resolution: 1920 x 1080
• Aspect Ratio: 16:09
• Display Type: LED
• Speakers: No Speakers
• Camera: No Camera
• Touchscreen: Touchscreen

Overview

The ProLite TF2234MC-B7X uses 10 pt Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage, kiosk integrators, Instore Retail, Gaming and Interactive Presentations. In addition to the superb image quality, the monitor comes with IP65 rating, which means it is dust and water resistant, and with Touch-Through-Glass technology delivering seamless and accurate touch response for true kiosk integration or behind-glass-retail. For ease of integration, this monitor can be equipped with optional external mounting brackets (OMK1-1). IPS TECHNOLOGY IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications. TOUCH THROUGH-GLASS This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants. TOUCH TECHNOLOGY - CAPACITIVE This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen. SCRATCH RESISTANCE Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched. ANTI-FINGERPRINT COATING This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.

Display
HDCP	Yes
Screen shape	Flat
Display number of colours	16.78 million colours
Native aspect ratio	16:9
HD type	Full HD
Display technology	LED
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.247 x 0.247 mm
Horizontal scan range	30 - 84 kHz
Display resolution	1920 x 1080 pixels
Response time	8 ms
Display diagonal	54.6 cm (21.5")
Contrast ratio (typical)	1000:1
Surface hardness	7H
Touchscreen type	Multi-user
Touchscreen	Yes
Number of simultaneous touchpoints	10
Panel type	IPS
Touch technology	Multi-touch
Touchscreen technology	Projected capacitive system
Display brightness	350 cd/m²
Performance
Built-in microphone	No
Built-in camera	No
AMD FreeSync	No
NVIDIA G-SYNC	No
Management features
On Screen Display (OSD)	Yes
Number of OSD languages	8
On Screen Display (OSD) languages	Czech, German, English, Spanish, French, Italian, Japanese, Russian
Multimedia
Built-in microphone	No
Built-in camera	No
Design
Certification	CE, EAC, RoHS, ErP, WEEE, cULus, REACH
Product colour	Black
International Protection (IP) code	IP65
Glass thickness	1.5 mm
Camera
Built-in camera	No
Ports & interfaces
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes
HDMI	Yes
USB Touch port	Yes
Technical details
Height (without stand)	31.4 cm
Depth (without stand)	4.6 cm
Width (without stand)	51.8 cm
Placement supported	Horizontal/Vertical
HDMI	Yes
Display viewable area (HxV)	476 x 267.7 mm
Built-in microphone	No
Product colour	Black
Sustainability certificates	CE, ErP, REACH, RoHS
Power supply type	DC
Surface hardness	7H
Touchscreen type	Multi-user
Touchscreen	Yes
Number of simultaneous touchpoints	10
Ergonomics
Wall mountable	Yes
Panel mounting interface	100 x 100 mm
On Screen Display (OSD)	Yes
Number of OSD languages	8
On Screen Display (OSD) languages	Czech, German, English, Spanish, French, Italian, Japanese, Russian
Power
Power supply type	DC
Power consumption (standby)	1.5 W
Power consumption (typical)	18 W
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	F
Energy consumption (SDR) per 1000 hours	19 kWh
Packaging content
Cables included	AC, DisplayPort, HDMI, USB
Weight & dimensions
Height (without stand)	31.4 cm
Depth (without stand)	4.6 cm
Width (without stand)	51.8 cm
Weight (without stand)	4.4 kg
Package width	610 mm
Package depth	160 mm
Package height	405 mm
Package weight	6.8 kg
Packaging data
Package width	610 mm
Package depth	160 mm
Package height	405 mm
Package weight	6.8 kg
Cables included	AC, DisplayPort, HDMI, USB
Sustainability
Sustainability certificates	CE, ErP, REACH, RoHS
Logistics data
Harmonized System (HS) code	85285210
Other features
Height (without stand)	31.4 cm
Depth (without stand)	4.6 cm
Width (without stand)	51.8 cm
HDMI	Yes
Surface hardness	7H
Energy efficiency scale	A to G
Power supply type	DC
Placement supported	Horizontal/Vertical
Display viewable area (HxV)	476 x 267.7 mm
Touchscreen type	Multi-user
Touchscreen	Yes
Number of simultaneous touchpoints	10
Certificates
Certification	CE, EAC, RoHS, ErP, WEEE, cULus, REACH
