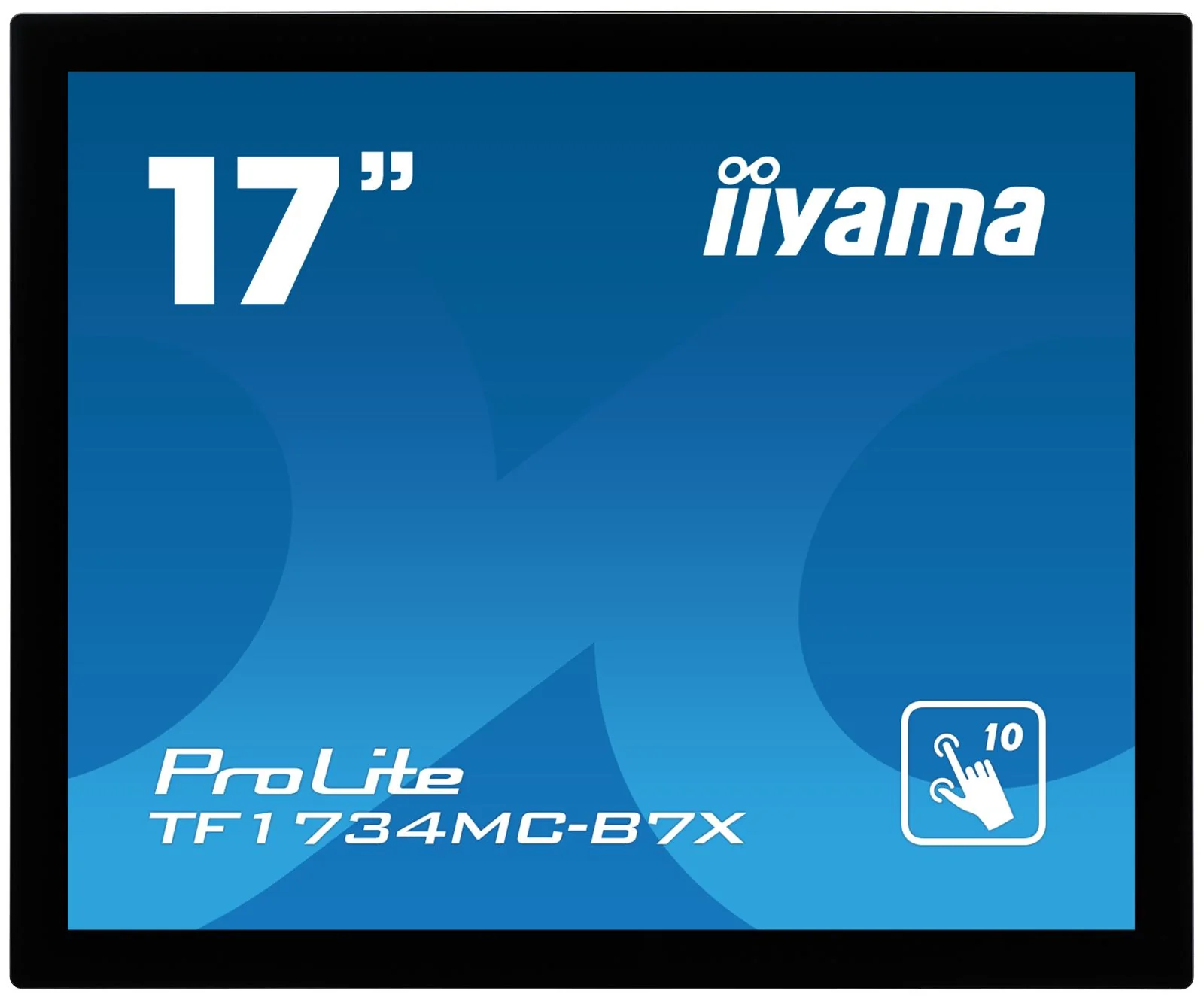

iiyama ProLite TF1734MC-B7X Computer Monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LED Touchscreen Black
iiyama ProLite TF1734MC-B7X Computer Monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LED Touchscreen Black
iiyama ProLite TF1734MC-B7X Computer Monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LED Touchscreen Black
Key Features
- Display Size: 17 Inches
- Display Resolution: 1280 x 1024
- Aspect Ratio: 05:04
- Display Type: LED
- Speakers: No Speakers
- Camera: No Camera
- Touchscreen: Touchscreen
Overview
17’’ 10pt touch Open Frame monitor with Touch Through-Glass function The ProLite TF1734MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. TOUCH THROUGH-GLASS This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants. SCRATCH RESISTANCE Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched. IP The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction. OPEN FRAME BRACKETS This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.
| Display | |
|---|---|
| HDCP | Yes |
| Screen shape | Flat |
| Display number of colours | 16.78 million colours |
| Native aspect ratio | 5:4 |
| HD type | SXGA |
| Display technology | LED |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31.4 - 80 kHz |
| Aspect ratio | 5:4 |
| Viewable size, horizontal | 27.1 cm |
| Viewable size, vertical | 33.8 cm |
| Viewable size diagonal | 43 cm |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Supported video modes | 1024p |
| Display resolution | 1280 x 1024 pixels |
| Response time | 5 ms |
| Display diagonal | 43.2 cm (17") |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | TN |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 350 cd/m² |
| Performance | |
| Built-in microphone | No |
| Built-in camera | No |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Plug and Play | Yes |
| Multimedia | |
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH |
| Product colour | Black |
| International Protection (IP) code | IP65 |
| Glass thickness | 6 mm |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| USB required | Yes |
| USB Touch ports quantity | 1 |
| USB Touch port | Yes |
| Technical details | |
| Height (without stand) | 30.7 cm |
| Depth (without stand) | 4.75 cm |
| Width (without stand) | 36.9 cm |
| Placement supported | Horizontal/Vertical |
| HDMI | Yes |
| Display viewable area (HxV) | 338 x 270 mm |
| Built-in microphone | No |
| Product colour | Black |
| Power supply type | DC |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |
| VESA mounting | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Plug and Play | Yes |
| Power | |
| Power supply type | DC |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 13 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| AC adapter output voltage | 12 V |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 11 kWh |
| Packaging content | |
| Cables included | AC, DisplayPort, HDMI, USB |
| Weight & dimensions | |
| Height (without stand) | 30.7 cm |
| Depth (without stand) | 4.75 cm |
| Width (without stand) | 36.9 cm |
| Weight (without stand) | 3.6 kg |
| Package width | 455 mm |
| Package depth | 145 mm |
| Package height | 387 mm |
| Package weight | 4.9 kg |
| Packaging data | |
| Package width | 455 mm |
| Package depth | 145 mm |
| Package height | 387 mm |
| Package weight | 4.9 kg |
| Cables included | AC, DisplayPort, HDMI, USB |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| Height (without stand) | 30.7 cm |
| Depth (without stand) | 4.75 cm |
| Width (without stand) | 36.9 cm |
| HDMI | Yes |
| Energy efficiency scale | A to G |
| Power supply type | DC |
| Placement supported | Horizontal/Vertical |
| Display viewable area (HxV) | 338 x 270 mm |
| Connection to PC | Yes |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Certificates | |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH |
